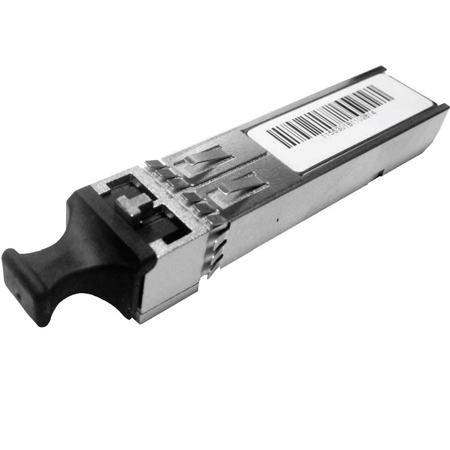

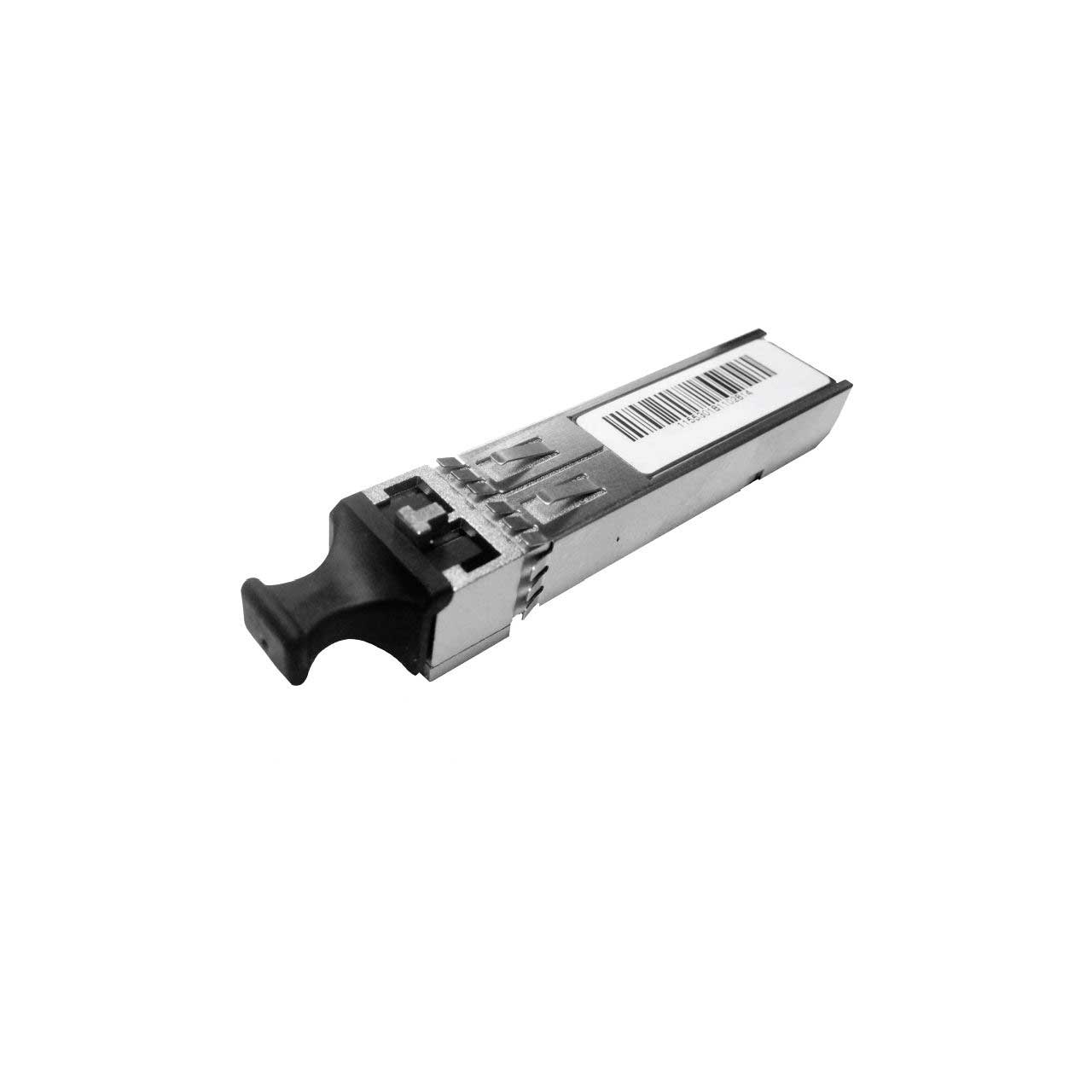

LYNX Technik OH-TX-12-1310 Single Optical Transmitter (TX) SFP Module - CWDM capable - 10km - Fiber LC connectors

Name: LYNX Technik OH-TX-12-1310 Single Optical Transmitter (TX) SFP Module - CWDM capable - 10km - Fiber LC connectors
Brand: LYNX Technik Inc
SKU: LNX-OH-TX-121310
Price: 584.25 USD
Availability: PreSale

ITEM #: LNX-OH-TX-121310 MFG #: OH-TX-12-1310

LYNX Technik Inc

List Price:

$615.00

Our Price:

$584.25

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

OH-TX-12-1310 - Overview

12Gbit SDI Optical Transmitter - CWDM

The OH-TX-12-1310 12G SDI optical transmitter is a CWDM fiber plug in option for select LYNX Technik products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over a fiber link. All 18 wavelength selections are available for CWDM applications and provide support for distances up to 10km. The module supports 270Mbit / 1.485Gbit (1.5G) / 2.97Gbit (3G) / 5.94Gbit (6G) and 11.88Gbit (12G) SDI signals conforming to SMPTE 2082, SMPTE 424M, 292M.

A socket, or "cage" is provided for the SFP in the supporting LYNX Technik product for easy installation or upgrade. The SFP is hot swappable.

Features:
- SDI multi-rate optical transmitter for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI signals
- Support for SMPTE 2082, SMPTE 424M, SMPTE 292M
- 18 wavelength selections ITU-T G694.2
- For use with yellobrik and greenMachine
- Pluggable and hot swappable
- LC Connector - singlemode
- Lead free and RoHS compliant
Specifications:
- Size (not including connector - typ) 57mm x 13.4mm x 12.4mm.
- Weight 50g.
- SFP Connector pinning - MSA.
- Fiber connections LC - singlemode.
- Humidity (non condensing) - - 90%.
- Power Consumption - 135 mA, (min), 150 mA (max).
- Power Supply Voltage 3.1 VDC (min), 3.3 VDC (typ), 3.5VDC (max).
- Operating Temperature Range 5 degrees celsius - 40 degrees celsius.
- Linear Extinction Ratio (dB) 3.5.
- Data Rate (Mbps) 270 - 11880.
- Distance - 10km.
- Optical Power -2dBm - +3dBm.
- Wavelengths [ 8 according to ITU-T G694.2 ]: 1270, 1290, 1310, 1330,1350,1370,1390,1410,1430,1450,1470,1490,1510,1530, 1550, 1570, 1590, 1610 ]nm.
GTIN:
4250479325654
