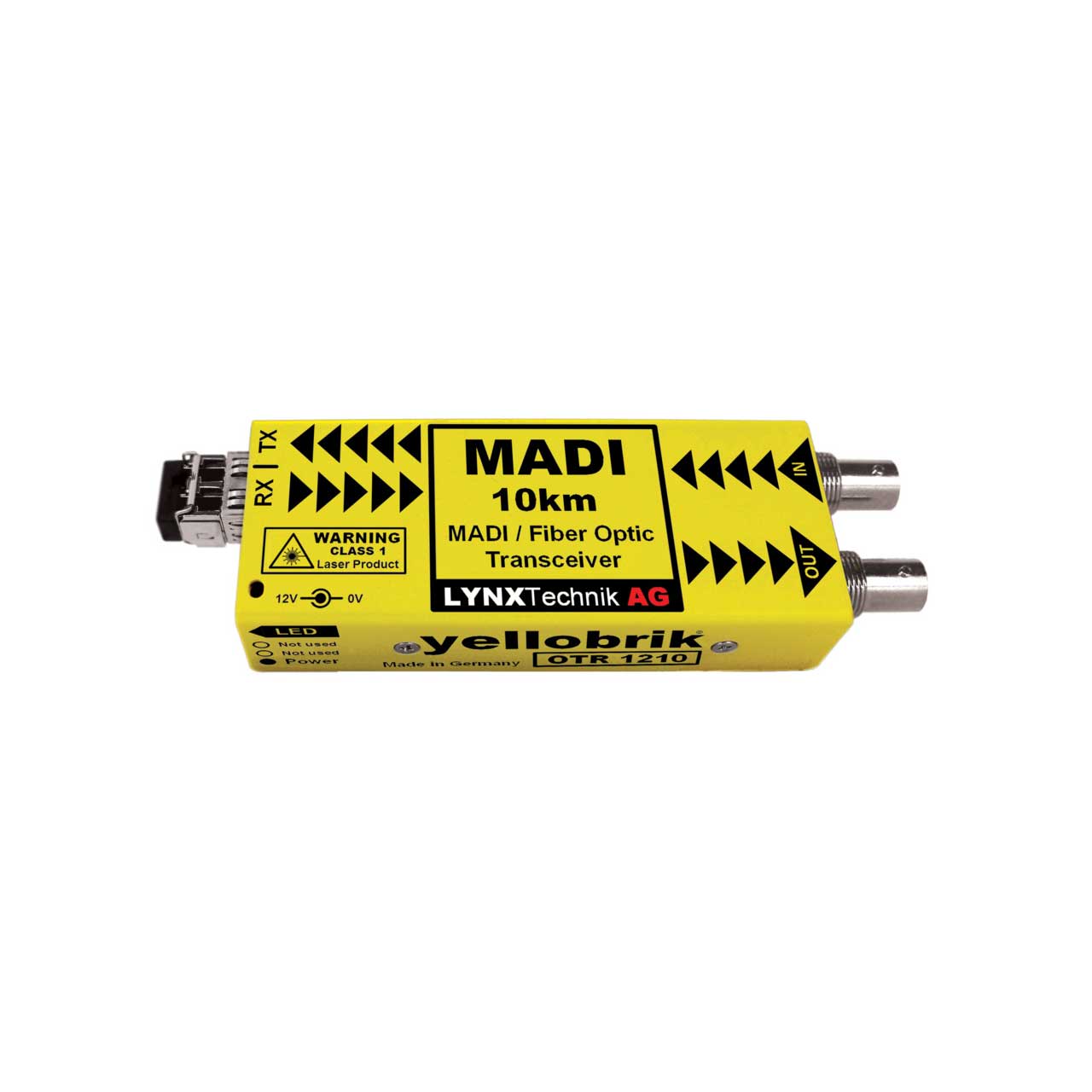

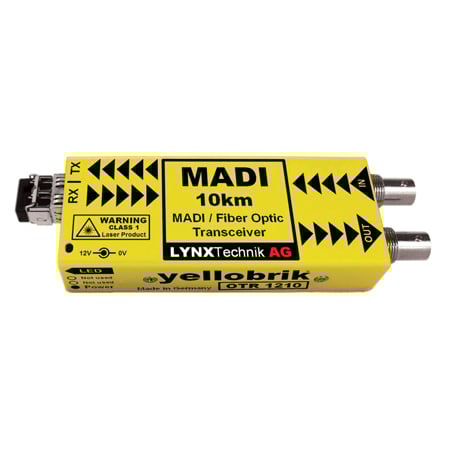

LYNX Technik Yellobrik OTR 1210MM MADI Coax to MADI Fiber Transceiver - 550 Meters - LC Connectors - Multimode Version

OTR 1210 MM - Overview

• Features:

  • MADI Optical to MADI Coaxial converter
  • Supports up to 64 channels of audio (IN and OUT)
  • Real time conversion with no degradation of signal quality
  • Singlemode and Multimode versions
  • Up to 10km (6.2 miles) using Singlemode fiber
  • Up to 550m (1804 feet) using Multimode fiber
  • Duplex LC optical connections
  • Supports hot swapping and hot plugging


• Specifications:

  • Coax Input
  • 1 x 75 Ohm BNC connector
  • Supported standards: AES10-2008
  • Cable length 250m ( Belden 1694A )


  • Coax Output
  • 1 x 75 Ohm BNC connector
  • Amplitude: 540mV P/P
  • Cable length 250m ( Belden 1694A )


  • Fiber Optic
  • 1 x fiber optic input
  • 1 x fiber optic output
  • Duplex connection using LC Connections
    Singlemode Version:
    Transmitter: 1310nm (-3dBm)
    Receiver sensitivity: 1260nm to 1620nm (-3dBm to -21dBm)
    Max. Distance 10km ( 6.2 miles )
    Multimode Version:
    Transmitter: 850nm ( -2dBm to -7dBm )
    Receiver sensitivity: 850nm ( 0dBm to -15dBm )
    Max. Distance 550m ( 1804 feet )

    Physical
  • Power: +12VDC @ 2.6W nominal - ( supports 7 - 16VDC input range ) LED power present indicator
  • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
  • Weight: 125g (4.4oz)
  • Ambient: 41 - 104°F 90% Humidity (non condensing)


• Item Includes:

  • OTR 1210 MM Module
  • AC power supply


• GTIN:

  4250479324688
