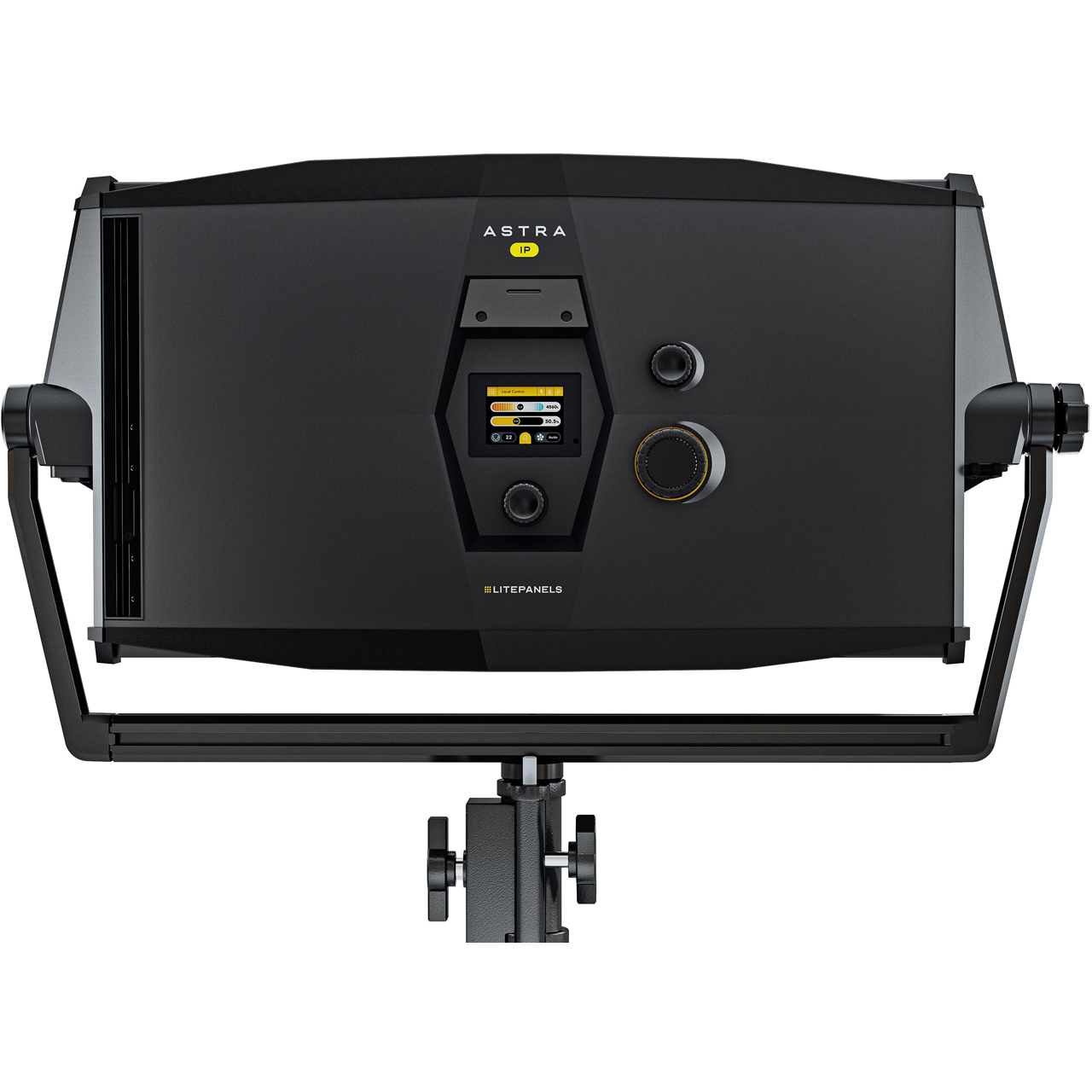

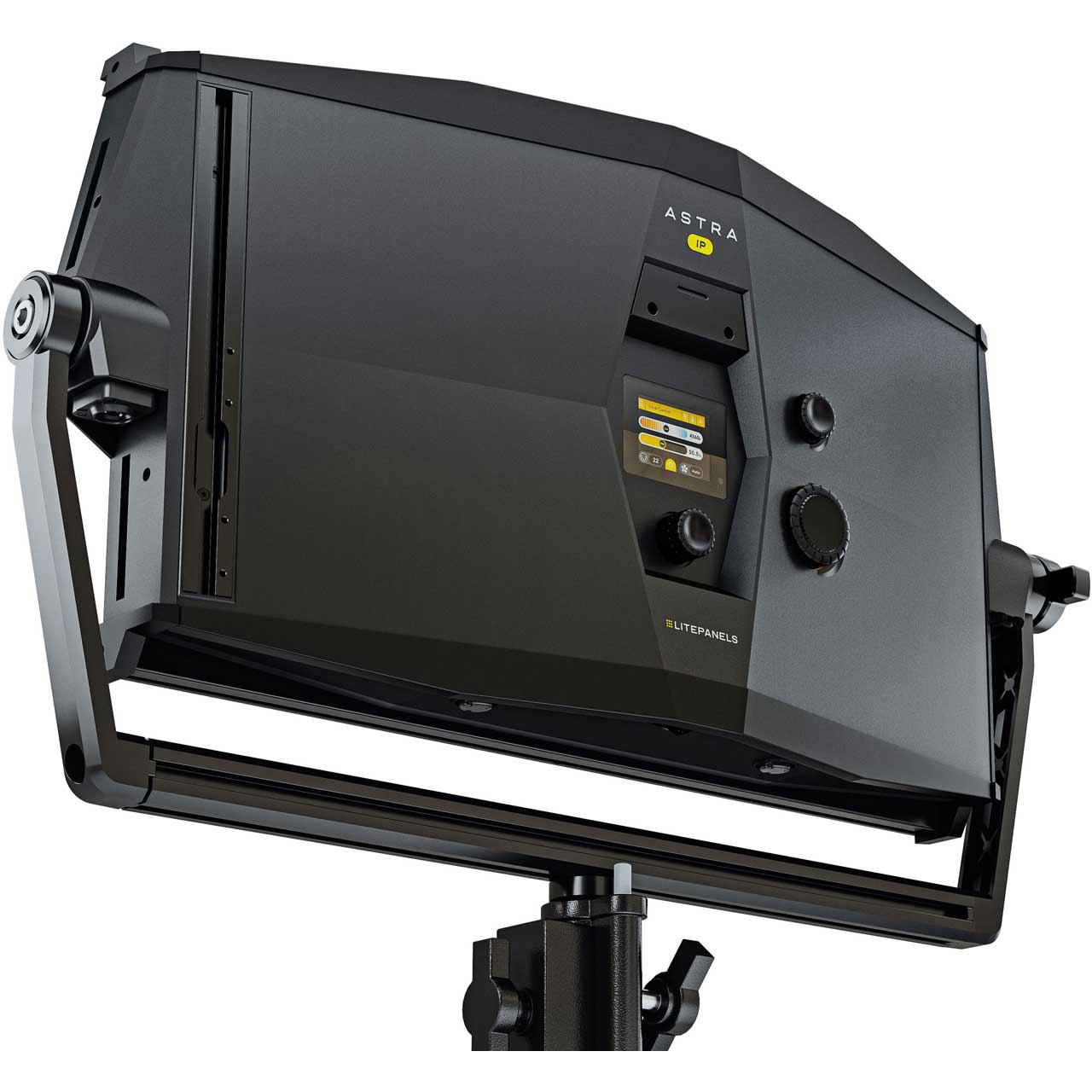

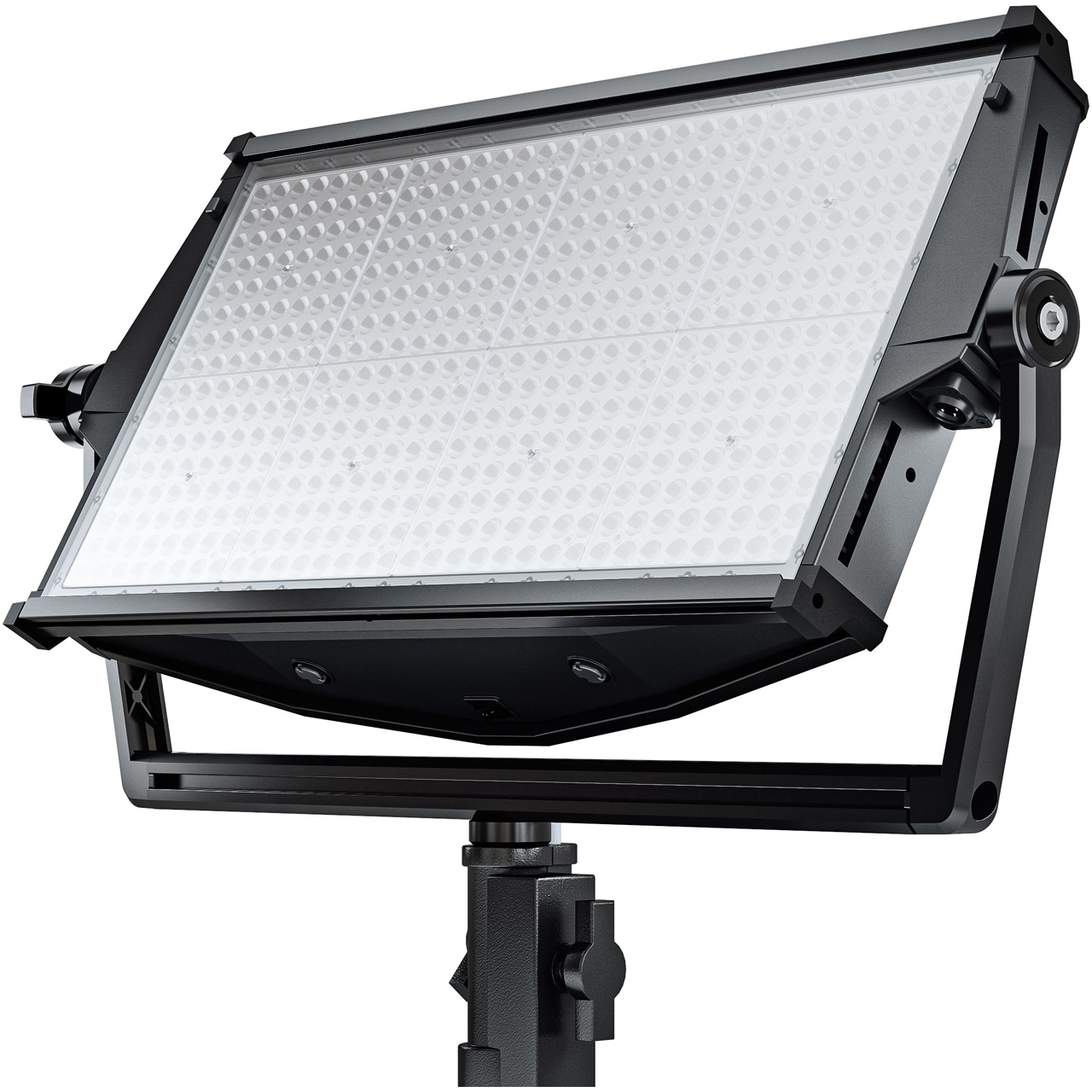

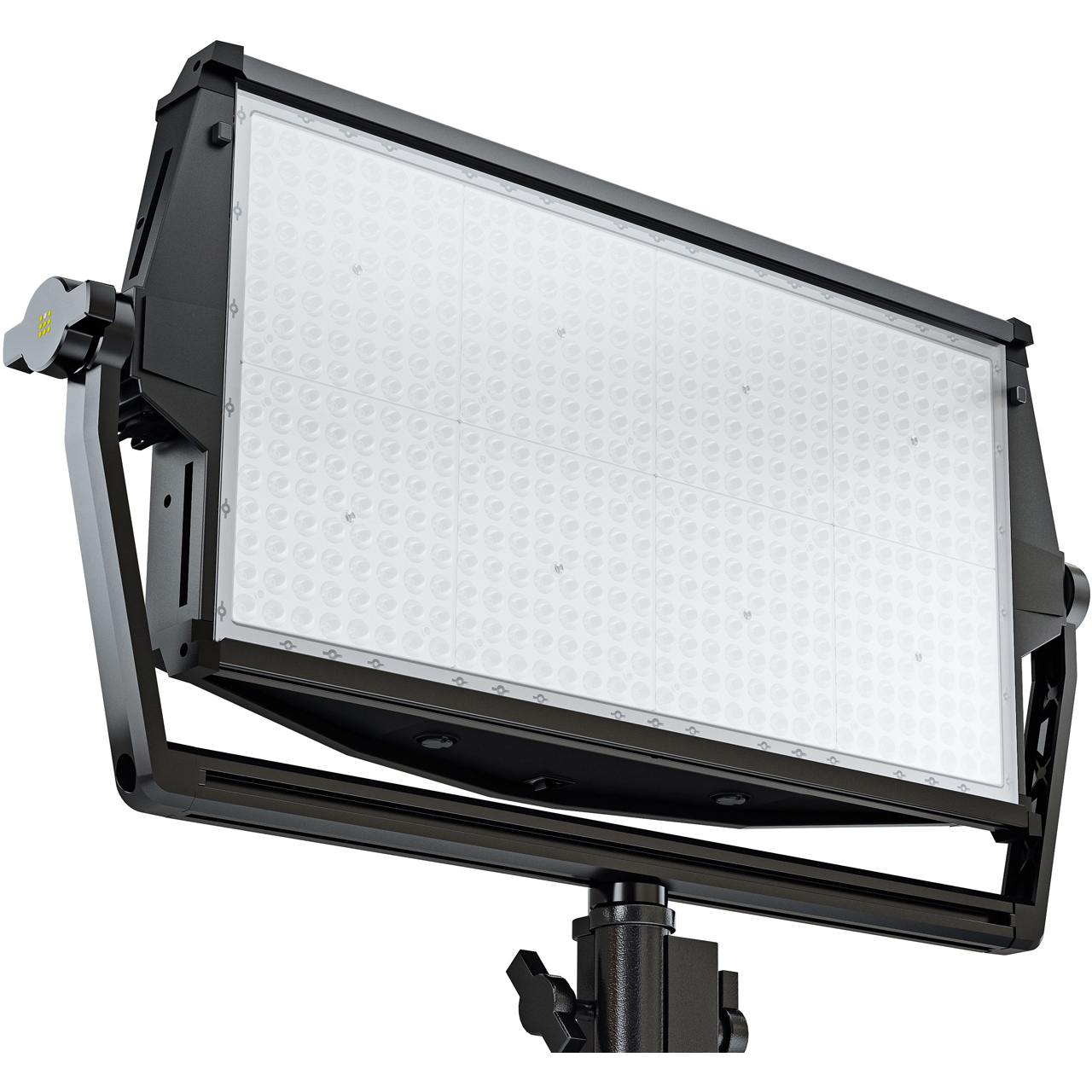

Litepanels 936-2301 Astra IP 2x1 Bi-Color LED Panel with Standard Yoke - 2700K to 6500K - US Power Cable

ITEM #: LPAN-936-2301 MFG #: 936-2301

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,200.00

Our Price:

$2,090.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


936-2301 - Overview

Water-resistant, weatherproof, and intended to perform in any environment!

The Litepanels Astra IP 936-2301 2x1 Bi-Color LED Panel delivers practical and high-quality white light for indoor and outdoor productions. The powerful 5,500 lux output of Astra IP 2x1 at 10ft/3m provides flexibility for diffusion or positioning at a distance. The optional Astra IP DMX module allows for precise control in a grid, while its IP65 rating and low 250W power draw allow use in tough outdoor conditions.

All-Weather Performance
The industry's best-selling Bi-Color LED panel has evolved. Astra IP is tough and water-resistant, delivering intense output in a lightweight 2x1 fixture with fast set up for high-performance broadcast lighting in demanding environments.

Power and Punch
Lighting for even the brightest location. With ultra-efficient LEDs and a tight beam angle, Astra IP produces output with impact. Command powerful, flattering, and accurate white light at any intensity, with or without diffusion. Adjust from 2,700K to 6,500K with instant confirmation on the clear LCD screen to match multiple fixtures with confidence.

Ready for Action
From the studio to the street, Astra IP always performs. Rated IP65, Astra IP defies rain, dust, or snow, for seamless operation, whatever the weather. Built tough with an integrated power supply, and optional Gold Mount, V-Mount and BP-U battery plates, Astra IP is the fast fixture that never backs down in any conditions.

  • Features:

    • Built tough: IP65-rated Bi-Color panel with 3-year warranty.
    • Powerful performance: High-output, intense beam.
    • True to life: Accurate color, with no shift at any intensity.
    • Control with confidence: Dual-dial system with LCD screen information.
    • Quick setup: Lightweight, designed for mounted or handheld operation.
    • Off-grid ready: Optional weatherproof battery brackets.
    • Control options: Integrated Bluetooth for app control. Optional Astra IP DMX module.
    • Customizable: Diffusion panel included with optional accessories.

  • Specifications:

    • Optical
    • LED Panel: Bi-Color
    • Beam Angle: 30°
    • Color Temperature Range: 2700°-6500°K
    • Daylight (5600°K) lux @10ft/3m: 5500 (No diff)
    • Tungsten (3200°K) lux @10ft/3m: 5200 (No diff)
    • CRI Average: 95
    • TCLI Average: 95
    • Interchangable Diffusers: Domed (not included), Medium (included)
    • Optics: 30° custom TIR lens

      Operational
    • Lighting Control Modes: CCT/FX with LCD menu control
    • Dimming Control: Constant Current 0-100% Continuous (flicker free)
    • Remote Control Options: Bluetooth [integrated], DMX, RDM [requires separate module]
    • Fan Control: Yes
    • USB Updates: Yes
    • Ambient Temp Operation: -4° to 113° F / - 20° to + 45° C
    • Estimated LED lifetime: 50,000+ hrs
    • Preset Options: Preset CCT modes with quick select, Customizable user presets with quick select

      Mechanical
    • Versions: Manual
    • Weight: 17.2lbs / 7.8kg (including yoke and power supply)
    • Mounting Method: 28mm Junior Pin

      Dimensions (without yoke)
    • Height: 12.3" / 31.3cm
    • Width: 24.9" / 63.2cm
    • Depth: 4.8" / 12.3cm

      Dimensions (with yoke)
    • Height: 16.8" / 42.6cm
    • Width: 27" / 68.7cm
    • Depth: 4.8" / 12.3cm

      Electrical
    • Nominal Power Draw: 250W
    • Power Supply: Internal
    • Mains Input: PowerCON True 1, 100-240 VAC / 50-60Hz
    • DC Input: 12-30V
    • IP Rating: IP65

  • Item Includes:

    • 1x Astra IP 2x1 Bi-Color LED Panel
    • 1x Astra IP 2x1 Medium Diffuser (937-0025)
    • 1x PowerCON True 1 Cable

  • Warranty:

    • 3-Year Warranty
