Litepanels 945-2301 Gemini 1x1 Hard RGBWW LED Panel with Standard Yoke and US Power Cable

ITEM #: LPAN-945-2301 MFG #: 945-2301

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,650.00

Our Price:

$2,517.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


945-2301 - Overview

The power to create extraordinary.
Power your imagination to create the extraordinary on screen. With an incredibly bright output of over 3,000 lux @10ft/3m, Gemini 1x1 Hard delivers the brightest and most accurate 1x1 light ever. Blast through a silk, build layers of diffusion or bounce light off a board, with precision control of hue, saturation, intensity, gels and effects, Gemini 1x1 Hard gives you the power to control and create your own extraordinary.

Ultra-bright, hard and soft light
With an outstanding output of over 3,000 lux @10ft/3m and a narrow 46-degree beam angle, Gemini Hard casts intense white or richly saturated color further than any other 1x1 LED panel. Remove the diffuser for an incredibly bright raw light - 20% more powerful than a 200W HMI - or use the ultralight and domed diffusers included with Gemini Hard to deliver perfect soft light with outstanding brightness.

Choice on demand for fast changing productions
The incredible power of Gemini Hard, expands the creative potential of a 1x1 panel. With more power to command and control, you can use a wide range of diffusion and creative light shaping tools, not possible with less powerful fixtures. Combined with full RGB control of over 16 million colors, 300 gels and 11 customizable special effects, the Gemini 1x1 Hard adapts to your imagination.

Naturally accurate in any scene
True to life color reproduction comes naturally with Gemini. With CRI and TLCI ratings of 98, Gemini 1x1 Hard delivers consistently accurate and dependable white light in any CCT from 2,700K - 10,000K with no color shift or flicker at any framerate, shutter angle, or at any intensity from 100-0.1%. You can be sure that everything in your scene, from close-up candlelight to brilliant sunlight, appears true to life and the skin tones of your on-screen talent are rendered perfectly.

Lightweight design - industrial strength
Tough enough to meet the rigorous demands of daily set life in the studio or on location, the compact and lightweight Gemini weighs just 13.2lbs/6kg for rapid rigging and easy transportation. Manufactured to industrial standards using durable, robust materials, Gemini is designed to protect your investment for years so you can rely on Gemini 1x1 Hard to work first time, every time.

  • Features:

    • The most powerful 1x1 panel
    • Over 3,000 lux at 10ft/3m (Daylight) with a 46° beam angle

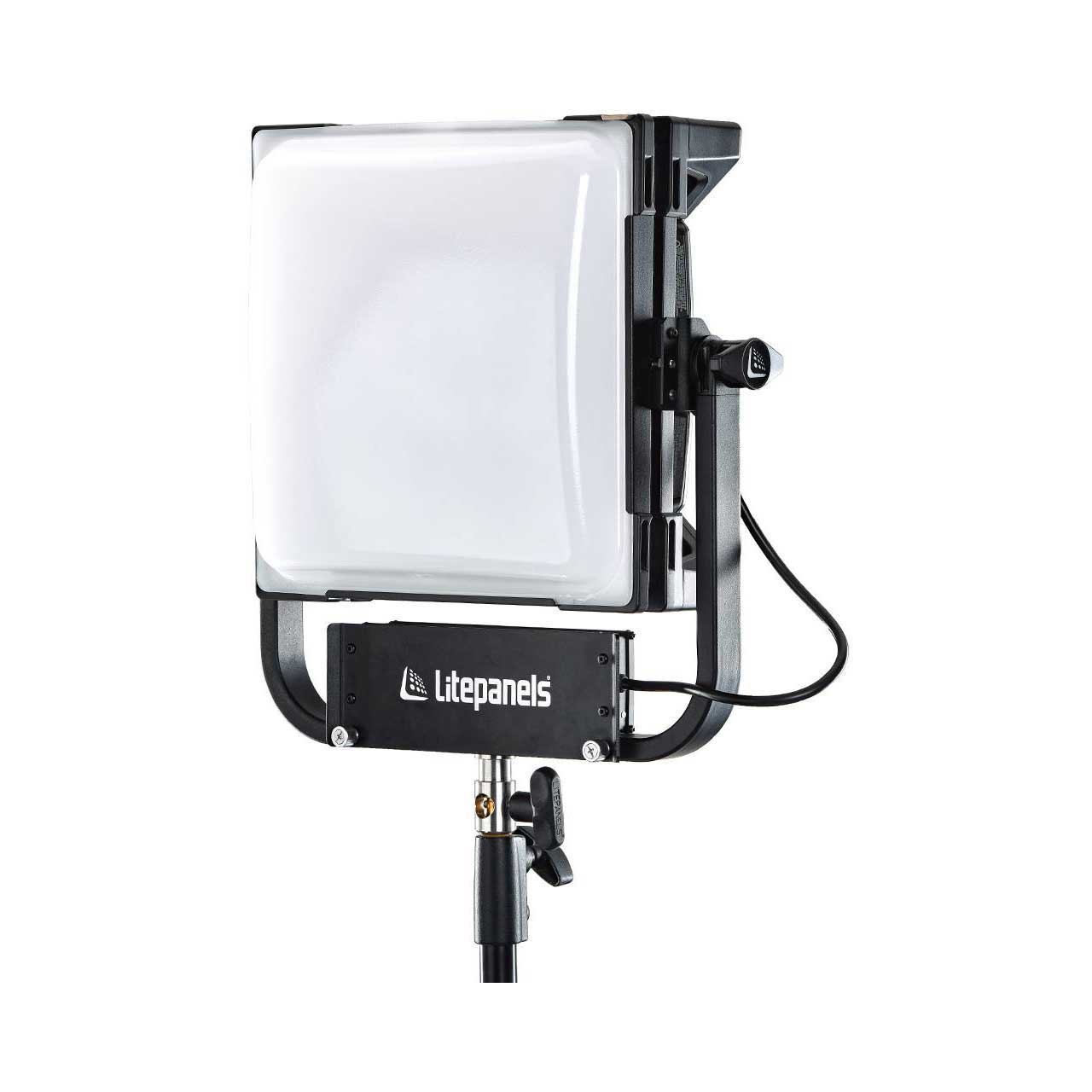

    • Ultra-light and domed diffusers included for softer light in an instant
    • Extended white color temperature range from 2,700-10,000K
    • Outstanding color accuracy, TLCI/CRI 98
    • Full RGBWW color gamut mixingÿ
    • Hue, Saturation and Intensity control
    • Full plus/minus green color correction
    • 0.1 - 100% automatic flicker-free dimming at any frame rate or shutter angle
    • Wired or wireless DMX & Bluetooth remote control options
    • Multi-voltage 100-240VAC; DC Input 13-28VDC
    • Optional mobile battery power with 100% intensity output
    • Lightweight: 13.2lbs / 6.0kg including yoke and power supply

  • Specifications:

    • Optical
    • LED Panel: RGBWW
    • Beam Angle: 46°
    • Beam Angle with Domed Diffusor: >100°
    • Color Temperature Range: 2,700°-10,000°K
    • Daylight (5600°K) (Lux @10ft/3m): 3023 (No Diff) 1003 (Domed diff)
    • Tungsten (3200°K) (Lux @10ft/3m): 2456 (No Diff) 912 (Domed diff)
    • CRI Average: 98
    • TCLI Average: 98
    • +/- Green-Magenta Adjustment: Continuously Variable
    • Interchangable Diffusers
      Ultra-Light (included)
      Light (not included)
      Medium (not included)
      Domed (included)
      Heavy (not included)
    • Optics: 46° custom TIR lens

      Operational
    • Lighting Control Modes: RGBWW/CCT/HSI/Gel/FX single dial with LCD menu control
    • Preset Options:
      6x preset CCT modes with quick select buttons
      6x customizable user presets with quick select buttons
    • Number of Gels: 300
    • Number of effects: 11
    • Dimming Control: Constant Current 0-100% Continuous
    • Remote Control Options: DMX, RDM, Apollo CRMX (requires optional dongle), WDMX (requires optional dongle), Bluetooth
      (requires optional dongle)
    • Fan Control: Yes
    • USB Updates: Yes
    • Ambient Temp Operation: -20° to +45° C
    • Estimated LED lifetime: 50,000+ hrs

      Mechanical
    • Versions: Manual, Pole Operated
    • Weight: Manual 13.25 lbs / 6kg (including yoke and power supply)
    • Pole Operated: 17.85 lbs / 8.1kg (including yoke and power supply)
    • Height: 12.6"" / 320 mm
    • Width: 12.6"" / 320 mm
    • Depth: 4.3"" / 110 mm
    • Mounting Method: TVMP

      Electrical
    • Nominal Power Draw: 200W
    • Power Supply: Yoke Mounted
    • Mains Input: IEC, 100-240 VAC / 50-60Hz
    • IP Rating: IP20
    • Mobile Power Options: Gemini 1x1 14.4V Battery Plate (fits to yoke or directly on fixture, not included)

  • Item Includes:

    • 1x Gemini 1x1 Hard

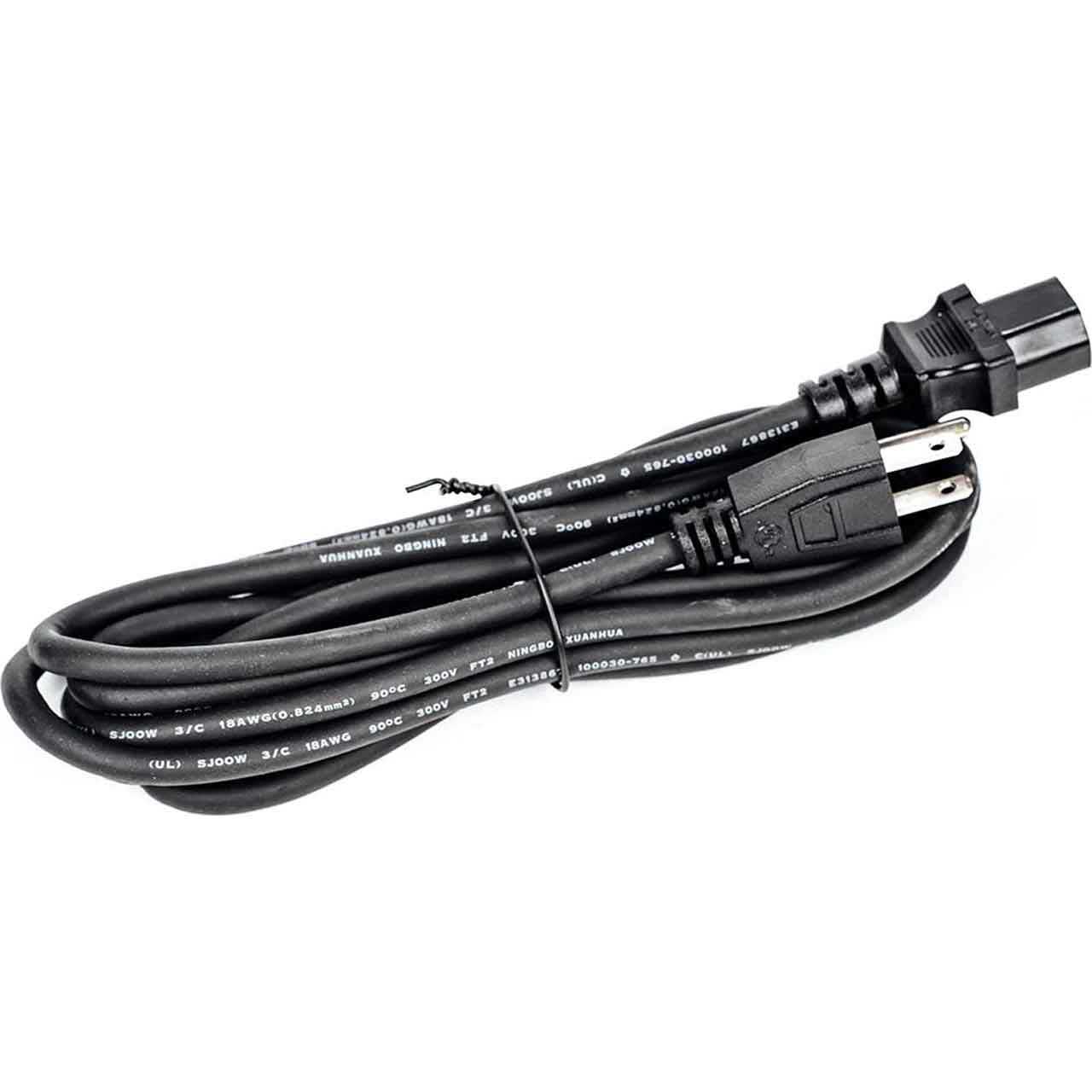

    • 1x Power Cable
    • 1x Ultra Light Diffusion
    • 1x Domed Diffusion

  • GTIN:

    5060520689784
