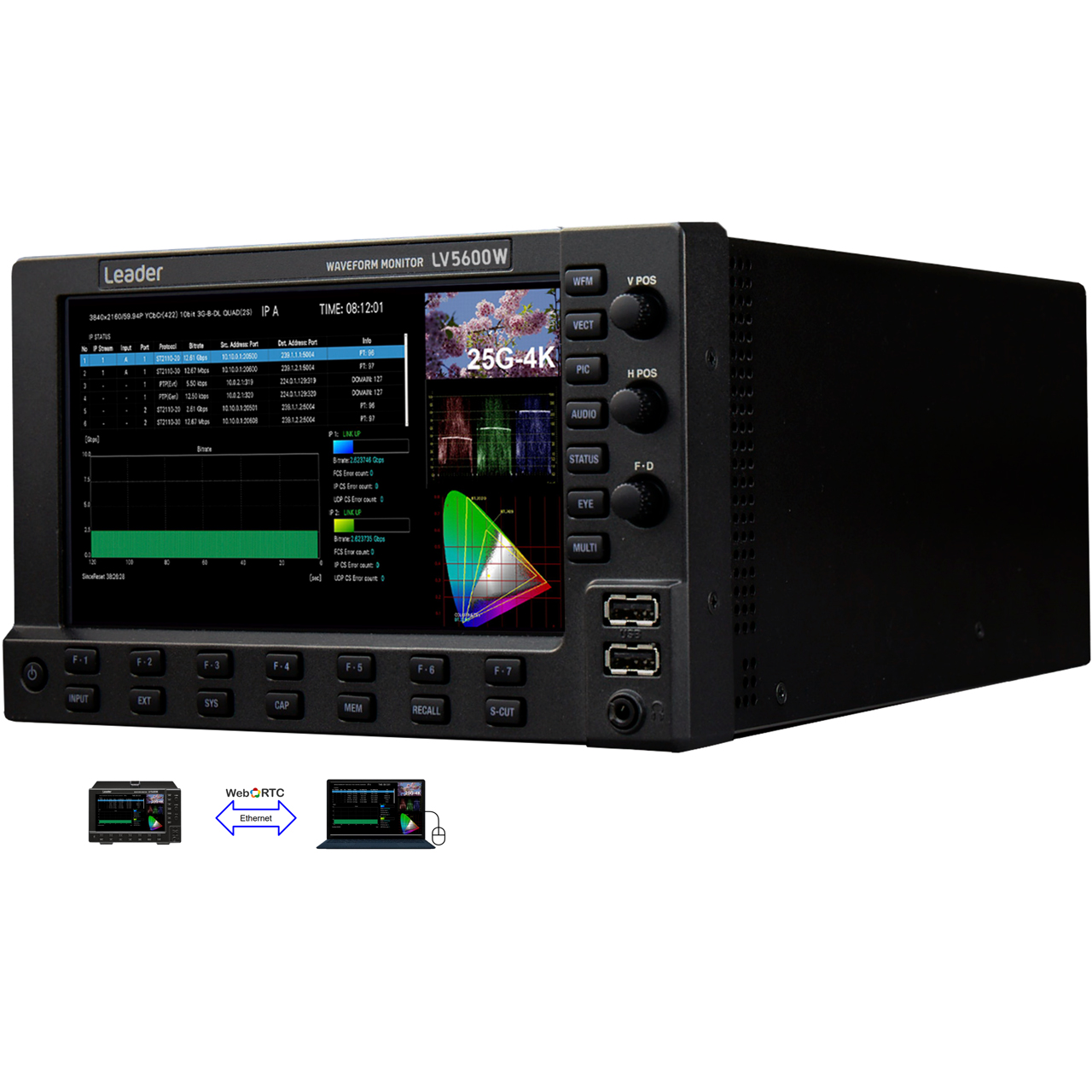

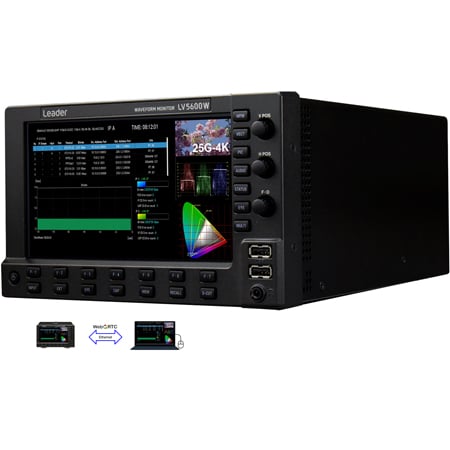

The Leader LV5600W is a 'True-Hybrid' waveform monitor compatible with 4K/HD/SD-SDI signals and UHDTV/HD/SD IP signals. The LV5600W features a 7-inch touch screen display in a compact 3RU enclosure with built-in AC power supply, and supports a variety of SDI signals up to 12G-SDI as well as video over IP. The waveform, vector, picture, audio, and eye pattern displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts.
For audio, these instruments support digitally embedded audio in SDI or IP streams as well as discreet digital and analog audio connections. Multi-channel audio levels, Lissajous, status, and loudness displays are available.
With its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts, the LV5600W allows complex measurement and monitoring tasks to be quickly completed. Designed with the future in mind, the LV5600W addresses your current and evolving video and audio testing needs.
WebRTC Enabled
The LV5600W supports the Web Real-Time Communication interface. WebRTC allows secure remote control and monitoring from a web-connected desktop or laptop computer.
4x IP Multistream
Packet Jitter, Path Delay, Timing Comparison and Pack Buffer can all be viewed simultaneously.
Customisable Layout
Various instruments such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favourite size.
Toolsets
- Standard Functionality: WFM/Vectorscope/Picture/Audio/Status/Capture Function/Frame Capture View/Touch Panel Operation
- Optional Functionality: SDI IN/OUT/HDR/4K/Ext. Vect./Eye Display/SDI TSG/Noise Meter/Audio/Focus/Colorimetry/Dolby/Layout/IP TSG/IP/TALLY/JPEG XS

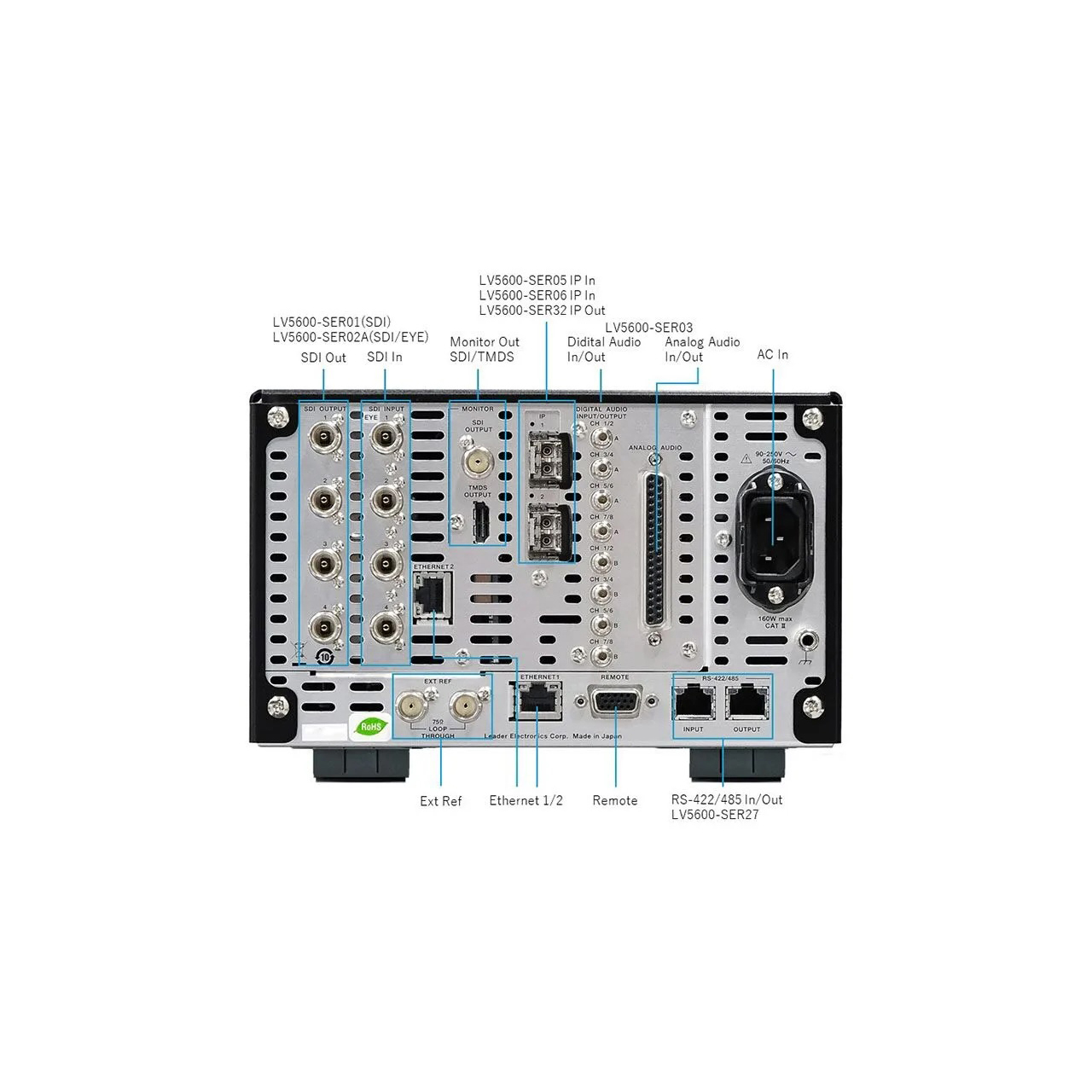

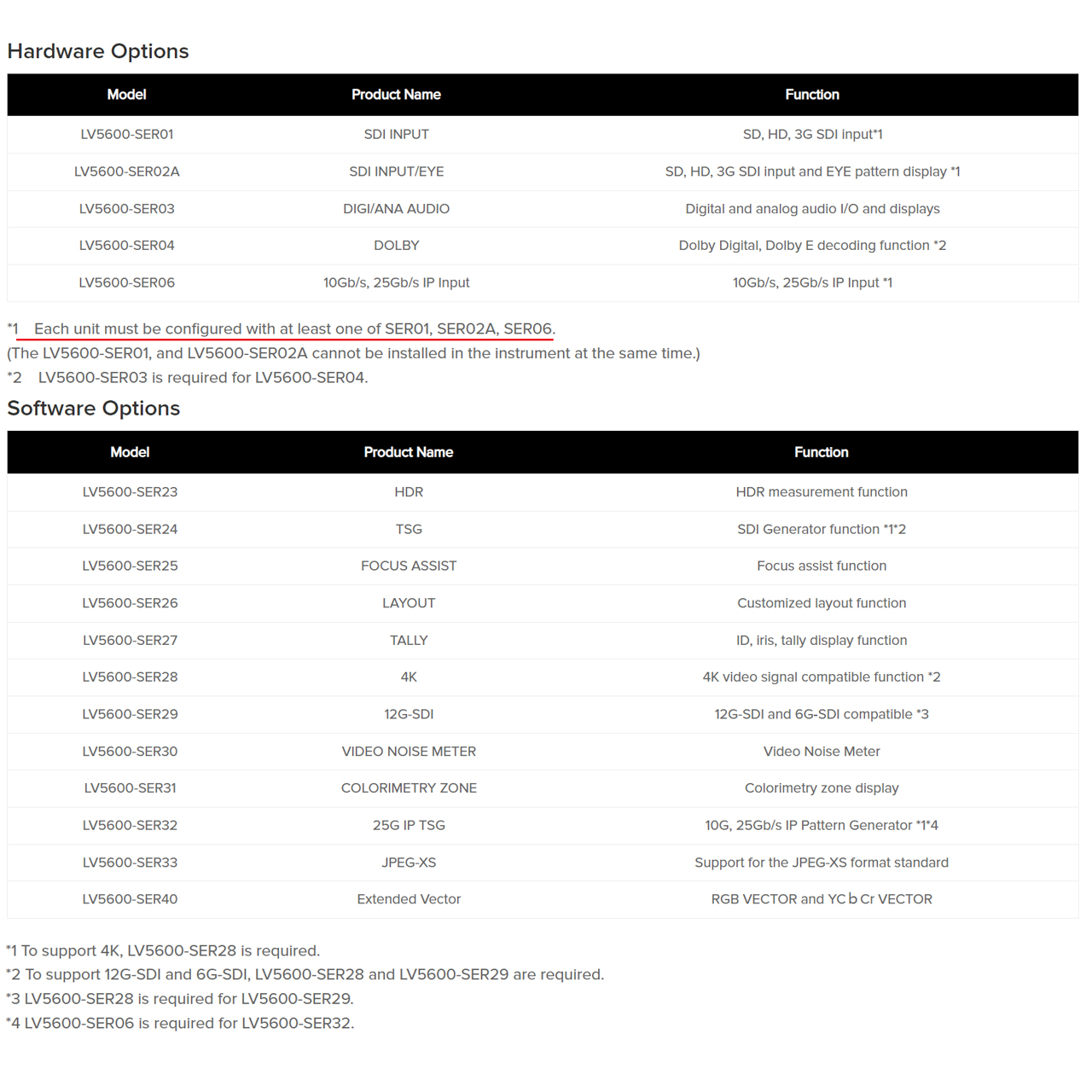

Please Note: Each unit must be configured with at least one of SER01, SER02A, SER06. (The LV5600-SER01, and LV5600-SER02A cannot be installed in the instrument at the same time). LV5600-SER03 is required for LV5600-SER04.
Image is for reference only!
