Listen Technologies TX2N Auri Audio 2-Channel Assistive Listening TX with Dante/Analog Mic/Line Inputs/PoE/Audio over IP

ITEM #: LSTN-AURITX2NA0D MFG #: TX2N-D

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,499.00

Our Price:

$2,249.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TX2N-D - Overview

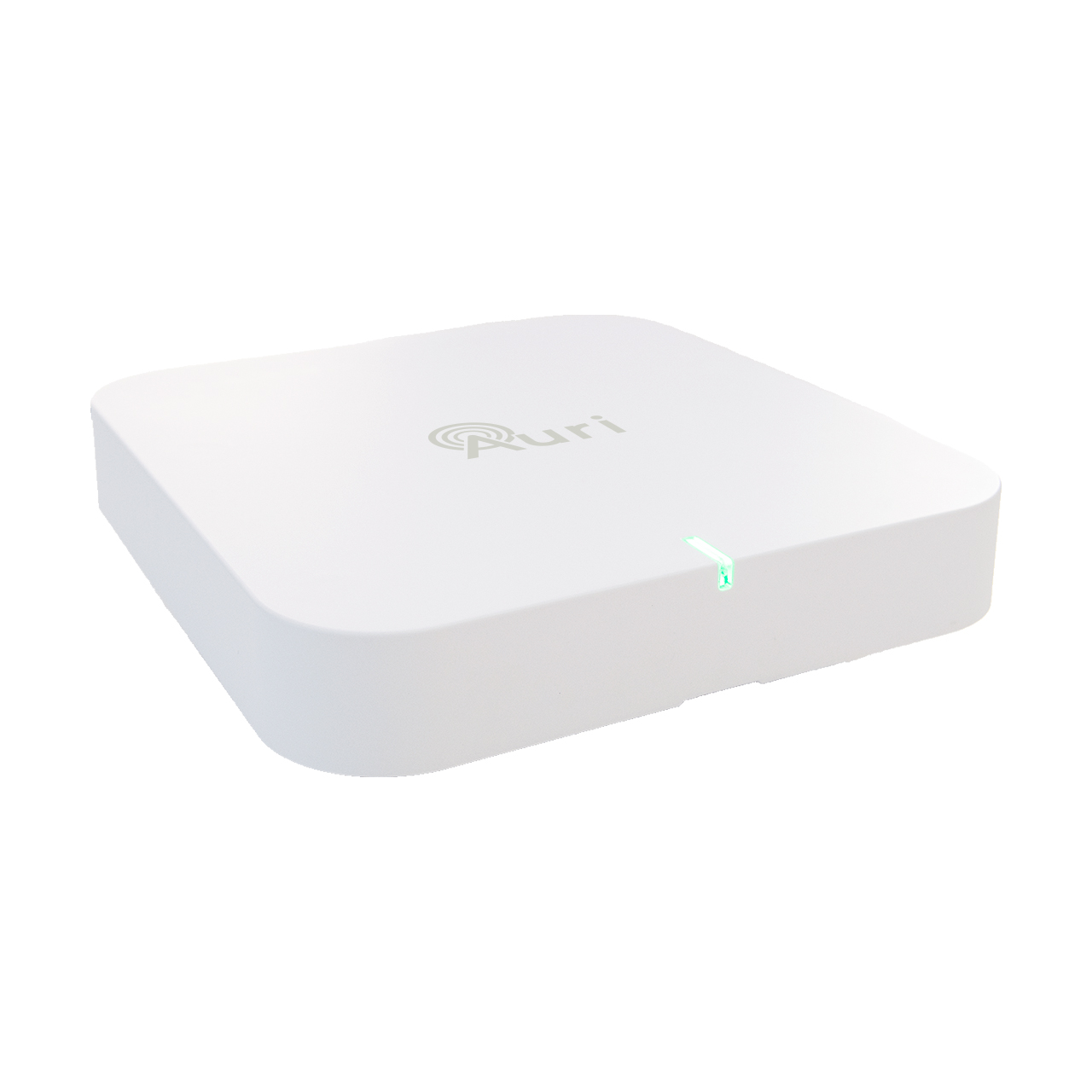

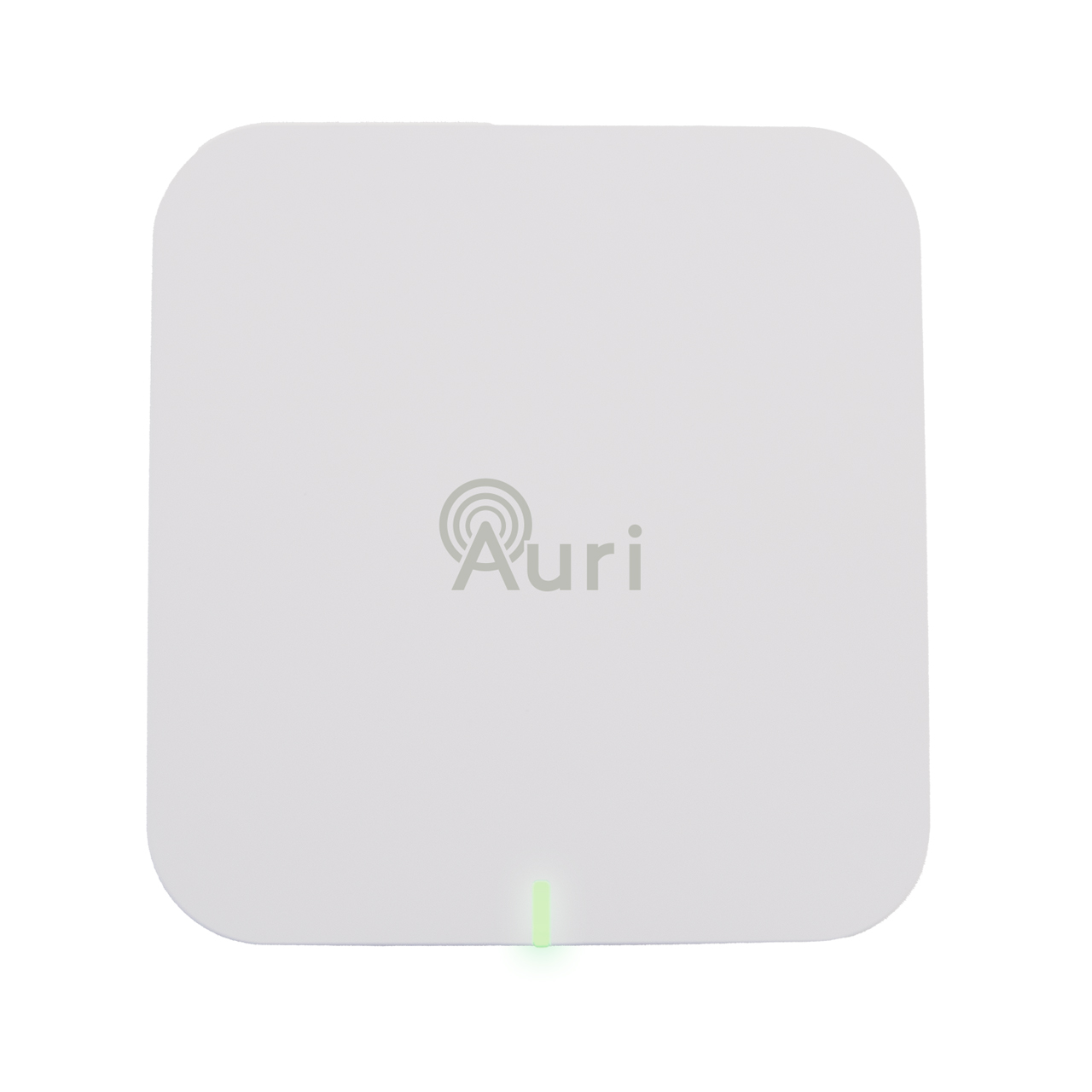

The Listen Technologies Auri™ TX2N-D is a sleek, low-profile transmitter designed for professional installations, resembling a Wi-Fi access point. It features a discreet logo, multicolor status indicator, and side-mounted balanced analog mic/line inputs, supporting mono, stereo, or dual mono configurations. A single ethernet connection manages PoE, network/PC control, and Audio over IP, with an option for Dante® network audio. It also includes a balanced line output and USB-C for optional power. A versatile ceiling/wall mounting bracket is included for easy installation.

Auracast™ is a new Bluetooth® capability that enables an audio transmitter to broadcast to an unlimited number of receivers. And no pairing of devices! Selecting a broadcast is much like choosing a Wi-Fi network, the user simply selects the desired Auracast™ channel to hear that broadcast.

Plus, it offers an impressive 3,000-foot transmission range - far beyond traditional Bluetooth!

Sleek and Low-Profile

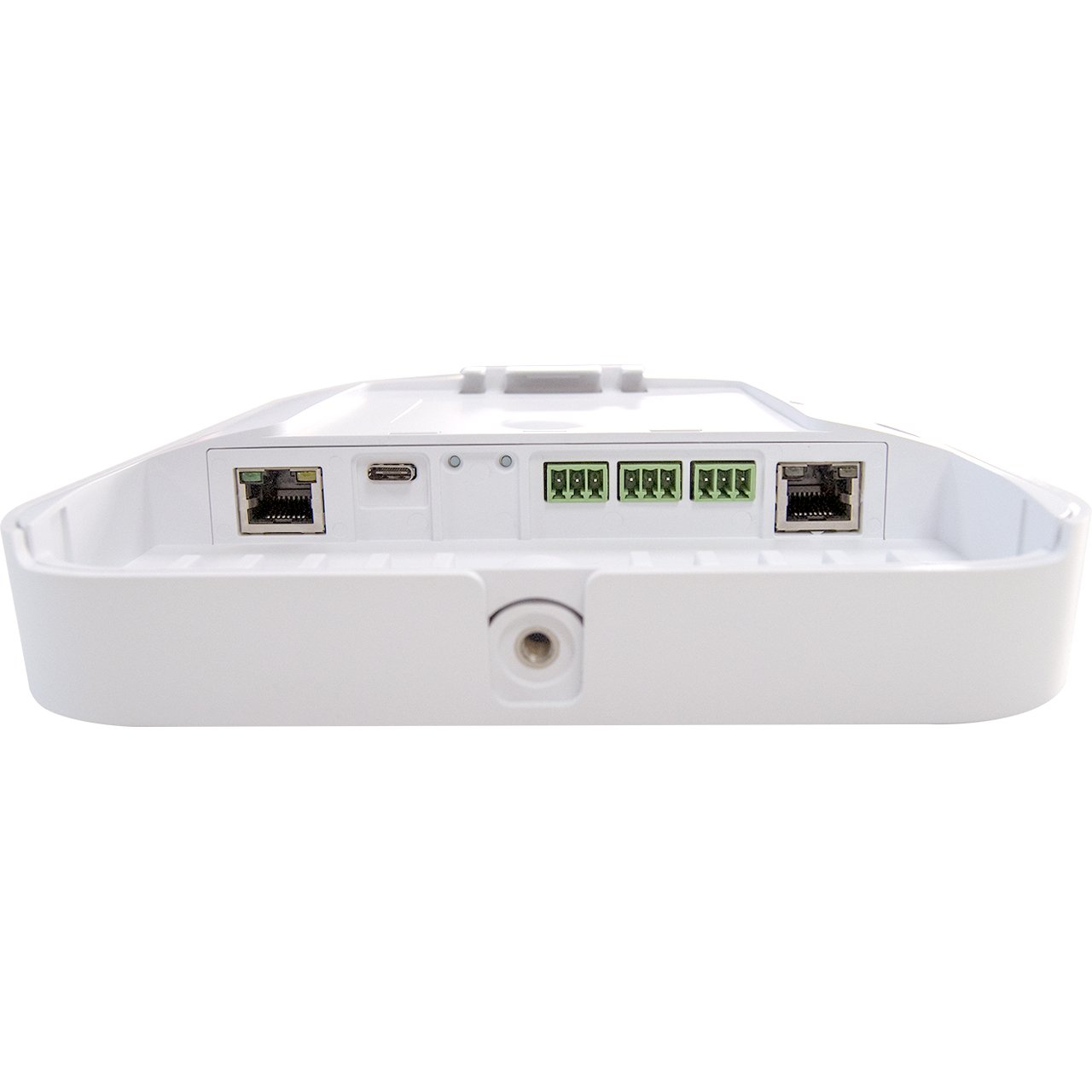

A concealed side-panel offers two balanced analog mic/line audio inputs for the two radios. This combination offers an array of routing and configuration options, including single stream mono audio, true stereo audio, and dual mono streams with separate audio (e.g. content or language).

Single Ethernet Connection
Supports PoE, network/PC connection (for system management), and Audio over IP (for repeater or daisy-chain configuration). The transmitter also supplies a balanced line-output.

Dante® Compatible
A USB-C port is available to accept power from an optional power supply, rounding out the standard connectors. An optional version of the transmitter adds a Dante® network audio interface. A ceiling/wall mounting bracket is also included.

Note: this unit does not come with a power supply, it can be powered by PoE or a USB-C supply available separately (LA-425).

Applications:
- Education
- Corporate
- Performing Arts
- House Of Worship
- Government
- Stadiums & Arenas

  • Features:

    • Two radios with flexible routing options
    • Expandable with repeater mode
    • Network management
    • Two balanced mic/line inputs with phantom power
    • Integrated Dante
    • Powered by USB-C or PoE

  • Specifications:

      Inputs
    • Input Selection: 2x audio inputs individually selectable between mic, line or optional Dante modes

      Mic/Line Inputs
    • Connection: 2x 3-way 3.5 mm pitch Euroblock
    • Input impedance: 15kΩ
    • THD+N: 0.03% at 0dBu (line mode) 0.02% at -25dBu (mic mode)
    • Common Mode Rejection: 56dB

      Microphone Mode
    • Max Level Before Clipping: -25dBu
    • Sensitivity: -65dBu
    • Switchable Phantom Power: +24V

      Line Mode
    • Max Level Before Clipping: +16dBu
    • Sensitivity: -25dBu

      Dante
    • Connection: Dedicated RJ45 socket
    • Port Speed: 100 Mbit
    • Channels: 2
    • Sample Rates: 48kHz

      Line Output
    • Connection: 1x 3-way 2.5mm pitch Euroblock
    • Nominal Output Level: +1dBu
    • Output Impedence: 150Ω

      Radio
    • Bluetooth Version: 5.3
    • Operating Frequency: 2400MHz - 2482MHz
    • Operating Mode: Auracast Compliant, Broadcast Only
    • Support Codec: LC3
    • Maximum Output Power: North America: +20dBm, Rest of World: +10dBm
    • Output Power Control: Attenuation from regional max to -10dBm
    • Encryption: AES128-CCM encryption, with 4-16 character password
    • Supported Formats: Mono or Stereo

      Network Audio
    • Input Routing: Additional input source for each audio stream, must be selected from another TX2N on same network
    • Connection: Shared RJ45 with control and PoE
    • Channels: 2x stereo inputs, 2x stereo outputs
    • Format: Multicast RTP
    • Bit Depth: 16 bit
    • Sample Rate: 16kHz, 24kHz, or 48kHz, matched to broadcast
    • Bandwidth: 0.5Mbit/s (16kHz) to 1.5Mbit/s (48kHz) per stereo stream
    • Latency: 5 ms nominal

      Audio Processing
    • Input Routing: Disabled, Input 1 only, Input 2 only, input 1 & 2 Stereo Pair, Input 1 & 2 Mono Sum
    • AGC: Switchable, 20dB gain control range
    • Low Cut: Switchable, 24dB/oct, frequency based on sample rate
    • 16kHz Sample Rate: 75Hz, 24kHz sample rate: 110Hz, 48kHz sample rate: 220Hz
    • Sample Rates: 16kHz, 24kHz (Auracast Standard - required), 48kHz (Auracast High)
    • Frequency Response +/- 3dB (internal, line in to line out): 16kHz sample rate: 50Hz - 7.5kHz, 24kHz sample rate: 50Hz - 11.0kHz, 48kHz sample rate: 50Hz - 22.5kHz
    • Latency (internal, line in to line out): 13ms
    • Latency (complete system, end to end): Auri RX1 - 29ms - 45ms (dependent on sample rate and mono/stereo) Other receivers will vary

      Network
    • Port Speed: 100 Mbit
    • IP Address: DHCP, static or link-local
    • Protocols: mDNS, UDP (unicast), RTP (multicast), RTCP (multicast)
    • Security: UDP communication, AES256 - GCM

      Controls and Indication
    • Buttons: Recessed restart and factory reset buttons
    • Setup/Programming: Via Auri Manager Software
    • Status LED: RGB multi-function LED, see handbook for states

      Power
    • PoE: IEEE 802.3af
    • USB-C: 5V PD Compliant
    • Power Consumption: USB-C: 5V, 370mA (1.85W) PoE: 48V, 53mA (2.54W)

      Physical
    • Dimensions: 7.20" x 6.81" x 1.89"
    • Weight: 0.99lbs
    • Shipping Weight: 1.96lbs
    • Enclosure Material: PC-ABS
    • Color: White
    • Mounting: Removable wall/ceiling bracket. Multiple holes to support mounting on standard UK, EU and US electrical back boxes and VESA 75

      Environmental
    • Temperature - Storage: -40°F - 158°F
    • Temperature - Operation: 14°F - 104°F
    • Relative Humidity: 0% to 95% relative humidity, non-condensing
    • IP Rating: IP30 (with mounting bracket attached)

      Network Requirements
    • Device Discovery: Type: mDNS (Multicast), Address: 224.0.0.251, Port: 5353
    • Control: Type: UDP (Unicast), Address: Device IP (DHCP, Static or Link Local), Port: 55666, 56666
    • Firmware Update: Type; TFTP, Address: using Device IP, Port: 69
    • Network Audio: Type: RTP (Multicast), Address: 239.255.0.0/16, Port: 5004, 5006, 5008, 5012
    • Network Audio: Type: RTCP (Multicast), Address: 239.255.0.0/16, Port: 5005

  • Item Includes:

    • 1x AURI-TX2N-D Transmitter with Dante
    • 1x Universal mounting bracket
    • 3x Euroblock connectors
    • 1x 1.8 m (6 ft) Cat6 cable
    • 1x Quick Start Guide and Safety Data Sheet
