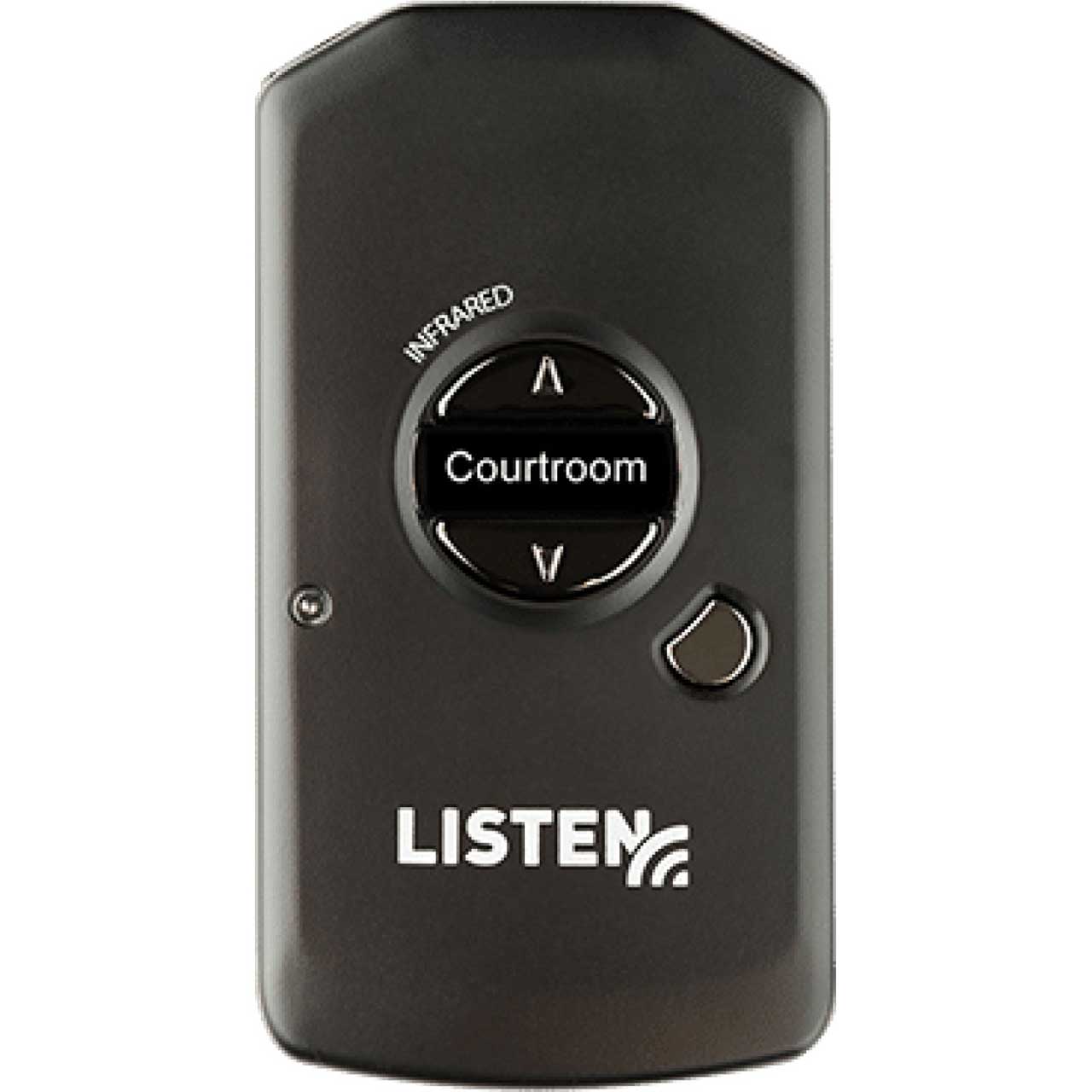

Listen Technologies LR-5200-IR Advanced Intelligent DSP IR Receiver - Li-ion Battery Included

LR-5200-IR - Overview

• Features:

  • High-performance, ultra-sensitive infrared personal listening receiver offering the best reception, sensitivity, and range in its class
  • Compact design-the smallest of its kind - makes it easier to wear, dispense, store, and maintain
  • Advanced rechargeable battery technology reduces costs and provides long-lasting charge for extended use
  • Integrated neck loop and lanyard with DSP loop driver provides an ideal listening experience for users with T-coil-equipped hearing aids
  • OLED display offers at-a-glance information including channel status, battery level, volume, and more


• Specifications:

  • Audio
  • System Distortion: < 2% total harmonic distortion (THD) at 80% deviation
  • Audio Output Jacks: Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard
  • System Frequency Response: 63 Hz - 15 kHz (±3 dB)
  • System Signal to Noise Ratio: > 60 dB

    Controls
  • User Controls: Power on/off, volume up/down, Listen button for end user channel selection
  • Programming: Via software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name, Channel button, Channel Lock
  • Set-up Controls: Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

    Indicators
  • Display: OLED - Channel designation, battery level, unit number, charging status, volume status
  • LED: Flashes when batteries are low or to indicate charging, solid when fully charged

    RF
  • Carrier Frequencies: 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz
  • Number of Channels: Four (4) selectable channels
  • Frequency Accuracy: ± .005% stability 32 to 122 °F (0 to 50 °C)
  • Modulation: FM Wideband, ±50 kHz deviation max, 50 uS de-emphasis

    IR
  • Coverage Area: 30,000 ft² (2787 m²) single channel with LT-84/LA-141 or 40,000 ft² (3716 m²) single channel with LT-82/LA-140
  • Squelch: Programmable in 20 steps, automatic on loss of IR signal
  • Power Save Mode: Turns unit off after a specified time of no IR signal, default is 30 minutes
  • Sensitivity: Better than one (1) nW/cm2 @40 dB SNR

    Power
  • Power Supply: Micro USB connector, 5 V, 500 mA
  • Battery Type: Lithium Ion
  • Battery Life: 8 Hours of typical use
  • Battery Charging Time: Fully charged in 2.5 Hours

    Physical
  • Color: Flat Black
  • Unit Weight with Batteries: 2.8 oz. (79.4 g)
  • Shipping Weight: 3.5 oz. (99.2 g) with a 1 lbs. (0.45 kg) minimum
  • Dimensions (H x W x D): 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm)
  • Unit Weight: 1.9 oz. (53.9 g)
  • Dimensions with Belt Clip: 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm)

    Environmental
  • Temperature - Operation: 14 to 104 °F (-10 to 40 °C)
  • Temperature - Storage: (-)4 to 122 °F (-20 to 50 °C)
  • Relative Humidity: 0 to 95% relative humidity, non-condensing

    Compliance
  • Standards: FCC Part 15, ICS-03, CE, RoHS, WEEE, ADA 706, CBC 11B-706


• Item Includes:

  • One (1) LR-5200-IR Advanced Intelligent DSP IR Receiver*
  • One (1) Quick Start Guide
  • *The LR-5200-IR comes with a field replaceable Lithium-ion battery.


• GTIN:

  0819267022409
