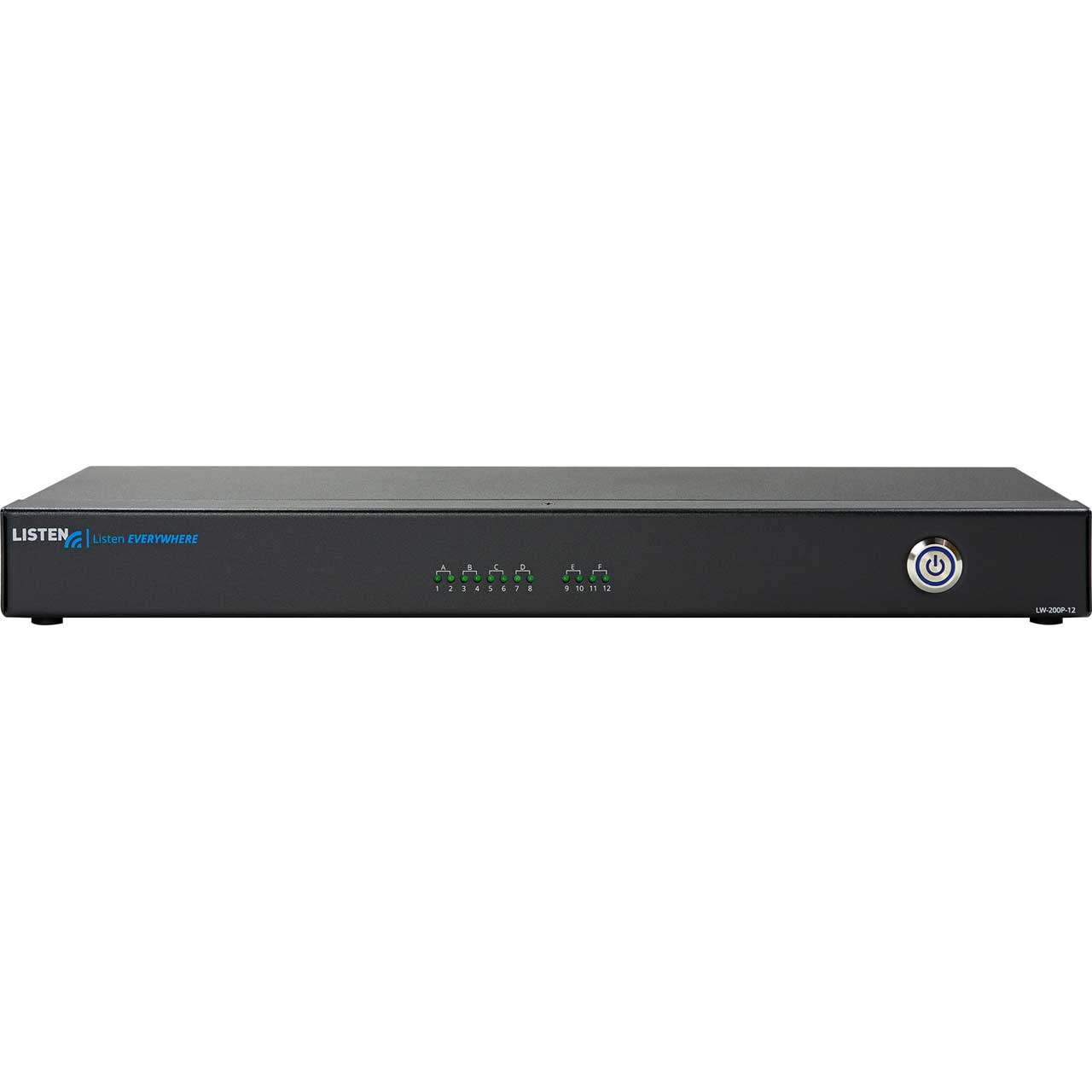

Listen Technologies LW-200P-12-01 Listen Everywhere 12 Channel Server

ITEM #: LSTN-LW-200P1201 MFG #: LW-200P-12-01

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LSTN-LW-200P1201

LW-200P-12-01 - Overview

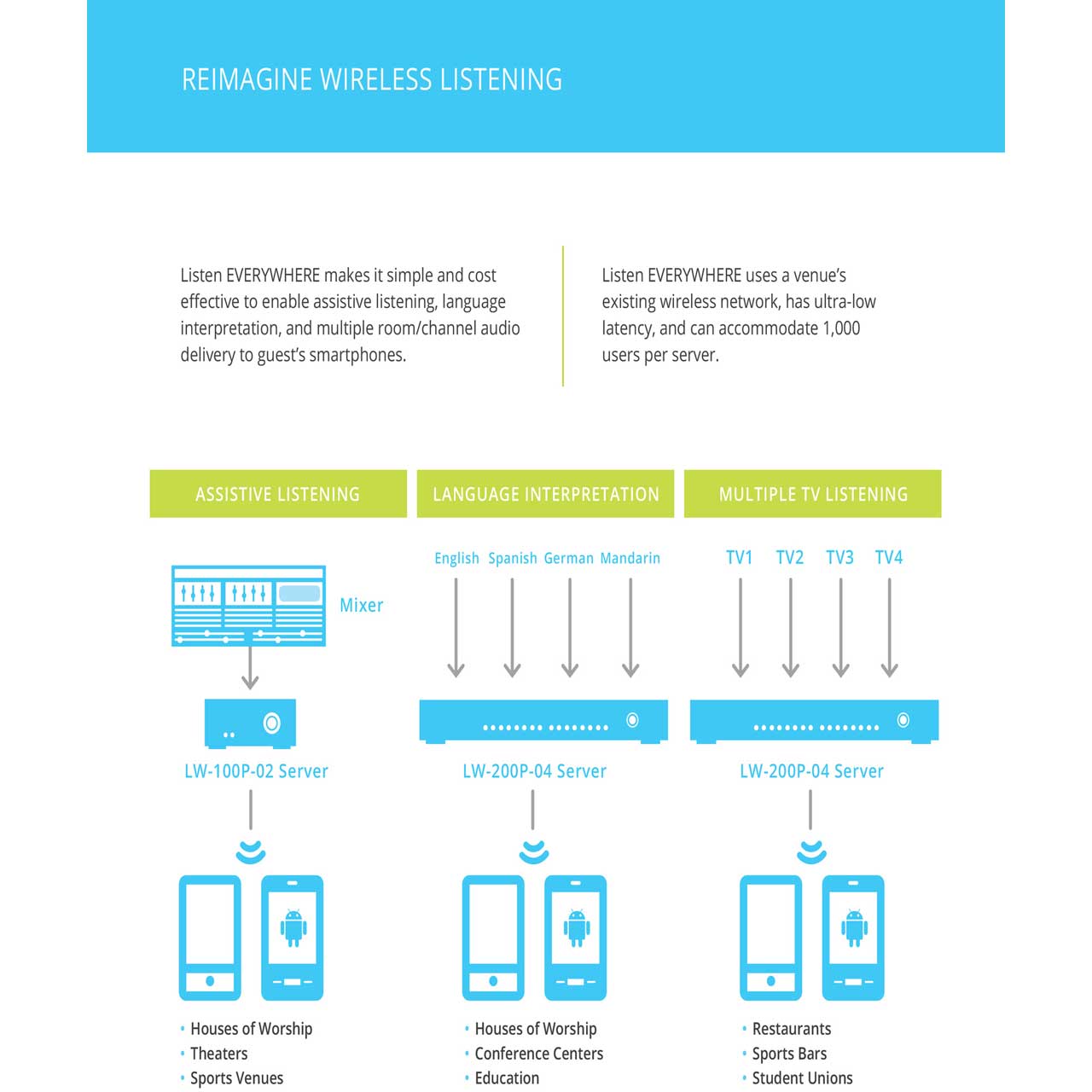

The Listen Technologies LW-200P-12 has 12 input channels and can service up to 1000 users via a free app for smartphones. Multi-screen and assistive listening environments-including conference centers, and sports bars, plus houses of worship, interpretation and hospitality-benefit from the flexibility to provide a wide range of streaming audio options with strong, clear, and reliable performance.

  • Features:

    • Up to 1000 Users
    • 12 Channels
    • Ultra-Low Latency
    • Uses Existing Wireless Network


  • Specifications:

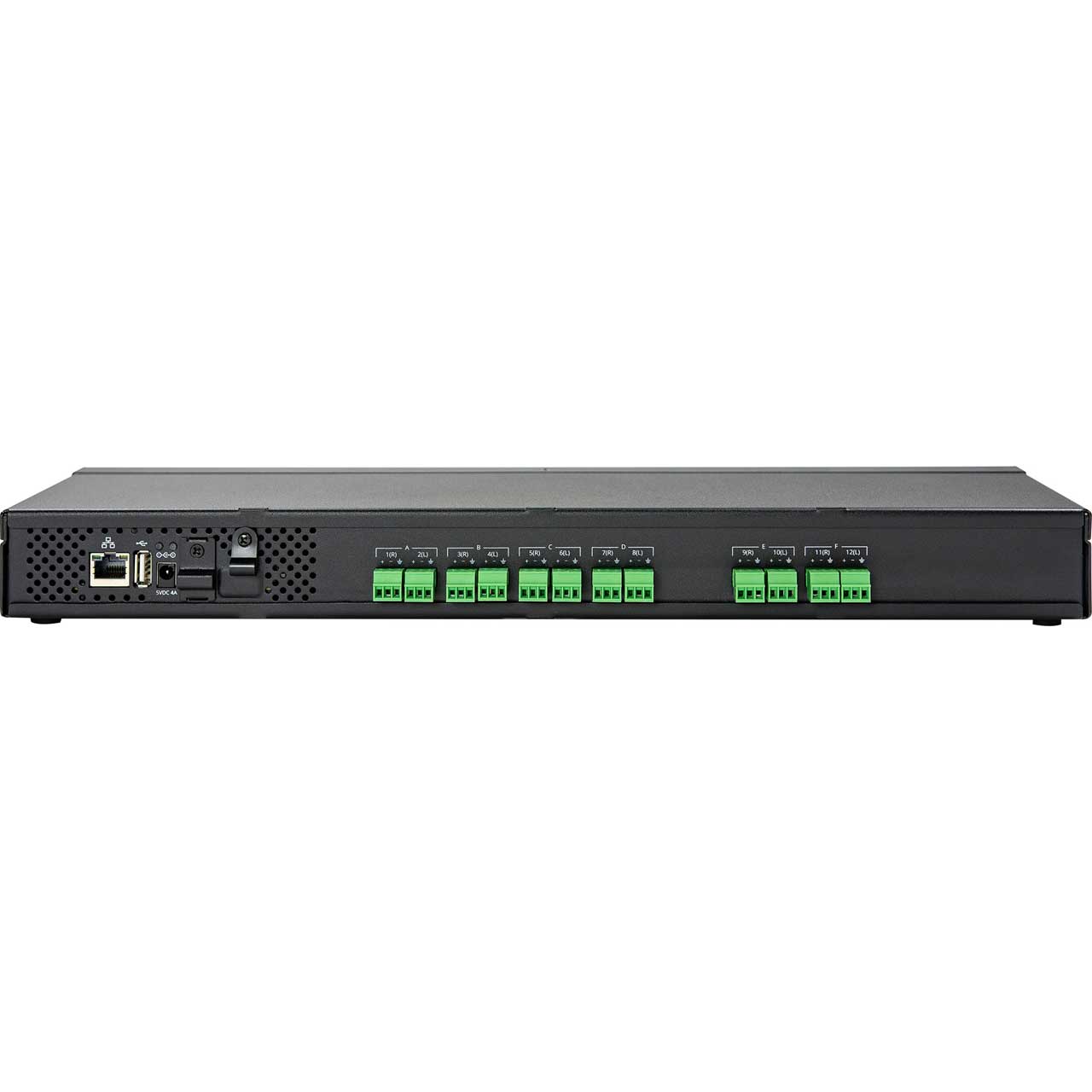

    • Interconnections
    • Audio Inputs: Rear panel, 12x Terminal Blocks -14dBu (line) nominal input level, -2dBu maximum input level, impedance 10kΩ
    • Ethernet: RJ45: 100 BaseT or 1000 BaseT (gigabit)
    • Analog: Terminal Blocks

      Power Supply
    • Connector: DC Barrel Connector
    • Input Voltage: 100 - 240 VAC, 50 - 60Hz
    • Output Voltage: 5 VDC
    • Current: 1.2 A
    • Power: 6W
    • Countries: North America, UK, EU, AUS

      Servers
    • IP Address: DHCP, Static, Reserved
    • Prioritization: QoS/ToS
    • C Users: 1000 (per server)
    • Max Channels: 12 mono
    • WAP Support: 802.11n or better w/WMM enabled
    • Supported WAP Frequencies: 2.4GHz & 5GHz
    • Bandwidth Use: Approx. 140 kbps per user
    • App Support: iOS/Android
    • Cloud Service: Yes
    • Regulatory: FCC, CE, RoHS
    • Warranty: 2 years
    • *NOTE: Multiple servers may be used to increase the number of channels.

      Physical
    • Dimensions (HxWxD): 1.77" x 19.02" x 6.1" (45mm x 483mm x 155mm)
    • Weight: 4.85lbs (2.2kg)
    • Rack Space: 1RU
      *NOTE: Audio Everywhere from Listen servers are cloud managed with customizable in-app functions which support welcome messages, videos, sliding banners, pdf documents, offers and supports portable smart iOS and Android devices.


  • Item Includes:

    • 1x LW-200P-12 Listen Everywhere 12 Channel Server


  • GTIN:

    0819267025516
