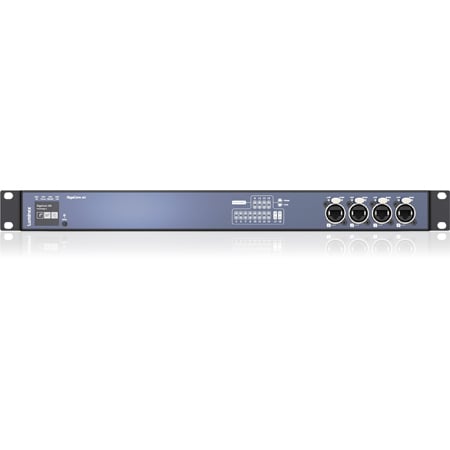

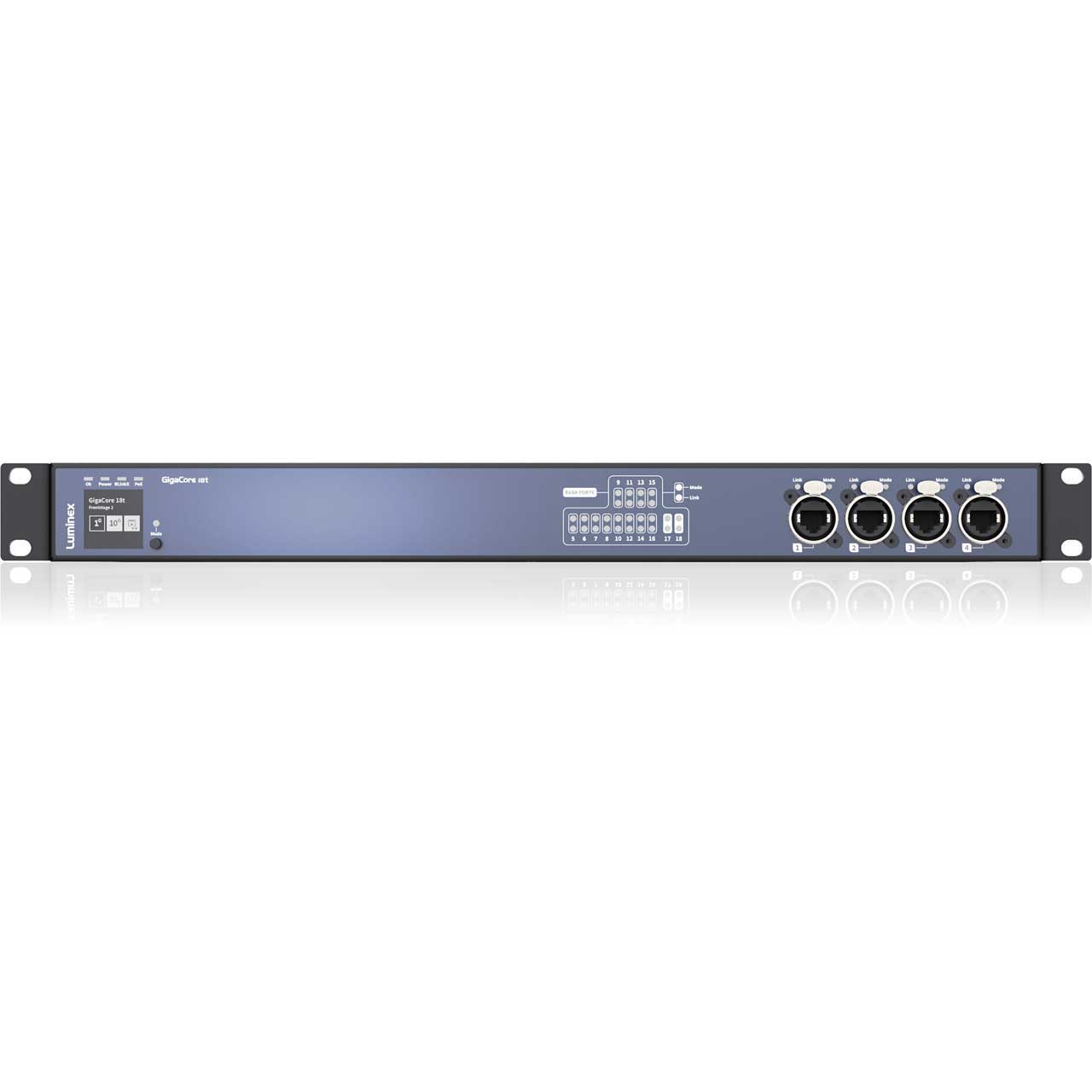

Luminex LU0100095-10G-P500 GigaCore 18t - 10G Ethernet Switch for Professional Tour Applications - PoE++ Included

ITEM #: LU010009510-P500 MFG #: LU0100095-10G-P500

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$4,560.00

Our Price:

$4,104.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LU0100095-10G-P500 - Overview

The Luminex LU0100095-10G-P500 GigaCore 18t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.

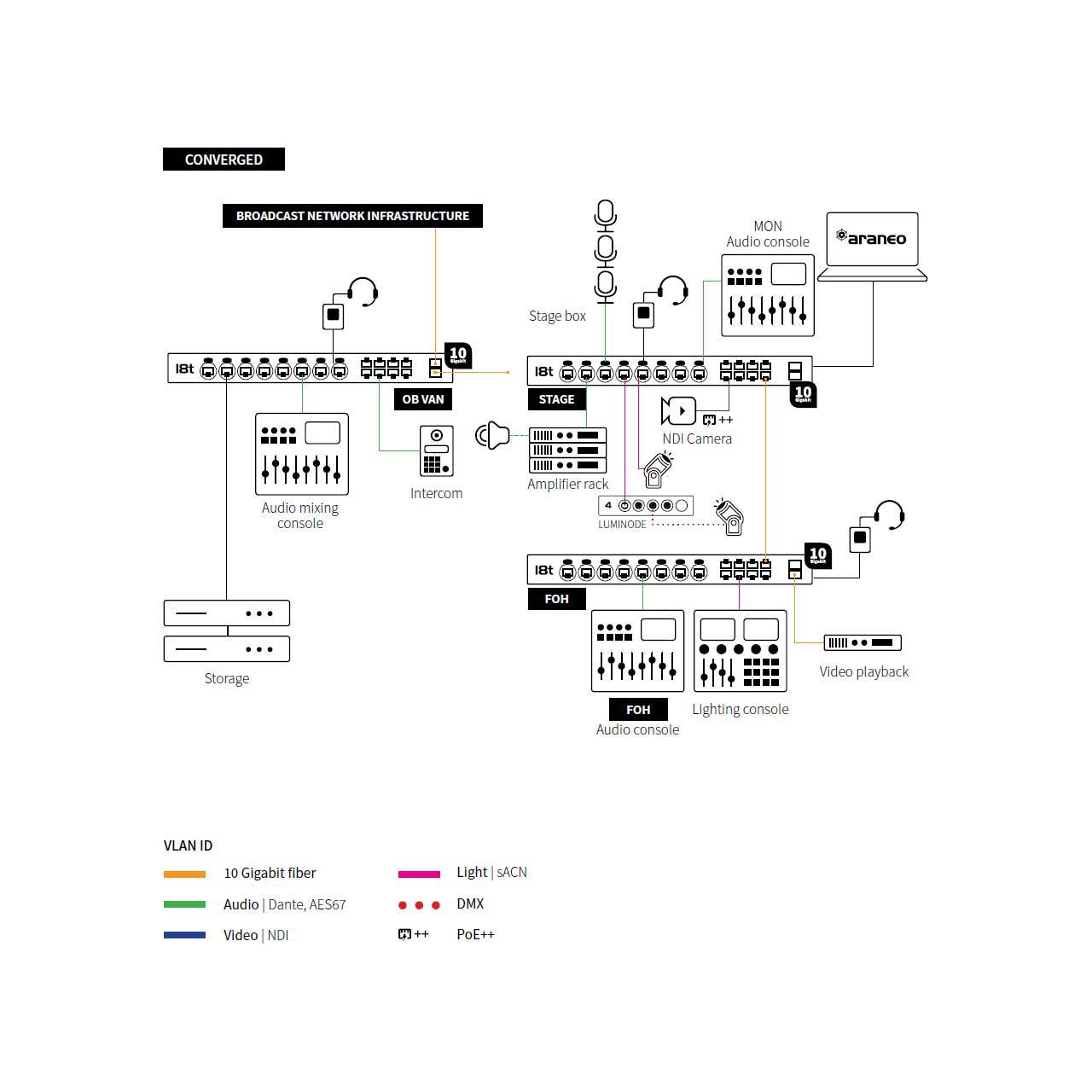

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.

PoE++ implementation on every copper port allows you to connect any PoE device available today.

  • Features:

    • Most suitable applications: Touring applications
    • PoE: PoE ++
    • RLinkX (Link redundancy): Yes
    • Groups (VLAN segmentation): Yes
    • MultiLinkX (Link aggregation): Yes (With future FW upgrade)
    • Profile manager: Yes
    • Memory: Flash 1Gb RAM - 8Mb NOR flash 4Gb EMMC storage
    • MAC address table: 16384 entries
    • Address learning / Aging: Self learning, Auto aging
    • Switching throughput: 72Gbps
    • Jumbo frames: MTU up to 12000
    • IGMP support: Yes (V1/V2/V3)
    • IGMP snooping: Yes, enabled by default
    • Port sensing: Auto negotiation
    • Auto crossover: MDI / MDIX
    • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

  • Specifications:

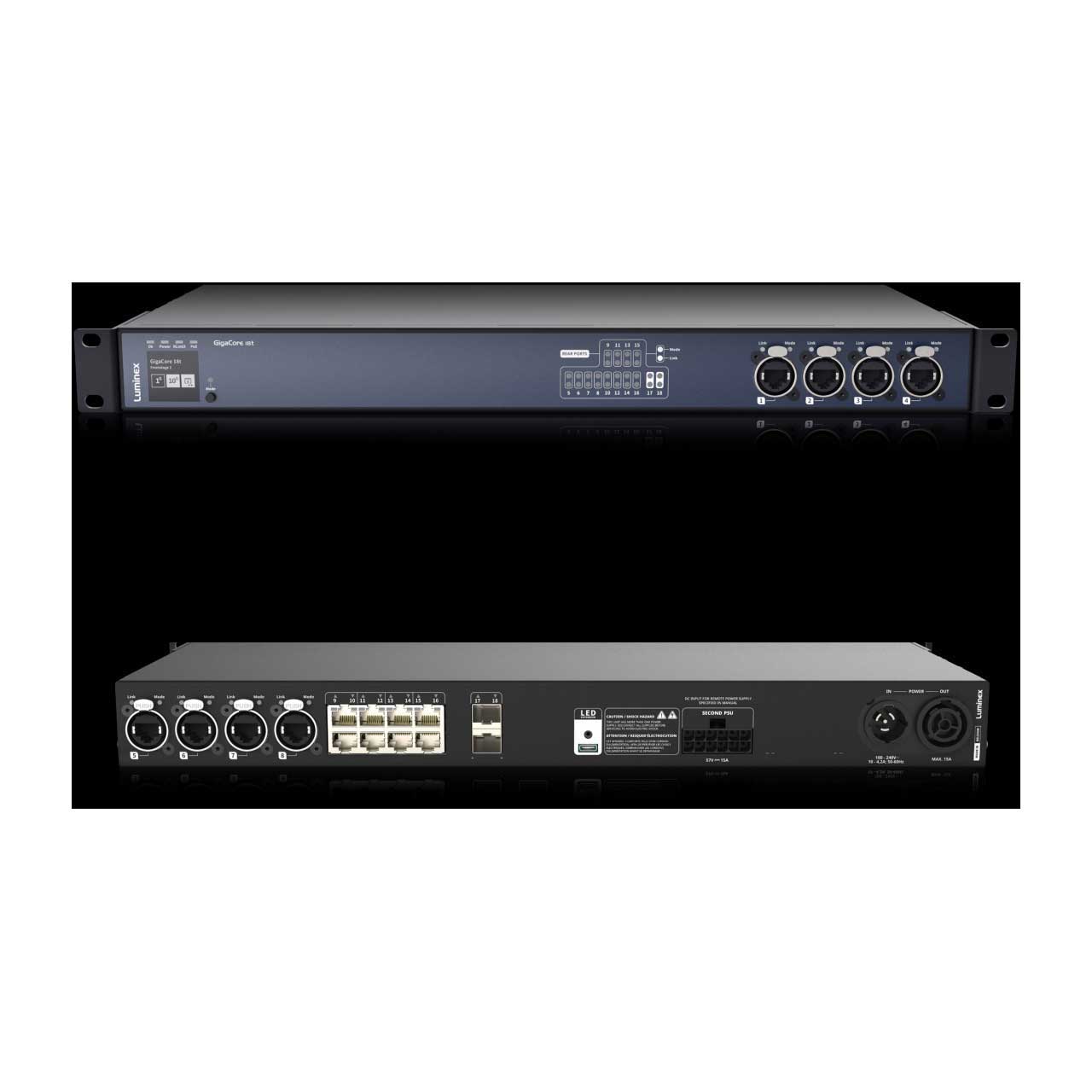

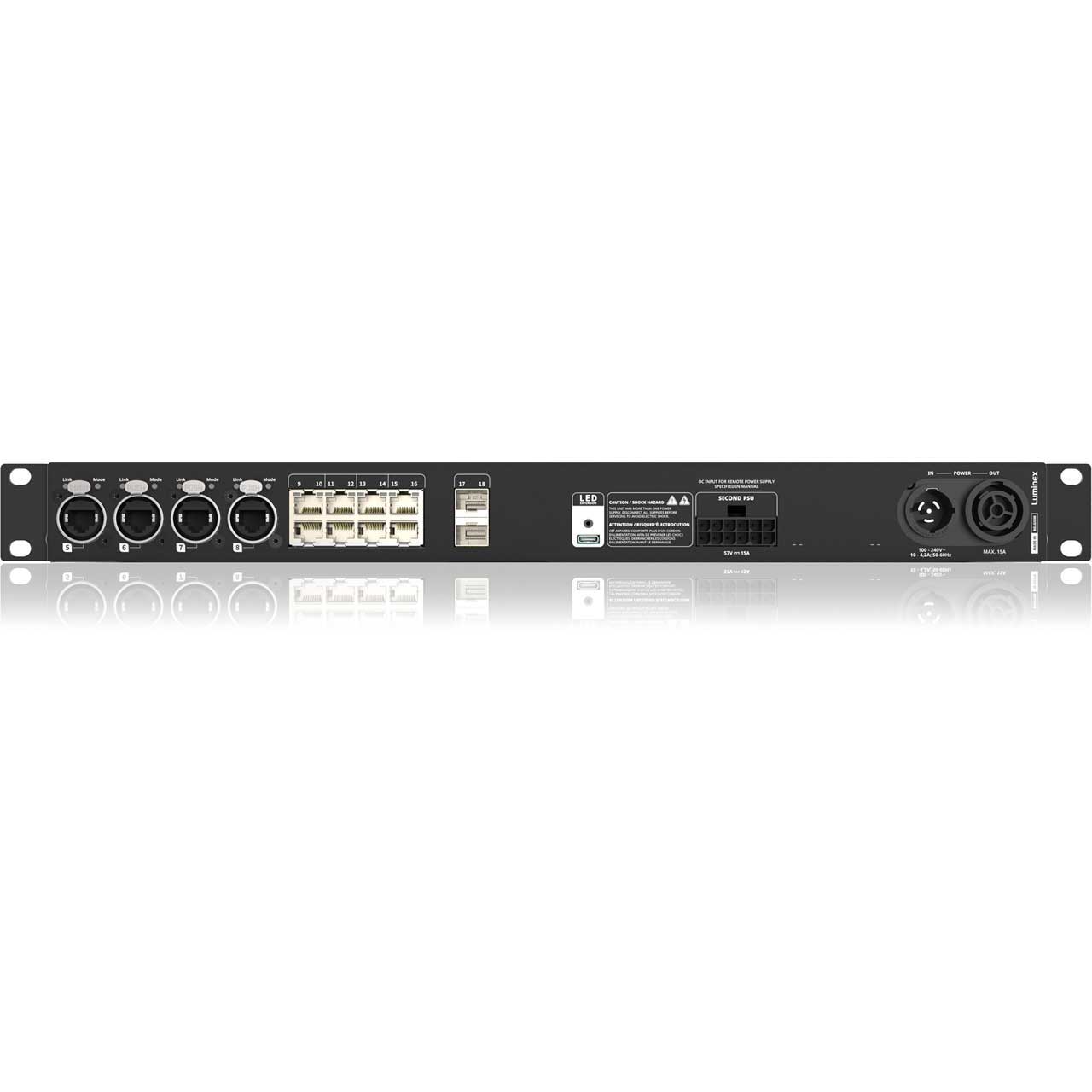

    • Ethernet connectivity: 8 x EtherCon conectors (4x front, 4x rear) (1Gbps) 8 x RJ 45 connectors (rear) (1Gbps)
    • Fiber connectivity: 2 x SFP+ cages (10Gbps/1Gbps) (independent from other ports) (rear)
    • Ethernet port speed: 1Gbps
    • Power connectivity: 1 x PowerCON True 1 in/out
    • Power input: 100-240VAC, 50-60Hz
    • Power consumption: Minimum 50W - Maximum 1050W
    • Backup power input: Yes (PoE models only)
    • Backup PoE power input: Yes
    • PoE: PoE ++ Optional
    • Mounting: Rack
    • Enclosure: Robust metal housing
    • Dimensions: 19" x 8.54" x 1.73" (WxHxD)
    • Environment:
      Operating temperature: 32 to 122 °F
      Storage temperature: 14 to 158 °F
      Humidity (non condensing): 5 to 95% RH

  • Applications

    :

    • Live events
    • Touring
    • Convention centers
    • Large system integrations
    • Sports arenas
    • Broadcast and recording studios, OB vans
    • Theme parks
