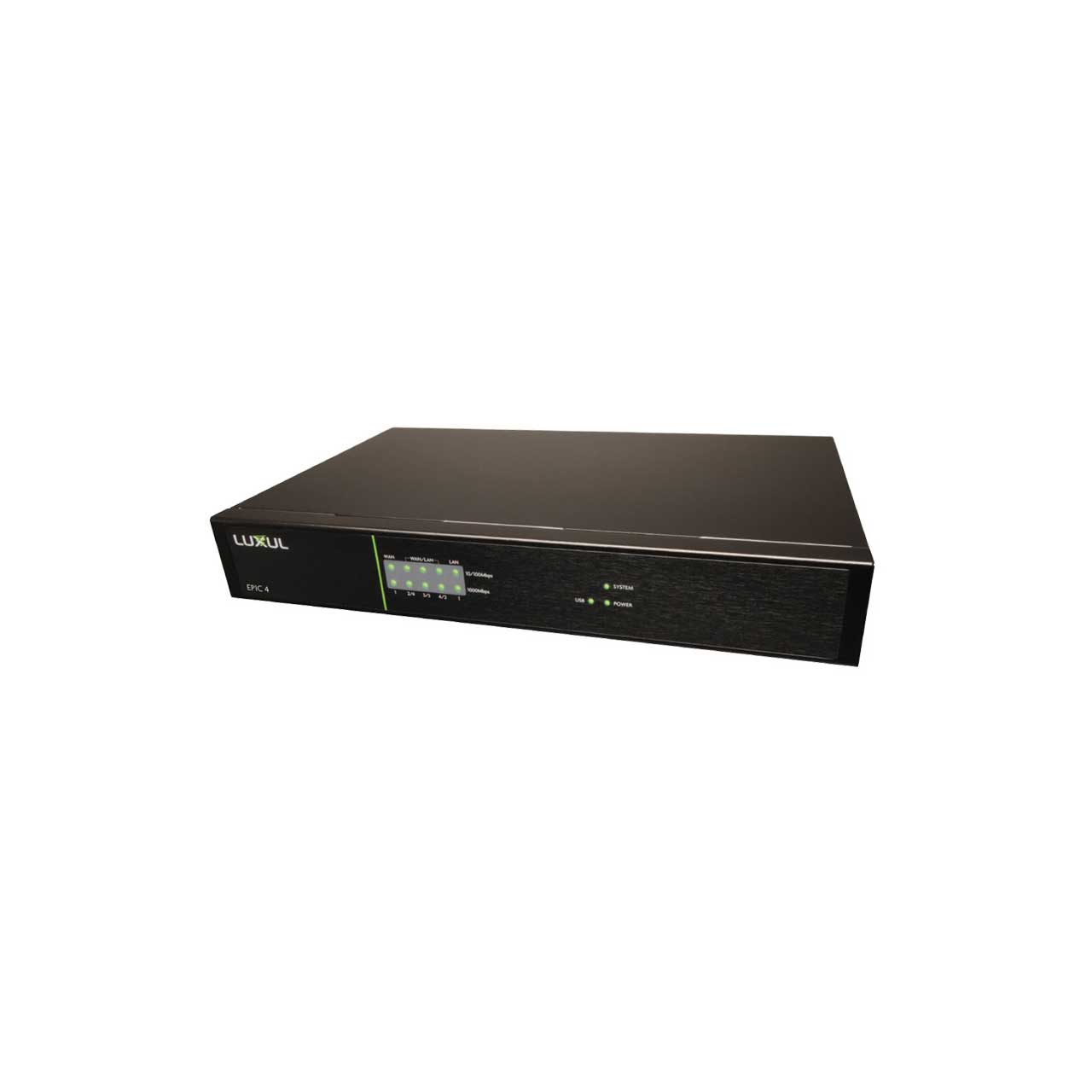

Luxul ABR-4500 Epic 4 Gigabit Router - Ports on Back

ITEM #: LUXU-ABR-4500 MFG #: ABR-4500

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$415.00

Our Price:

$265.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ABR-4500 - Overview

The Epic 4 Multi-WAN Gigabit Router with ports on the back (ABR-4500) provides an optimal platform for setting up the ultimate residential or commercial network. It features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems. This commercial grade router allows for up to 512 concurrent device routing entries. It features an intuitive interface with advanced management, as well as firewall, QoS, VLAN, VPN and other capabilities that ensure optimal performance, scalability and security of your network. The Luxul ABR-4500 Epic 4 offers everything you’d expect in a full-featured high-performance router including gigabit networking and secure remote access, but it’s also much more. Powerful web content filtering and dual-WAN capabilities make the network smarter and more reliable, for a truly exceptional internet experience.

Highlighted Features
*Add High Performance IP Network Routing Functionality to your AV Rack Solutions.
*Create a Secure Guest Network with VLANs
*Enable Secure Remote Access to the Network via VPN
*Optimize VoIP, Streaming Media and Other Demanding Applications
*Improve Network Reliability and Performance with Multi-WAN Capability.
*Protect Your Network with Firewall and Security Features

  • Features:

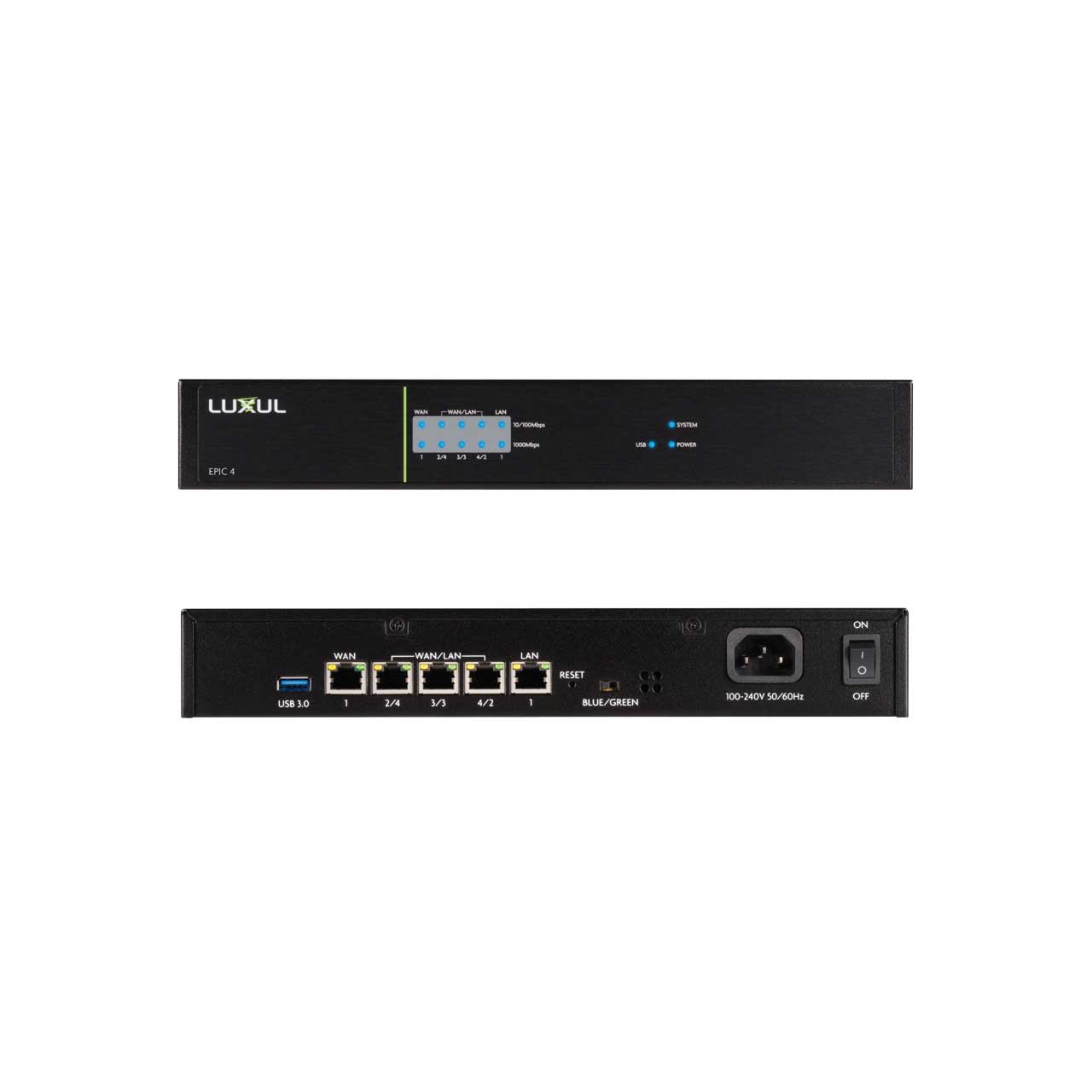

    • AV Series - Ports on the Back
    • User Selectable Green/Blue Front-Facing LEDs
    • 1 Dedicated WAN, 1 Dedicated LAN, 3 LAN/WAN Configurable Ports
    • Multi-WAN Failover and Load Balancing
    • Virtual Private Network (VPN): PPTP, L2TP, IPsec
    • Quality of Service (QoS)
    • Virtual Local Area Network (VLAN)
    • Network Security and Firewall
    • Simple Setup and Management
    • 1 USB 3.0 Port
    • Fanless for Silent Operation
    • Durable 1U Metal Enclosure for Rack Mount or Desktop Use
    • Three Year Limited Warranty
    • Built-in remote management (Domotz)

  • Specifications:

    • Interface: Two 10/100/1000M WAN Ports (Auto MDI/MDIX), Five 10/100/1000M LAN Ports (Auto MDI/MDIX), One RJ-45 Console Port, One USB 3.0 Port
    • Button: Reset Button
    • Power: Internal Switched Power. AC 110-220V 50/60Hz 0.3A Input
    • Max Power Consumption With USB: 13.6W No USB: 8.0W
    • Max Heat Dissipation With USB: 46.4 BTU/hr No USB: 27.3 BTU/hr
    • Processor: Cavium Dual-Core MIPS64
    • Memory: 2GB DDR3/8GB eMMC
    • Dimensions LxWxH In. (mm): 7.34"x12"x1.7" (186.5x305x44)
    • Weight lbs (kg): 3.80 (1.72)
    • LEDs: Power, SYS, USB, WAN, LAN, Blue/Off/Green Selectable LED’s with Toggle Switch
    • VPN Support: PPTP, L2TP, IPsec
    • VLAN/Guest Network Support: Yes
    • Certifications: CE, FCC, RoHS

  • Item Includes:

    • Multi-WAN Grade Gigabit Router
    • Power Cord
    • Quick Install Guide
    • Mounting Brackets and Rubber Footpads

  • Warranty:

    • 3-year limited warranty
