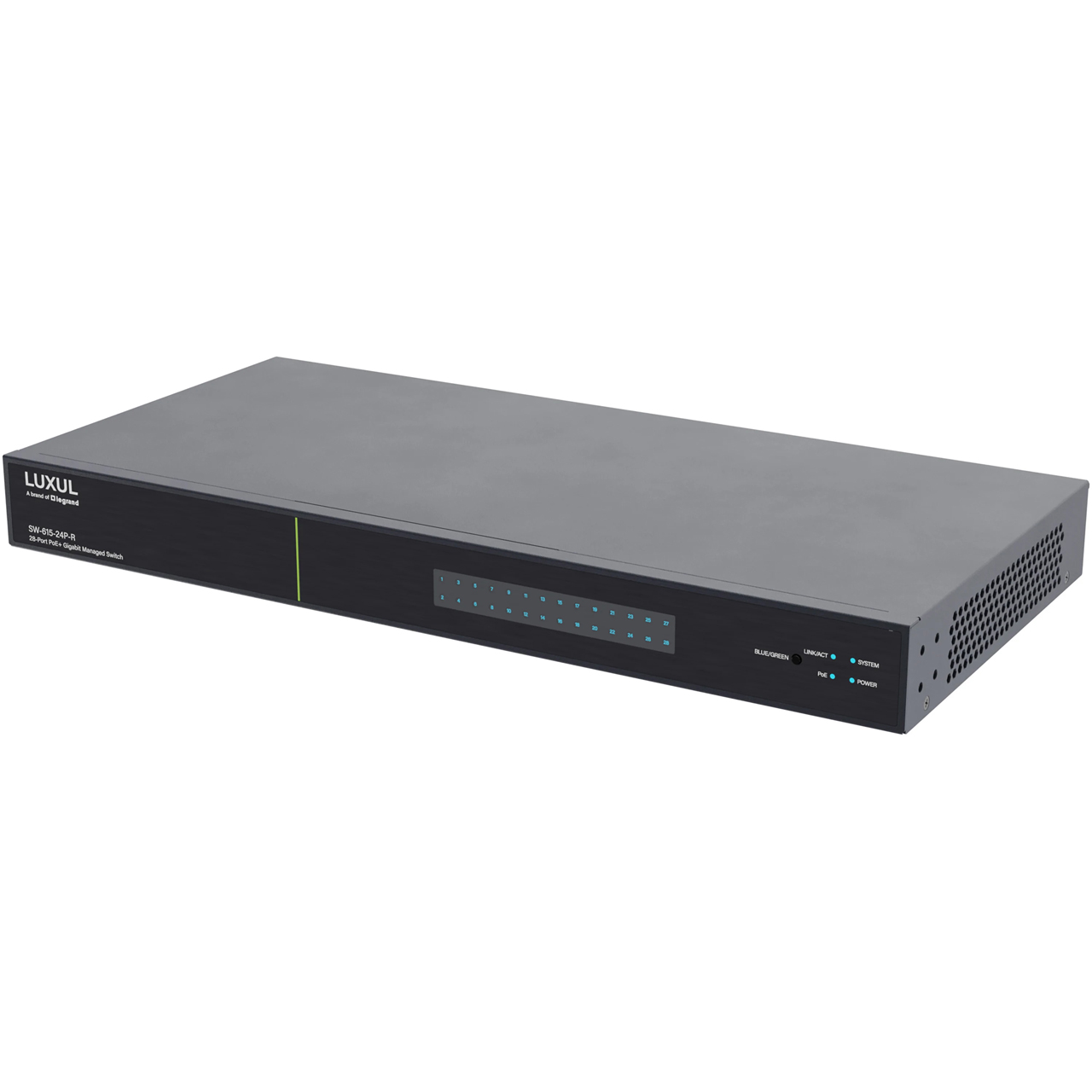

Luxul SW-615-24P-R 24-Port AV-over-IP Rackmount PoE+ Rear-facing L2/L3 Managed Switch with four 10G SFP+ Ports

ITEM #: LUXU-SW-615-24PR MFG #: SW-615-24P-R

Primary Image
Luxul
Free Shipping with $49 Minimum Order

Our Price:

$1,715.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SW-615-24P-R - Overview

Designed to support AV-over-IP (AVoIP) applications, the Luxul SW-615-24P-R includes 24 1-Gigabit PoE+ Ethernet ports and four 10-Gigabit SFP+ expansion ports. Two or more SFP+ ports can be aggregated for a connection speed of up to 40 Gb.

The 24 PoE+ ports deliver both gigabit data and power over a single cable to 802.3af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only.

The total power budget is 370W for all PoE+ ports combined.

The advanced Layer 2/Layer 3 features and easy-to-use management interface simplify configuration and make this switch ideal for use in multiswitch AV-over-IP environments. Setup of IGMP/Multicast on a perport basis is easy, improving the setup and reliability of running audio and video over the network simultaneously

  • Features:

    • Refreshed, simplified user interface >PoE Self-Healing with auto-recovery and power scheduling
    • Supports inbound and outbound (ingress and egress) ACL filtering
    • Layer 2/Layer 3 capabilities (static routing included)
    • Multicast/IGMP snooping and querying feature
    • Per port unregistered flooding
    • 802.1Q VLAN and QoS support including DCSP
    • Dante and AES67 compatibility
    • AV-over-IP compatible
    • PoE Self-Healing with auto-recovery and power scheduling
    • 24 PoE+ 1Gb Ports
    • 370 Watt total PoE budget
    • Rear-facing ports
    • 4 SFP+ Ports
    • Aggregable up to 40Gbps
    • Rack Mountable
    • ACL ingress and egress filtering


  • Specifications:

    • Connection Type: Wired
    • Jumbo Frame Support: 10240
    • Layer Support: L2, L3
    • Multicast: IGMP v1/2/3, Per Port Unregistered Flooding, Quierer, Snooping
    • Number of Fiber SFP Ports: 4
    • Number of Ports: 24
    • Protocols and Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af/ at, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1ab, IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1X
    • PoE Self Healing: Per Port Basis
    • Port Location: Rear
    • Power Cord: US Cord
    • Spanning Tree: MSTP, RSTP, STP
    • Special Features: PoE Self Healing, ProWatch Capable
    • SPF Port Type: 4x 10 Gigabit
    • Switch Type: Managed, PoE+
    • VLAN Compliance: 802.1Q max 4094 VIDs & VLAN trunking
    • VLAN ID: 4095
    • Wired Data Rate: 1Gbps
    • Height: 1.75" (4.4cm)
    • Length: 17.4" (44.2cm)
    • Max Power Consumption: 439W 100VAC
    • Operating Temperature: 32°F - 122°F (0°C - 50°C)
    • PoE Power Budget: 370W
    • Product Weight: 7.1lbs (3.2kg)
    • Switching Capacity: 128 GBPS
    • Width: 8.3" (21.1cm)
    • Certifications: CB Report, CE, CE-EMC, CE-LVD, cUL, FCC, IC, NDAA 889, RCM, RoHS, TAA, UKCA, UL, VCCI


  • Item Includes:

    • 1x 24 PoE+ - 4 (10G) SFP+ Ports - 1Gb L2/L3 Managed Switch
    • 1x Power and Console Cables
    • 1x Rack Ears and Set of Four (4) Adhesive Feet
    • 1x Quick Install Guide & Regulatory Documentation


  • GTIN:

    0655003923605
