Another product innovation from Manfrotto Lighting Support. Their lightweight and compact-size make them a practical tool for your lighting support needs.
The lightweight stand range consists of 7, 8, 9 and 12' stands which can be purchased as singles or in 3 packs!
With a patented Quick Stack System (QSS) portability is the key feature!
Connecting the stands together saves a lot of room while storing them in the studio. A more compact case can be used when shooting outdoors because of this unique design.
Material alternatives are crucial to provide high performance and light weight. Adaptor is the newmaterial specifically developed by Manfrotto for both collars and spider castings of the 1051BACMINI COMPACT STAND and the 1052BAC COMPACT STAND. Adaptor is a special technical polymer that is comparable to aluminum in strength, but is 50% lighter. Adaptor is an ideal material for photoimaging equipment as it has superb resistance to extreme temperatures and will not corrode or oxidize. Additionally, Adaptor is an excellent vibration absorption material, making our equipment the ultimate in vibration free shots. New Adaptor collars are made from a single locking component, ensuring better performance and easier maintenance.
STACKING SYSTEM LEG LOCK
A stronger and more ergonomic handle makes it easier/assists to secure stands into the operating position.
LOCKING DEVICE
Just a click away from your baby! Push on the new locking device and detach one stand, for quick usage
ATTACHMENT
A 3/8'' screw top female to 1/4" adapter male (015), allows you to connect additional accessories.
RISER LOCK HANDLE
A new bi-injection casting provides the photographer with a better ergonomic grip.
QUALITY AND RELIABILITY TESTS
All the structural components that are crucial for the safety or have to support high stress are engineered using the FEM analysis. The FEM (Finite Element Method) permits simulation of external forces in different applications to calculate the resulting stress on the component. Using this tool Manfrotto can optimize the design of the product obtaining the highest performance and the lowest weight.

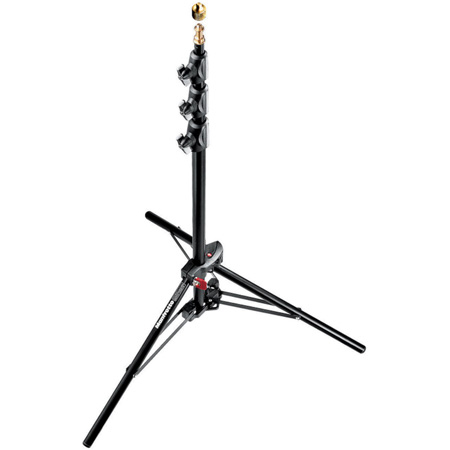

10501BAC
Minimum Height - 29.5in/75cm
Maximum Height - 83in/211cm
Closed Length - 26.4in/67cm
Footprint Diameter - 27.6in/70cm
Weight - 2.2lbs/1kg
Maximum Evenly Distributed Load - 8.8lbs/4kg
10502BAC
Minimum Height - 39.8in/101cm
Maximum Height - 93in/237cm
Closed Length - 33.9in/86cm
Footprint Diameter - 42.9in/109cm
Weight - 2.64lbs/1.2kg
Maximum Evenly Distributed Load - 11lbs/5kg
1004BAC
Minimum Height - 48.8.8in/124cm
Maximum Height - 144in/366cm
Closed Length - 42.1in/107cm
Footprint Diameter - 41.7in/106cm
Weight - 4.73lbs/2.15kg
Maximum Evenly Distributed Load - 19.8lbs/9kg
1005BAC
Minimum Height - 46.5in/118cm
Maximum Height - 107.5in/273cm
Closed Length - 39.4in/100cm
Footprint Diameter - 41.7in/106cm
Weight - 4.4lbs/2kg
Maximum Evenly Distributed Load - 22lbs/10kg
