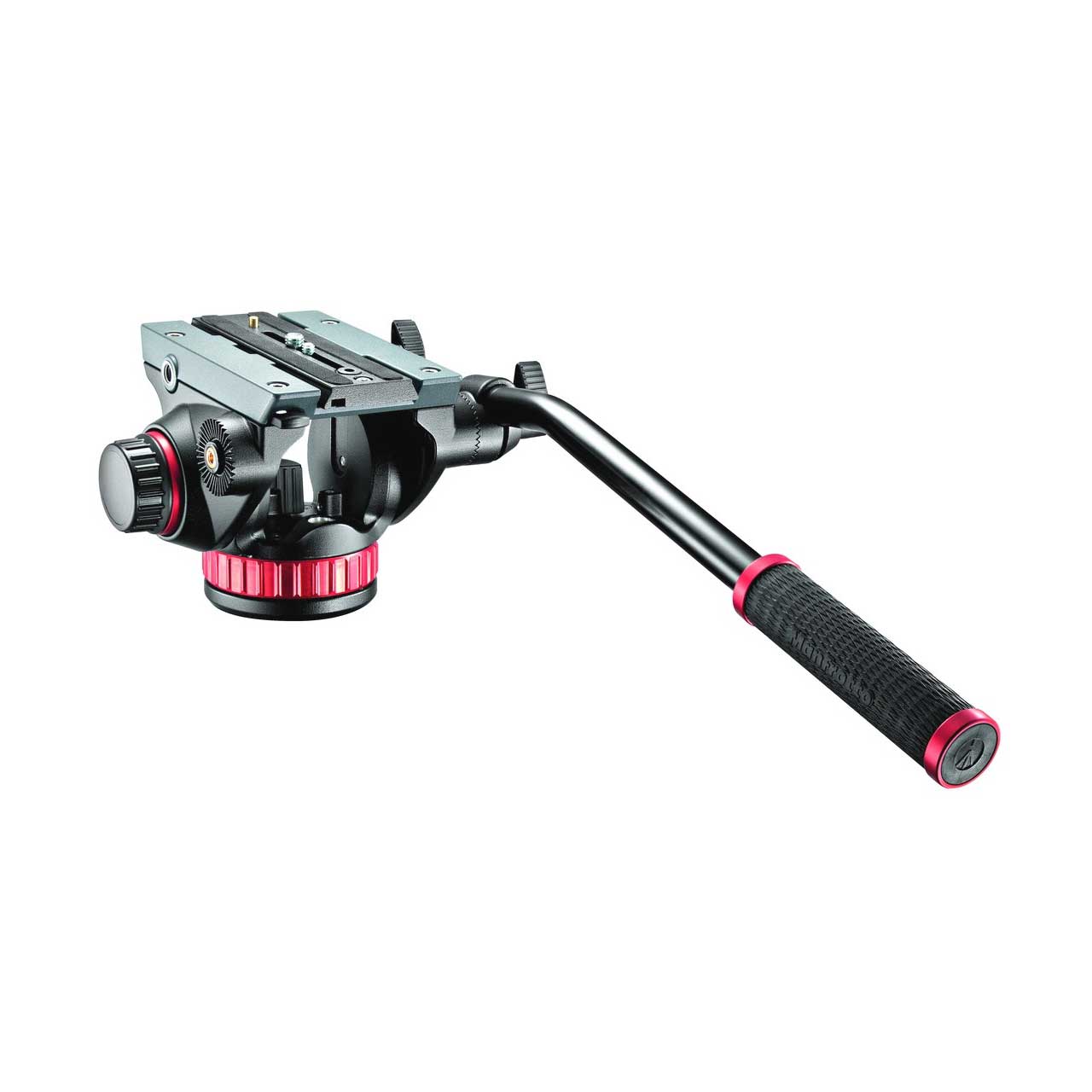

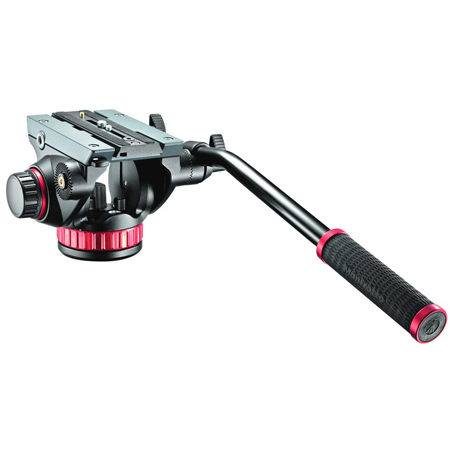

Manfrotto MVH502AH 502HD Pro Fluid Video Head Flat Base

MVH502AH - Overview

• Specifications:

  • Attaches By 1/4" and 3/8" attachment type 1/4" and 3/8" attachment type
  • Attachment 3/8" female thread attachment type 3/8" female thread attachment type
  • Balance Control one fix spring for 4kg camera weight one fix spring for 4kg camera weight
  • Bubble Spirit Level (No.) 1 number 1 number
  • Color black color black color
  • Front Tilt -80° / +90° tilt range -80° / +90° tilt range
  • Independent Pan Lock yes yes
  • Independent Tilt Lock yes yes
  • Material aluminum aluminum
  • Maximum Working Temperature +60 C° +60 C°
  • Minimum Working Temperature -20 C° -20 C°
  • Pan Bar Positions 2 number 2 number
  • Pan Bars Included (No.) 1 number 1 number
  • Pan Drag continuously adjustable from 0 to max level continuously adjustable from 0 to max level
  • Panoramic Rotation 360 degrees 360 degrees
  • Plate Type 504PLONG 504PLONG
  • Quick Release yes yes
  • Secondary Safety System yes yes
  • Sliding Travel of Plate 83.0 mm 3.27 in
  • Spring Loaded Counter Balance yes yes
  • Tilt Drag continuously adjustable from 0 to max level continuously adjustable from 0 to max level
  • Load Capacity 4 kg 8.82 lbs
  • Weight 1.6 kg 3.53 lbs
  • Working Height 13.0 cm 5.12 in


• GTIN:

  0719821334651
