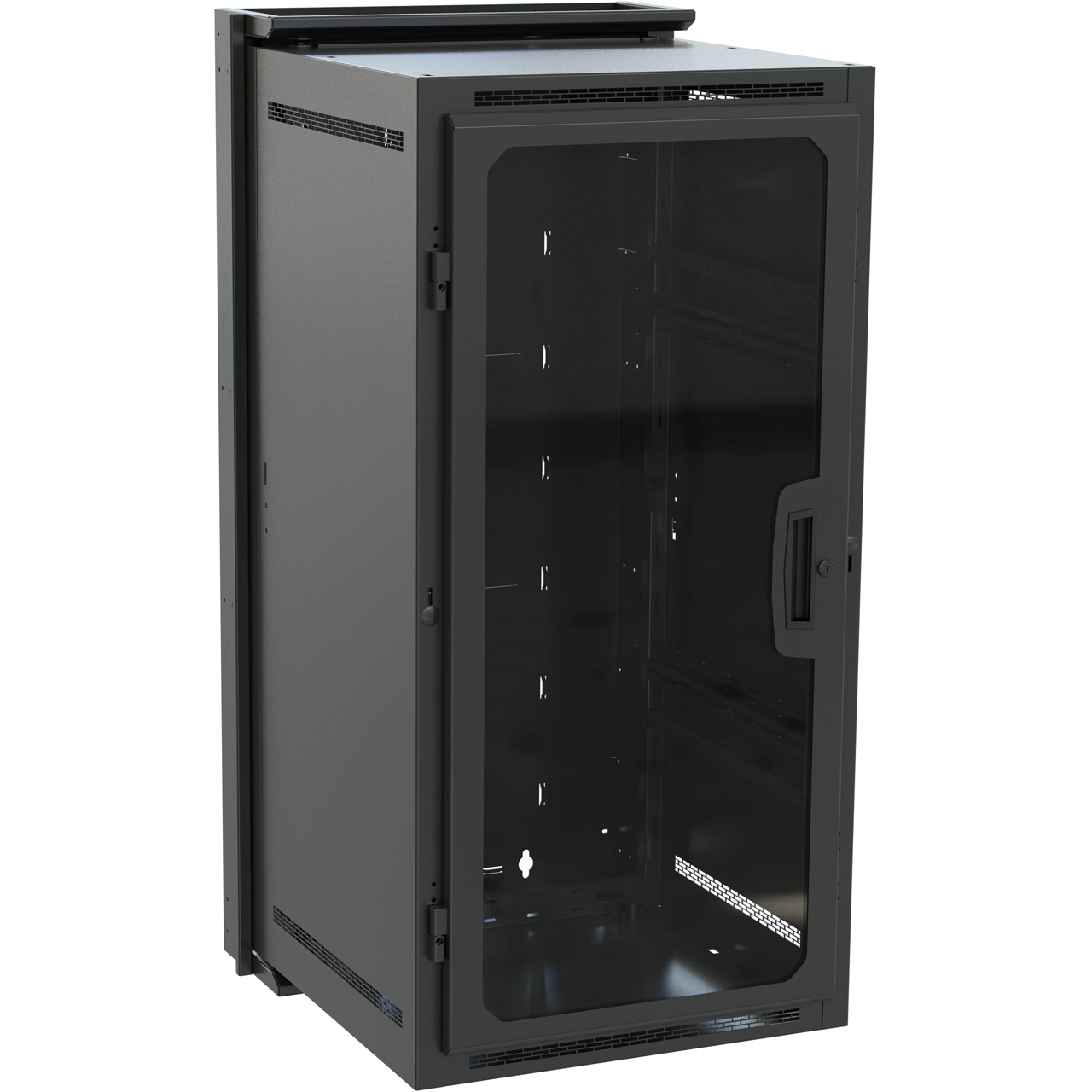

Middle Atlantic DWR-24-26PD DWR Series 24RU 26-Inch Depth Pivoting Wall Rack

DWR-24-26PD - Overview

• Features:

  • 24RU and 26" Deep
  • Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rackrail is optional (FWD-DWR-RRxx)

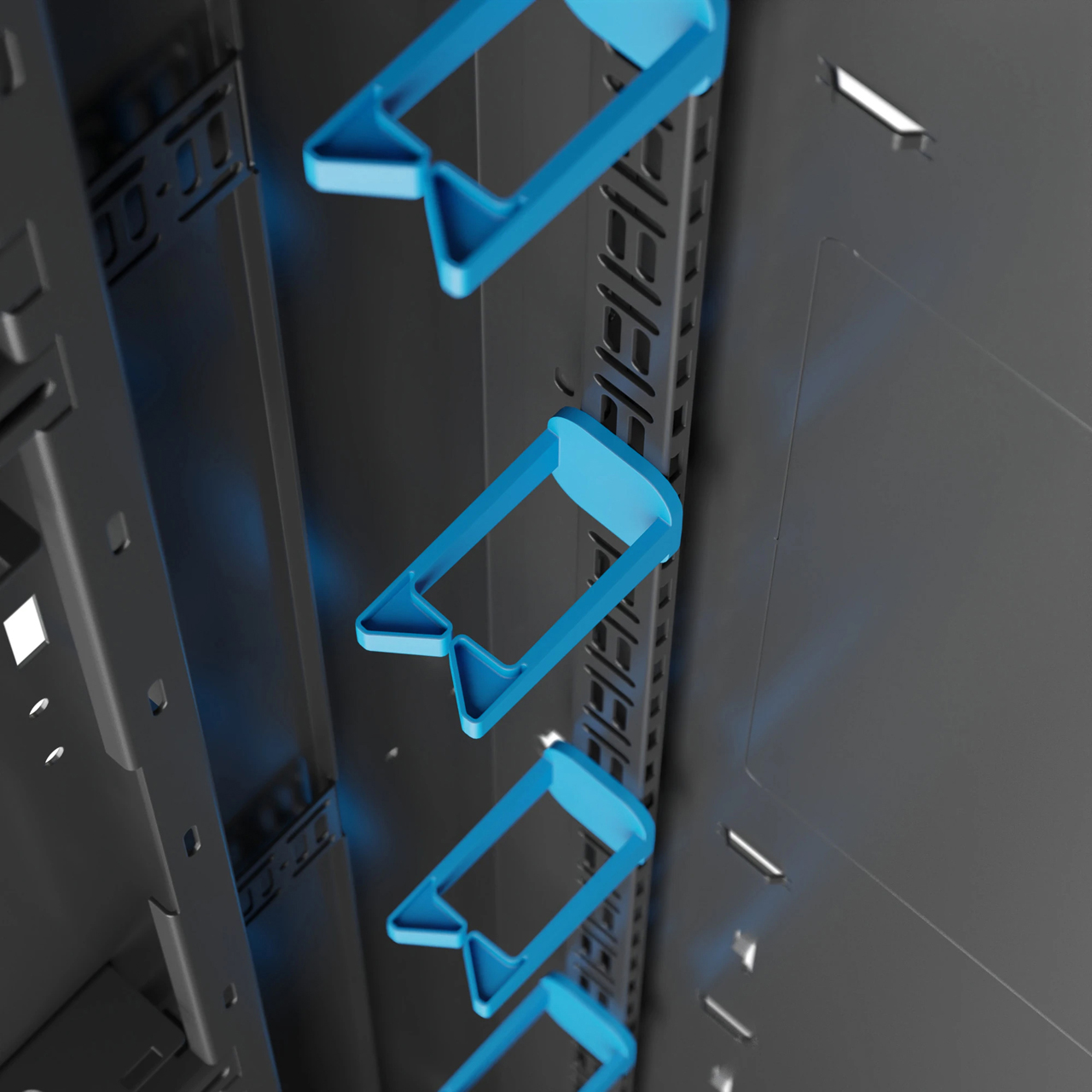

  • Now accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)
  • Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch
  • Center section rear channel accommodates optional slim power to save space, including the 10 outlet Select Vertical PDU with RackLink™
  • Tool-Free Quick-Mount™ system for easy, one-person mounting of the center section to the backpan on the jobsite
  • Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room
  • Center section swing is reversible, and can be both key-locked and padlocked
  • Center section is keyed differently from optional front door for additional security
  • Designed for active or passive cooling to support all systems
  • Comes with a factory installed plexi door


• Specifications:

  • Available Internationally: Yes
  • Color: Black
  • Door Type: Plexi
  • Federal Ops Country of Origin: USA
  • Finish: Black Wrinkle Powder Coat
  • Forward Compatible: Yes
  • Front Door: Yes
  • Material: Steel
  • Rack Rail Type: Forward Rackrail
  • Seismic Rated: Yes
  • Depth: 26" (66cm)
  • Height: 49.06" (124.6cm)
  • Product Weight: 130.5lbs (59.2kg)
  • Rack Units: 24 RU
  • Shipping Weight: 167lbs (75.8kg)
  • UL Load Capacity: 300lbs (136.1kg)
  • Usable Depth: 24" (61cm)
  • Usable Height: 42" (106.7cm)
  • Width: 23.4" (59.4cm)
  • Certifications: CSA Standard, TAA, UL Listed
  • Patent Number: 7278183
  • Seismic Load Capacity: 155lbs (70.3kg)


• GTIN:

  0656747059025
