ZTS Lead Acid Multi Battery Tester MBT-LA2

ITEM #: MBT-LA2 MFG #: MBT-LA2

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MBT-LA2

MBT-LA2 - Overview

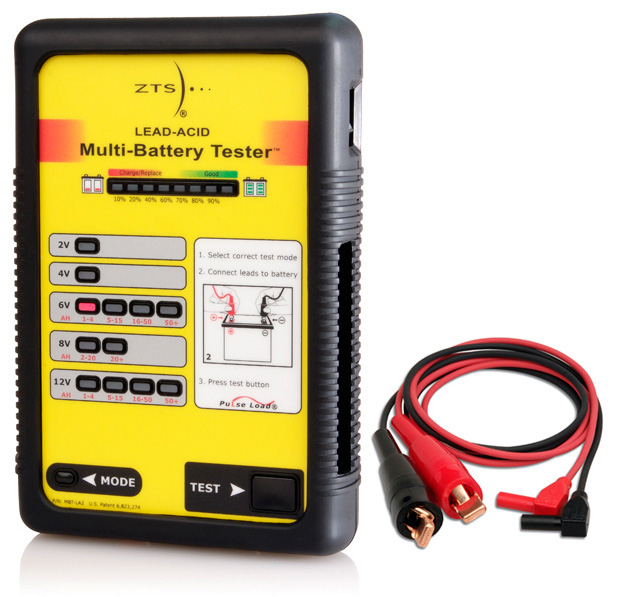

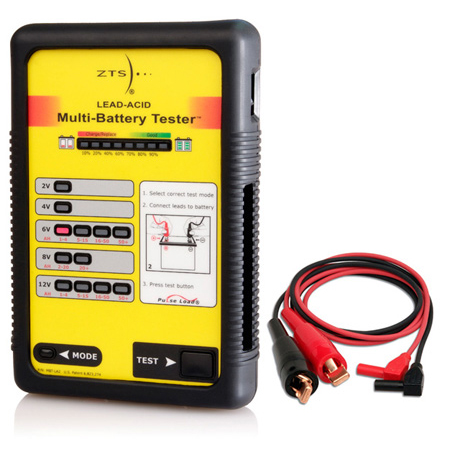

The ZTS Lead Acid Multi-Battery Tester (MBT-LA2) provides a comprehensive means of testing the state of charge and battery condition for 2-volt, 4-volt, 6-volt, 8-volt, and 12-volt lead acid battery types (SLA, AGM, Gel, Wet). Lightweight, compact design make it an ideal tool for anyone working with lead acid batteries. This microprocessor-controlled instrument tests popular batteries using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Test results are easy to understand. An integrated cooling fan dissipates heat from testing, and the circuit is protected against over-voltage. Rugged NBR rubber sleeve protects against impact. includes 48" removable test leads with solid copper clamps. The accessory kit (K-MBTLA2) includes a hanging strap and magnet for hands-free operation, and a protective soft case. Requires 4AA batteries (not included).

  • Specifications:

    • Testing capability (modes): 2-volt [2-25AH] 4-volt [2-25AH] 6-volt [1-4AH, 5-15AH, 16-50AH, 51-200AH] 8-volt [2-20AH, 21-150AH] 12-volt [1-4AH, 5-15AH, 16-50AH, 51-200AH]
    • Power (internal): 4 x AA batteries
    • Display: 8 LEDs - colors green, yellow, red
    • Pulse Load: magnitude varies according to battery type
    • Auto shut-off: after 20 minutes w/o test activity
    • Test duration: approx. 15 seconds
    • Test leads: 48" rubber coated high strand count, solid copper clamps, R/A sheathed banana plugs
    • Dimensions: 9.25 x 6.25 x 2.00 inches
    • Weight: approx. 32 oz. (908g)

  • Item Includes:

    • Soft case w/Velcro flap, hanging strap with quick-release buckle, magnet

  • GTIN:

    0856777000206
