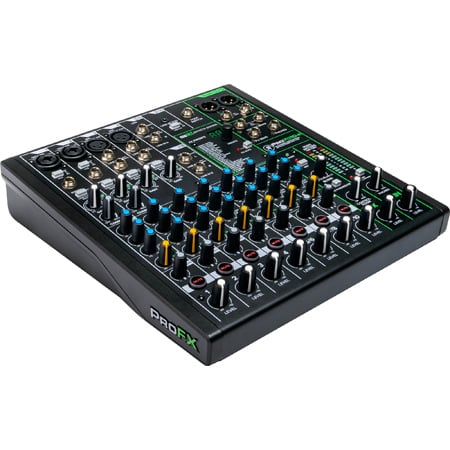

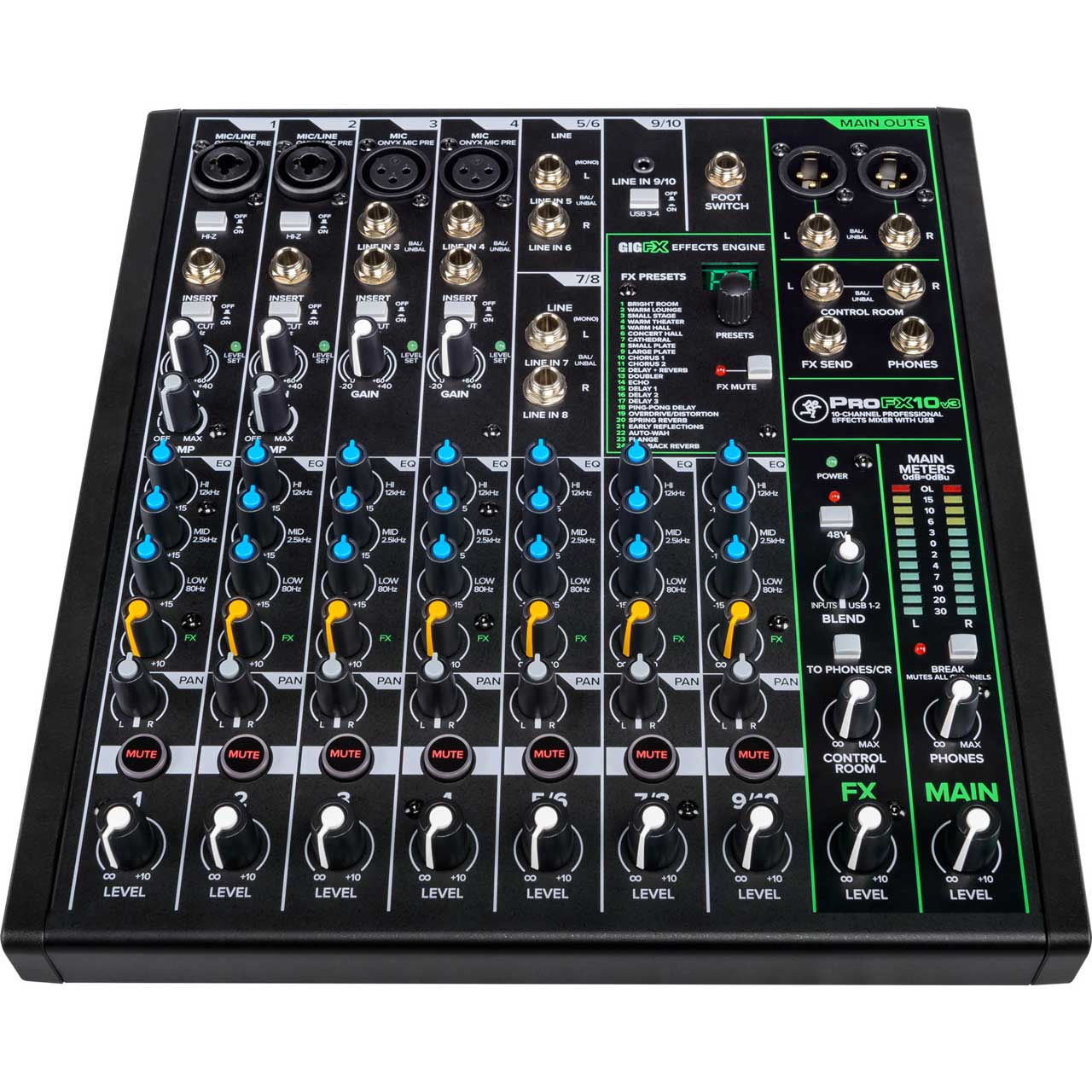

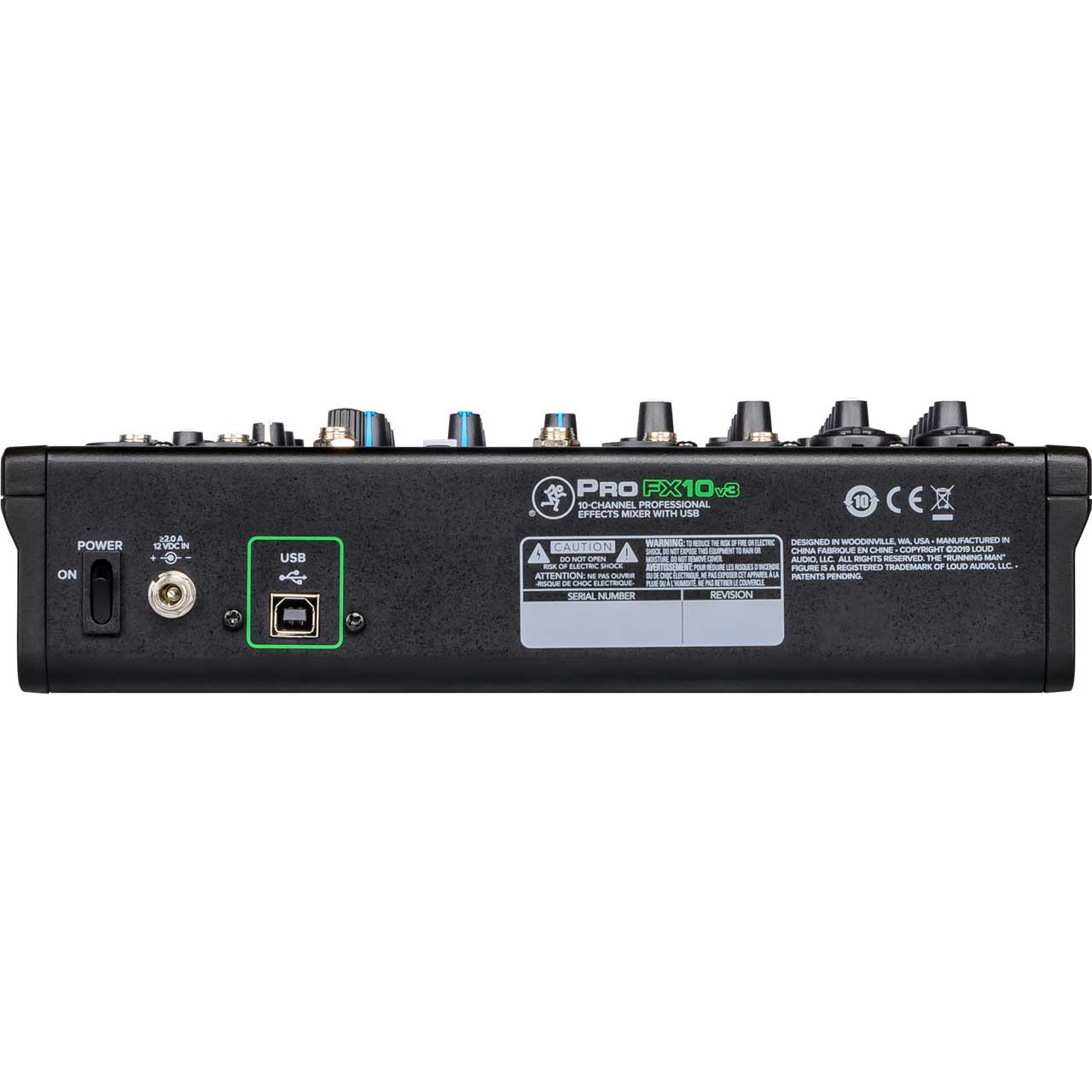

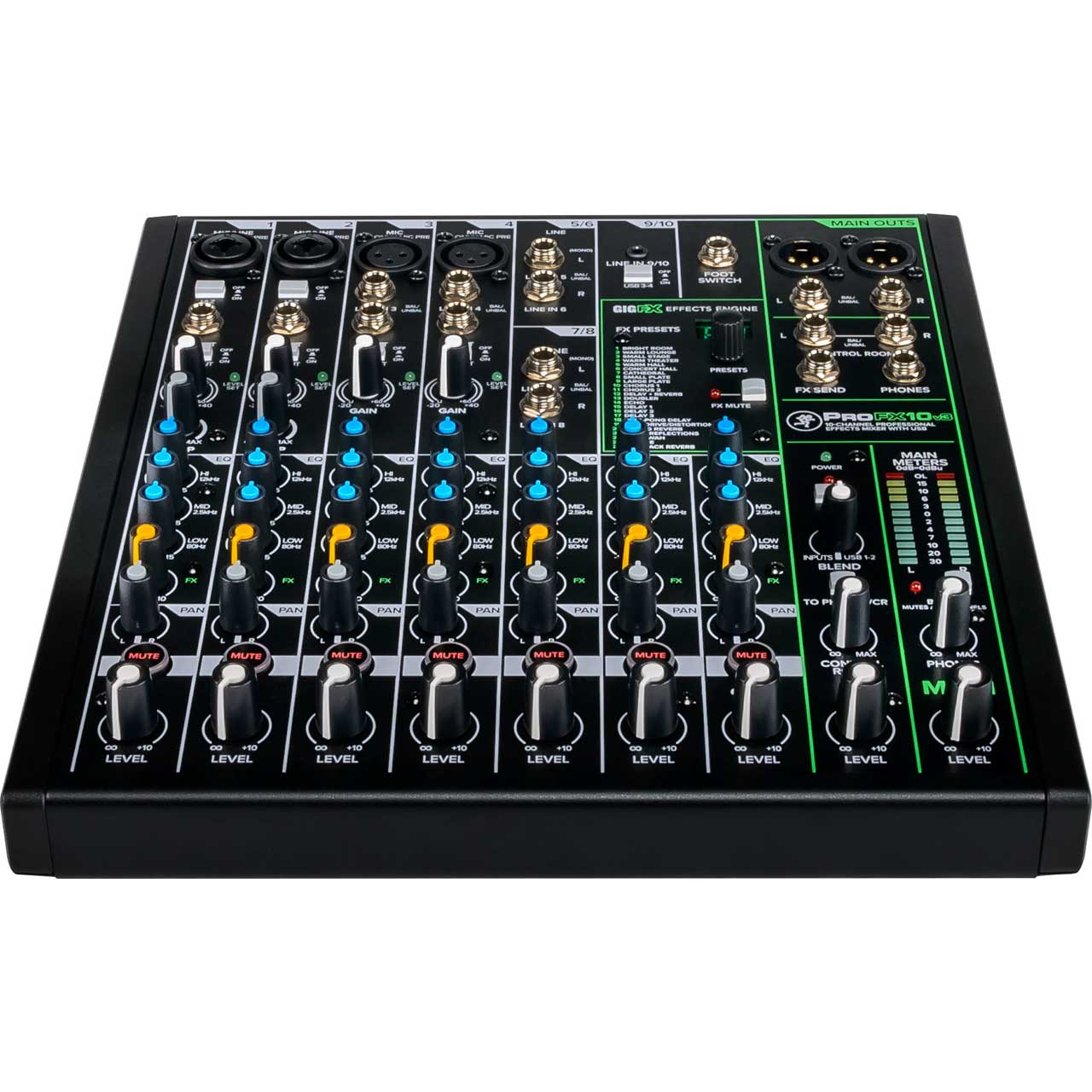

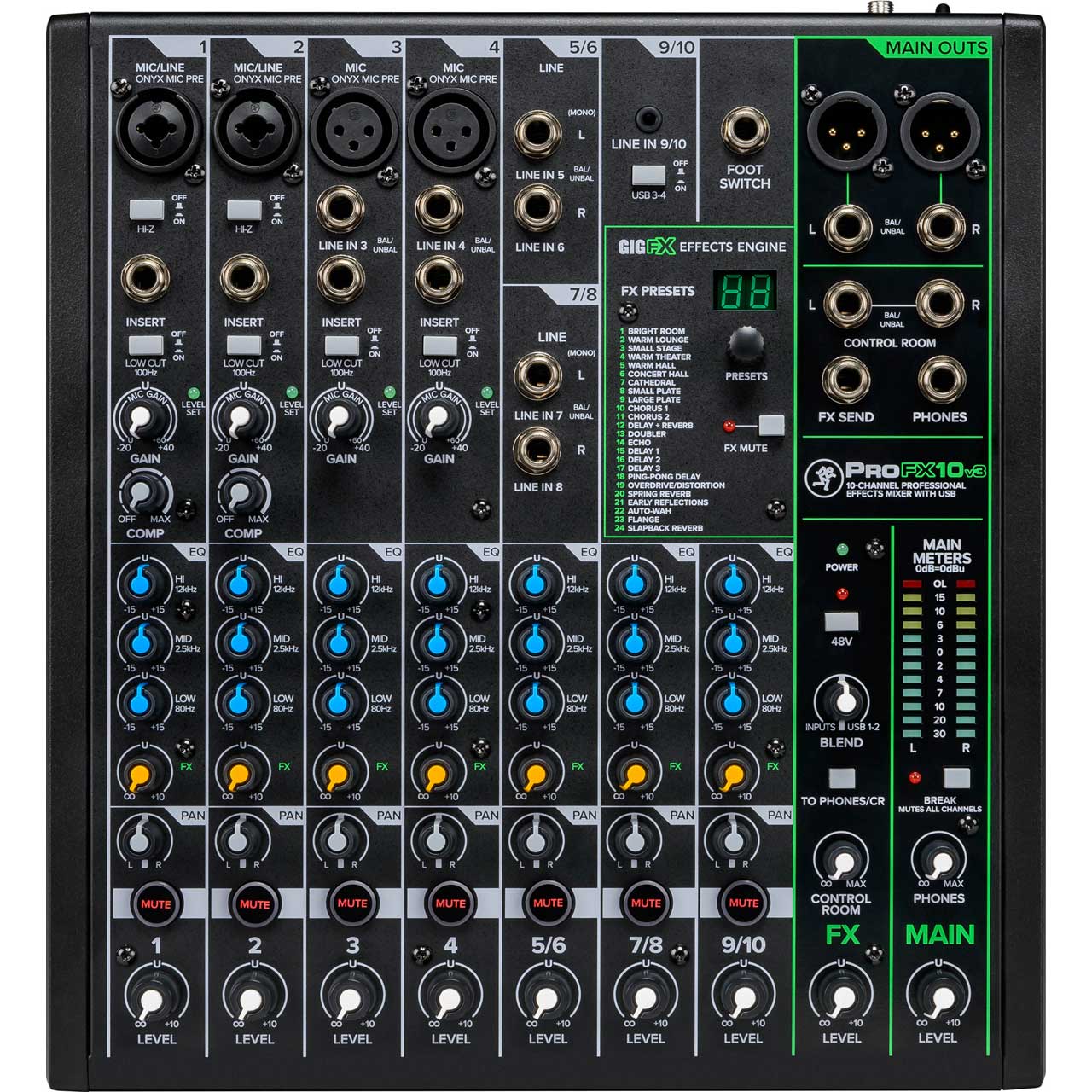

Mackie ProFX10v3 10 Channel Professional Effects Mixer with USB

PROFX10V3 - Overview

• Features:

  • 2x4 USB I/O allows you to create two custom mixes on your computer to send back in to the mixer
  • Perfect for live performance recording, music playback, live streaming, and more
  • Easily blend between monitoring your computer's output and a direct feed from the mixer
  • Pro Tools® | First and Waveform™ OEM professional software and plugin packages included
  • The Musician Collection™ for ProTools | First includes 23 plugins like BBD Delay, Eleven Lite, 304 EQ, and 304C Compressor*
    *Requires new free subscription to Pro Tools | First
  • The DAW Essentials™ Bundle for Waveform™ OEM includes 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter
  • Equipped with 4 Onyx Mic Pres offering up to 60dB of gain and ultra-low noise performance
  • All-new GigFX Effects Engine with 24 different FX options, from reverbs to delays and more
  • 3-band EQ on all channels
  • Hi-Z switches allows direct connection of guitars, basses, and other instruments
  • 100Hz low-cut filter and 48V phantom power on all mic channels
  • Stereo 1/8" input on channel 9/10
  • Headphone output with separate level and blend control
  • Insert jack on channels 1-4
  • Footswitch input for FX Mute
  • Single-knob compression helps keep your input levels in check
  • Legendary Mackie "Built-Like-A-Tank" design
  • Solid steel chassis protects your investment
  • Tough ABS side protection


• Specifications:

  • Noise Characteristics
  • Mic IN to Insert Send OUT, Max Gain (EIN): -126dBu
  • Residual Output Noise - All Outputs:
    Master Levels Off, All Channel Levels Off: -95dBu
    Master Levels Unity, One Channel Level Unity: -80dBu


  • Frequency Response: 20Hz - 30kHz
  • Distortion (THD+N)(22Hz - 80kHz bandwidth): <0.03%
  • Common Mode Rejection Ratio (CMMR): 70dB

    Attenuation and Crosstalk
  • Adjacent Inputs @ 1kHz: -90dB
  • Inputs to Outputs @ 1kHz: -80dB
  • Fader Off @ 1kHz: -75dB
  • Mute Switch/Break Switch Mute @ 1kHz: -90dB

    Maximum Levels
  • All Inputs: 22dBu
  • Main Mix XLR: 28dBu
  • All Other Inputs: 22dBu

    Impedances
  • Mic In: 3.3kΩ
  • Channel Insert Return: 10kΩ
  • All Other Inputs: ≥20kΩ
  • Phones Out: 25Ω
  • All Other Outputs:
    120Ω unbalanced
    240Ω balanced

    EQ
  • Low: ±15dB @ 80Hz
  • Mid: ±15dB @ 2.5kHz
  • High: ±15dB @ 12kHz
  • Low Cut Filter: 18dB/octave @ 100Hz

    USB
  • Format: USB 2.0
  • I/O:
    1 Stereo Input
    2 Stereo Outputs
  • A/D/A:
    24-bit
    44.1kHz
    48kHz
    96kHz
    192kHz


  • Digital Effects Presets: 24
  • Phantom Power: 48V DC to all mic channels simultaneously
  • Universal AC Power Supply: 100 - 240V AC, 50 - 60Hz
  • Power Connector: 12V DC @ 2A Class I Hard-Wired Wall Mount Adapter
  • Dimensions (HxWxD): 3.2" x 10.7" x 11.9" (81mm x 272mm x 302mm)
  • Weight: 4.9lbs (2.2kg)


• GTIN:

  0663961057881
