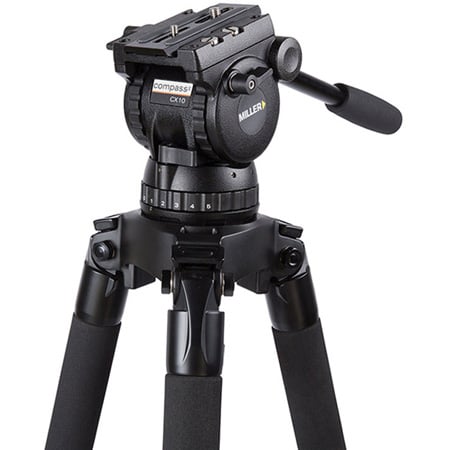

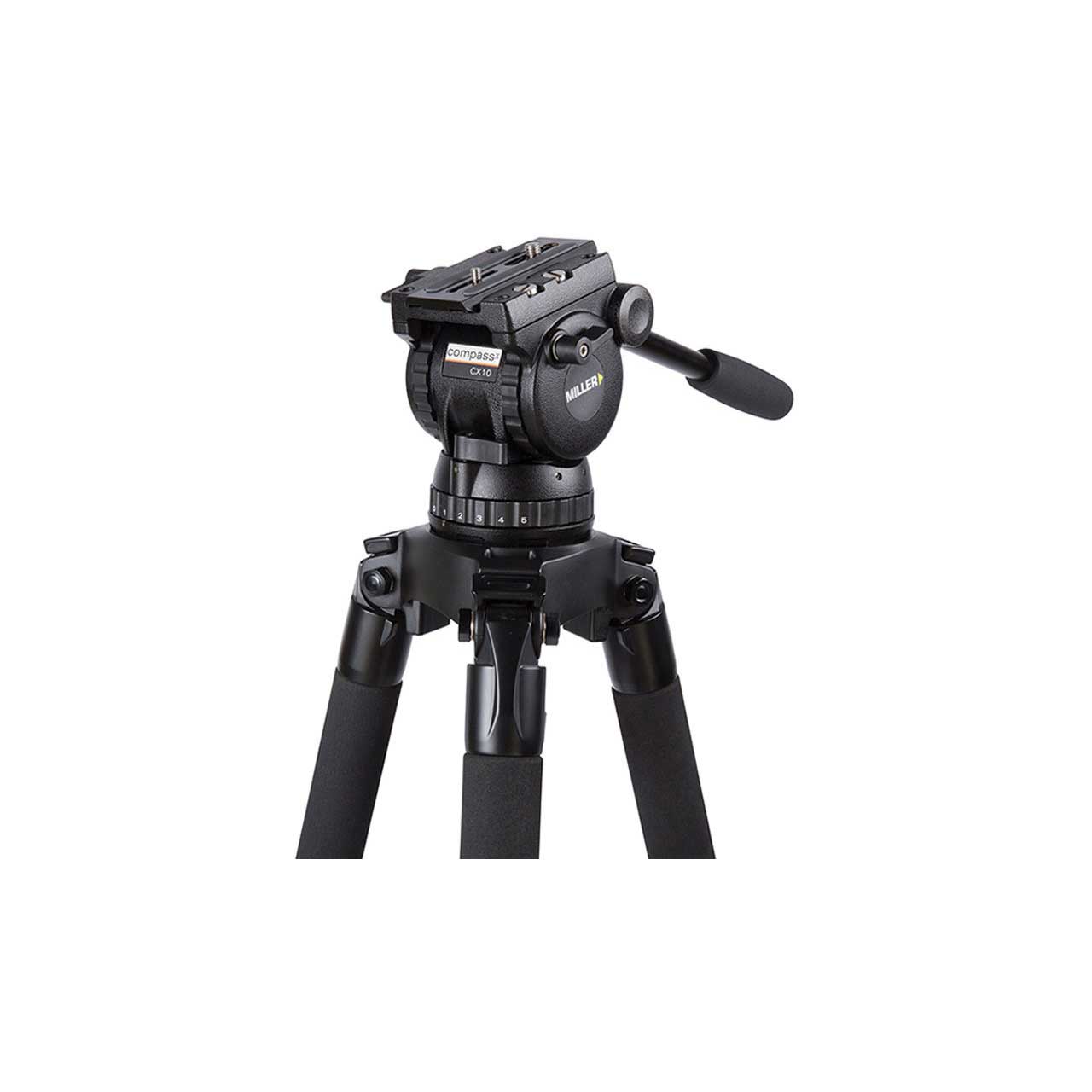

Miller 1096 CX10 Fluid Tripod Head

ITEM #: MIL-1096 MFG #: 1096

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,768.00

Our Price:

$2,242.08

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


1096 - Overview

The Miller CX10 is a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively. Whether the job requires a mirrorless camera, DSLR, cine-rig or a broadcast camera, the CX10 is capable of balancing from 0kg to 12kg. It features advanced precision fluid drag, fast set-up and professional performance.

CX10 employs CB Plus™ technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller's fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.

Constructed of lightweight high-strength die-cast alloy and tough composite polymers and featuring precision ball bearings Miller have combined robust engineering with silk smooth pan and tilt camera movements. Built for extreme conditions the CX2 performs consistently over a wide range of temperatures and environments giving you confidence when out on a shoot.

Affordable, stable and robust for heavier loads, CX10 makes a great choice for applications such as news gathering, documentary, wildlife and filmmaking. The CX10 meets the demands for reliability and "THE RIGHT FEEL" that are hallmarks of Miller, enabling you to tell your story.

  • Features:

    • Affordable, Stable, Robust
    • Perfect for payloads to 0-12kg (26.4bs)
    • 15+0 CB Plus selectable counterbalance positions
    • Ergonomically located CB Plus switch
    • 5+0 selectable positions of fluid pan and tilt drag
    • Positive selection radial ring controls
    • Illuminated bubble level
    • Precise floating pan-tilt calliper locks ensure bounce free on-off performance
    • Side loading, 60mm balance travel camera plate with 1/4 inch and 3/8 inch screws
    • Robust construction for rugged outdoor shooting conditions
    • Side mounting point for viewfinders and accessories
    • Optional second pan handle mount

  • Specifications:

    • Payload Range: 0-12.0kg (0-26.4lbs)
    • Weight: 2.5kg (5.5lbs)
    • Counterbalance Positions: 16 selectable positions (15+0)
    • Pan Tilt Drag: 5 Selectable fluid drag positions + 0
    • Pan Tilt Locks: Positive lock calliper brake system
    • Tilt Range: + 90°/ -75°
    • Pan Range: 360°
    • Camera Platform Quick: release, side load camera plate
    • Sliding Range: 60mm (2.4 inch)
    • Mounting Base: 100mm (3.9 inch) ball levelling
    • Height Above Bowl: 150mm (6.0 inch)
    • Illuminated Controls: Bubble level
    • Pan Handle: Fixed length 390mm (15.4 inch)
    • Temperature Range: -40° to +65°C (-40° to +149°F)

  • Warranty:

    • 3 year warranty

  • GTIN:

    9354041000644
