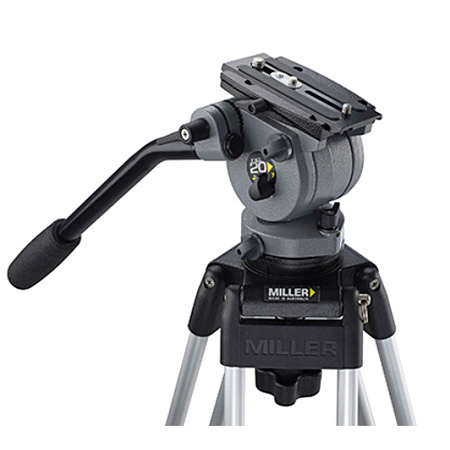

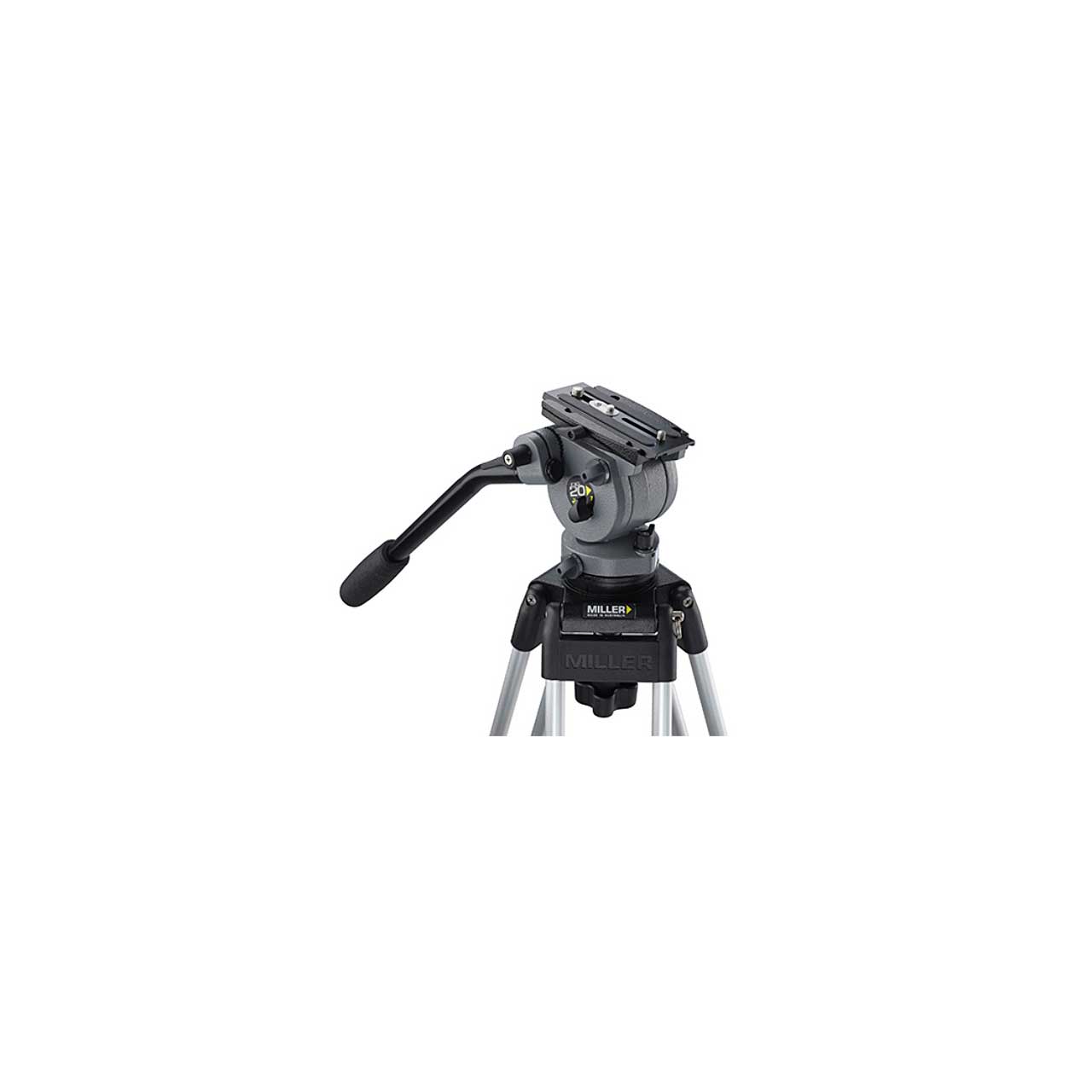

Miller 184 DS20 Fluid Head - 75mm Ball Levelling

DS20 - Overview

• Features:

  • HDV/P2HD/XDCAM EX camcorders from 5-10kg / 11-22 lbs
  • Fluid drag system consistant in all temperature ranges
  • Selectable counterbalance system
  • Pan/Tilt locks utilising floating calliper type disc brakes
  • Quick release, sliding camera plate choice: 1/4" & 3/8" screws or 1/4" & pin
  • 75mm ball levelling with bubble level


• Specifications:

  • Payload Range: 5 - 10kg (11-22 lbs)
  • Weight: 1.75 kg (3.9 lbs)
  • Camera Plate: Std 1/4" + pin & 1/4" & 3/8" screws
  • Tilt Drag: Fluid drag plate system with friction boost
  • Tilt Lock: Calliper disc brake system
  • Pan Range: 360 °
  • Counter balance System: 2 selectable positions
  • Pan Handle: Fixed length
  • Body Width: 72 mm (2.8 in)
  • Payload Capacity: 10.00 kg (22 lbs)
  • Camera Platform Type: Quick release 60mm sliding camera plate
  • Mounting: 75mm Ball levelling
  • Tilt Range: +90/-75°
  • Pan Drag: Fluid drag plate system with friction boost
  • Pan Lock: Calliper disc brake system
  • Temperature Range: -40°C- +65°C
  • Depth Including Camera Platform: 145 mm (5.7 in)
  • Height Above Bowl: 137 mm (5.4 in)


• GTIN:

  9354041000019
