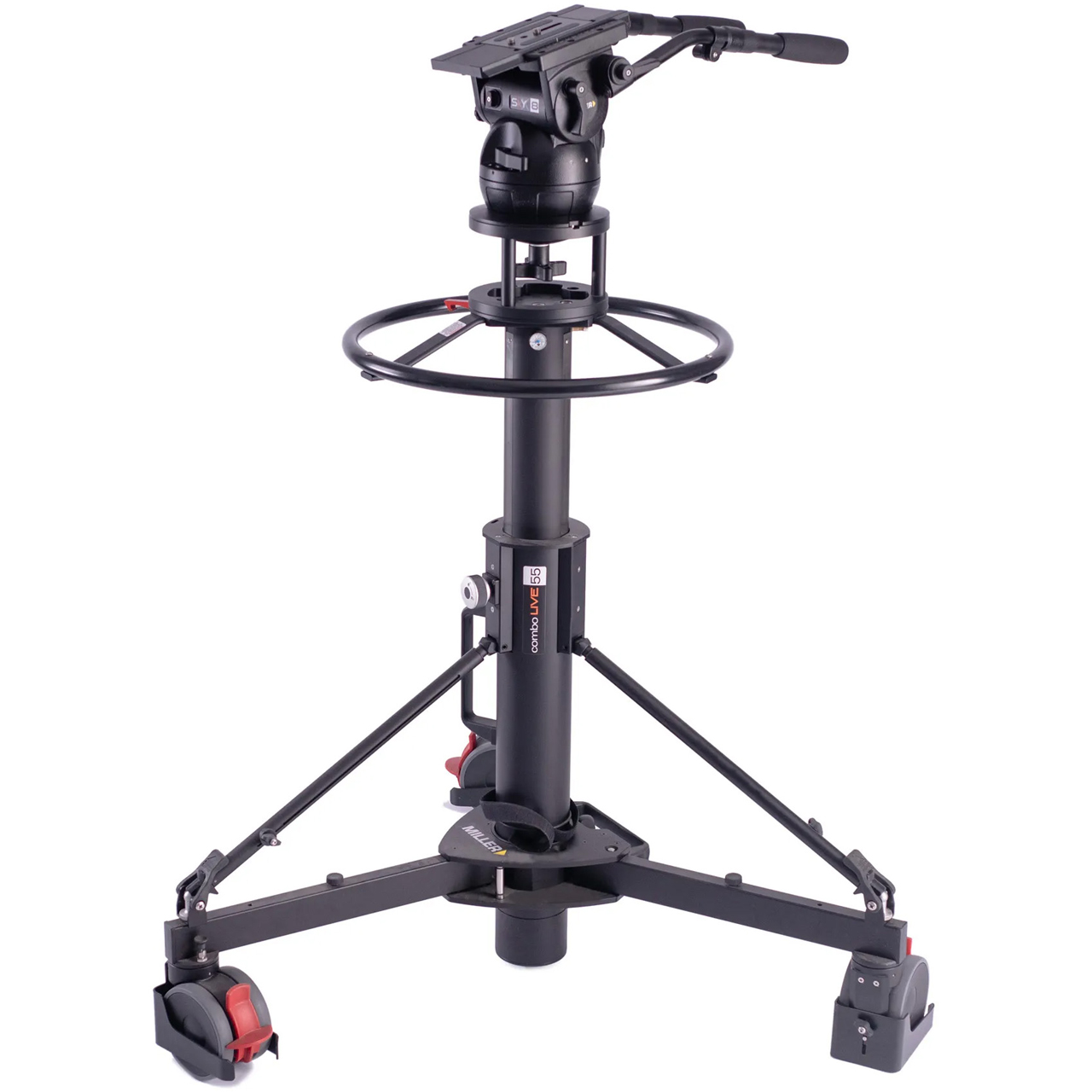

Miller SkyX 8 Combo Live 55 Pedestal System with Fluid Head/2x HD Pan Handles/Large Euro Camera Plate/MB Adapter & Clamp

ITEM #: MIL-3272 MFG #: 3272

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$21,988.00

Our Price:

$17,869.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


3272 - Overview

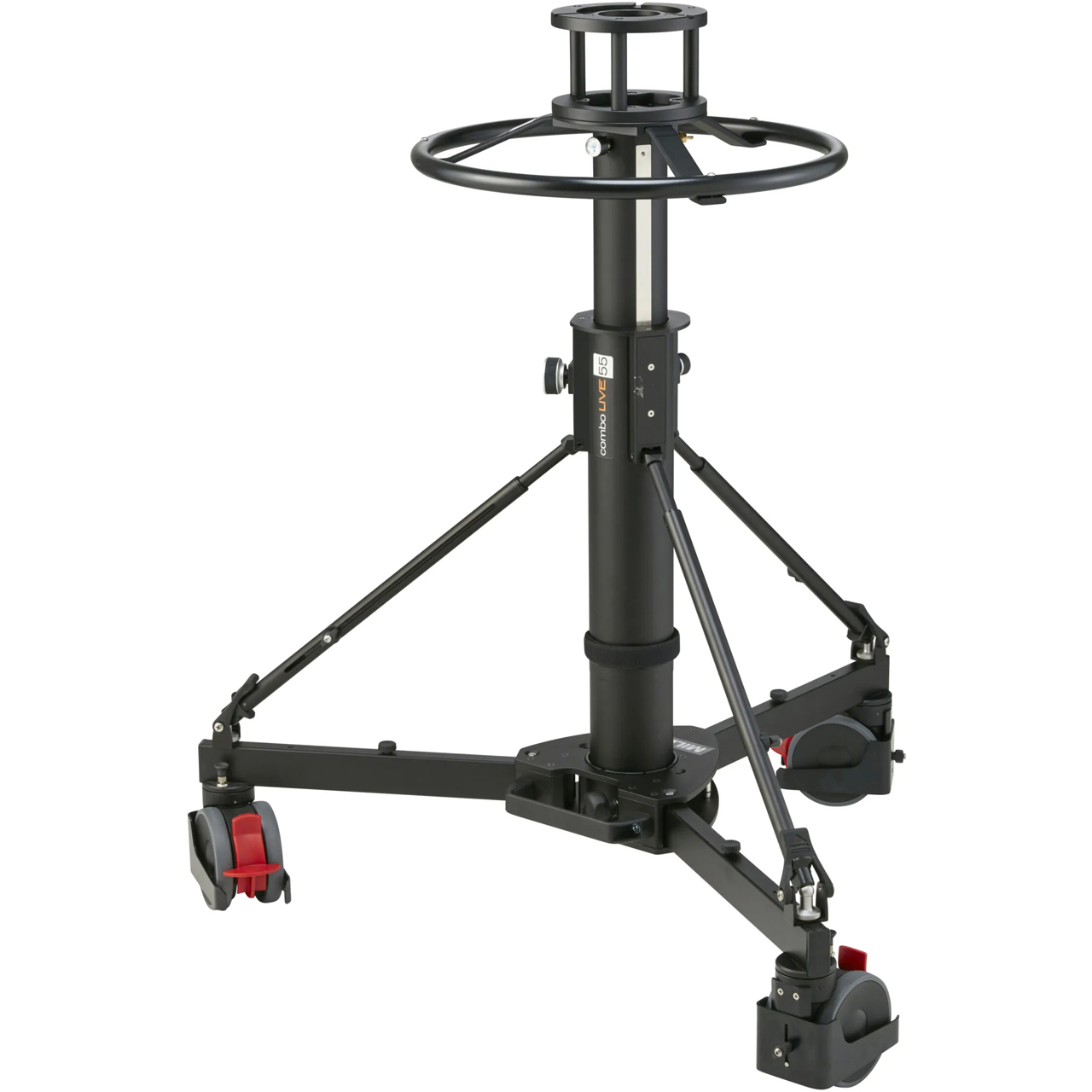

Miller SkyX 8 Combo Live 55 pedestal with 450mm in-shot stroke offers high payload capacity and light weight portability employing an air adjustable column system that delivers perfect camera balance with a height range of 1022mm 40.2" up to 1587mm 62.4" precise, smooth, low noise in-shot 450mm 17.7" stroke for payloads 4.5-37.5kg 9.9-82.7lb with the SkyX 8 fluid head.

Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth effortless movement, featuring multiple wheel locking positions for linear or radius dolly tracking.

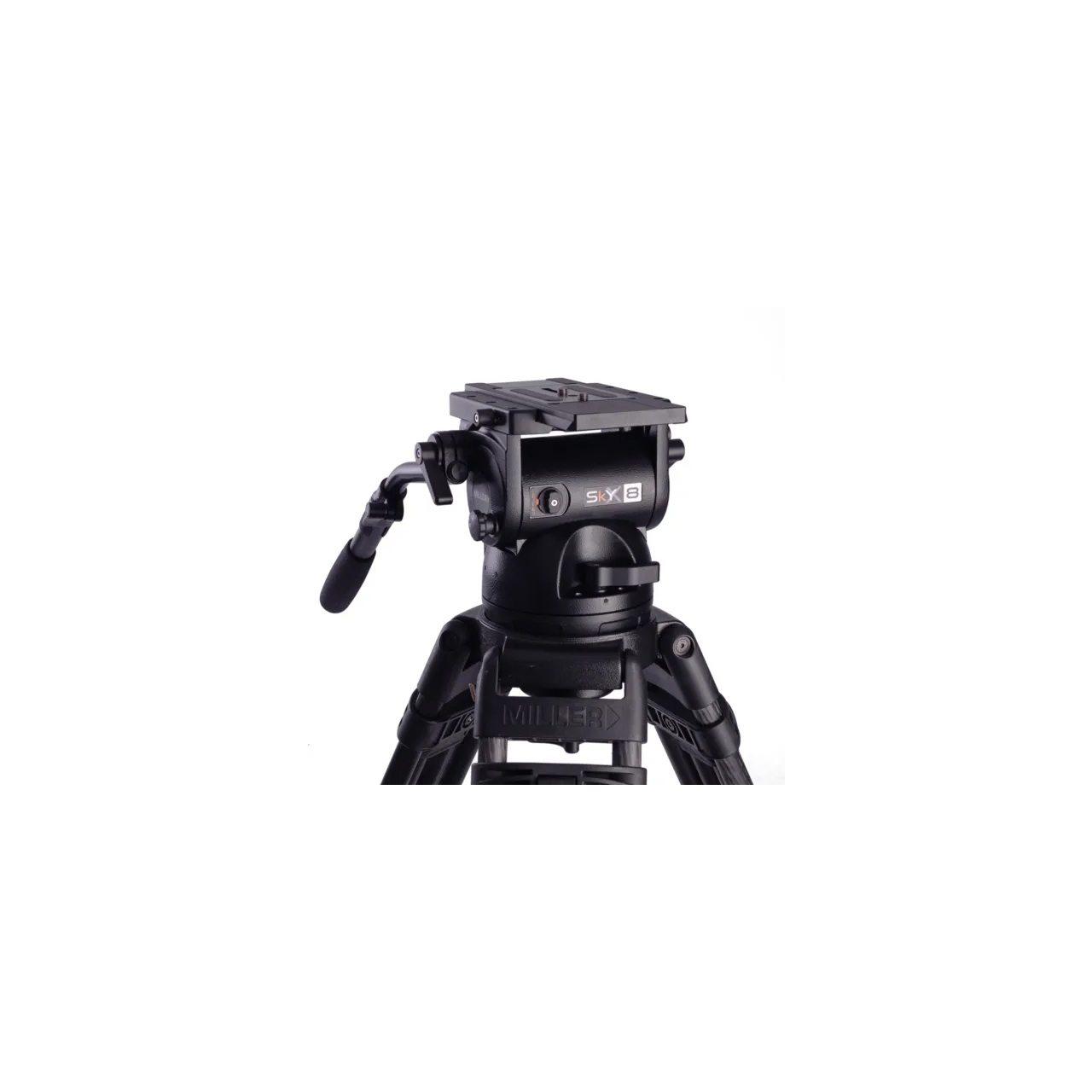

The 3272 SkyX 8 Combo Live 55 Pedestal comes fitted with SkyX 8 fluid head designed for outside broadcast and studio productions, bringing a new dimension to professional camera support.

Incorporating advanced precision fluid drag and counterbalance systems operated through rear mounted "all in one location" with unique illumination of all controls and bubble level, the SkyX 8 makes it even faster and easier than ever before to set up and capture the action.

With an extended 7+0 position fluid drag system employing smooth start and soft stop technology, well balanced diagonal drag transition, 8 counterbalance settings plus 120mm camera plate balance travel, the SkyX 8 offers a fast reliable set up you can trust and is versatile enough to use over a wide array of camera configurations.

Constructed of lightweight high-strength die-cast alloy and rigid composite polymers and featuring precision ball bearing supported pan and tilt movements, SkyX 8 is extremely durable and robust delivering silky smooth pan-tilt fluid actions to match camera payloads up to 40.0kg 88.0lb.

This makes the SkyX 8 Combo Live 55 Pedestal a clear stand-out high performer option for live broadcast studio operators looking for a versatile pedestal that punches above its weight.

  • Features:

    • 7 selectable of fluid pan-tilt drag positions + 0.
    • 8 selectable positions of counterbalance.
    • Perfect for payloads to 4.5-40.0kg 9.9-88.0lbs .
    • Wideheight range 1022mm 40.2" up to 1587mm 62.4"
    • Precise, smooth and low noise In-shot column with 450mm 17.7" stroke.
    • Air adjustable column system for quick payload balancing.
    • Independent dolly wheel axle brake system eliminates wheel tyre indents.
    • Multiple wheel positions for linear or radius dolly tracking.
    • 125mm 4.9" dual ball bearing wheels for quick swivel-turn action.
    • Centre hub locking column with adjustable spider arm supports.
    • Steering wheel diameter 494mm 19.4"
    • Dolly tracking width 970mm 38.2"
    • Sturdy adjustable cable guards.
    • Portable hand pump with pressure gauge.

  • Specifications:

    • Column In-Shot Stroke: 17.7"
    • Components: 1052 SkyX 8 fluid head 1225 Mitchell base adaptor with clamp 698 2 x HD Pan handle - telescopic with clamp 3230 Combo Live 55 pedestal
    • Height Range: 40.3-62.6"
    • Mounting Base: Mitchell base
    • Payload Range: 9.9-82.5lbs
    • Steering Wheel Diameter: Ø19.4"
    • Tracking Width: 38.2"
    • Weight: 66.9lbs
    • Wheel Diameter: Ø4.9"

  • Item Includes:

    • 1x Miller SkyX 8 Combo Live 55 Pedestal System with Fluid Head/2x HD Pan Handles/Large Euro Camera Plate/MB Adapter & Clamp

  • Warranty:

    • 3 Years
