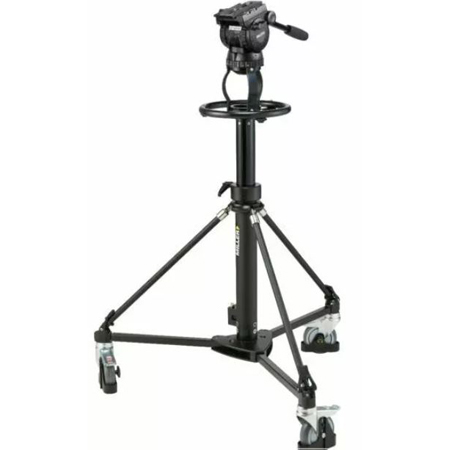

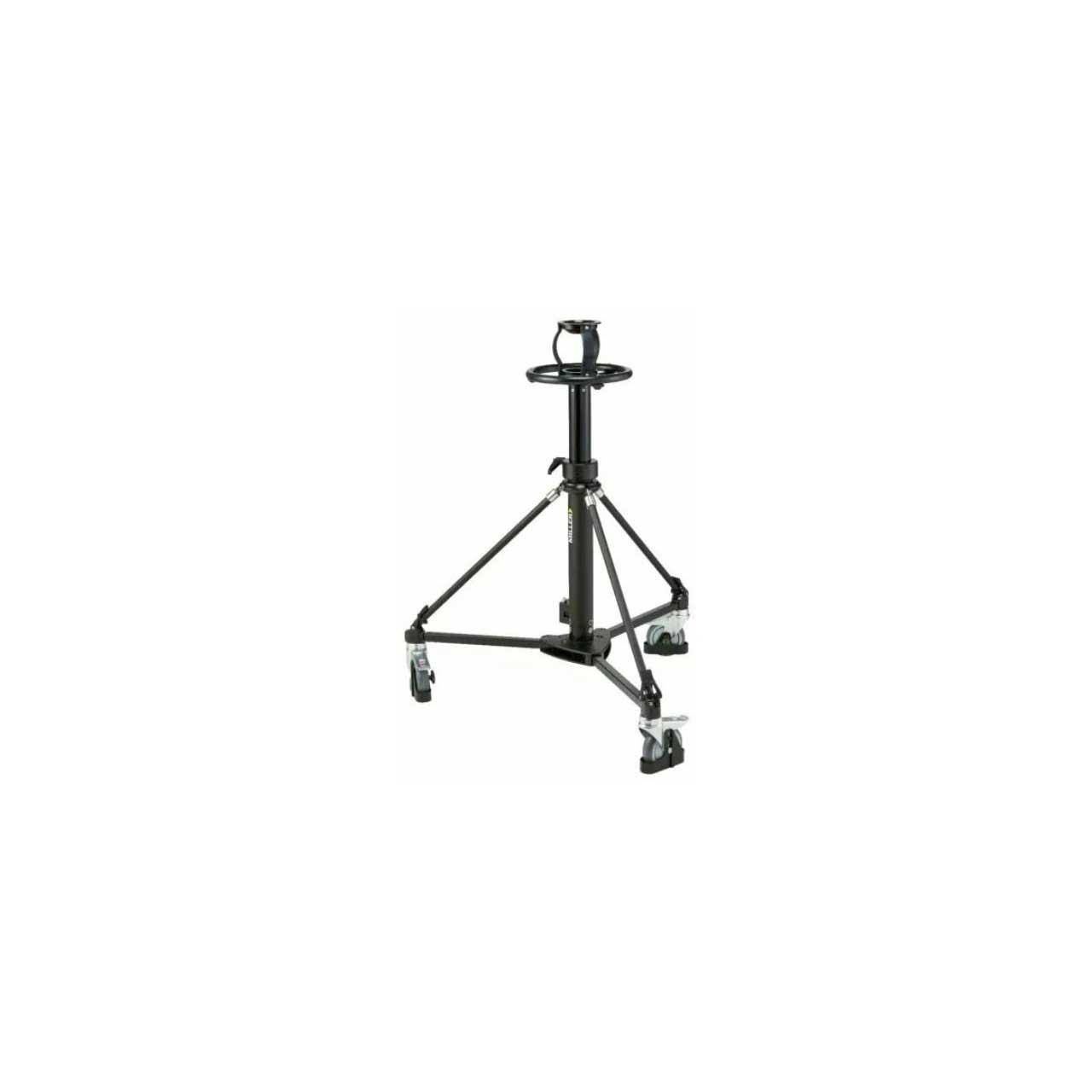

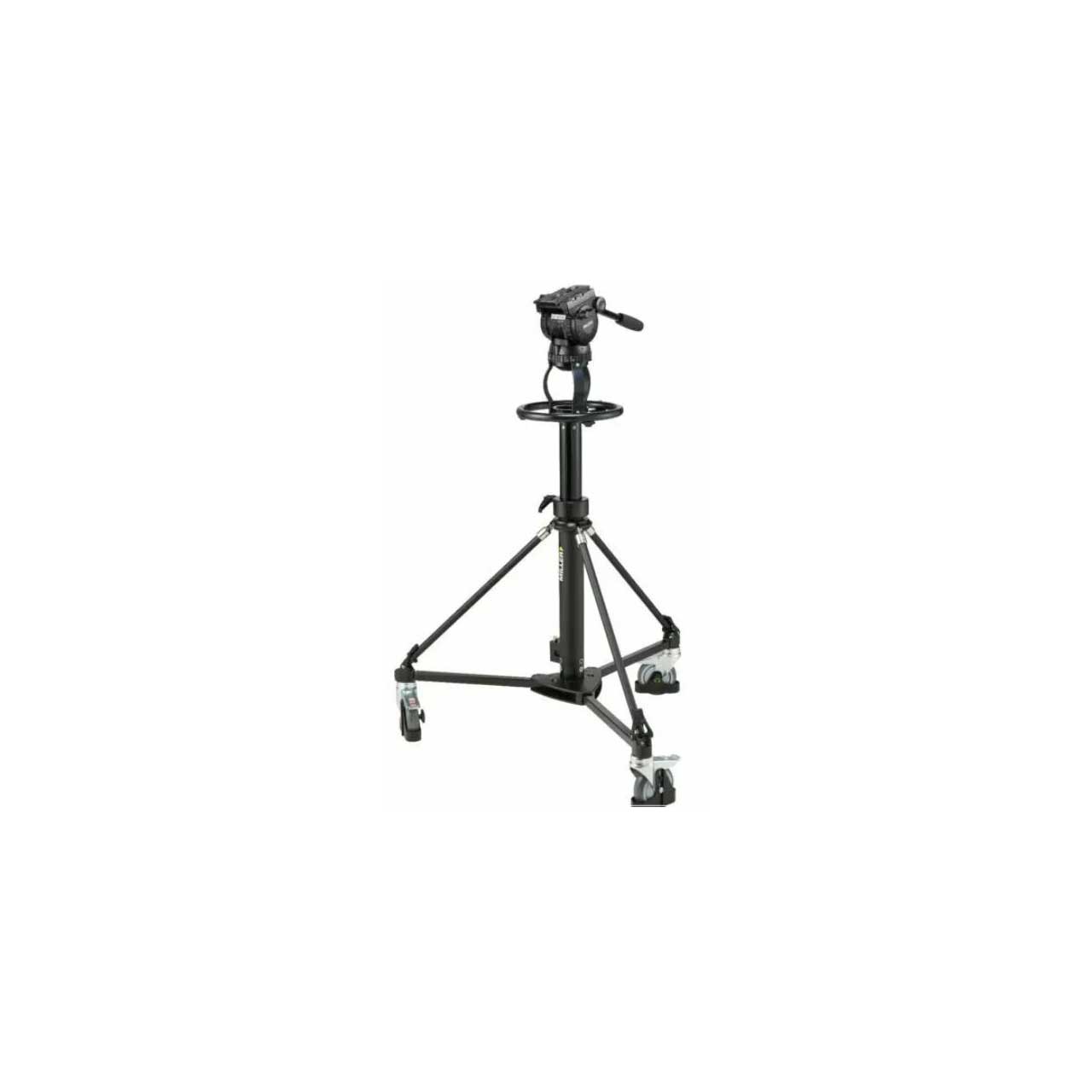

Miller 3799 CX14 Tripod Combo Pedestal

CX14 - Overview

• Features:

  • 5 selectable positions of fluid pan and tilt drag + 0.
  • 16 position CB Plus™ counterbalance system.
  • Wide payload range 0-14.0kg (0-30.9lbs).
  • Quick action column lock.
  • Smooth 350mm (13.8") stroke.
  • Independent 125mm dolly wheel brake system.
  • Sturdy adjustable cable guards.
  • Steering wheel diameter 294mm (11.6").
  • Dolly tracking width 920mm (36.2").


• Specifications:

  • Payload Range: 0-14.0kg (0-30.9lbs)
  • Weight: 18.0kg (39.7lbs)
  • Height Range: 1050-1400mm (41.3-55.1")
  • Mounting Base: Ø100mm (3.9") ball levelling
  • Column In-Shot Stroke: 350mm (13.8")
  • Steering Wheel Diameter: Ø294mm (11.6")
  • Tracking Width: 920 mm (36.2")
  • Wheel Diameter: Ø294mm (11.6")
  • Camera platform: Quick release, side load camera plate
  • Sliding range: 60mm (2.4")
  • Mounting base: Ø100mm (3.9") ball levelling
  • Height above bowl: 150mm (6.0")
  • Illumination: Bubble level
  • Pan handle: Fixed 390 mm (15.4")
  • Temperature range: -40° to +65° C (-40° to +149° F)
  • Material: Lightweight hi-strength diecast aluminium alloy and rigid composite polymers
  • Finish: Durable black ripple (low sheen) with anti-corrosive pre-treatment
  • Sealing: Water and dust resistant


• Item Includes:

  • 1x CX14 fluid head
  • 2x Pan handle - telescopic with clamp
  • 1x Combo pedestal


• Warranty:

  • 3 year warranty


• GTIN:

  9354041002945
