ZTS MINI-MBT Mini Multi-Battery Tester

ITEM #: MINI-MBT MFG #: MINI-MBT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MINI-MBT

MINI-MBT - Overview

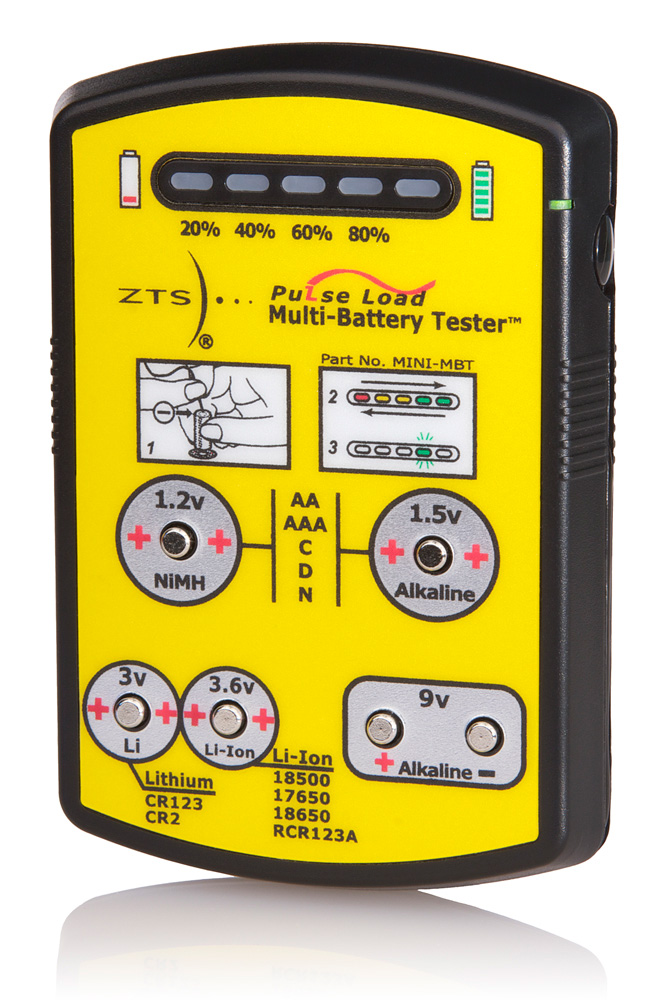

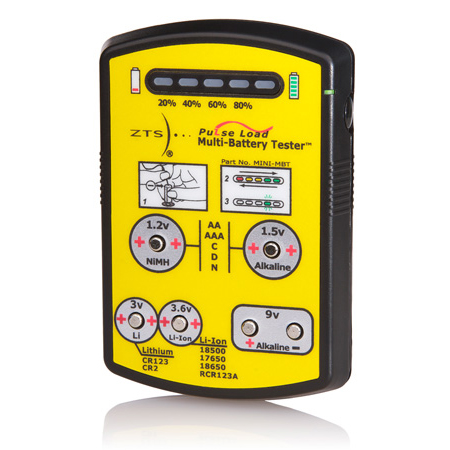

The ZTS Mini Multi-Battery Tester™ (MINI-MBT) provides a comprehensive means of testing the state of charge or state of power for more than 15 battery types. The MINI-MBT’s microprocessor-based design makes battery testing simple - using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Battery types are clearly labeled next to appropriate contacts. There are no settings, and test results are easy to understand.

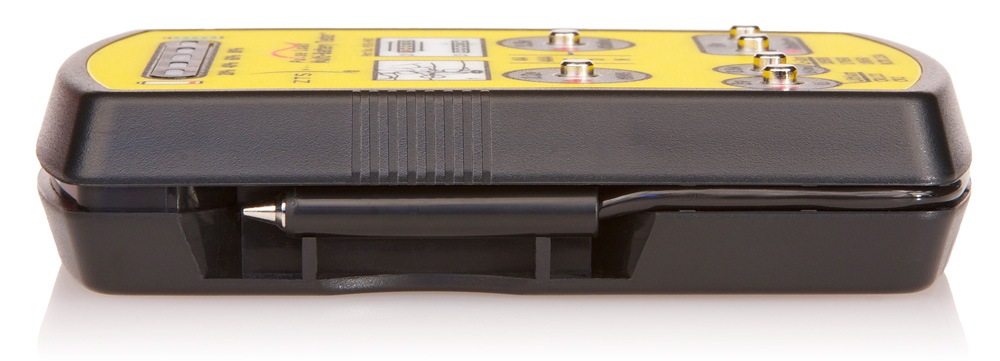

Its small size makes it ideal for the gadget bag, toolbox, or home utility drawer. Negative test lead/probe conveniently stores in seam at side. Tests NiMH, Alkaline, and Lithium batteries. Uses 4AAA batteries (not included) Made in U.S.A. Patents 6,823,274 and D515,444.

  • Features:

    • Easy to use - no switches or settings
    • Quickly and easily identify weak or failing batteries
    • Patented high accuracy Pulse Load Test
    • Ideal for electronics, remotes, photo, smoke detectors, games, medical, and more
    • Made in U.S.A.

  • Specifications:

    • Testing Capability (Battery List):
    • 1.2v NiMH / NiCd rechargeable [AA, AAA, C, D]
    • 1.5v alkaline [AA, AAA, C, D, N]
    • 3v photo lithium [CR123, CR2]
    • 9v alkaline & carbon zinc
    • Power (Internal): 4 AAA batteries
    • 3.6V Li-Ion:
    • 18500, 17650, 18650, RCR123A
    • Display: 5 LEDs - colors green, yellow, red
    • Pulse Load: Magnitude varies according to battery type
    • Operation: Microprocessor-controlled test cycle
    • Test Duration: Approx. 2 seconds
    • Contact Terminals: Solid brass, nickel-plated
    • Dimensions: 4 x 2.5 x 0.75 inches
    • Weight: Approx. 3 oz. (85g)

  • Applications

    :

    • Battery Management
    • Security
    • Wireless
    • Remotes
    • Smoke Detectors
    • Electronics
    • Retail
    • Safety
    • Medical Appliances
    • Rechargeables
    • Games
    • Hobby
    • Office
    • Service
    • Clocks
    • Photo

  • GTIN:

    0856777000121
