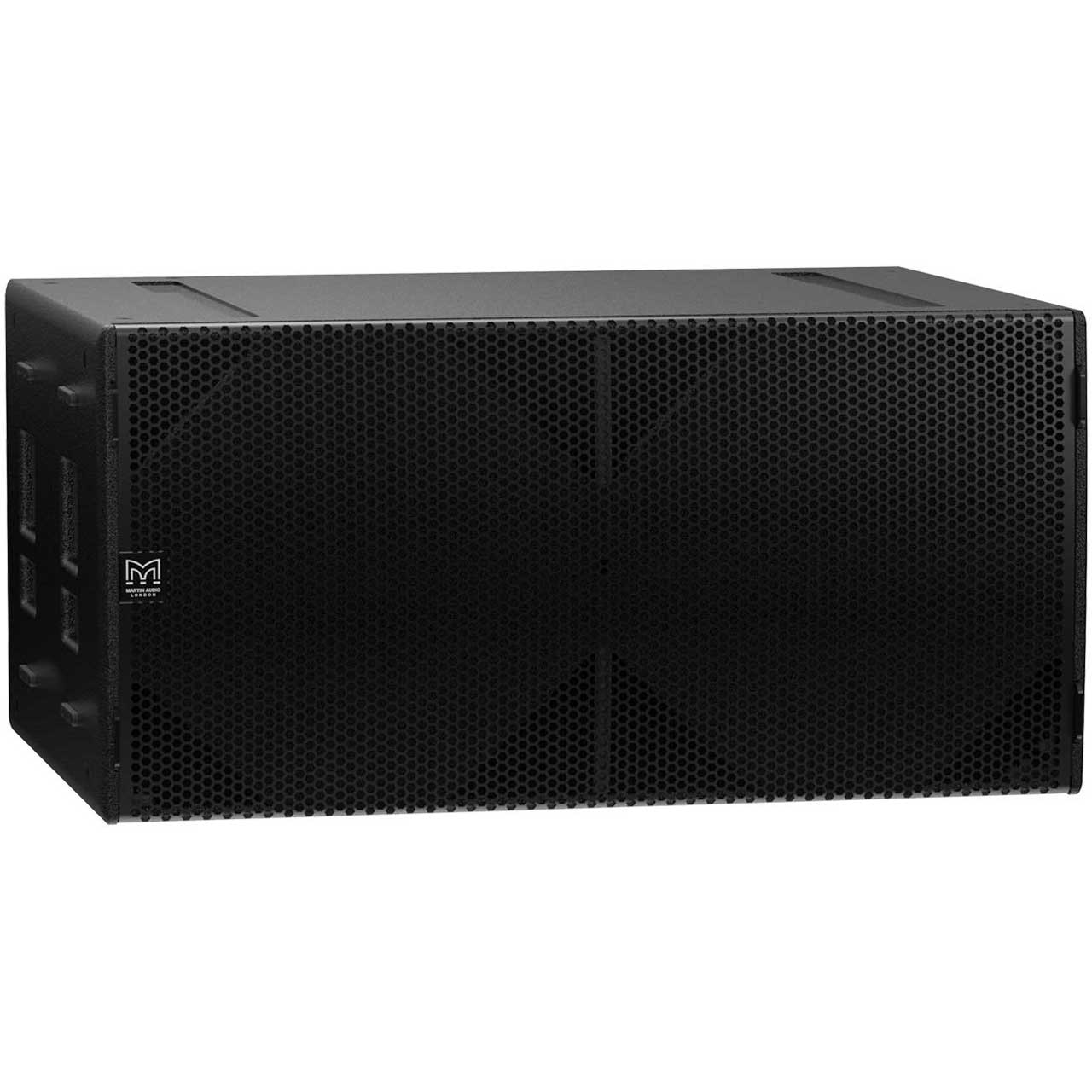

Martin Audio SX218 2 x 18-Inch Passive Direct Radiating Subwoofer - Black

ITEM #: MRTN-SX218 MFG #: SX218

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SX218 - Overview

Martin Audio SX218 achieves the ultimate in subwoofer performance for the most demanding applications - delivering very high output levels and superb transient performance with minimal distortion. Please note this product has been updated since January 2019 from an earlier iteration.

With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18" long excursion (460mm)/4" (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. Each driver is rated to handle 1000 watts AES, and has a magnet structure and suspension engineered for maximum linear excursion.

The enclosure is constructed from multi-laminate birch ply and finished with a durable polyurea coating. Eight reflex ports provide a large frontal area to reduce turbulent air noise, and a perforated steel grille protects the drivers from damage. SX218 features a M20 pole mount insert for added versatility in deployment.

The product is supplied as standard without cabinet wheels, but they are available as an accessory.

By adding the input board cover accessory, SX218 is fully weather resistant and suitable for permanent outdoor usage.

Applications:
Touring sound reinforcement for small and medium-size venues
Fixed installations in concert halls, theatres, ballrooms and HoW
Sports stadium, arena installations & corporate AV events
Outdoor restaurant, bar and hotel entertainment areas
Concourses and Theme Parks

  • Features:

    • Dual-driver, direct radiating subwoofer
    • 2 x 18"/4" (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
    • Very high output capability
    • Tour-grade plywood enclosure with flying inserts

  • Specifications:

    • Type: Dual-driver, direct radiating subwoofer
    • Frequency Response: (1) 35Hz -150Hz ±3dB, -10dB @ 30Hz
    • Driver: 2 x 18" (460mm)/4" (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
    • Rated Power: (2) 2000W AES, 8000W peak
    • System Amplifier: iKON iK42
    • Sensitivity (10): 105dB
    • Maximum SPL(9): 144dB peak
    • Nominal Impedance: 2 x 8 Ohms
    • Dispersion (-6dB): Omnidirectional/or Cardioid (paired)
    • Enclosure: Multi-laminate birch/poplar ply
    • Finish: Textured black paint
    • Protective Grill: Black perforated Zintec

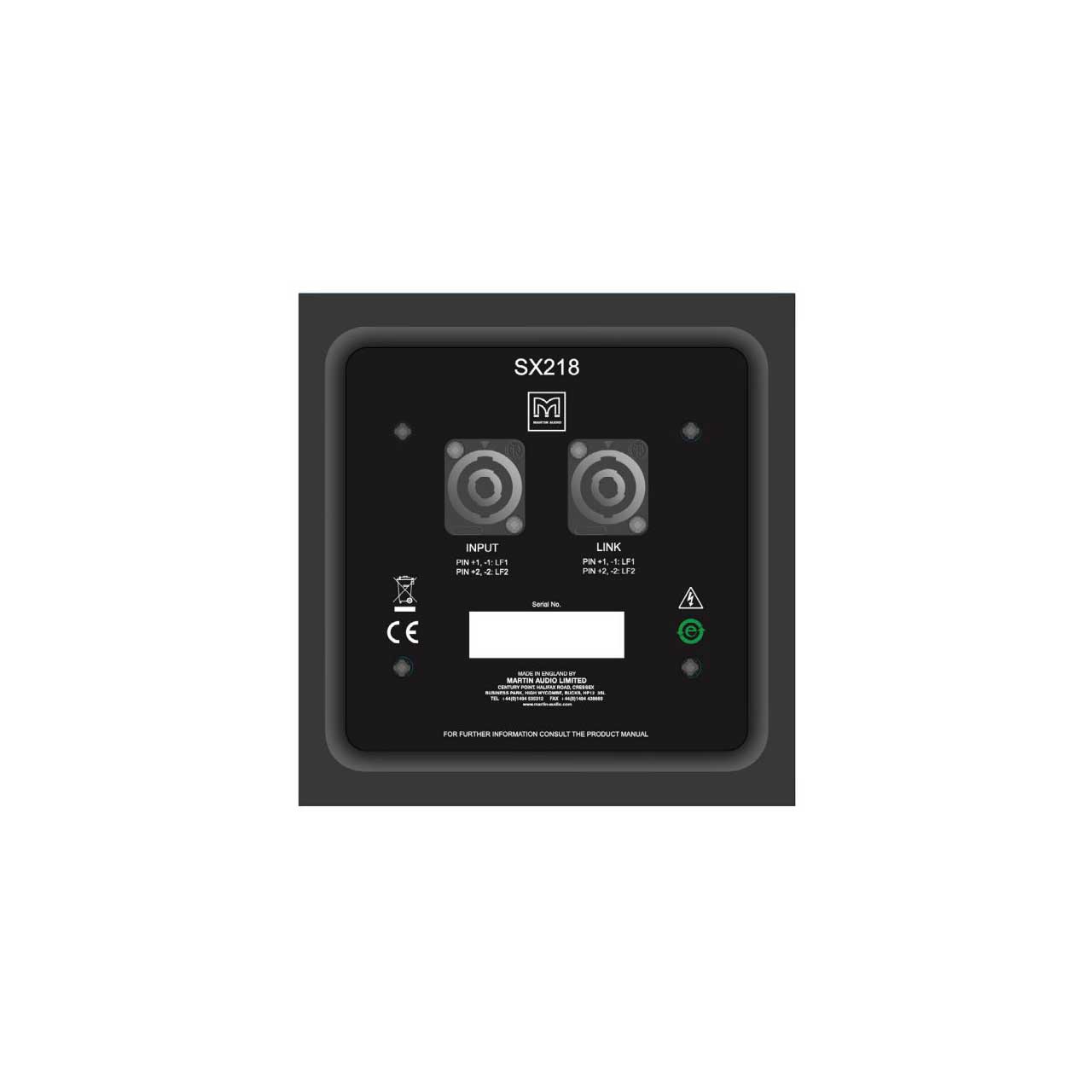

    • Connectors: 2 x NL4
    • Pin Connections (Input): LF1: 1+, 1- LF2: 2+, 2-
    • Pins Connections (Link): LF1: 1+, 1- LF2: 2+, 2

      Fittings
    • Two skids on base, with mating channels on top
    • 24 x M10 mounting points
    • 4 x bar handles, 2 on each side
    • 4 x fittings for optional transit cover
    • M20 Pole mount insert
    • 16 x M8 inserts for optional castors

      Physical
    • Dimensions: (W) 43" x (H) 21.1" x (D) 31.2" (36.2" including castors)
    • Weight: 217lbs w/o castors, 225lbs with castors

  • Item Includes:

    • 1x Martin Audio SX218 2 x 18-Inch Passive Direct Radiating Subwoofer - Black
