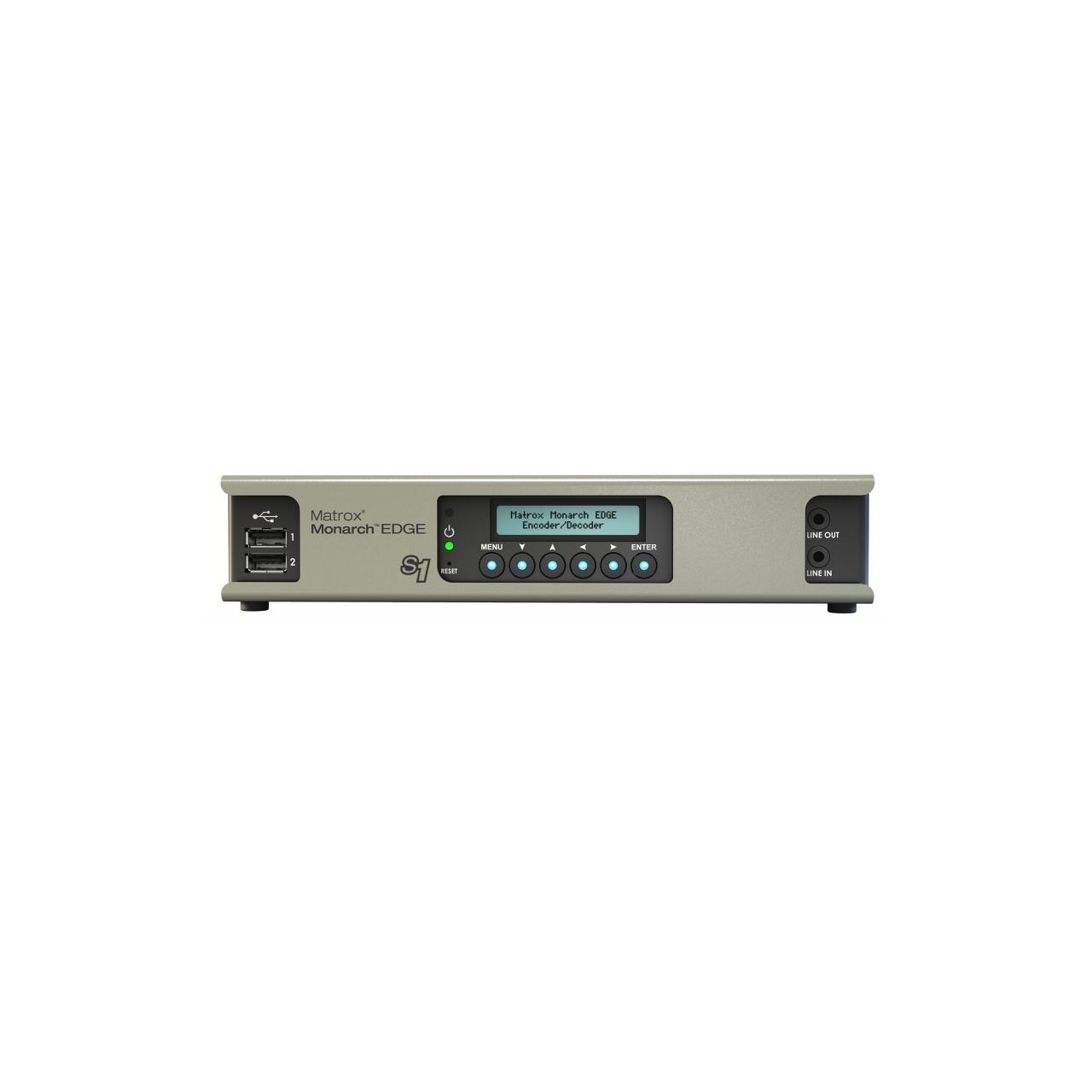

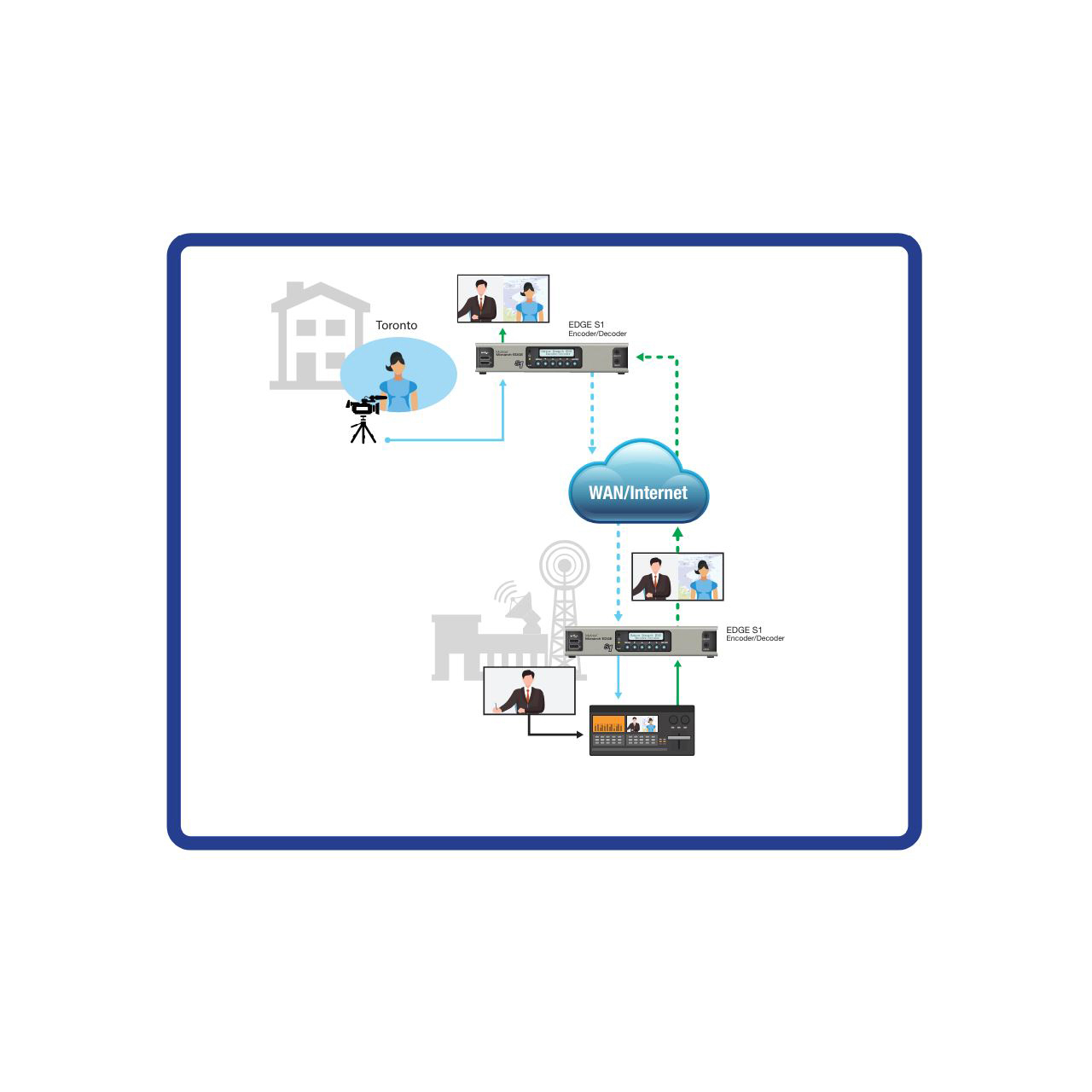

Affordably enhance remote production (REMI) workflows with Monarch EDGE S1. A simultaneous encode/decode appliance, Monarch EDGE S1 allows users to provide return feeds to multi-camera production crews in the field. Monarch EDGE S1 offers one 3G-SDI input, allowing program feeds coming from studio to be encoded for secure transport over private or public internet connections. At remote sites, Monarch EDGE S1 can decode one HD feed and output via a 3G-SDI connection for distribution of the program feed. As both encode and decode operations can occur simultaneously, a single camera contributor in the field can use this device to both send a high-quality feed to studio and receive the program feed being produced by the studio.
Big productions, small footprint

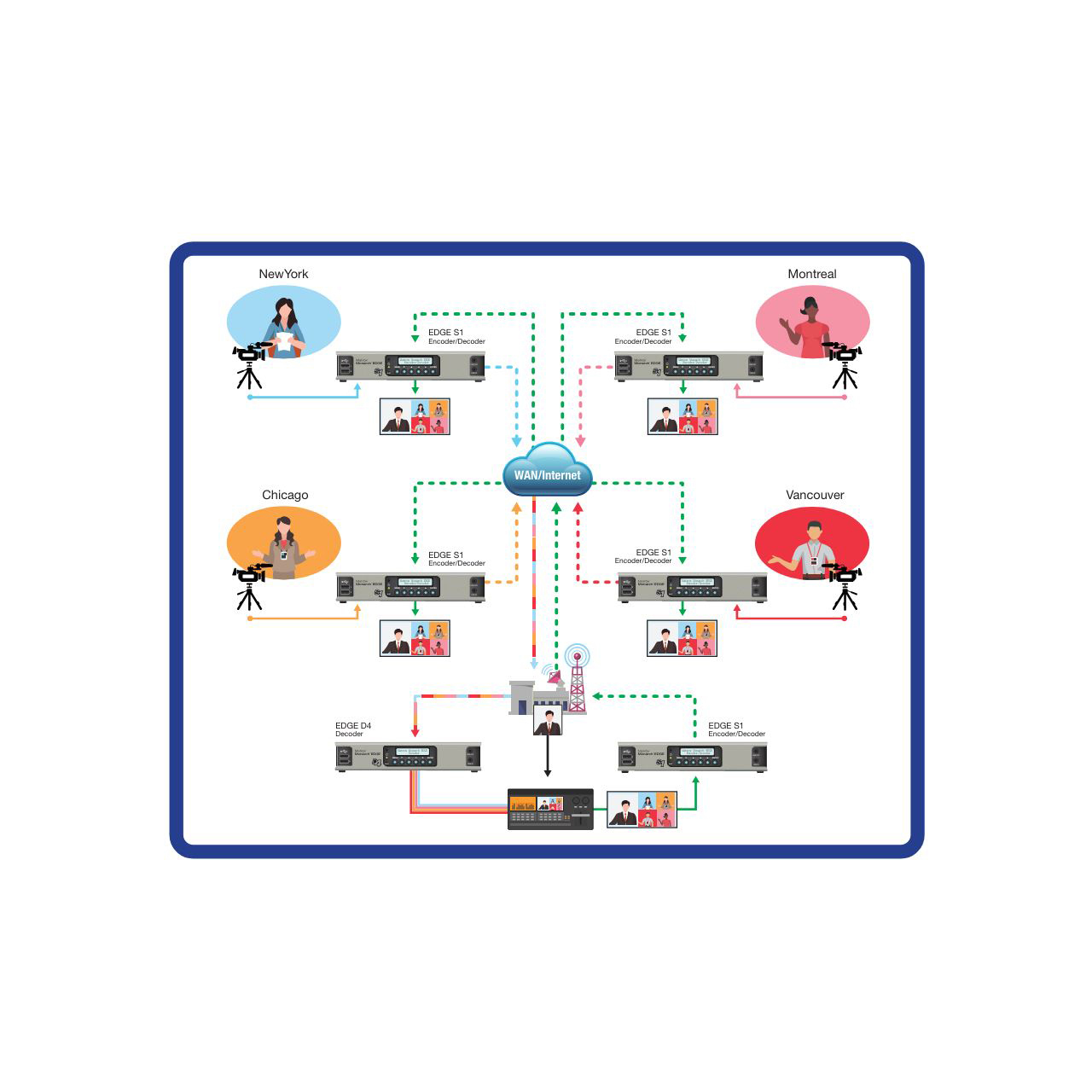

Bringing remote guests and talent together from separate locations for live productions has never been easier. Monarch EDGE S1's ability to simultaneously encode and decode HD feeds provides remote participants with a single encoding channel while decoding a return channel. This Monarch EDGE S1 feature - coupled with the device's ability to provide some of the lowest latencies on the market while using public internet - allows participants to interact with the live show and panel in near real-time.
Built for high quality 10-bit H.264 encoding
The optimized H.264 engine powering Monarch EDGE S1 keeps data rates exceptionally low without sacrificing quality. If quality is of the highest importance, streams can be encoded at 50 Mbps or higher. The input can be streamed at resolutions up to 1080p60 using the High 4:2:2 H.264 encoding profile. Furthermore, multiple processes can be performed on the input via a powerful scaling and de-interlacing engine.
Exceptionally low latency
Low signal transport latencies are necessary for facilitating seamless interaction between staff in the production studio and on-site personnel at the event venue. With glass-to-glass latencies as low as 100 ms between Monarch EDGE S1 devices, staff at the production venue can benefit from viewing return feeds of the live broadcast in near-real time. Furthermore, when a live production has remote guest requirements, these ultra-low latencies can facilitate near-real time interactions between speakers.
Flexible protocols, secure streaming
There are a variety of streaming protocols available to Monarch EDGE S1 users for use during remote productions (REMI). On closed networks, MPEG-2 TS or RTSP streams can be selected for delivery. For cloud-based destinations, or when the network is congested, SRT may be more appropriate. SRT is an open-source format that provides the reliability of RTMP, while reducing latency, for use on open networks. SRT streams can also be encrypted if security is a concern. Monarch EDGE S1 supports the processing of MPEG-2 TS, RTSP, and SRT protocols for encode and decode operations.
Keep it in-sync
When multiple Monarch EDGE encoders are at a remote location, they can share a single clock to ensure they are encoded in-sync. For the very best results, the cameras feeding the encoders should be genlocked together to ensure each frame is captured in phase. The Monarch EDGE S1 also has a genlock input so that an SDI output feed will be in-sync with the other SDI signals originating from the studio.
