MuxLab 500080 Digital Audio Converter Lpcm

ITEM #: MUX-500080 MFG #: 500080

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$124.00

Our Price:

$86.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


500080 - Overview

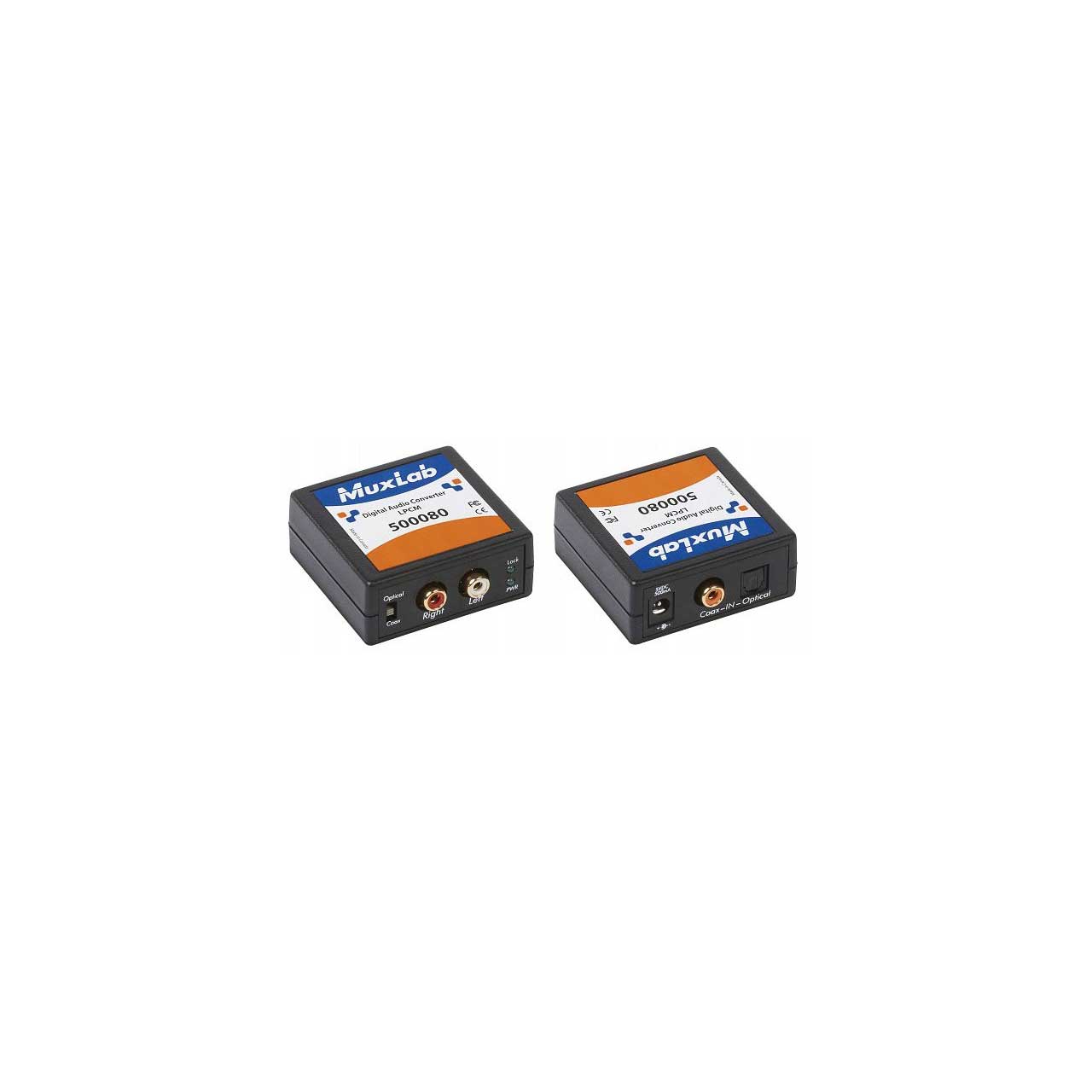

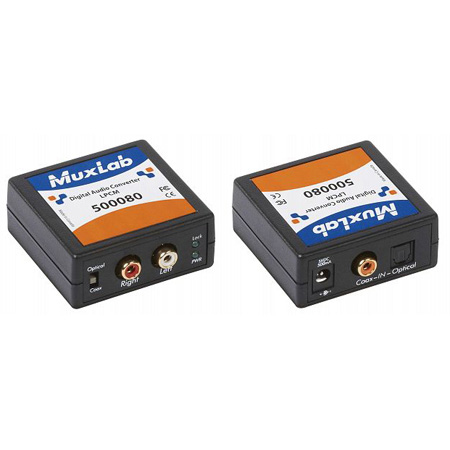

The MuxLab Digital Audio Converter 500080, converts one LPCM-encoded Digital Coax (S/PDIF) or Digital Optical (TOSlink) audio signal to a standard left/right analog audio output (RCA). This allows a digital audio source such as a BluRay, games console or CD player without a stereo audio output to be connected to an amplifier or TV.

  • Features:

    • Converts digital audio signals to stereo audio (DAC)
    • Sample Rate: up to 96kHz
    • Bit Rate: 24bit S/PDIF bitstream on right and left channels
    • Input: one (1) Digital Coax (S/PDIF), one (1) Digital Optical (TOSlink)
    • Output: two (2) RCA - color coded
    • Switch for selecting between S/PDIF and TOSlink inputs
    • 1m Digital Optical (TOSlink) cable included
    • Dimensions: 2.4" x 2.25" x 1" (61 x 57 x 25mm)
    • Weight: 1lb / 0.45kg
    • Manufacturers Warranty: 2 years
    • Velcro pads included for ease of installation
    • Power Supply: 110-240V / 5V DC 0.5A with interchageable blades

  • Specifications:

    • Environment: Digital Audio, LPCM
    • Devices: DVD, CD Players, TV, PC, IP streaming devices, AVR
    • Transmission: Transparent to the user
    • Signals: 2 channel LPCM (Linear Pulse Code Modulation)
    • Connectors: One (1) Coaxial connector One (1) TOSLink Connector. Two (2) RCA Connectors. Note: TOSLink cable included. RCA cables not included.
    • Switch: Selects between SPDIF and TOSlink
    • Distortion: <0.001% @ 1KHz
    • SNR: > 90 dB (20Hz - 20 KHz)
    • Sample Rate: 32, 44.1, 48 and 96 KHz
    • Bit Depth: 24 bit S/PDIF bitstream on right and left channels
    • Power Supply: One (1) 110-240V/5VDC power supplies with interchangeable blades
    • Power Consumption: 0.75 Watt
    • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
    • Humidity: Up to 95% non-condensing
    • Enclosure: ABS fire retardant plastic
    • Dimensions: 2.4" x 2.25" x 1.0" (6.1 x 5.5 x 2.5 cm)
    • Weight: 1.0 lb (0.45 kg)
    • Mounting: Velcro pads included.
    • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94V0
    • Warranty: 2 years

  • Item Includes:

    • 1 x TX unit
    • 1 x RX unit
    • 1 x 5V Power supply
    • 1 x Optic Cable 3ft (1m)
    • 1 x Installation guide

  • Warranty:

    • 2 Years
