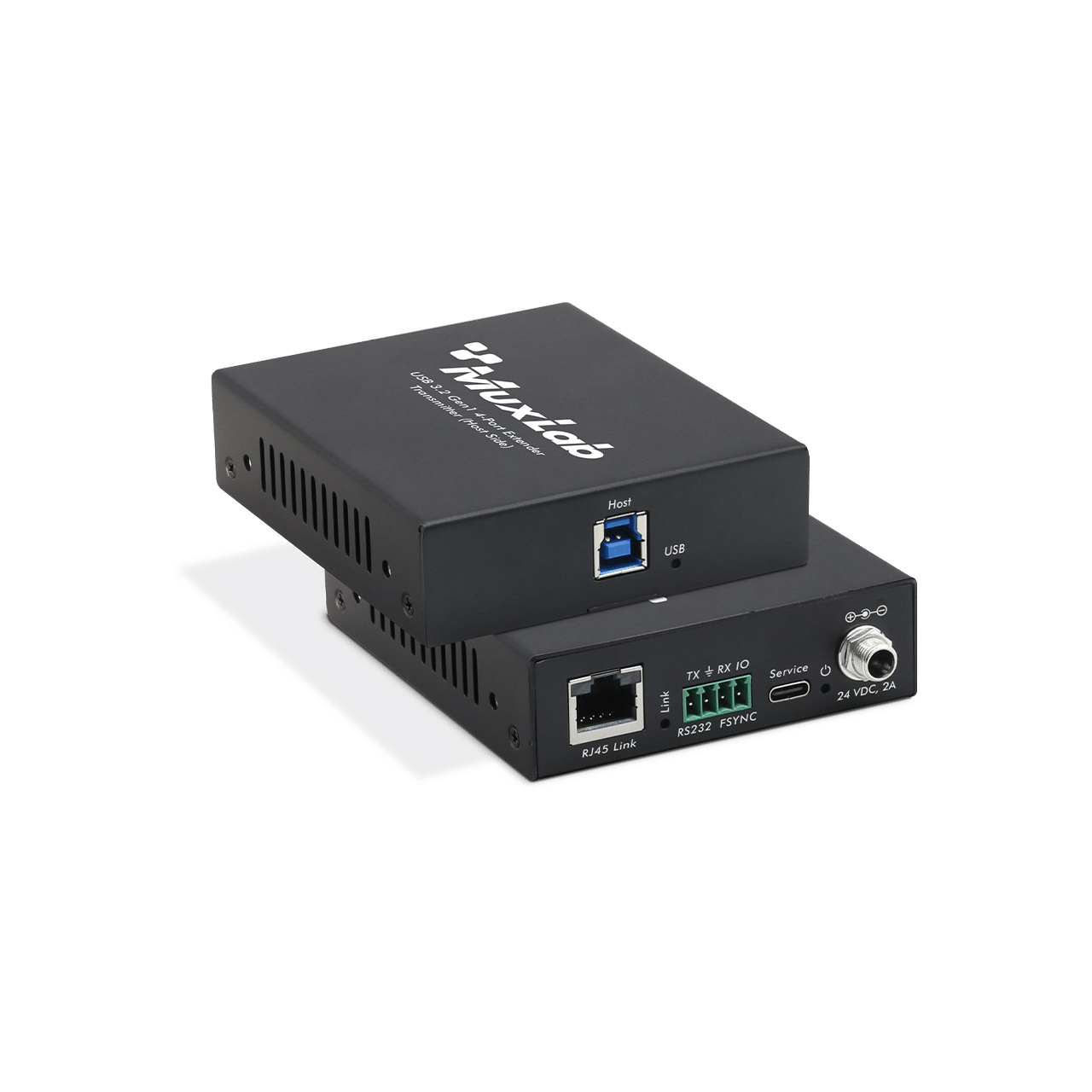

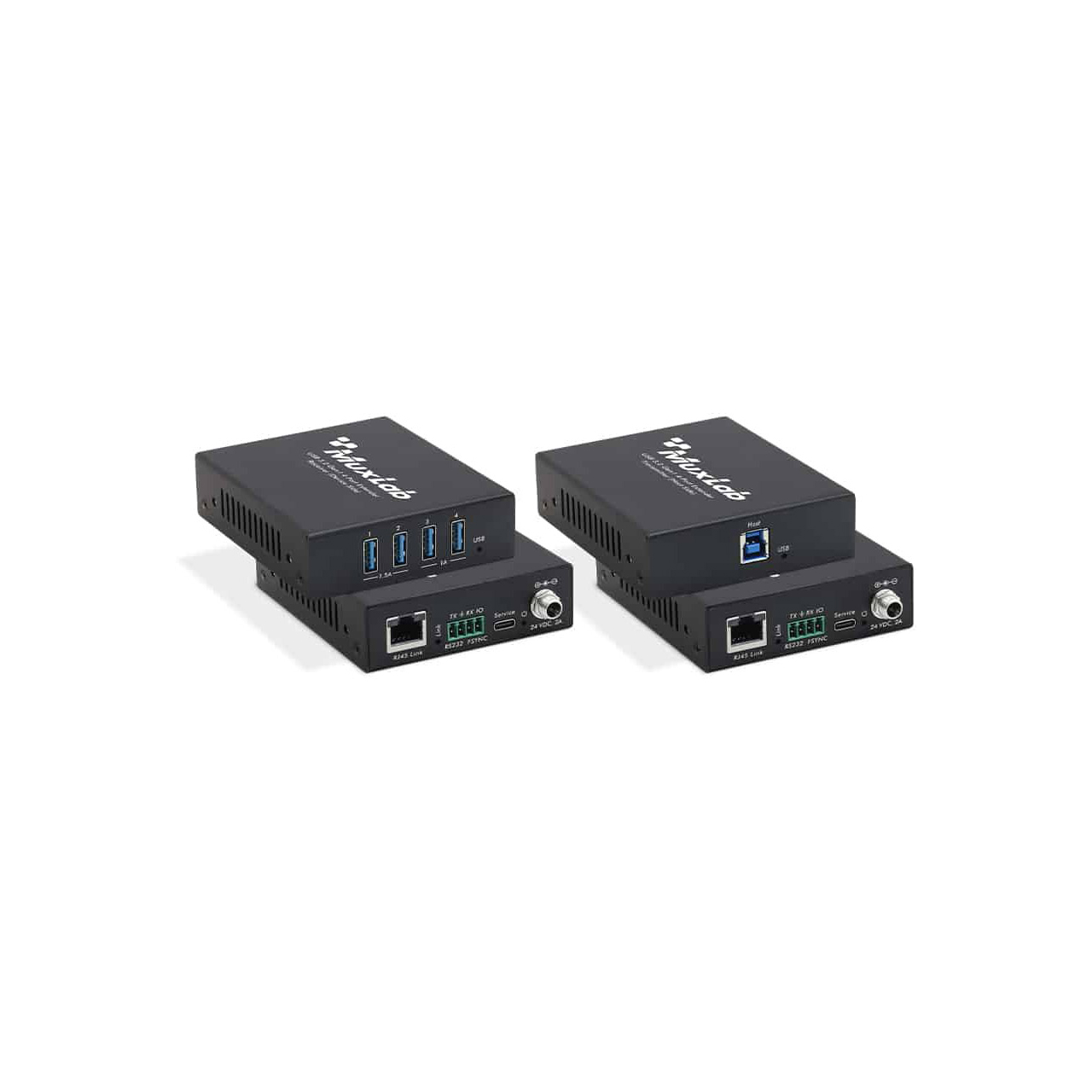

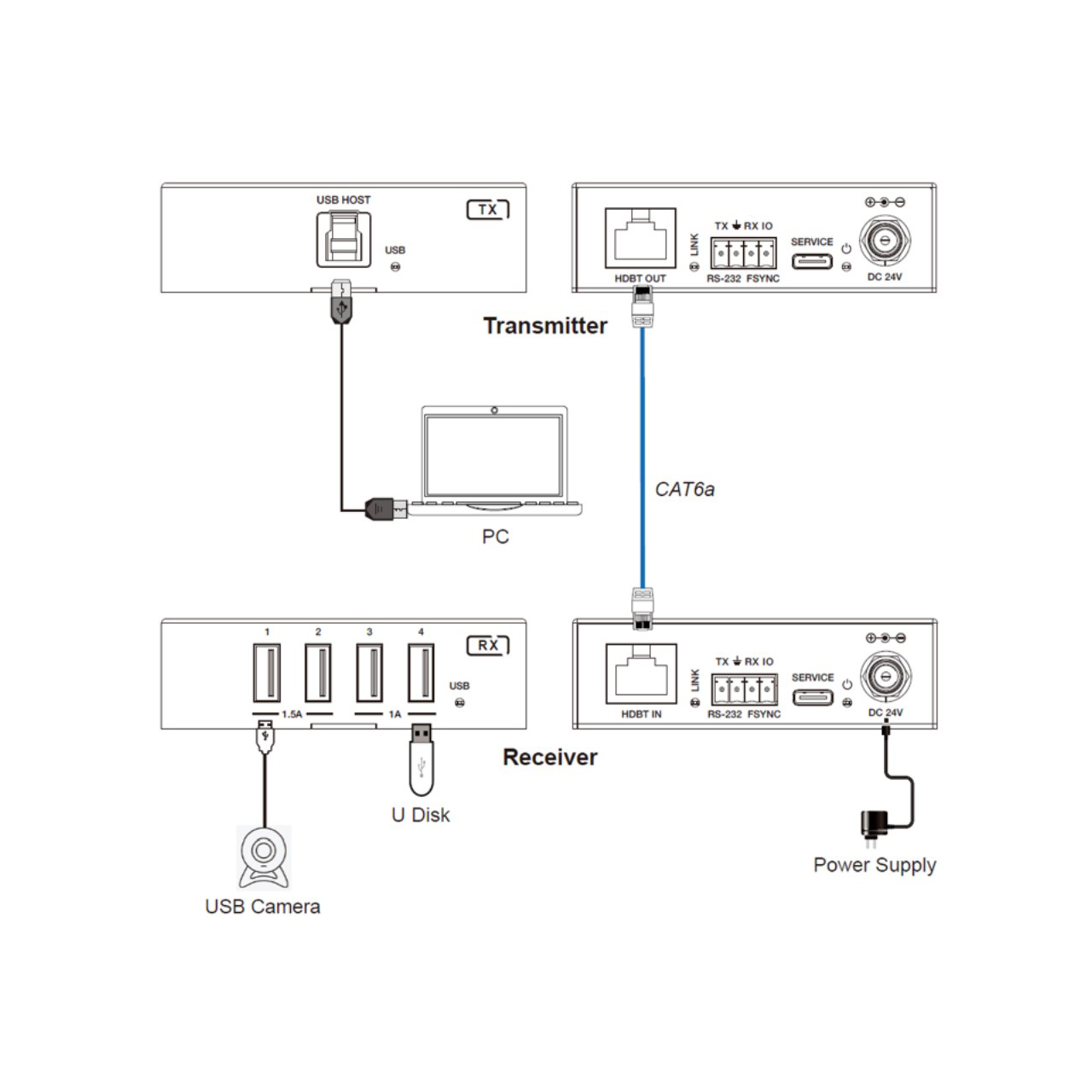

The MuxLab 500530 USB 3.2 Gen1 4-Port Extender Kit enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps & extends true USB up to 328ft (100m) over standard Cat6a UTP. Transmitter features with one USB 3.2 Gen1 Type B input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.2 Gen1 Type A outputs, one FSYSNC GPIO output and one RS-232 pass-through. The device also supports 24V Bi-directional PoC.
The USB 3.2 Gen1 4-Port Extender Kit, 100m is true plug and play, requires no additional software drivers, and is compatible with all major operating systems. The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards.
Applications:
- Conference Rooms
- Classroom Projector Systems
- Collaborative PC Systems
- Digital Signage
- Educational Institutions
- Boardroom Systems
