Mye Entertainment MWT-FM Single Channel FM Transmitter Kit with SES-DAC1 Audio Digital Coax Converter

ITEM #: MYE-MWT-FMK MFG #: MWT-FMK

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MYE-MWT-FMK

MWT-FMK - Overview

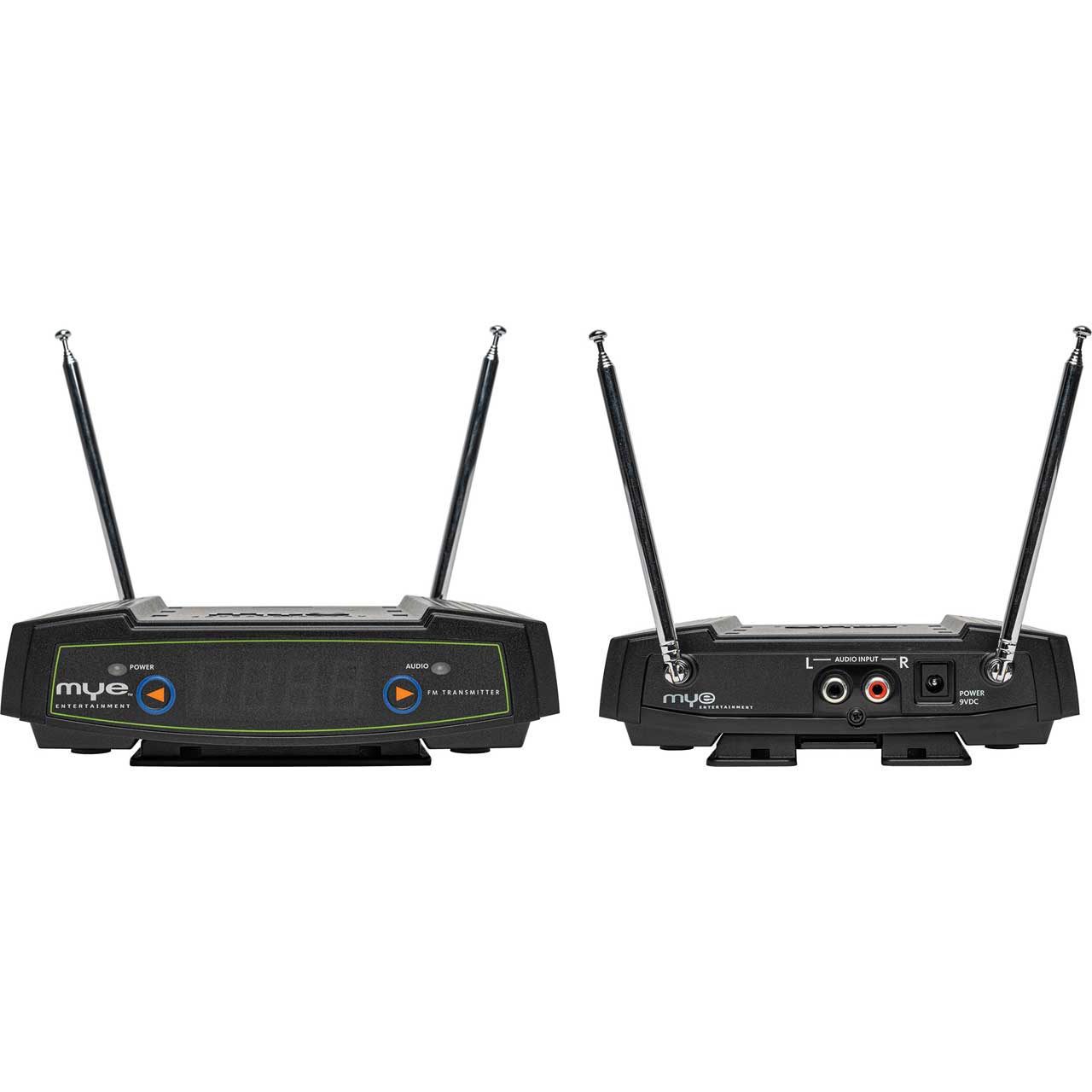

Take the Mye Entertainment MWT-FMK RCA Audio Outputs from any device to create a simple, local FM broadcast with the MYE Entertainment MWT-FM FM Transmitter. It's the ideal solution for houses of worship, drive-up clinics, fitness facilities and drive-in movie theaters to broadcast your message while maintaining safe distances.

The MWT-FM FM Transmitter provides audio from any line level audio source including mixer outputs, TVs and more. Users tune to the radio station posted under the TV to enjoy audio from their favorite TV programs. Front panel frequency selectors on the transmitter provide simple scroll-up or scroll-down channels selection on your preferred FM band. Transmitter range is 100 feet unobstructed line of sight.

The MWT-FM comes with a Mounting Bracket that allows for easy wall, ceiling or under-shelf mounting of the transmitter. Four holes in the bracket give access for screws or nylon cable ties. The mounting bracket SNAPS into either the TOP or BOTTOM of the MWT-FM giving the transmitter a high level of adaptability and solid positioning in nearly all mounting scenarios.

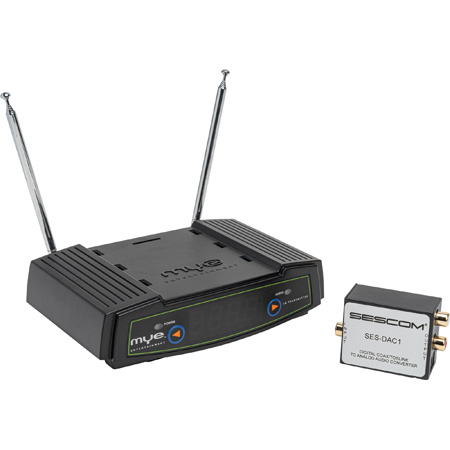

The MWT-FMK includes an A-to-D converter adapter at no charge.

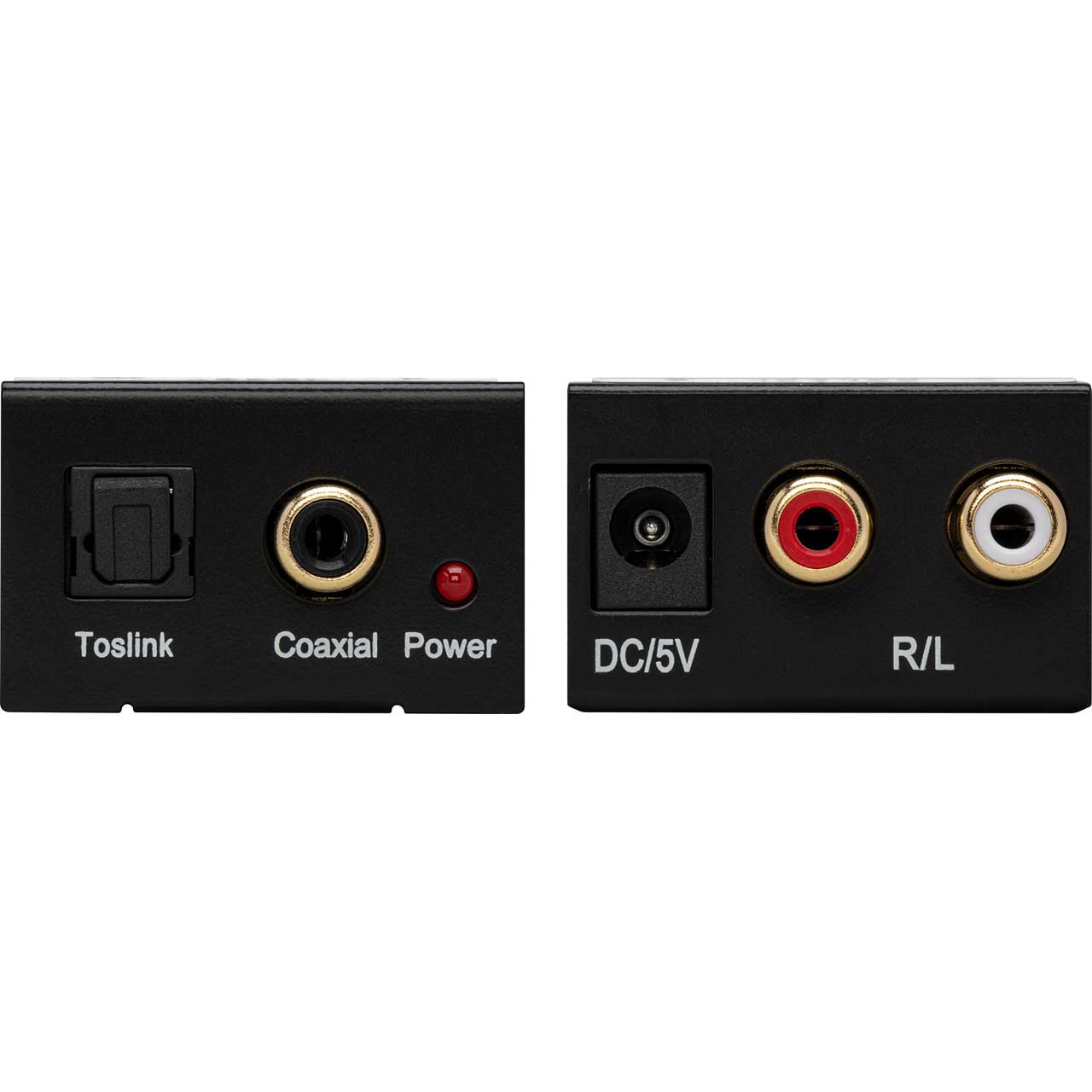

For a simple, reliable way to convert your Toslink or S/PDIF audio to analog stereo audio, the Sescom SES-DAC1 audio converter is the answer. This digital audio converter accepts both Toslink fiber and RCA S/PDIF connections for easy conversion to RCA Left and Right Analog audio.

  • Features:

    • Works with any FM radio or optional MYE Eclipse FM Receivers.
    • New digital and analog input capability.
    • Dual Diversity Antenna System for static and drift-free transmission.
    • 5-year warranty.
    • Digital Coax or TOSLINK to Stereo Analog Conversion
    • Supports Uncompressed 2-Channel LPCM Stereo Digital Audio Input
    • S/PDIF 24-bit Incoming Bit Stream
    • LED Power Indicator
    • Compact Metal Enclosure
    • CE, RoHS Certified

  • Specifications:

    • Range: 100 feet unobstructed, line of sight
    • Audio Input Sensitivity: 0.1 to 2 Volts peak-peak (ALC)
    • Audio Input Impedance: 5K Ohms
    • Signal to Noise: -70dBm ref .7 volts
    • Distortion: < 2%
    • Audio Frequency Response: 20Hz to 18 KHz
    • Separation: >25dB
    • Weight: 2 lbs.
    • Power Requirements: 9 VDC 200 mA

      SES-DAC1
    • Input Format/Encoding Protocol: S/PDIF
    • Sample Frequency: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
    • Input Level: 1 Vpp / Output Level: 2 Vpp
    • Inputs: 1- Coax RCA Jack, 1-S/PDIF (fiber)
    • Outputs: 2- RCA Jack (L/R Analog Stereo)
    • Dimensions: 2.0 x 1.6 x 1.0 in
    • Weight: 2.75 oz
