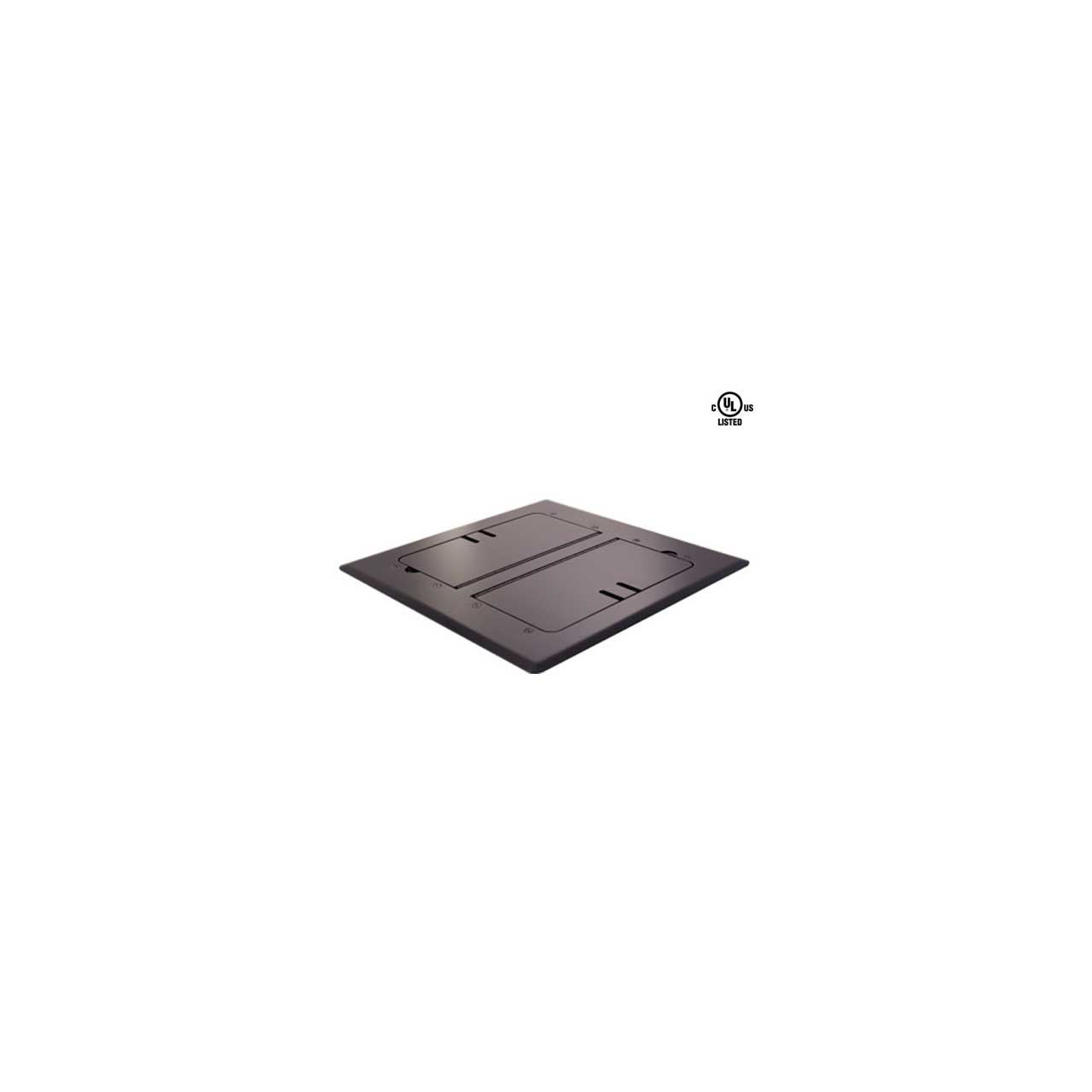

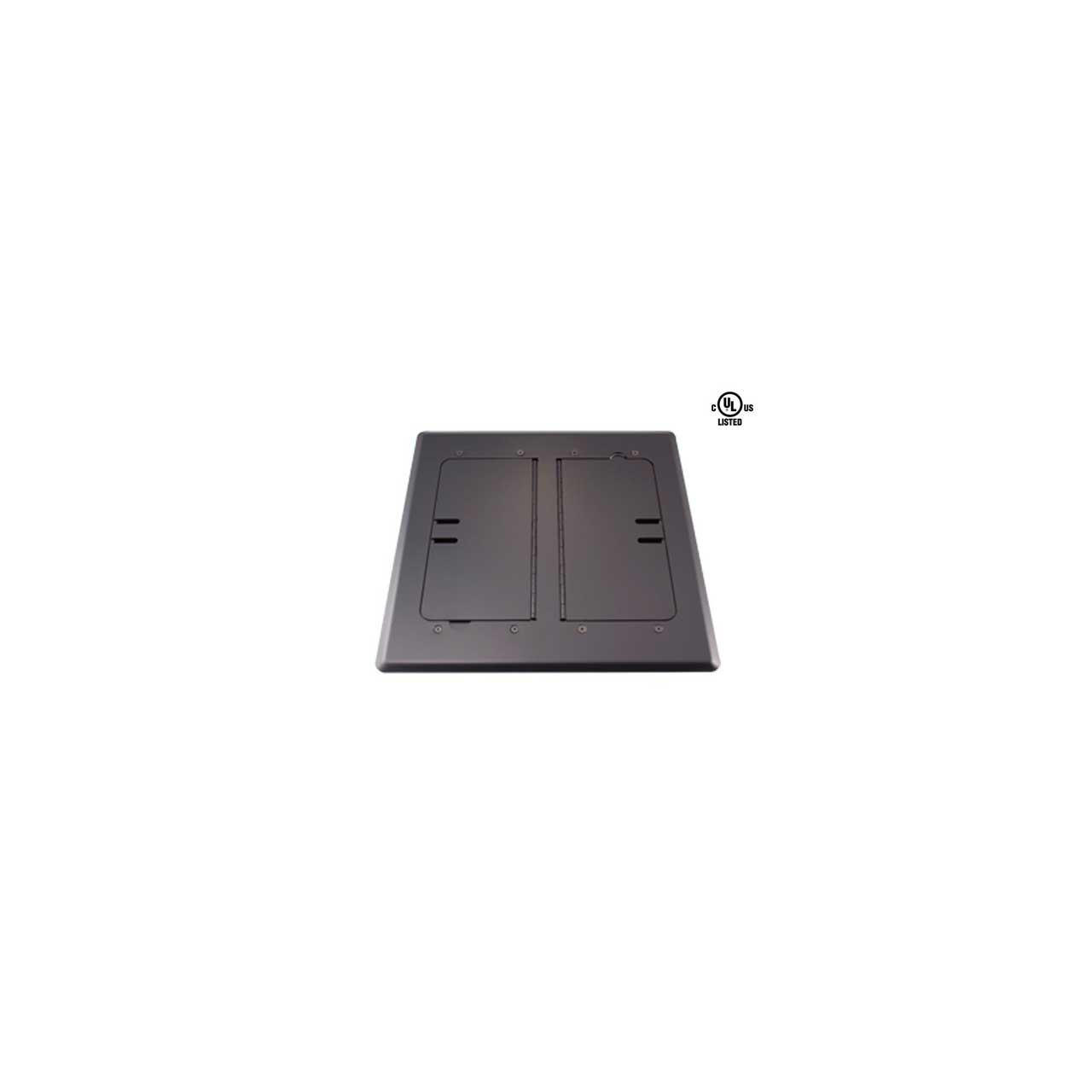

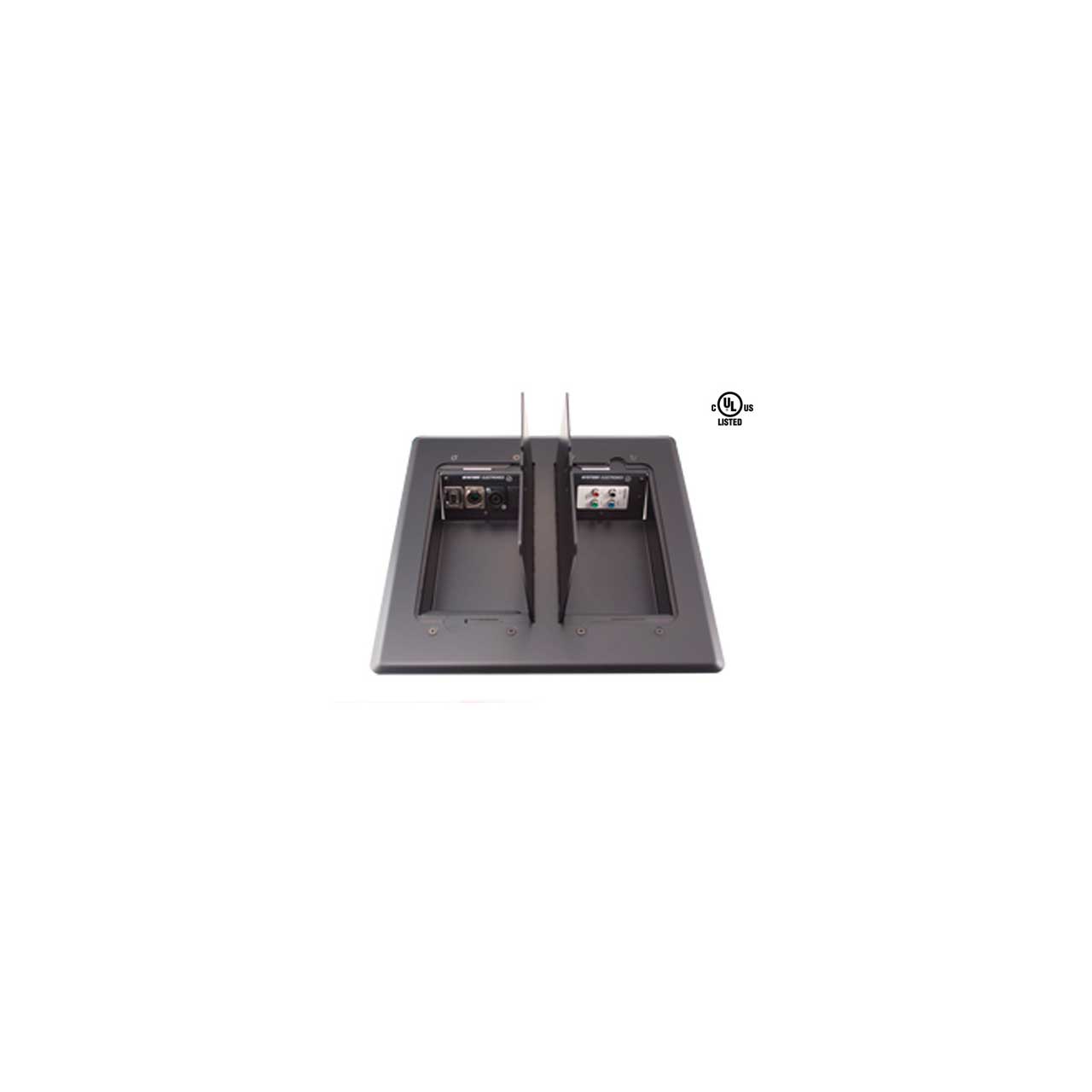

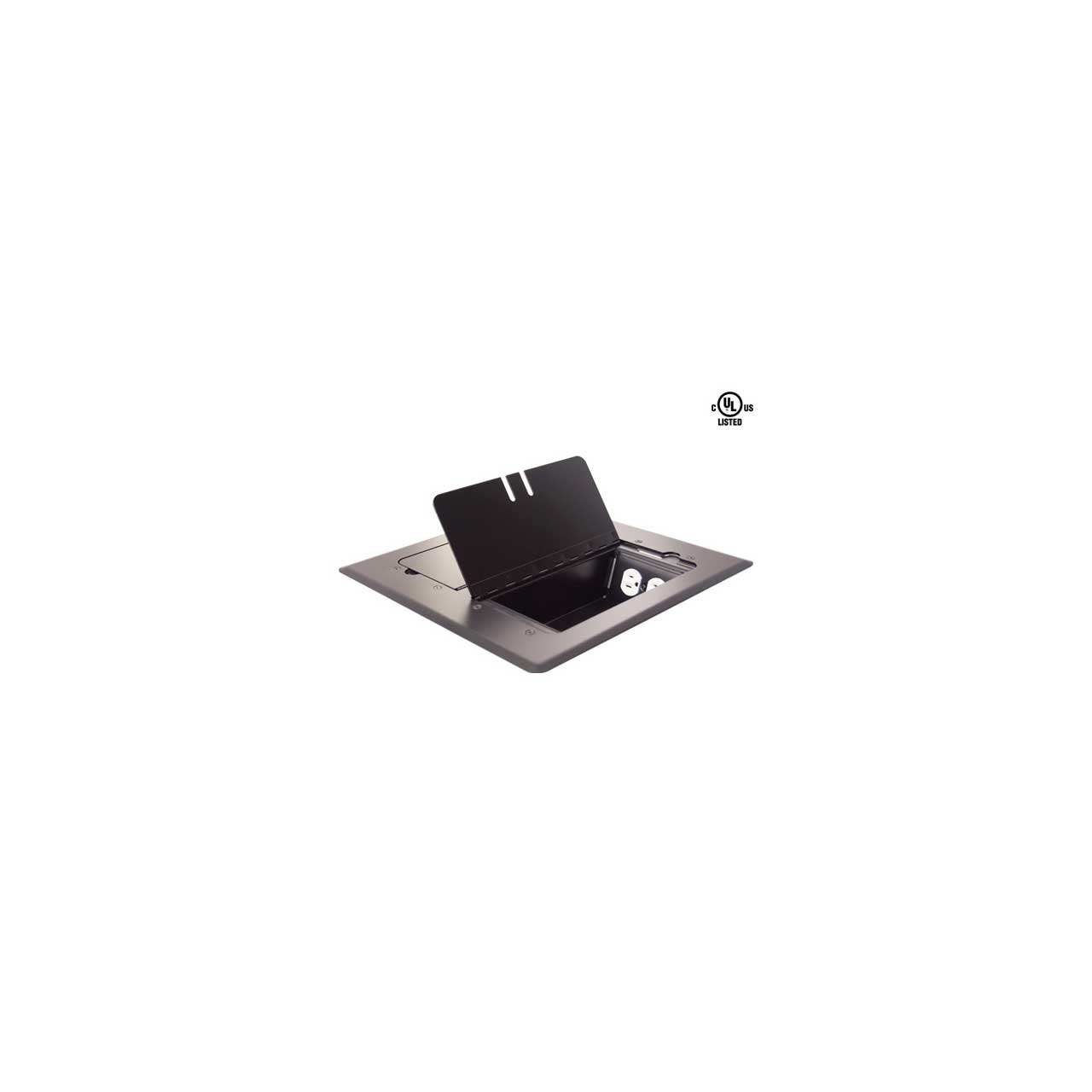

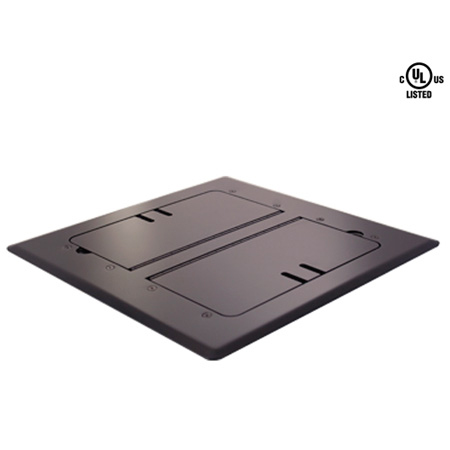

Mystery FMCA3000 Self Trimming Satin Black Floor Box with Cable Slots

ITEM #: MYS-FMCA3000 MFG #: FMCA3000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$624.00

Our Price:

$483.26

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


FMCA3000 - Overview

The UL and cUL Listed FMCA3000 raised access floor box combines flexibility, ease of installation, high capacity, and long-term value in an economical floor box assembly. Proprietary modular panel design accommodates a wide variety of AV connectors, active devices, and barrier separated AC power. The concrete rated rough-in box includes alignment labeling and detailed installation instructions for rough-in installation above grade. Unique design and 12 gauge cover supports loads in excess of the 300lb UL standard. Ideal for classrooms, houses of worship, conference rooms, courtrooms, performance venues or anywhere connections are needed in the floor. The attractive design and finish allows for the FMCA3000 to also be used for in-wall applications.

  • Features:

    • Attractive satin black 12 gauge scratch resistant cover with powder coated finish
    • Accepts all ModuLine Insert Panels (up to 16 XLR type connectors, active devices or duplex power)
    • Cable Slots allow 16 cables up to 1/4" O.D.
    • Self-trimming cover installs on top of carpet or hard surface
    • Accommodates Decora, AAP, and MAAP active devices
    • Options include:
    • Pre-punched insert panels
    • Duplex power module, UL Listed
    • Rough-in box
    • HandHold basket
    • Connector loading
    • Labeling and more

  • Specifications:

    • Door/Cover: 14"L x 14"W
    • Basket: 10.5"L x 10.75"W x 2.5"D
    • (without rough-in box)

  • Item Includes:

    • Cover
    • Gasket
    • Basket
    • Mounting Hardware
