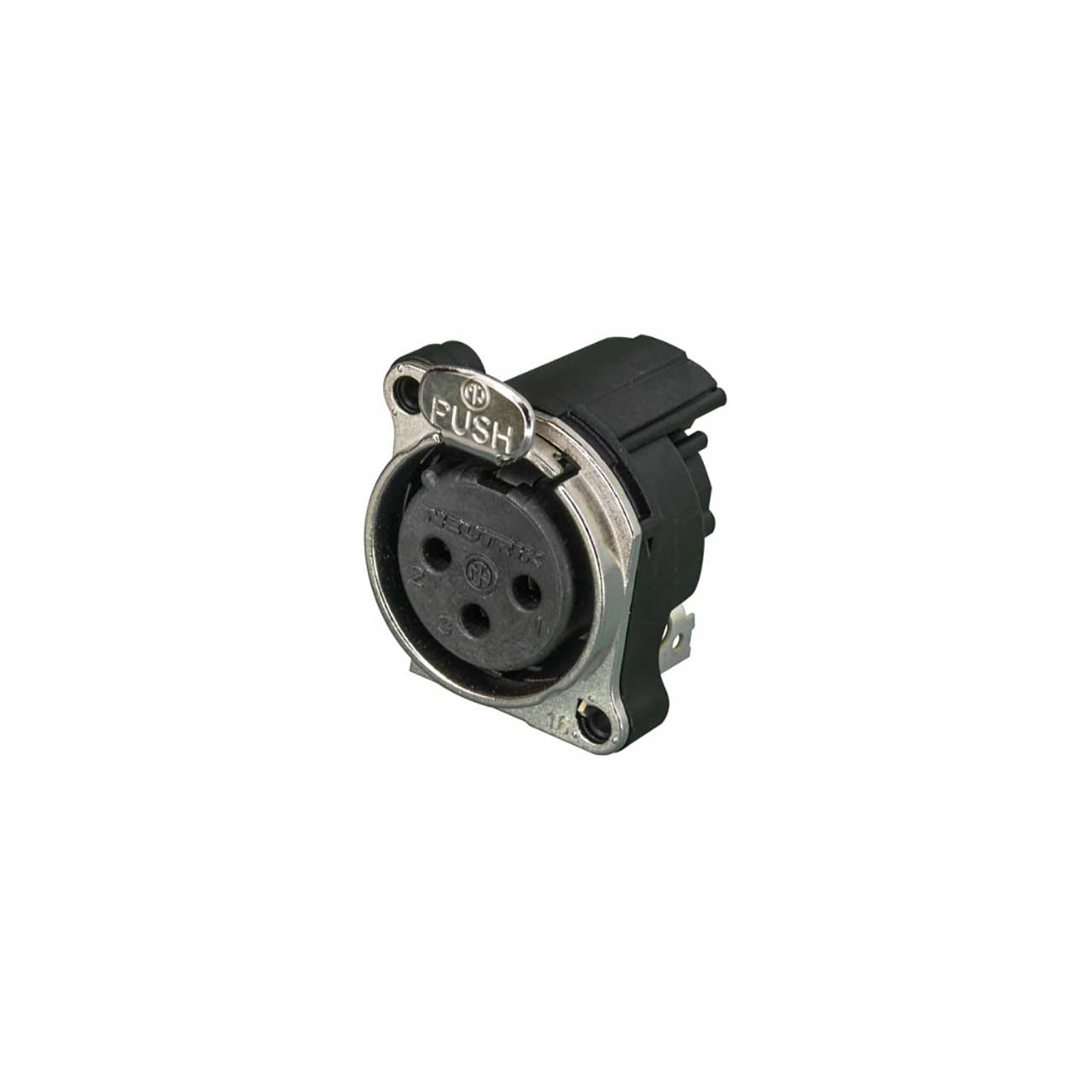

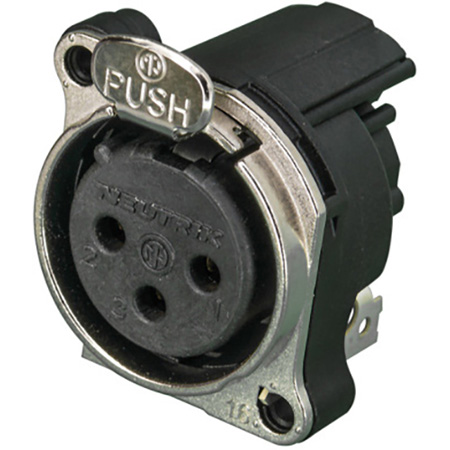

NEUTRIK NC3FBH1 B Series 3 Pole Female XLR Receptacle Horizontal PCB Mount

Name: NEUTRIK NC3FBH1 B Series 3 Pole Female XLR Receptacle Horizontal PCB Mount
Brand: NEUTRIK Group
SKU: NC3FBH1
Price: 3.06 USD
Availability: InStock

ITEM #: NC3FBH1 MFG #: NC3FBH1

NEUTRIK Group

List Price:

$3.57

Our Price:

$3.06

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NC3FBH1 - Overview

NEUTRIK NC3FBH1 3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Features & Benefits:
Smallest XLR receptacles, highest packing density
Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Tulip type female contact
Housing flammability UL94V-0

Specifications:
- Capacitance between contacts: = 4 pF.
- Contact resistance: = 5 mO.
- Dielectric strength: 1,5 kVdc.
- Insulation resistance: > 10 GO (initial).
- Rated current per contact: 6 A.
- Rated voltage: < 50 V.
- Grounding Options: Pin 1 connected direct to front panel and connector shell, no separate ground contact.
- Insertion force: = 20 N.
- Withdrawal force: = 20 N.
- Lifetime: > 1000 mating cycles.
- Wiring: Horizontal PCB mount.
- Approvals: UL.
- Flammability: UL 94 V-0.
- Standard compliance: IEC 61076-2-103.
- Protection class: IP 40.
- Solderability: Complies with IEC 68-2-20.
- Temperature range: -30 °C to +80 °C
- Locking device: Latch lock.
- Mounting direction: Rear mounting.
- Chassis shape: B.
- Contacts: Bronze (CuSn6).
- Insert: Polyamide (PA 6.6 25 % GR).
- Locking element: Steel Ck67.
- Ring: Zinc diecast (ZnAl4Cu1).
- Flange: Metal.
- Mounting: B-Screw.
