NTI PWR-RMT-RBT-C13 ENVIROMUX Low-Cost Remote Power Reboot Switch with IEC320 C13 Outlet & 2 Digital Terminal In/Out

ITEM #: NETT-PWRRMRBTC13 MFG #: PWR-RMT-RBT-C13

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Network Technologies Inc
Free Shipping with $49 Minimum Order

List Price:

$185.00

Our Price:

$175.75

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

PWR-RMT-RBT-C13 - Overview

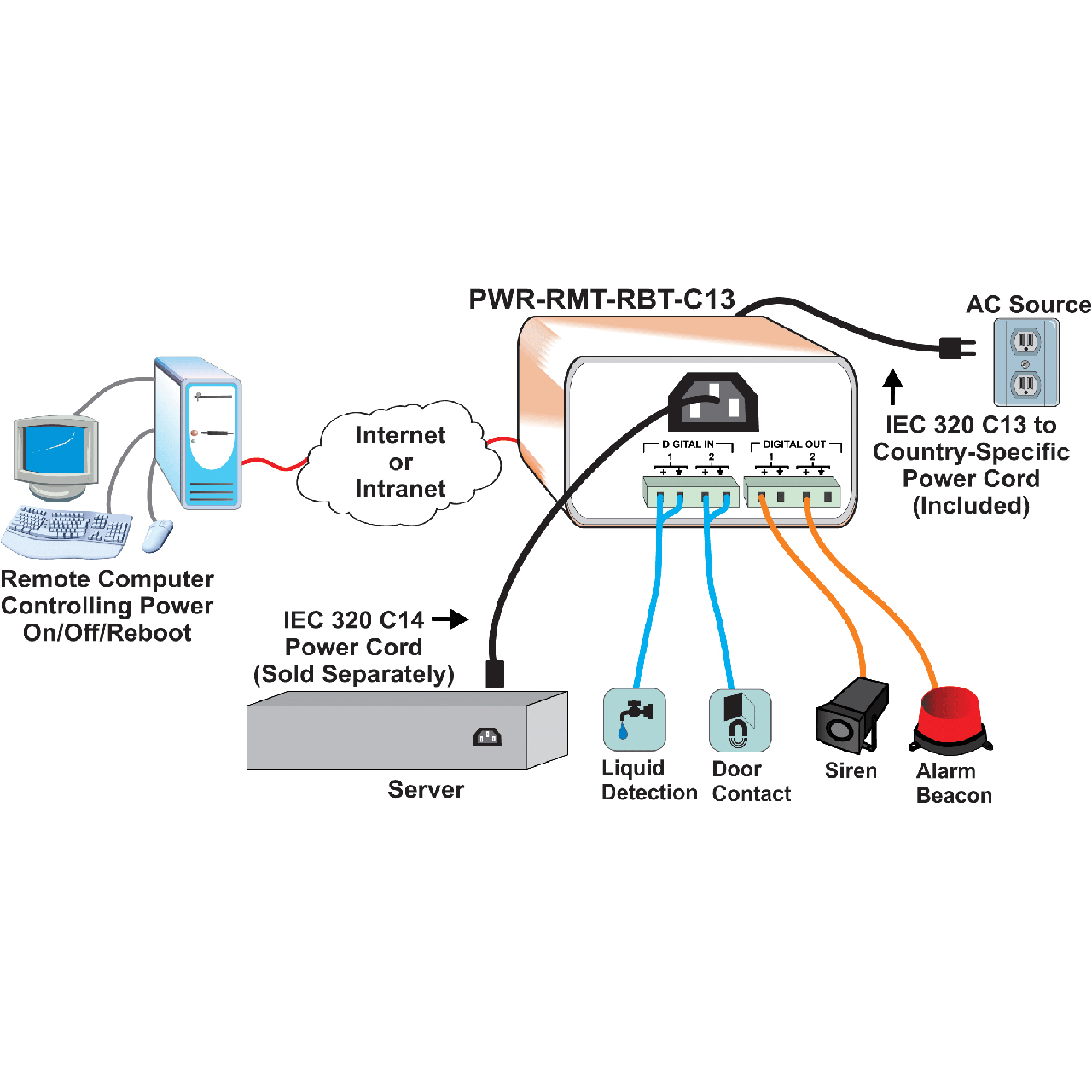

The ENVIROMUX® Remote Power Reboot Switch is used to remotely reboot and control power (on/off) to a server or other powered device over IP.

The ENVIROMUX® PWR-RMT-RBT-C13 is a budget friendly Remote Power Reboot Switch with an IEC320 C13 Outlet and 2 Digital Inputs and Outputs on terminal blocks. Remotely control power on/off/reboot to a server, router, web cam, firewall or other remote device over IP. It has two operating modes for power reboot, Manual that allows you to select the outlet and turn the power on/off/cycle and Auto for a scheduled, triggered, or configurable combination. Scheduled works with a set date/time/duration of power cycle or Triggered will Power on/off a device when a sensor connected to the digital input changes state or Reboot (power cycle) and control power (on/off) to the unresponsive IP devices that are connected to the PWR-RMT-RBT-C13 power outlet.

Applications:
Remote reboot of any device, router, server, kiosk, etc. The device need not be network attached.
Secure sensitive devices by keeping them powered off when not in use. This prevents hackers from detecting them at all times.
Power down equipment when not needed for power savings and to save on wear and tear.
Power up alert devices (sirens or lamps) or environmental systems (heaters, coolers, pumps, etc.)
Cascade an unlimited number of PWR-RMT-RBT-C13 using the digital I/O screw terminals.

Please Note: An IEC 320 C14 Power Output Cord is not included - sold separately

  • Features:

    • Designed and Manufactured in the USA
    • Configure, control, and monitor the unit via the easy-to-use web interface or HTTP REST API - makes it easy to control power from anywhere in the world.
    • Two digital inputs to monitor alarm contacts, environmental sensors, relays, and switch closures.
    • Shut down power when water or other environmental threats are detected.
    • Two digital open collector outputs for control of external devices - drive relays for process control, security, and environmental controls.
    • Digital outputs activate upon triggered event or via the user interface.
    • Monitor (ping) up to two IP network devices.
    • Unresponsive IP devices can be configured to trigger the outlet of PWR-RMT-RBT-C13 to power on/off/cycle.
    • Automatically configures network settings received from a connected DHCP server.
    • Dual password protection with separate user and administrator passwords.
    • Integrated mounting brackets for easy surface/wall mounting.
    • Flash upgradeable


  • Specifications:

    • Main
    • Power
    • 90 to 264 VAC at 50 or 60 Hz
    • Power Switching
    • Up to 15 Amps at 105-125 VAC, 10 Amps at 210-240 VAC.
    • Power Consumption
    • 1.4W
    • Input connector
    • One IEC 320 C14 plug
    • Output connector
    • One IEC 320 C13 receptacle

      Digital Inputs
    • Connector
    • Two screw terminal pairs for connecting dry contact sensors
    • Accepts 26AWG to 16AWG wire
    • Potential free
    • Voltage range: 0 to +36VDC
    • Over-voltage surge protected

      Digital Outputs
    • Connector
    • Two screw terminal pairs for open-collector outputs
    • Accepts 26AWG to 16AWG wire
    • Rated sink current 500 mA per output
    • +5VDC, 22kΩ pull-ups
    • Voltage range: 0 to +24VDC
    • Over-voltage surge protected

      General
    • Network Support
    • One female RJ45 connector
    • 10Base-T Ethernet interface, 10/100 network compatible
    • Protocols supported
    • HTTP, TCP/IP, DHCP, Auto-ping TCP Protocol
    • HTTP REST API to control power on/off with response in JSON format
    • Operates and configures via HTTP web page
    • Browsers supported
    • Microsoft Edge, Firefox 1.5 and higher, Google Chrome, and Safari 1.3 and higher (for MAC)
    • Operating & Storage Temperature
    • -4 to 167°F (-20 to 75°C)
    • Operating & Storage Relative Humidity
    • 0 to 90% non-condensing RH
    • Dimensions WxDxH
    • 4.46x4.19x2.13 in (113x106x54 mm)
    • Includes
    • mounting holes to match rack hole spacing.
    • Approvals
    • CE, RoHS , TAA compliant


  • Item Includes:

    • 1x NTI ENVIROMUX PWR-RMT-RBT-C13 Low Cost Power Reboot Switch
    • 1x 6 foot IEC 320 C13 to US Power Input Cord
    • 1x 5 Foot CAT5e Ethernet Cable
    • 1x E-Manual
    • Please Note: IEC 320 C14 Power Output Cord Sold Separately


  • Warranty:

    • 2 years from the date of purchase
