Neutrik NKHDMI-3 High-Speed Locking HDMI 2.0 Cable - 9.84 Foot/3 Meter

ITEM #: NKHDMI-3 MFG #: NKHDMI-3

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$52.95

Our Price:

$45.39

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NKHDMI-3 - Overview

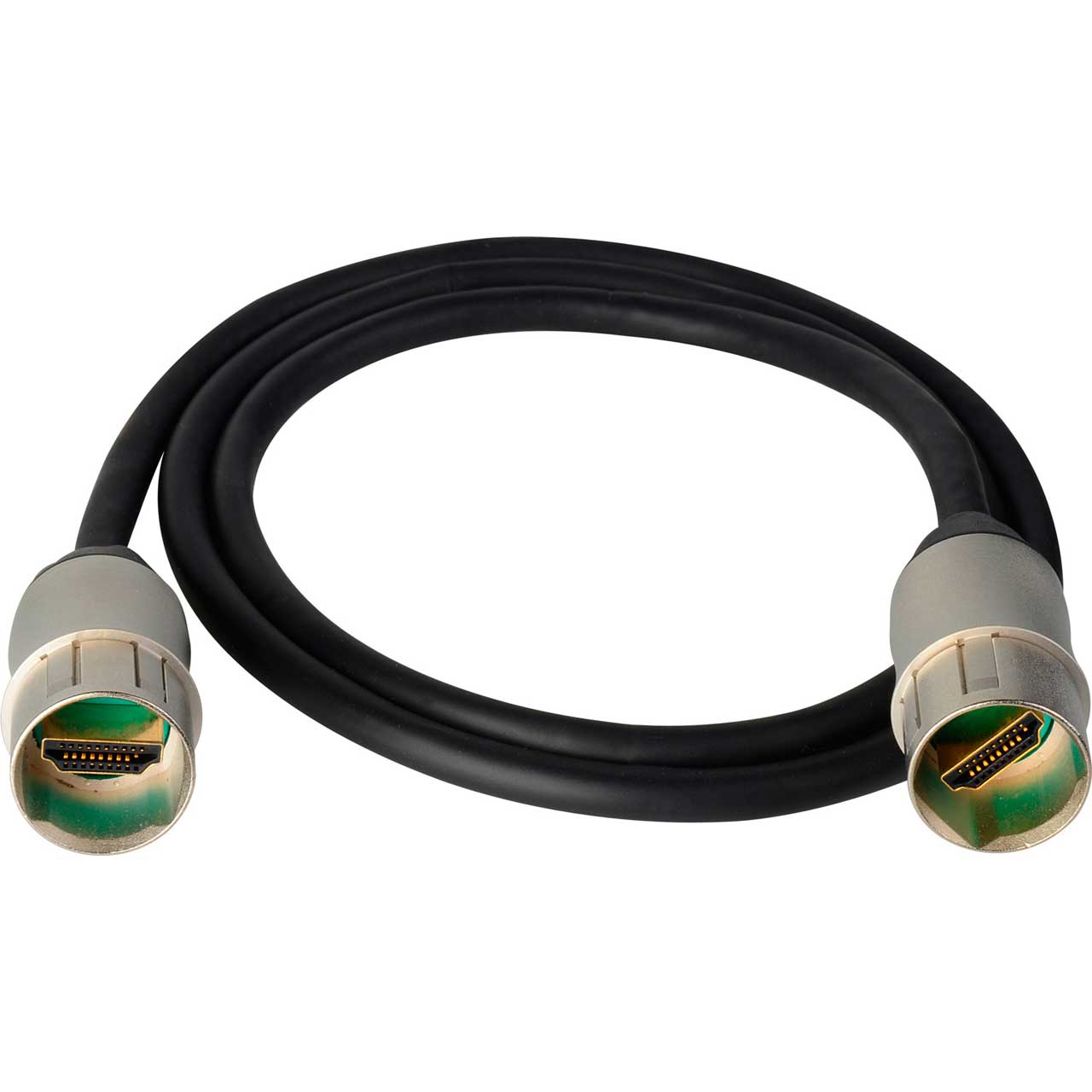

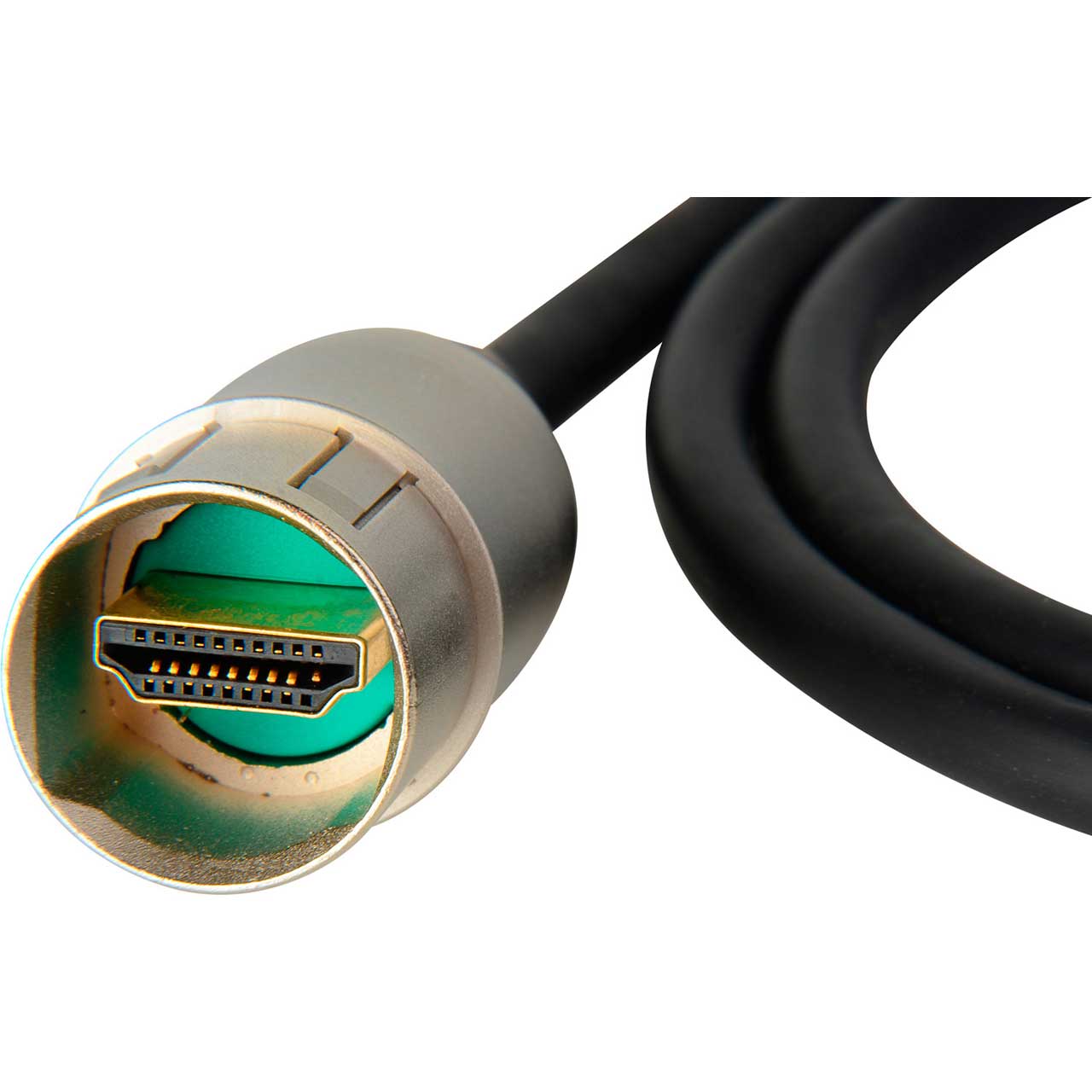

The Neutrik NKHDMI-3 is an HDMI 2.0 patch cable with overmolded flex relief and rugged metal cable carrier that can fit and lock with NAHDMI-W HDMI feedthrough adapters. The cables are available in 0.6 m, 1 m, 3 m, 5 m and 10 m lengths. (10 meter cable complies with HDMI 1.4 Category 1 specifications.) Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.

The NKHDMI-0.6, NKHDMI-1, NKHDMI-3, and NKHDMI-5 operate at the full HDMI 2.0 specification.

**Please Note** Since adding passive couplers and cables, and increasing overall system cable lengths, can only serve to degrade signal levels, performance limits are dependent on each particular system's end-to-end configuration.

  • Features:

    • HDMI 2.0 - data rate up to 18 GBit/s
    • Push Pull mating design provides secure locking system if mated with NAHDMI-W
    • Removable rugged diecast cable carrier
    • Dust and water resistant acc. to IP65 safety standard in combination with NAHDMI-W
    • Shielded connection - high noise immunity and EMI protection
    • Mates with conventional HDMI receptacles if cable carrier is removed

  • Specifications:

    • Mechanical
    • Minimum bending radius allowed: 40 mm
    • Lifetime: > 1000 mating cycles

      Material
    • Contact plating: Au
    • Contacts: Brass (CuZn39Pb3)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Nickel

      Environmental
    • Flammability: UL 94 V-0
    • Standard Compliance: HDMI 2.0 specifications up to 5 m cable length
    • Temperature Range: -13°F to 185°F (-25 °C to +85 °C)
