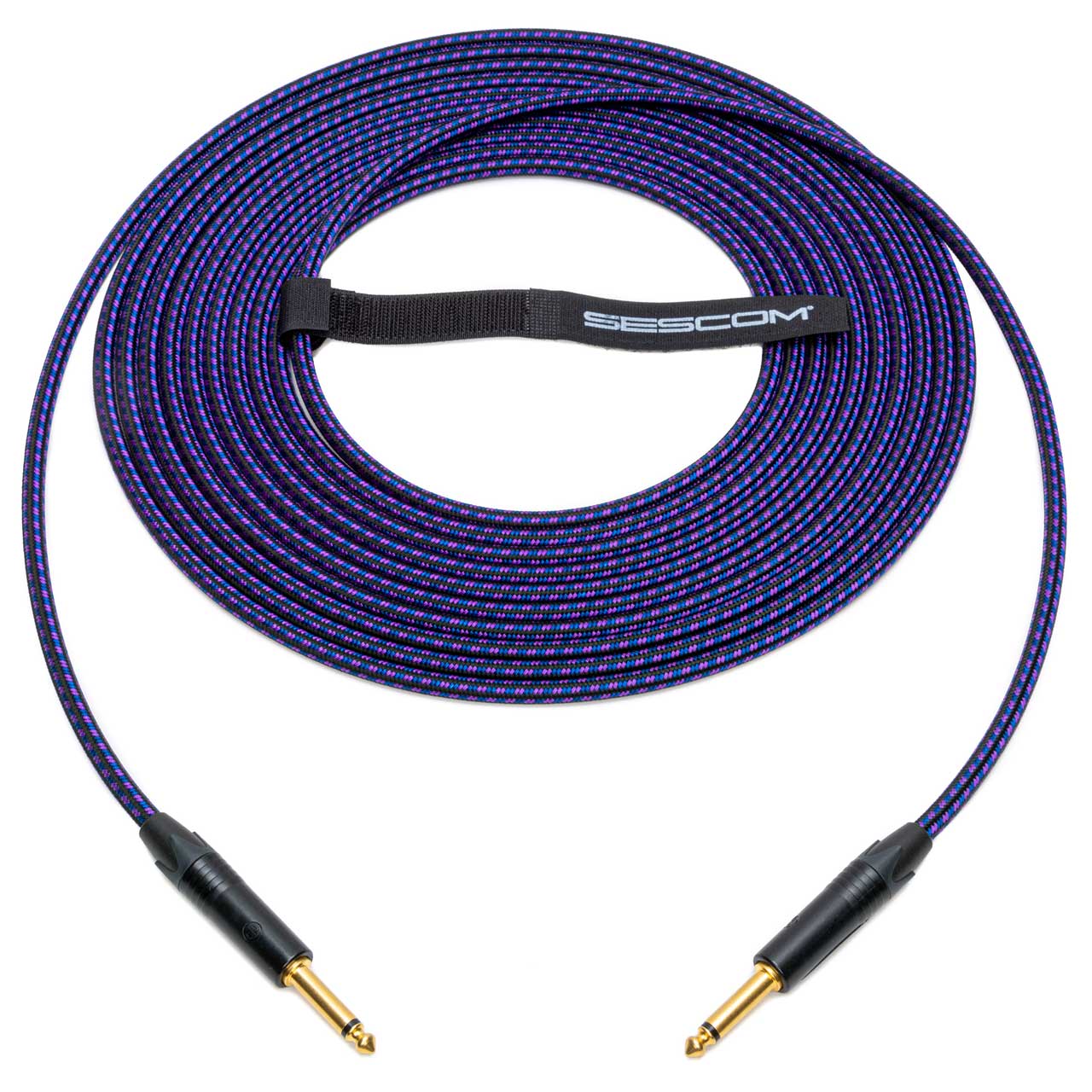

Sescom Catskill Cables Instrument Cable with Neutrik NP2X-B 1/4-Inch Phone Plug - 25 Foot

ITEM #: OBGCSS-025 MFG #: OBGCSS-025

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Sescom
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$67.49

Our Price:

$63.49

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OBGCSS-025 - Overview

Look as great as you sound with the added touch of a Sescom signature series 1/4" instrument cable. The Sescom OBGCSS is designed as a rugged performer wherever you may be plugged-in - from small-hall venues and clubs to concert level stages. The backbone of the Sescom OBGCSS rests on a Canare GS-6 instrument cable and Neutrik professional 1/4" plugs. The cable is covered in black, purple & blue braided sleeving for the ultimate custom look. Plug-in and Rock-On with Sescom!

  • Features:

    • Neutrik professional 1/4" TS Plugs
    • Canare GS-6 Oxygen-Free Copper Guitar/Instrument Cable Featuring a Rugged Cable Overbraid for Added Protection and Distinctive Looks
    • Black, Purple & Blue Overbraiding to Stand Out in the Light Yet Blend Into the Stage


  • Specifications:

    • Canare GS6 Cable
    • Nom O.D. with Overbraid (in/mm): 0.262" (6.654mm)
    • PVC Jacket Nom. Thick. in. (mm): 0.039 (1.0mm)
    • No. of Cond.: 1
    • Insul. Type* Thick mil: PE/33.5
    • Cond-AWG (Qty./mil) Cross Sec. Area mil.: OFC-#18 (127/3.94) 1550
    • Shield Coverage: OFC>92% Braid+ Carbon Sleeve

      Neutrik NP2X-B 1/4" Plug
    • Gender: Male
    • Connection Type: Plug
    • Contact Resistance: depends on mating connector mΩ
    • Dielectric Strength: 1kVdc
    • Insulation Resistance: > 2GΩ (initial)
    • Rated Current per Contact: depends on mating connector A
    • Rated Voltage: < 50V
    • Cable O.D.: 4 - 7mm
    • Lifetime: >1000 mating cycles
    • Wiresize(mm/AWG): 1mm²/18AWG
    • Wiring: Solder contacts
    • Bushing: Polyacetal (POM) + PU
    • Contact Plating: 0.2µm Au
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30% GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: KTL coating
    • Strain Relief: Polyacetal (POM)
    • Standard Compliance: IEC 60603-11/EIA RS-453
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -4°F - 149°F (-20°C - 65°C)


  • Warranty:

    • 1 Year
