Sescom Catskill Cables Instrument Cable with Neutrik NP2X-B 1/4-Inch to Right Angle SILENTPLUG - 15 Foot

Name: Sescom Catskill Cables Instrument Cable with Neutrik NP2X-B 1/4-Inch to Right Angle SILENTPLUG - 15 Foot
Brand: Sescom
SKU: OBGCSSIA-015
Price: 59.95 USD
Availability: PreSale

ITEM #: OBGCSSIA-015 MFG #: OBGCSSIA-015

Sescom

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$63.95

Our Price:

$59.95

Add to Wish List Leasing Options

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

OBGCSSIA-015 - Overview

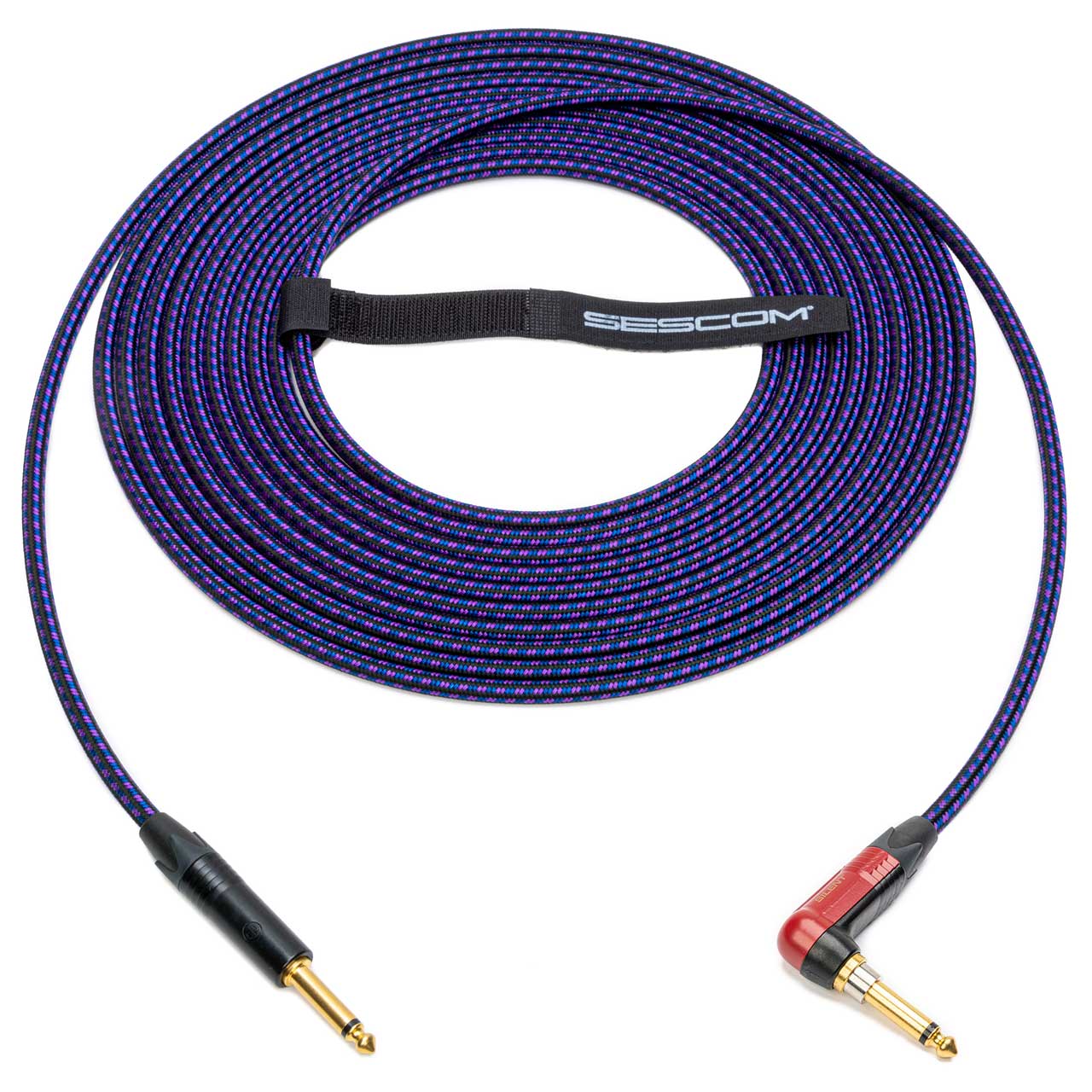

Look as great as you sound with the added touch of a Sescom signature series 1/4" instrument cable. The Sescom OBGCSSIA is designed as a rugged performer wherever you may be plugged-in - from small-hall venues and clubs to concert level stages. The backbone of the Sescom OBGCSSIA rests on a Canare GS-6 instrument cable and Neutrik professional 1/4" plugs. One end of the cable features a Right Angle Silent 1/4" Plug for popless performance where it automatically mutes (shorts) an instrument (guitar) under load. The cable is covered in black, purple & blue braided sleeving for the ultimate custom look. Plug-in and Rock-On with Sescom!

Features:
- Neutrik professional 1/4" TS Plug
- Neutrik professional 1/4" Right-Angle TS silentPLUG for automatic signal muting when plugging and unplugging
- Canare GS-6 Oxygen-Free Copper Guitar/Instrument Cable Featuring a Rugged Cable Overbraid for Added Protection and Distinctive Looks
- Black, Purple & Blue Overbraiding to Stand Out in the Light Yet Blend Into the Stage
Specifications:
- Canare GS6 Cable
- Nom O.D. with Overbraid (in/mm): 0.262" (6.654mm)
- PVC Jacket Nom. Thick. in. (mm): 0.039 (1.0mm)
- No. of Cond.: 1
- Insul. Type* Thick mil: PE/33.5
- Cond-AWG (Qty./mil) Cross Sec. Area mil.: OFC-#18 (127/3.94) 1550
- Shield Coverage: OFC>92% Braid+ Carbon Sleeve

  Neutrik NP2X-B 1/4" Plug
- Gender: Male
- Connection Type: Plug
- Contact Resistance: depends on mating connector mΩ
- Dielectric Strength: 1kVdc
- Insulation Resistance: > 2GΩ (initial)
- Rated Current per Contact: depends on mating connector A
- Rated Voltage: < 50V
- Cable O.D.: 4 - 7mm
- Lifetime: >1000 mating cycles
- Wiresize(mm/AWG): 1mm²/18AWG
- Wiring: Solder contacts
- Bushing: Polyacetal (POM) + PU
- Contact Plating: 0.2µm Au
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30% GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: KTL coating
- Strain Relief: Polyacetal (POM)
- Standard Compliance: IEC 60603-11/EIA RS-453
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -4°F - 149°F (-20°C - 65°C)

  Neutrik NP2RX-AU-SILENT Plug
- Gender: Male
- Connection Type: Plug
- Contact Resistance: depends on mating connector mΩ
- Dielectric Strength: 0.2kVdc
- Insulation Resistance: > 2GΩ (initial)
- Rated Current per Contact: depends on mating connector A
- Rated Voltage: < 50V
- Cable O.D.: 4 - 7mm
- Lifetime: >1000 mating cycles
- Wiresize (mm/AWG): 1mm²/18AWG
- Wiring: Solder contacts
- Bushing: Polyacetal (POM) + PU
- Contact Plating: 0.2µm Au
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30% GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Partly red coated, black chromium plated
- Strain Relief: Polyacetal (POM)
- Standard Compliance: IEC 60603-11/EIA RS-453
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -4°F - 149°F (-20°C - 65°C)
Warranty:
- 1 Year
