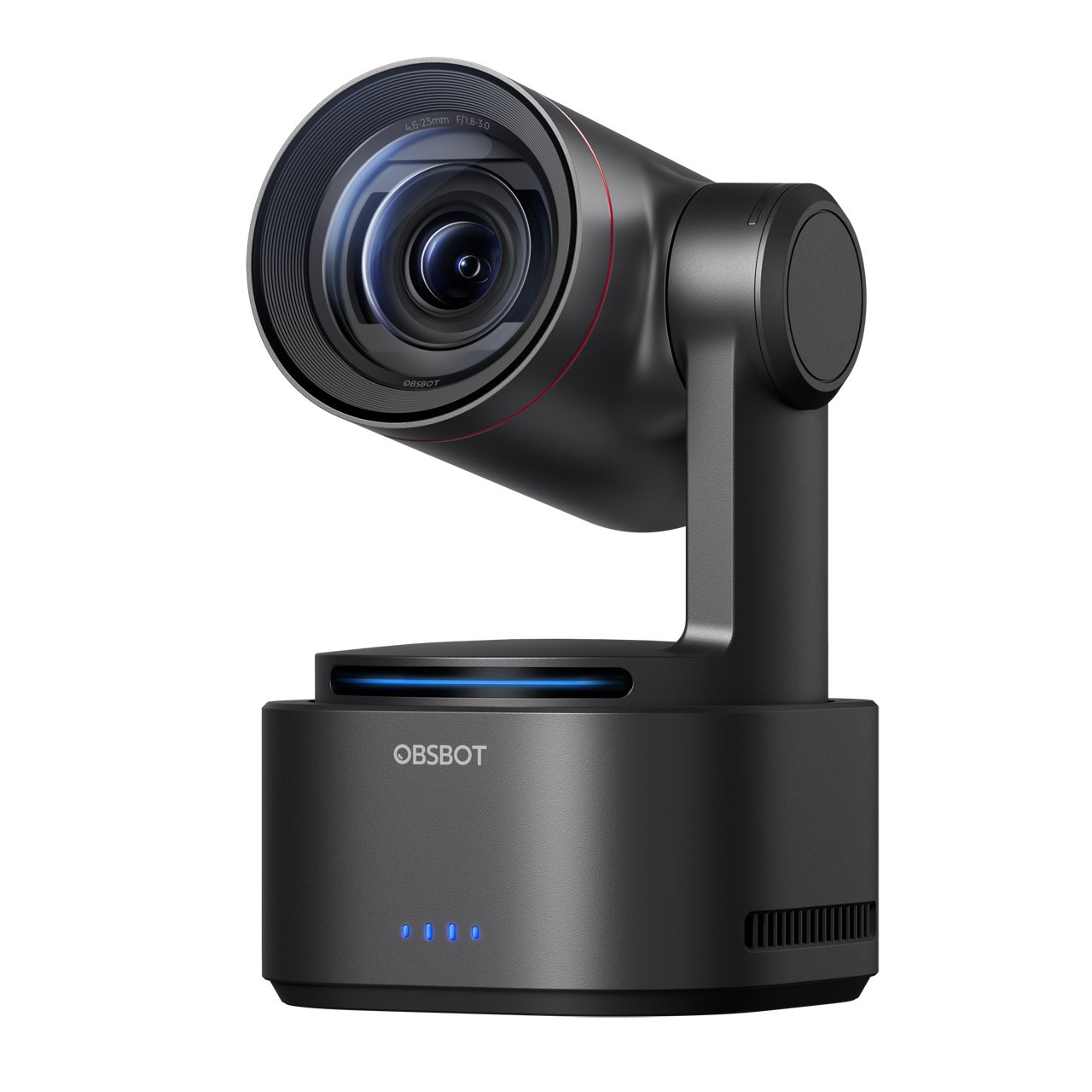

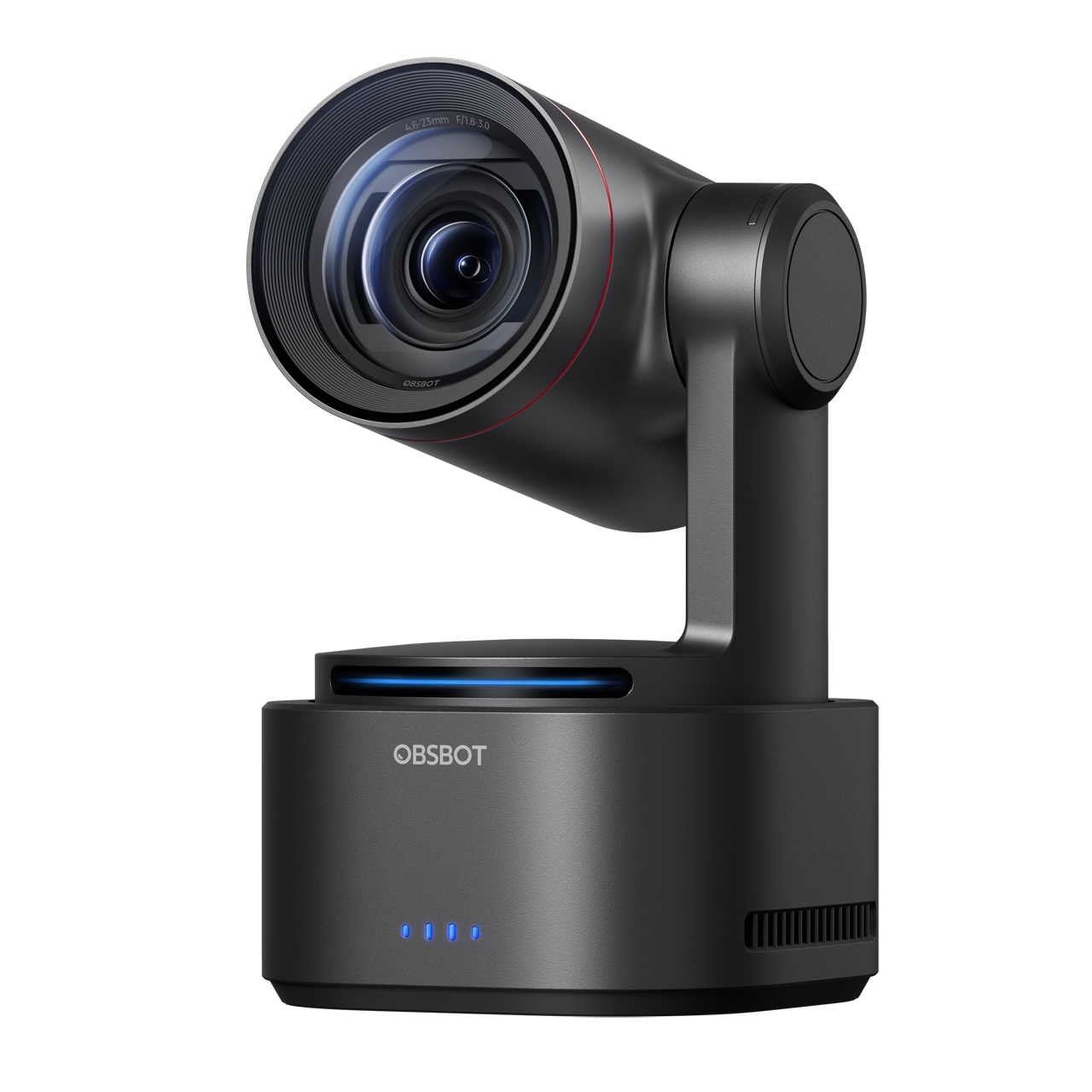

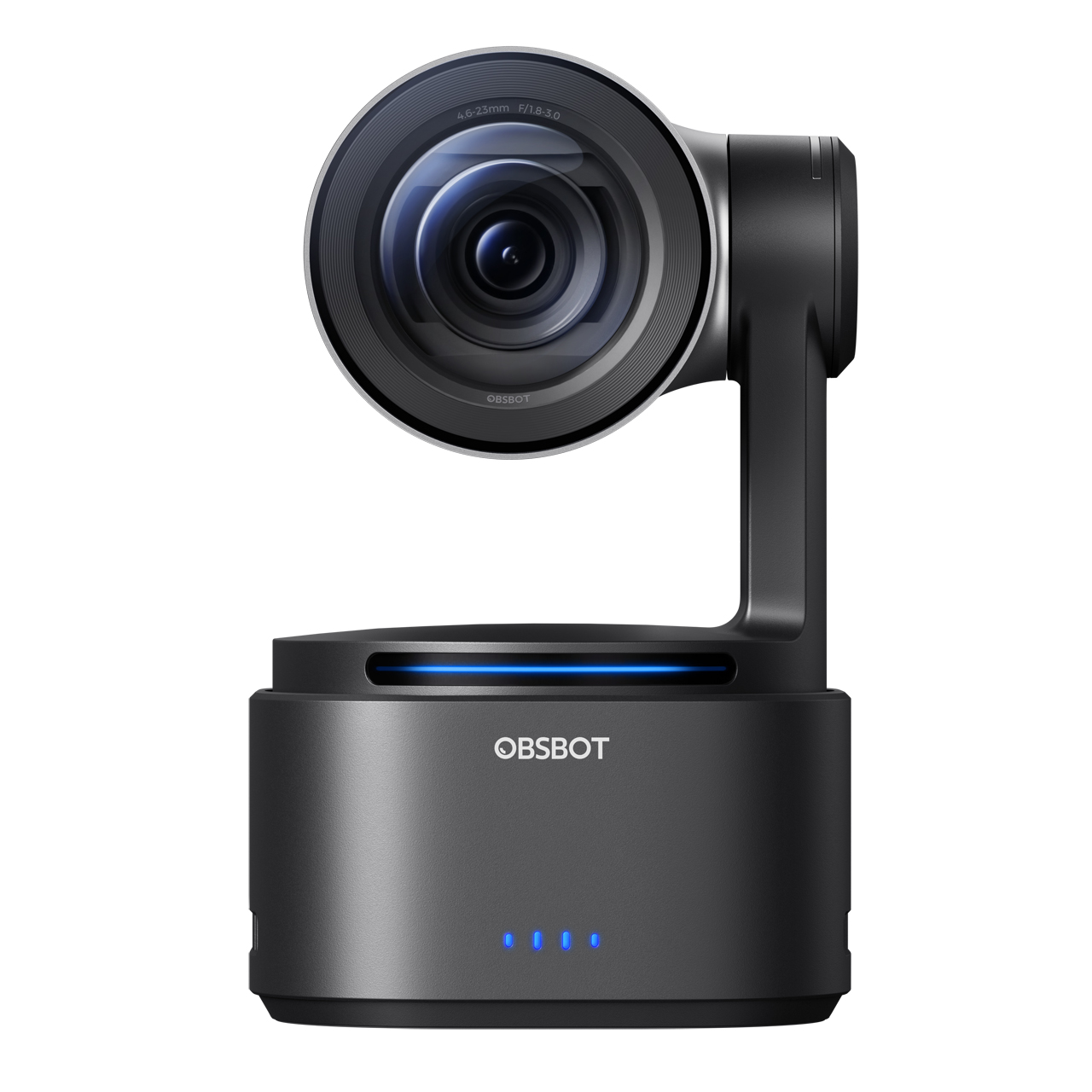

OBSBOT TAIL 2 AI-Powered PTZR Live Production Camera - Up to 4k@60fps - 12x Optical Zoom

ITEM #: OBS-TAIL-2 MFG #: OBSBOT-OAB-2305-CW

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


OBSBOT-OAB-2305-CW - Overview

Revolutionize live production with OBSBOT Tail 2's innovative PTZR lens design, offering seamless transitions between landscape and portrait modes. Experience unparalleled image quality through an advanced 12-piece optics system, featuring a premium 1/1.5'' CMOS sensor and versatile 12x Hybrid Zoom. Powered by next-generation AI Tracking 2.0, capture subjects with remarkable precision at extended distances. From SDI to NDI, HDMI to UVC,

Where Intelligence Meets Imagination
Experience a new realm where years of AI innovation converge to bring your creative vision to life. With enhanced tracking precision, intelligent subject recognition, and boundless customization possibilities, Tail 2 opens the door to a world where your imagination knows no limits.

Never-Lost Tracking with "Only Me"
Based on a unique human tracking algorithm, the new "Only Me" feature ensures unwavering focus on your selected subject. Unlike the previous algorithm that detected each new target, once "Only Me" is activated, Tail 2 maintains exclusive tracking of your chosen target, ignoring other potential subjects.

Distance-Extended Gesture Control
Control Tail 2 effortlessly from extended distances with intuitive hand gestures. The device enables AI Tracking activation, Zoom Adjustments, and Recording Control through natural hand movements - making solo content creation seamless and high efficient.

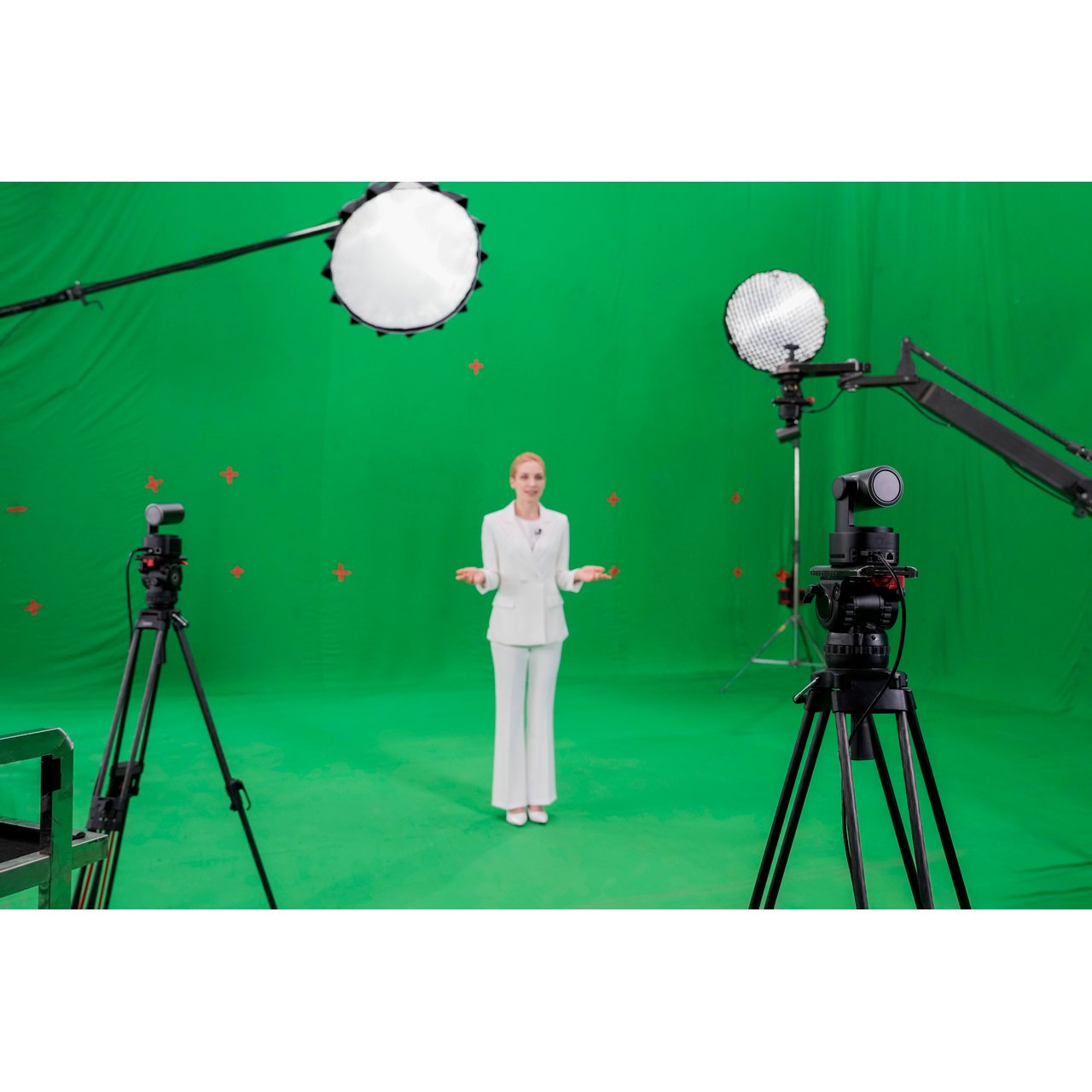

Next-Generation AI for Professional Virtual Production
With AI Tracking integrated into Tail 2, your virtual production process becomes more hands-free, giving you greater freedom to move around without the limitations of traditional fixed camera positions. You can realize more complex actions in your imaginative world with the combination of AI Tracking 2.0 and FreeD protocol support.

From Distance to Close-Up: Seamless Optical Zoom
With 5x Optical Zoom in the Tail Air, you can capture clear, detailed footage from greater distances. This powerful feature pushes OBSBOT videography to an ultra level, allowing you to completely immerse yourself in creating rich, professional content with versatile framing options during your video shoots. Thanks to the sleek lens module design and OBSBOT's advanced technology, Tail Air's Hybrid Zoom reaches up to 12x while maintaining excellent image quality and enhancing frame details.

  • Features:

    • AI Tracking 2.0
    • World's First PTZR Camera: Hands-Free 90° Rotation
    • High Resolution up to 4K @ 60fps & 1080P @ 120fps
    • Precise, Dynamic, Accurate Focus
    • True-to-life HDR Performance
    • Steady, Versatile, PTZR Design
    • Smooth 3-Axis Stabilization
    • Professional Live Production & Virtual Integration Setup
    • 12 Optical Lenses & 1/1.5" CMOS
    • 5x Optical Zoom & 12x Hybrid Zoom
    • Wide Connections Including NDI, SDI, HDMI, Ethernet and More

  • Specifications:

      Size & Weight
    • Dimensions: 11.3" x 7.8" x 7.5"
    • Weight: 5.23lbs

      Camera
    • Image Sensor: 1/1.5'' CMOS
    • Pixel Size: 2.0µm x 2.0µm
    • Effective Pixels: 50 million
    • Effective Pixel Resolution: 8192x6144
    • Lens System: 12x Optical Lenses
    • Zoom Range:
      - 5x Optical Zoom
      - 12x Hybrid Zoom
    • Aperture: f/1.8 - f/3.0
    • Focus:
      - Auto Focus
      - Manual Focus
    • Effective Focal Length: 4.6mm-23mm
    • Equivalent Focal Length: 22mm-110mm
    • Field of View:
      - W (1x) : FOV (D): 89°; FOV (H): 81°
      - T (5x) : FOV (D): 21°; FOV (H): 18°
    • ISO Range:100-6400
    • Exposure Value: ±3EV
    • Electronic Shutter Speed: 1/8000 s to the limit of frames per second
    • White Balance: 2000K-10000K
    • Gyroscope: 6-axis Gyroscope
    • Photo Resolution: 4K, 1080P, 720P
    • Max Video Storage Bitrate: H264:160Mbps,H265:160Mbps
    • Supported File System: FAT32exFAT (exFAT supports segmented video storage only)
    • Video Format: MJPEG, H264, H265

      Resolution and Frame Rate
    • Recording:
      - 4K: 3840*2160@60/59.94/50/48/30/29.97/25/23.98 fps
      - 1080p: 1920*1080@120/60/59.94/50/48/30/29.97/25/23.98 fps
      - 720p: 1280*720@120/60/59.94/50/48/30/29.97/25/23.98 fps
    • HDMI:
      - 4K: 3840*2160@60/59.94/50/30/29.97/25/24 fps
      - 1080p: 1920*1080@60/59.94/50/30/29.97/25/24 fps
      - 1080p: 1920*1080i@60/59.94/50 fps
      - 720p: 1280*720@60/50 fps
    • SDI:
      - 1080p: 1920*1080@60/59.94/50/30/29.97/25/24 fps
    • NDI/RTSP/SRT:
      - 4K: 3840*2160@60/59.94/50/48/30/29.97/25/23.98 fps
      - 1080p: 1920*1080@60/59.94/50/48/30/29.97/25/23.98 fps
      - 720p: 1280*720@60/59.94/50/48/30/29.97/25/23.98 fps

      3-Axis Gimbal
    • Gimbal Installation: Non-removable
    • Controllable Range:
      - Pan: ±160°
      - Tilt: -60° - 32°
      - Roll: -120° - 120°
    • Mechanical Range:
      - Pan: ±175°
      - Tilt: ±90°
      - Roll:-135° - 135°
    • Max Controllable Speed: 120°/s
    • Angle Jitter: ±0.003°

      Wi-Fi
    • Standard: Wi-Fi 6
    • Operating Frequency: 2.4G/5.8GHz
    • Signal Transmission Range: 2.4G 140m , 5.8G 80m
    • Protocol: 802.11 a/b/g/n/ac/ax

      Bluetooth
    • Protocol: BLE 5.4
    • Operation Frequency Range: 2.400GHz - 2.4835GHz
    • Transmitter Power (EIRP): < 14 dBm

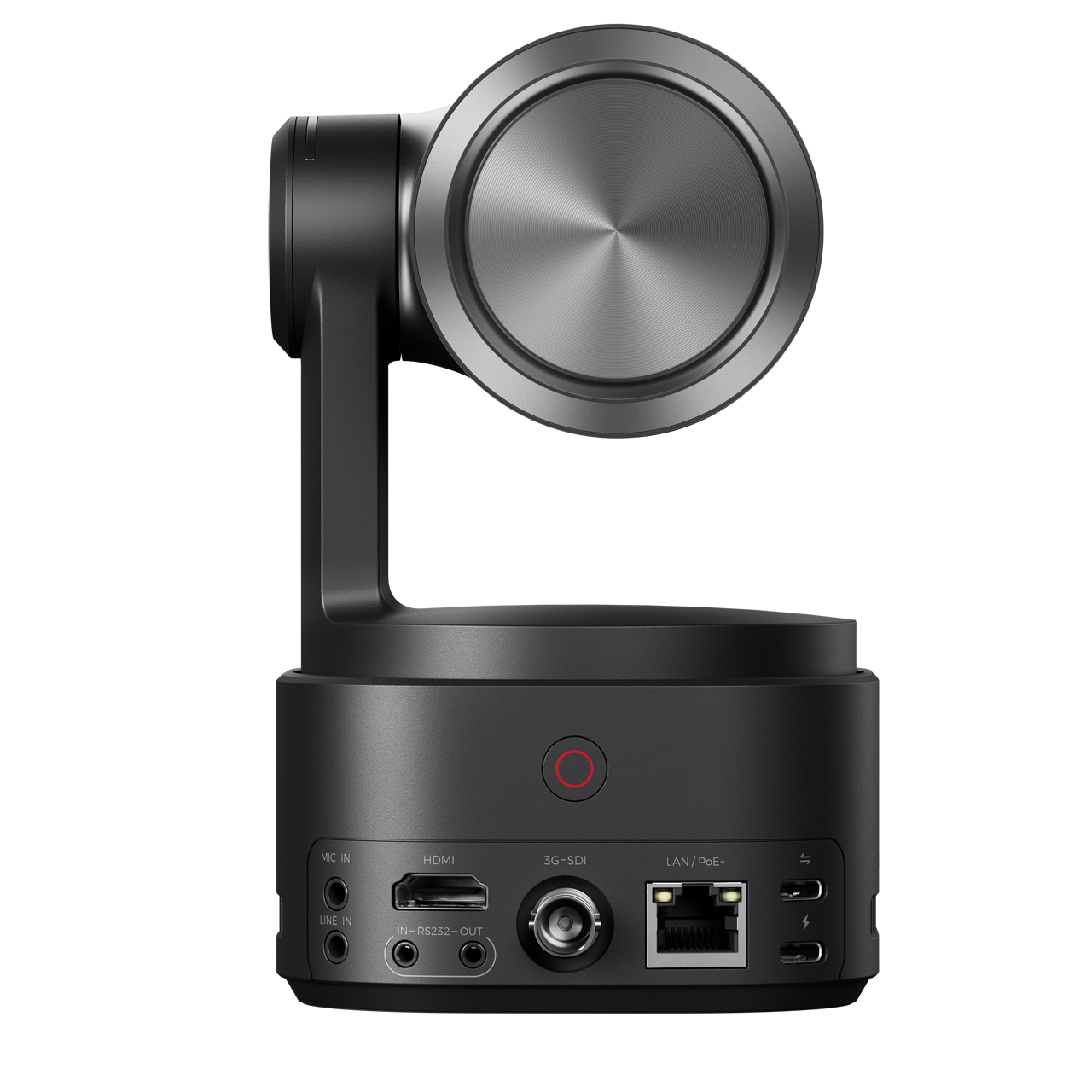

      I/O Interface
    • Power Input:
      - USB-C: Default 5V/2A, supports USB PD3.0 fast charging protocol standard
      - Maximum input voltage 20V, maximum input current 2A
      - PoE+: IEEE 802.3 af/at, maximum supported input power 30W
    • Video Interface:
      - 1x HDMI 2.0
      - 1x 3G-SDI
      - 1x USB-C 3.0
    • Network Interface: 1x RJ45 10/100/1000Mbps Ethernet port (with PoE+)
    • Audio Interface:
      - 1x MIC IN (3.5mm audio interface)
      - 1x LINE IN (3.5mm audio interface)
    • Control Interface:
      - 1x 2.5mm RS232 input, Protocol: VISCA/Pelco-D/Pelco-P
      - 1x 2.5mm RS232 output, Protocol: VISCA/Pelco-D/Pelco-P
      - 1x USB-C 3.0, Protocol: UVC

      Battery
    • Type: Lithium Polymer(Li-po)
    • Capacity: 5000mAh
    • Energy: 38Wh
    • Voltage: 7.6V
    • Operating Time: 343 mins
    • Charging Time: 150 mins (When powered off)

    • Memory Card Type: MicroSD (Maximum Support: 1TB)

      Operating Environment
    • Camera Working Environment Temperature: 14°F- 104°F
    • Battery Charging Ambient Temperature: 14°F - 104°F
    • Battery Operating Ambient Temperature: 14°F - 104°F

  • Item Includes:

    • 1x OBSBOT Tail 2
    • 1x USB-C 3.0 Cable
    • 1x USB-C to USB-A 3.0 Adapter
    • 1x USB-C Power Cable
    • 2x 2.5mm Male to RS232 MD8 Female Serial Cable

  • Warranty:

    • 1 Year Limited Warranty
