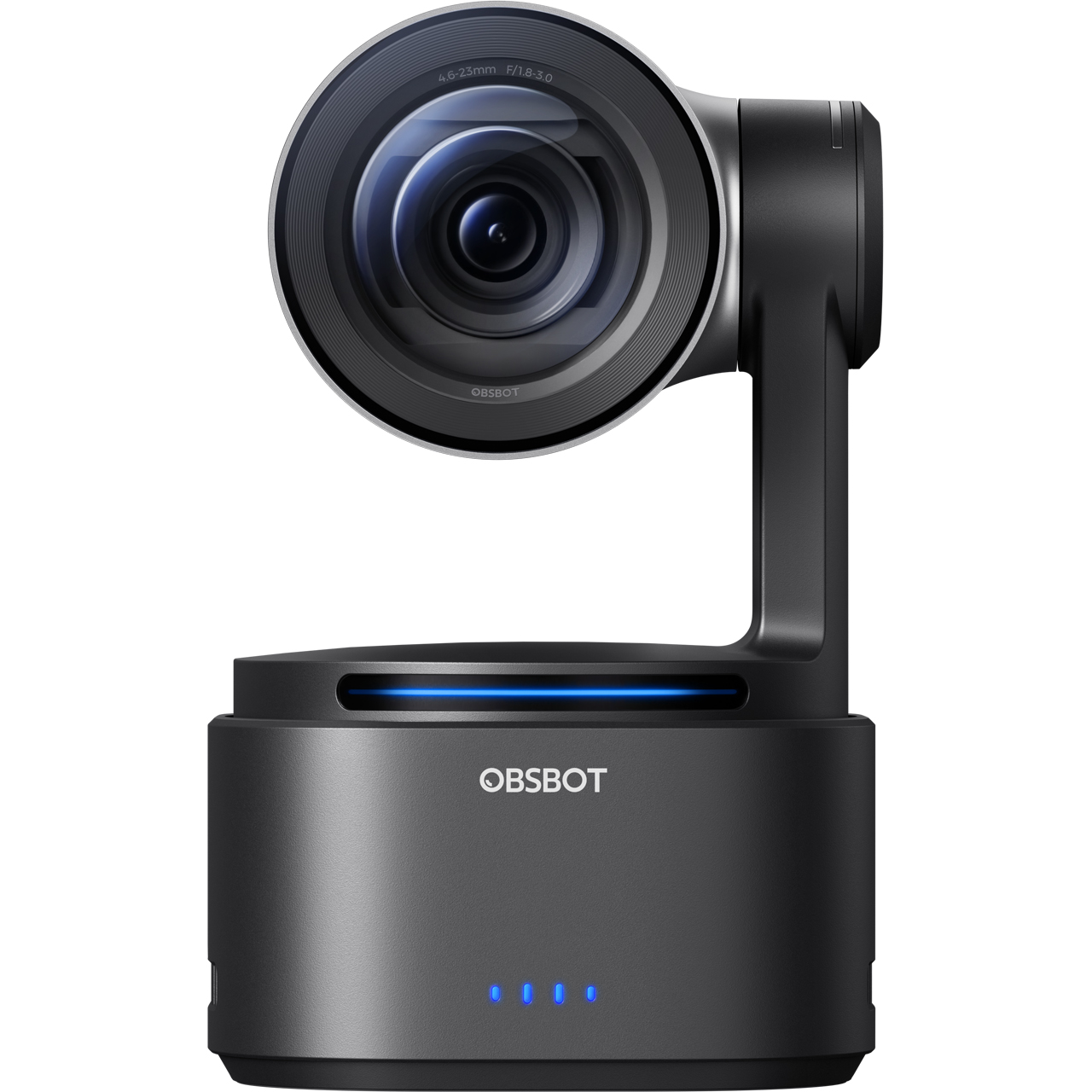

OBSBOT TAIL 2 Streaming Combo AI-Powered PTZR Live Production Camera - Up to 4k@60fps - 12x Optical Zoom

OBSBOT-C.B.1.00063 - Overview

• Features:

  • AI Tracking 2.0
  • World's First PTZR Camera: Hands-Free 90° Rotation
  • High Resolution up to 4K @ 60fps & 1080P @ 120fps
  • HDR Performance
  • Steady, Versatile, PTZR Design
  • Smooth 3-Axis Stabilization
  • Professional Live Production & Virtual Integration Setup
  • 12 Optical Lenses & 1/1.5" CMOS
  • 5x Optical Zoom & 12x Hybrid Zoom


• Specifications:

  Camera
  • Image Sensor: 1/1.5" CMOS
  • Pixel Size: 2.0µm x 2.0µm
  • Effective Pixels: 50 million
  • Effective Pixel Resolution: 8192x6144
  • Lens System: 12x Optical Lenses
  • Zoom Range: 5x Optical Zoom/12x Hybrid Zoom
  • Aperture: f/1.8 - f/3.0
  • Focus: Auto/Manual
  • Effective Focal Length: 4.6mm - 23mm
  • Equivalent Focal Length: 22mm - 110mm
  • Field of View:
    - W (1x): FOV (D): 89°; FOV (H): 81°
    - T (5x): FOV (D): 21°; FOV (H): 18°
  • Exposure Value: ±3EV
  • Electronic Shutter Speed: 1/8000 s to the limit of frames per second
  • White Balance: 2000K - 10000K
  • Gyroscope: 6-axis
  • Photo Resolution: 4K, 1080P, 720P
  • Max Video Storage Bitrate: H264:160Mbps,H265:160Mbps
  • Supported File System: FAT32, exFAT (exFAT supports segmented video storage only)
  • Video Format: MJPEG, H264, H265

    Resolution/Frame Rate
  • Recording:
    - 4K: 3840x2160@60/59.94/50/48/30/29.97/25/23.98fps
    - 1080p: 1920x1080@120/60/59.94/50/48/30/29.97/25/23.98fps
    - 720p: 1280x720@120/60/59.94/50/48/30/29.97/25/23.98fps
  • HDMI:
    - 4K: 3840x2160@60/59.94/50/30/29.97/25/24fps
    - 1080p: 1920x1080@60/59.94/50/30/29.97/25/24fps
    - 1080p: 1920x1080i@60/59.94/50fps
    - 720p: 1280x720@60/50fps
  • SDI:
    - 1080p: 1920x1080@60/59.94/50/30/29.97/25/24fps
  • NDI/RTSP/SRT:
    - 4K: 3840x2160@60/59.94/50/48/30/29.97/25/23.98fps
    - 1080p: 1920x1080@60/59.94/50/48/30/29.97/25/23.98fps
    - 720p: 1280x720@60/59.94/50/48/30/29.97/25/23.98fps

    3-Axis Gimbal
  • Gimbal Installation: Non-removable
  • Controllable Range:
    - Pan: ±160°
    - Tilt: -60° - 32°
    - Roll: -120° - 120°
  • Mechanical Range:
    - Pan: ±175°
    - Tilt: ±90°
    - Roll:-135° - 135°
  • Max Controllable Speed: 120°/s
  • Angle Jitter: ±0.003°

    Wi-Fi
  • Standard: Wi-Fi 6
  • Operating Frequency: 2.4G/5.8GHz
  • Signal Transmission Range: 2.4G 140m, 5.8G 80m
  • Protocol: 802.11 a/b/g/n/ac/ax

    Bluetooth
  • Protocol: BLE 5.4
  • Operation Frequency Range: 2.400GHz - 2.4835GHz
  • Transmitter Power (EIRP): <14dBm

    I/O Interface
  • Power Input:
    - USB-C: 5V/2A, supports USB PD3.0 fast charging protocol standard
    - Max input voltage 20V, maximum input current 2A
    - PoE+: IEEE 802.3 af/at, maximum supported input power 30W
  • Video Interface:
    - 1x HDMI 2.0
    - 1x 3G-SDI
    - 1x USB-C 3.0
  • Network Interface: 1x RJ45 10/100/1000Mbps Ethernet port (with PoE+)
  • Audio Interface:
    - 1x MIC IN (3.5mm)
    - 1x LINE IN (3.5mm)
  • Control Interface:
    - 1x 2.5mm RS232 input, Protocol: VISCA/Pelco-D/Pelco-P
    - 1x 2.5mm RS232 output, Protocol: VISCA/Pelco-D/Pelco-P
    - 1x USB-C 3.0, Protocol: UVC

    Battery
  • Type: Lithium Polymer
  • Capacity: 5000mAh
  • Energy: 38Wh
  • Voltage: 7.6V
  • Operating Time: 343 mins
  • Charging Time: 150 mins (Off)

    General
  • Camera Working Environment Temperature: 14°F - 104°F
  • Battery Charging/Operating Temperature: 14°F - 104°F
  • Dimensions: 11.3 x 7.8 x 7.5"
  • Weight: 5.23lbs
  • Memory Card Type: MicroSD (Max Support: 1TB)
  • OBSBOT Tail Air Bluetooth Remote I/O: 1x USB-C

    Wireless Mic
  • Transmission Type: 2.4GHz
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20Hz - 20KHz (±3dB)
  • Distortion: <0.1%
  • Sampling Rates: 48kHz
  • Bit Depth: 16Bit
  • Signal-to-Noise Ratio: 75dB or more
  • Sensitivity: -42dB±3dB (1dB=1V/Pa@1kHz)
  • Operating Distance: 20m(without obstacle)
  • Power Consumption:
  • - TX: 80mW
    - RX: 60mW
  • Weight: TX+RX+Charging Case: 129g
  • Battery Capacity:
  • - TX/RX:100mA
    - Charging Case:1000mA
  • Working Time:
    - TX: 4.5 hours
    - RX: 8 hours

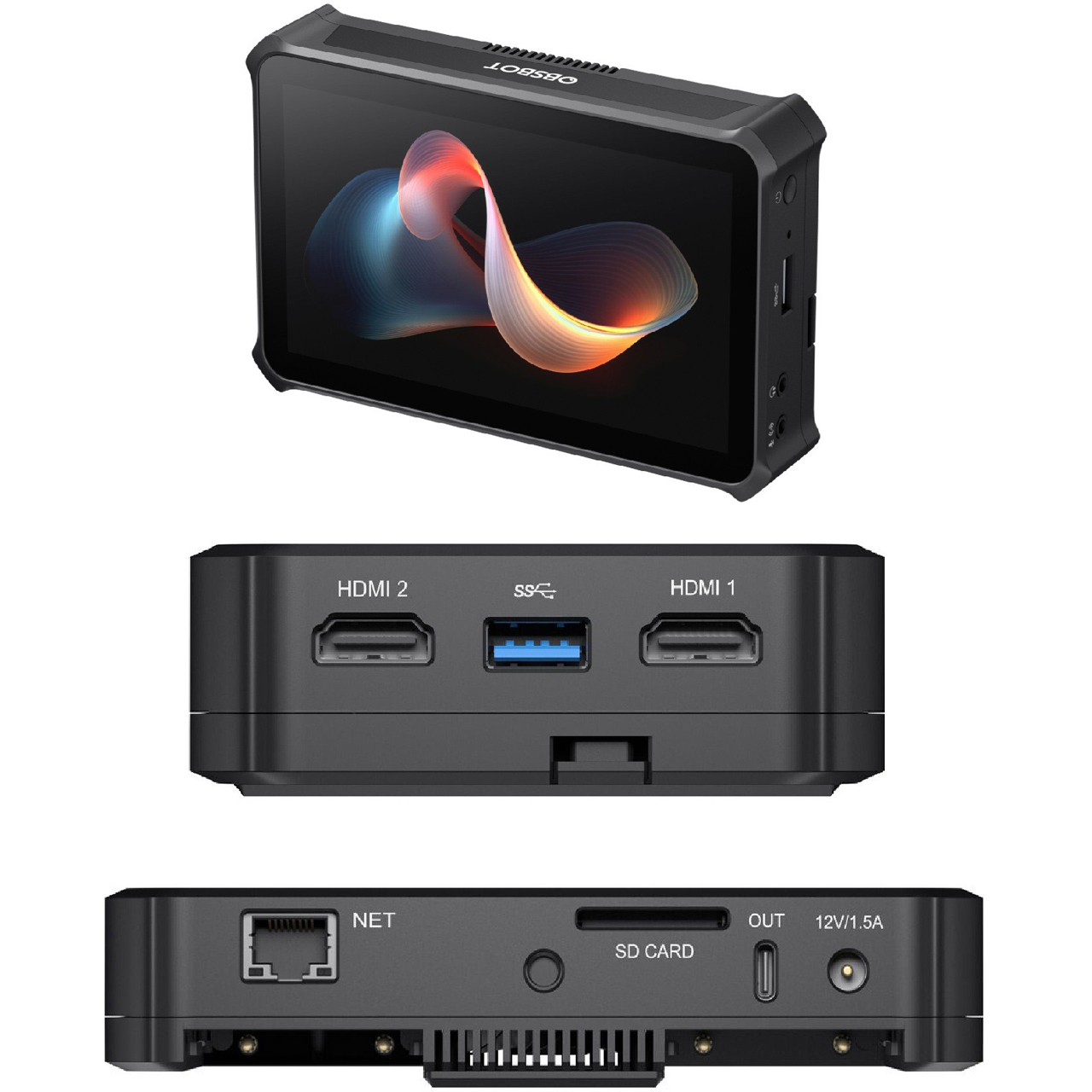

    OBSBOT Talent
  • Display Size: 5.44"
  • Video I/O:
    - 2x HDMI 2.0 Input
    - 2x USB-A 3.0/3.1/3.2 Gen 1 Input
    - 1x USB-C (Unspecified Signal) Output
    - 1x RJ45 LAN Output
  • Audio I/O:
    - 1x 3.5mm Mic/Line Input
    - 1x 3.5mm Headphone Output


• Item Includes:

  • 3x Tail 2
  • 3x USB-C 3.0 Cable
  • 3x USB-C to USB-A 3.0 Adapter
  • 3x USB-C Power Cable
  • 3x 2.5mm Male to RS232 MD8 Female Serial Cable
  • 1x NDI License Key
  • 1x Tail Air Smart Remote Controller
  • 3x Foldable Lightweight Tripod
  • 1x Wireless Microphone
  • 3x Tail 2 ND Filters Set
  • 1x Talent 5.4" Touchscreen HDMI/USB Streaming Recording Monitor
  • 3x 360 ° Rotation Play-More Combo


• Warranty:

  • 1 Year Limited Warranty
