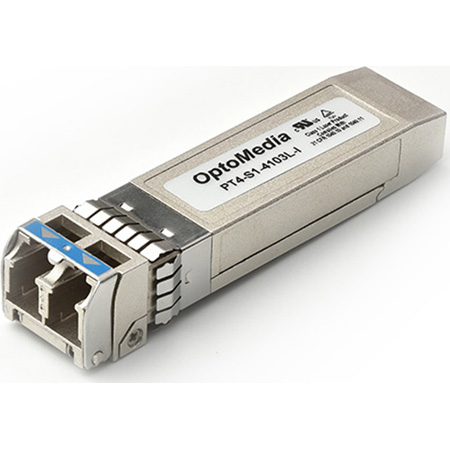

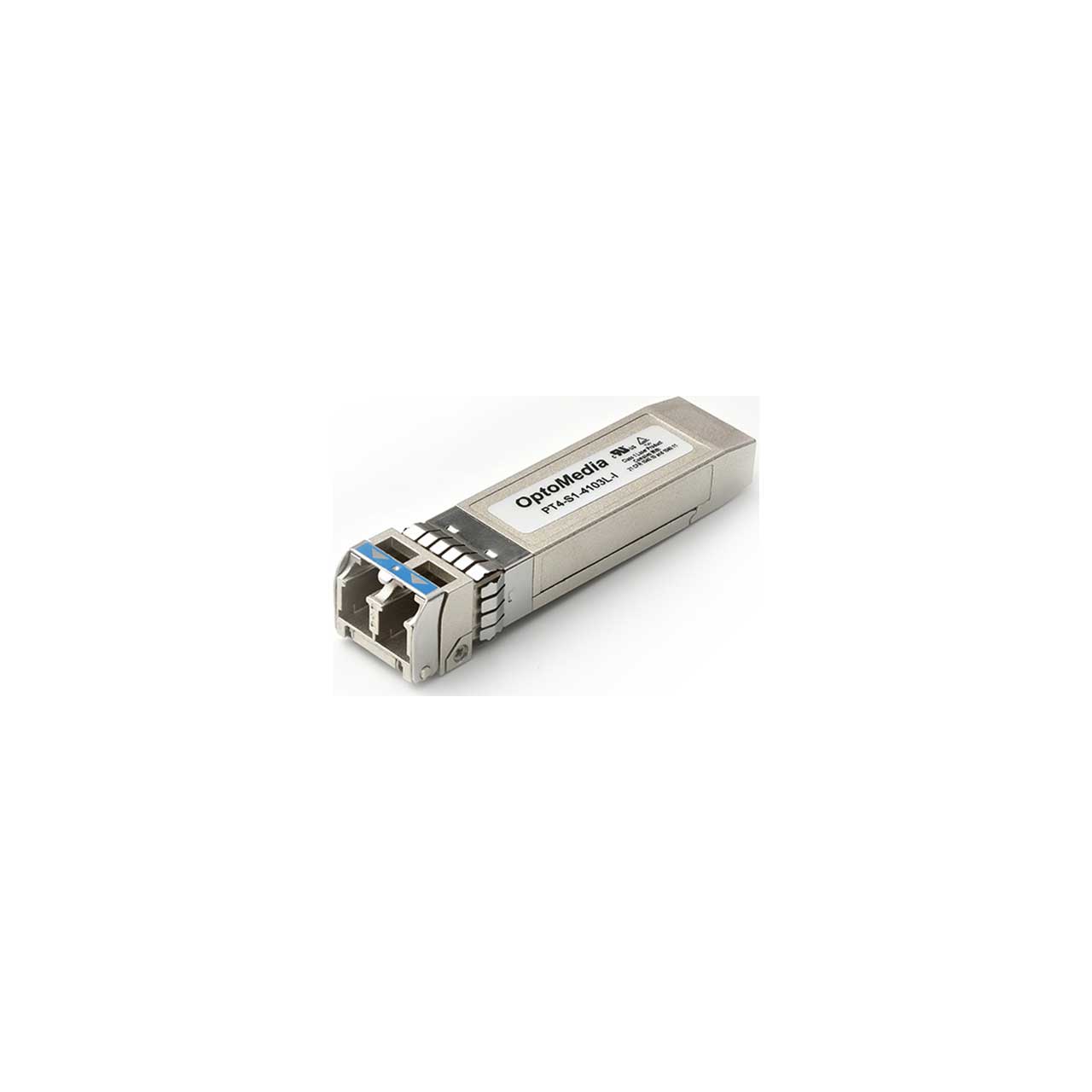

OMC Tech PT4-S1-4103K-I 1G Small Form Factor Pluggable Duplex SingleMode Transceiver Module SFP - C-Temp

Name: OMC Tech PT4-S1-4103K-I 1G Small Form Factor Pluggable Duplex SingleMode Transceiver Module SFP - C-Temp
Brand: OMC Tech
SKU: OMC-PT4-S14103KI
Price: 69.00 USD
Availability: PreSale

ITEM #: OMC-PT4-S14103KI MFG #: PT4-S1-4103K-I

OMC Tech

Our Price:

$69.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PT4-S1-4103K-I - Overview

The OMC Tech PT4-S1-4103K-I Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over single mode optical fiber. The high-speed laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFP MSA, SONET/SDH standards, Class 1 laser products, EN60825, and EN60950.

Features:
- RoHS Compliant
- Operation Temperature:
- PT4-S1-4103K-I: 0~70°C
- PT4-S1-4103L-I: -40~85°C
- 1310nm uncooled LD
- 10Km link distance(indicative only)
- Hot pluggable
- Metal enclosure, low EMI
- Single 3.3V power supply
- Low Power Dissipation
Specifications:
- Transmitter Differential Input Voltage: TD +/- 400 - 2000 mVp-p
- Optical Output Power: PO -9. typ, -3 max dBm
- Optical Extinction Ratio: ER 9dB
- Center Wavelength: ΛC 1270 min, 1310 typ, 1355 max nm
- Spectral Width (rms): Δ Λ < 4 nm
- Optical Rise / Fall Time: tr / tf 0.25 nsec (20%~80%)
- Tx_Fault - High: VFault_H 2 VCC V
- Tx_Fault - Low: VFault_L Vee Vee +0.5V
- Tx_Disable - High: VDisable_H 2 VCC V
- Tx_Disable - Low: VDisable_L Vee Vee+0.8V

  Notes:
- All of data is measured at 1250Mbps , PRBS 27-1 ,NRZ
Item Includes:
- 1x OMC Tech PT4-S1-4103K-I 1G Small Form Factor Pluggable Duplex SingleMode Transceiver Module SFP - C-Temp
Warranty:
- 1 year
