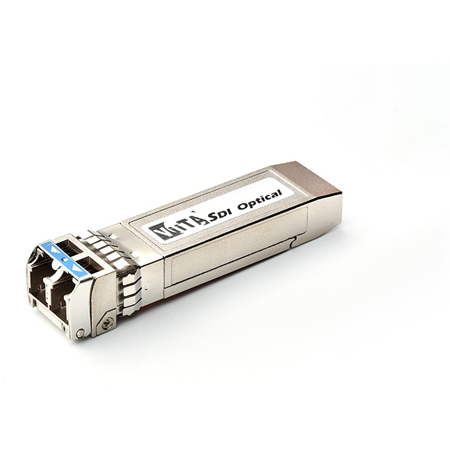

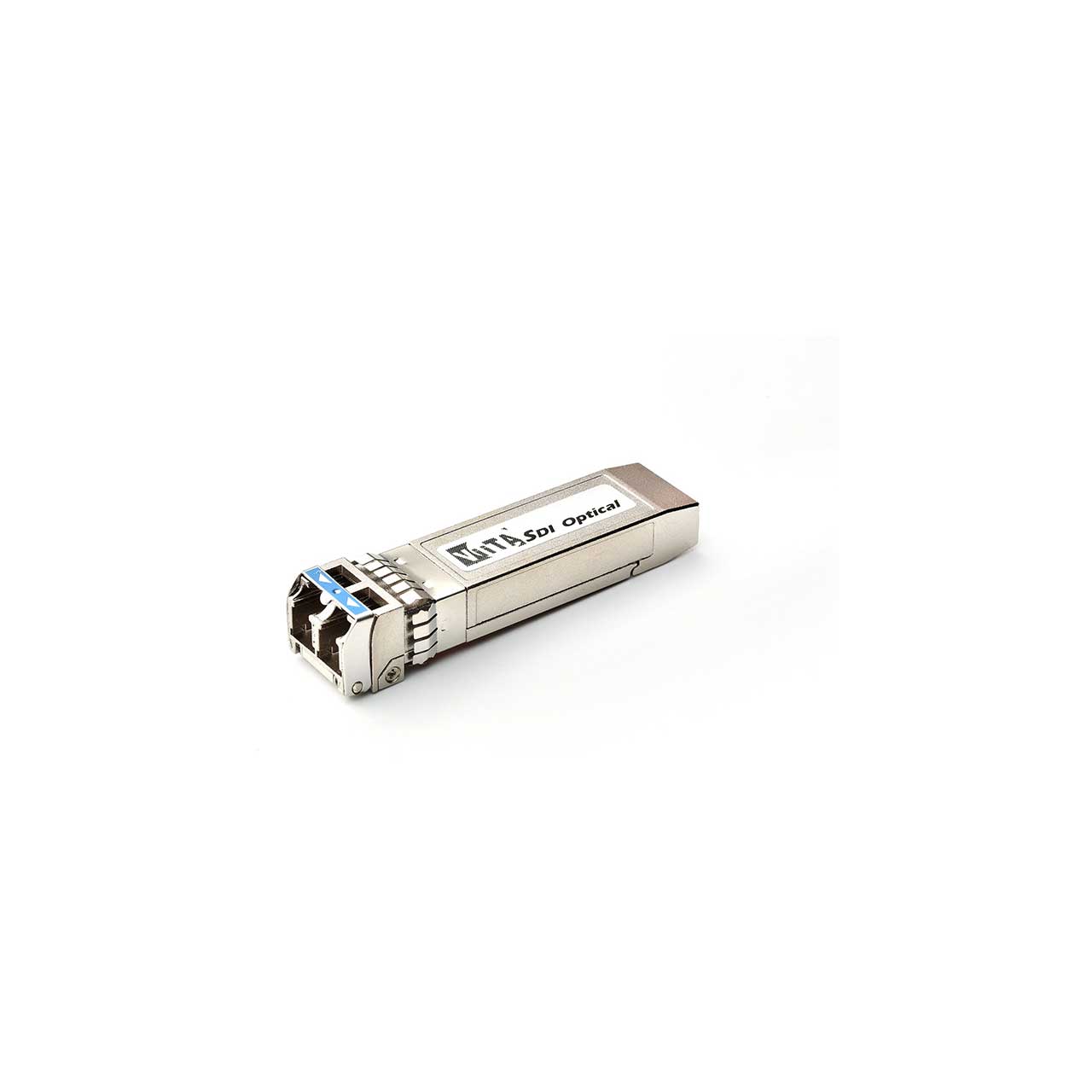

OMC Tech RMC-S1-4103K-F1 12G-SDI CWDM Dual Channel SFP+ Optical Transmitter - 1270/1290nm / 10km - MSA

ITEM #: OMC-RMCS14103KF1 MFG #: RMC-S1-4103K-F 1270/1290NM

Primary Image
OMC Tech
Free Shipping with $49 Minimum Order

Our Price:

$960.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RMC-S1-4103K-F 1270/1290NM - Overview

OptoMedia 12G-SDI dual channel optical transmitter SFP+ perfectly converts 2 SDI electrical signals at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI to 2 optical signal. It supports data rate 11.88Gbps and handles pathological patterns.

  • Features:

    • Support 2ch transmission of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • Handles pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    • Digital diagnostics function
    • 10km over single mode fiber
    • Low power consumption- Typical 260 mA
    • Available in MSA pinout
    • Dual LC connector
    • 18ch CWDM wavelengths in option (1270~1610nm, 40 & 80km)


  • Specifications:

    • Wavelength (nm): 1270/1290nm
    • Operating case temperature range (Celcius): 0 degrees - 70 degrees
    • Storage temperature range (Celcius): -40 degrees - 85 degrees
    • Power supply voltage (V): 3.1 (min) - 3.3 (typical) - 3.5 (max)
    • Power consumption (mA): 250 (typical) - 300 (max)
