OMC Tech VPC-C0-8C53L-F 12G SDI Coax Dual TX - 50m - HD-BNC Connector - Non-MSA

ITEM #: OMC-VPC-C08C53LF MFG #: VPC-C08C53LF

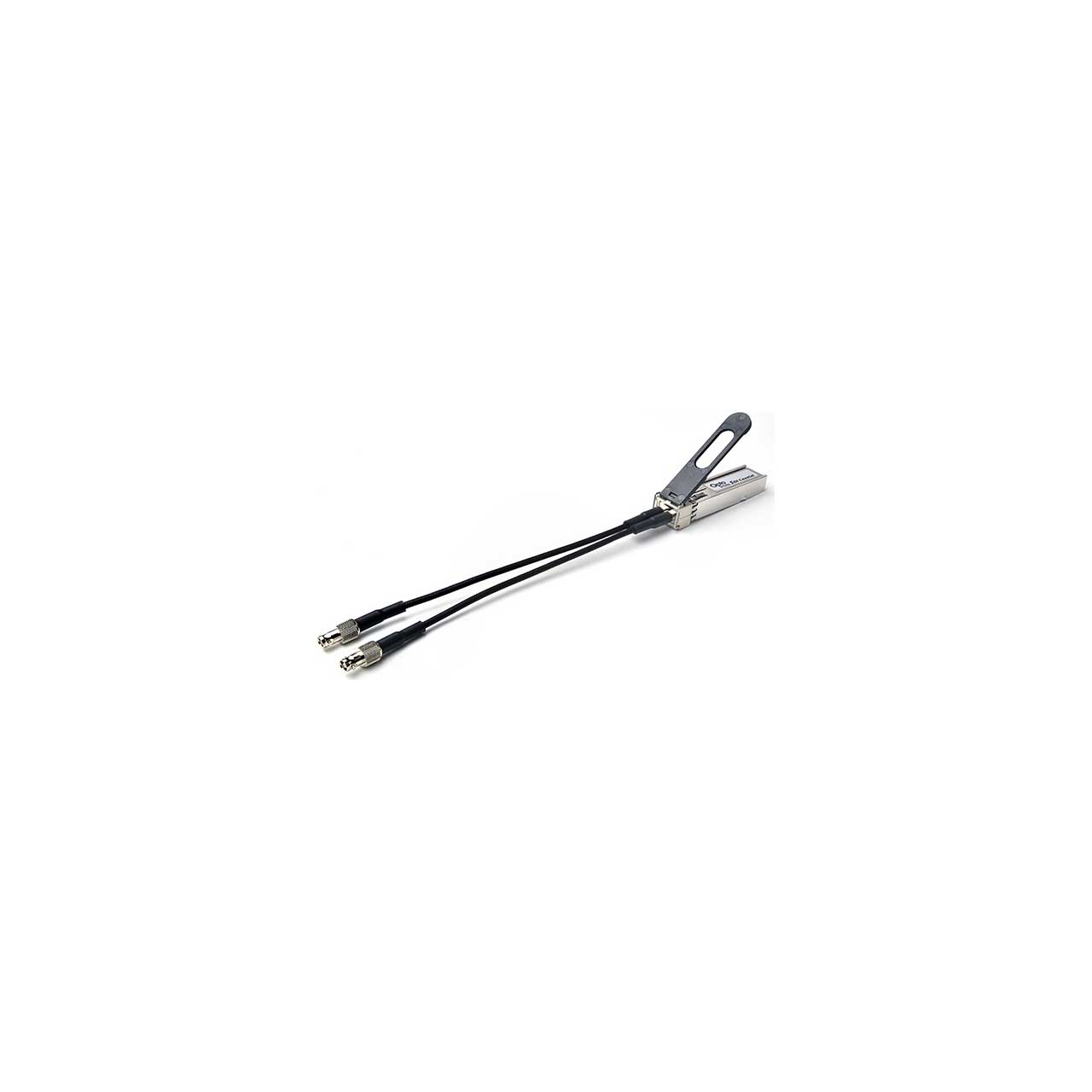

Primary Image

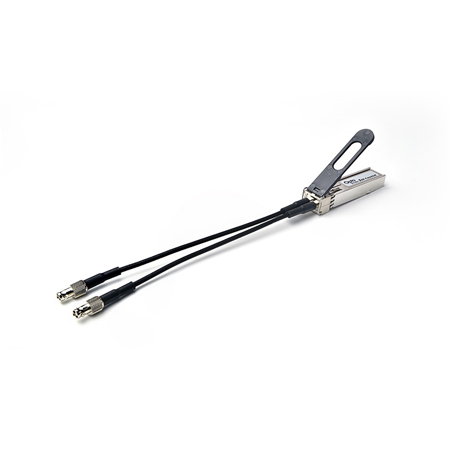

  • Product Image Thumbnail 1 of 2

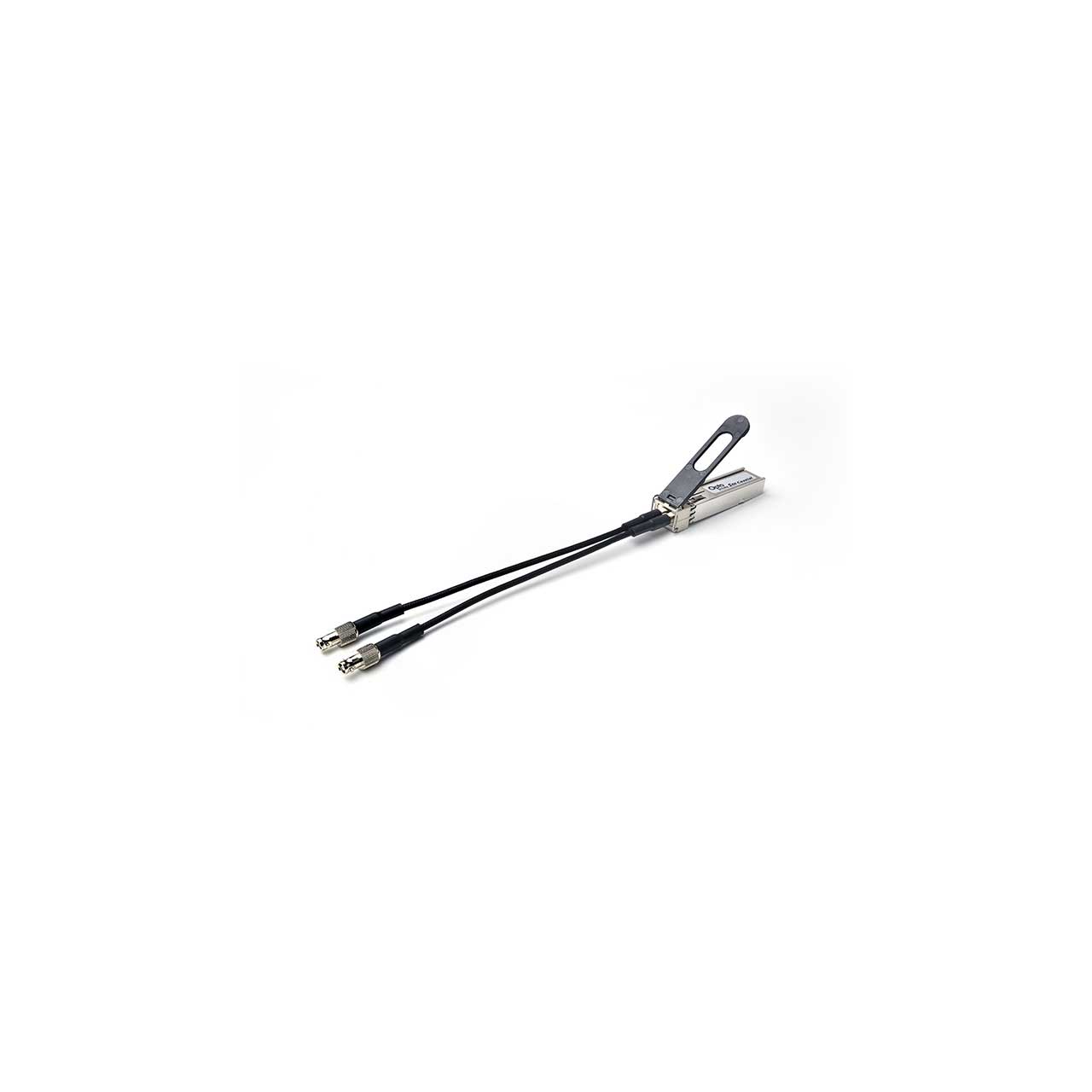

  • Product Image Thumbnail 2 of 2
OMC Tech
Free Shipping with $49 Minimum Order

Our Price:

$449.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VPC-C08C53LF - Overview

OptoMedia VPC-C08C53LF 12G-SDI electrical dual transmitter SFP perfectly transmits SDI electrical signals up to ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over Belden 1694A cable via BNC/ HD-BNC connector. It handles 12Gbps pathological patterns.

  • Features:

    • Supports ST-2082-1, ST-2081-1, ST-424, ST-292 and ST-259
    • BNC / HD-BNC 75Ω connectors
    • Compatible With DVB-ASI and AES10 (MADI)
    • Supports pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
    • Monitor function via serial interface
    • Available in MSA and Non-MSA pinouts


  • Specifications:

    • Operating Temperature: 32° to 158°F (0° to 70°C)
    • Storage Temperature: -40° to 185°F (-40° to 85°C)
    • ESD Rating (HBM): ±5.5KV Typical; ±6KV Max
    • Power Supply Voltage: 3.13 - 3.465V; 3.3V Typical
    • Power Consumption: 165mA Typical; 220mA Max


  • Item Includes:

    • 1x OMC Tech VPC-C0-8C53L-F 12G SDI Coax Dual TX - 50m - HD-BNC Connector - Non-MSA
