Optix MC-KIT Fiber Mechanical Connector Termination Kit

ITEM #: OPT-MC-KIT MFG #: MC-KIT

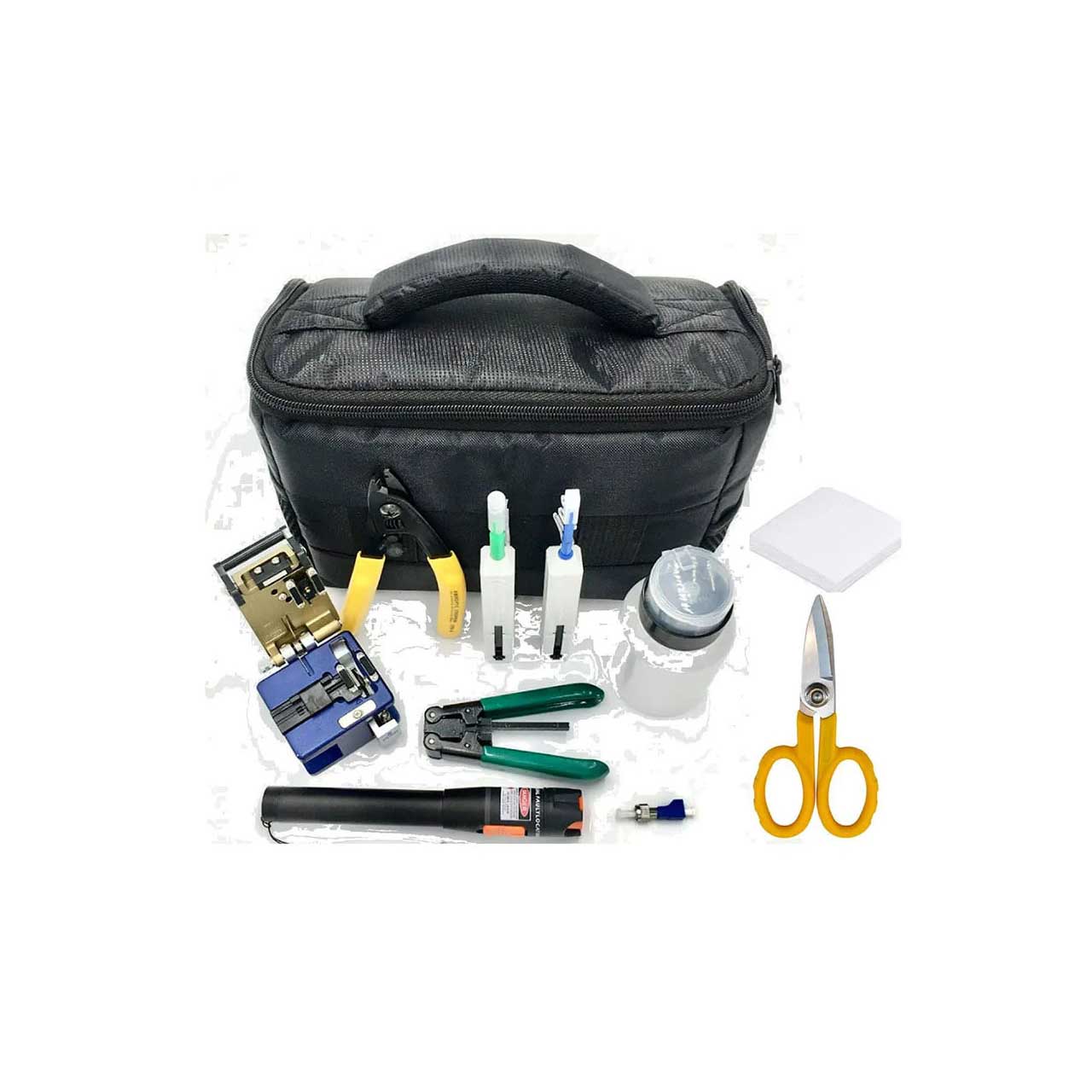

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OPT-MC-KIT

MC-KIT - Overview

Optix MC-KIT Mechanical Connector Termination Kit combines all the tools needed to strip, clean, and cleave fiber and successfully terminate mechanical connectors.

  • Specifications:

    • Polish Types: UPC (Singlemode), APC (Singlemode), PC (Multimode
    • Fiber Types: Prysmian/Draka G.652.D Singlemode & OM1/ OM3/ OM4 Multimode
    • Cable Types: 900 micron and 250 micron coated fiber
    • Insertion Loss: SM - 0.15 dB (average), 0.3 dB (max). MM - 0.01 dB (average), 0.3 dB (max)
    • Return Loss: Typ. 50dB / Max. 55dB (PC), Typ. 55dB / Max. 60dB (APC)
    • Operating Temperature: -40°C to +75°C
    • Connector Types: 250um & 900um / ≤ 0.2dB change, TIA/EA 604-3
    • Compliance: Intermateability IEC 61754-20; RoHS flammability grade: UL94 V-0 (optional)

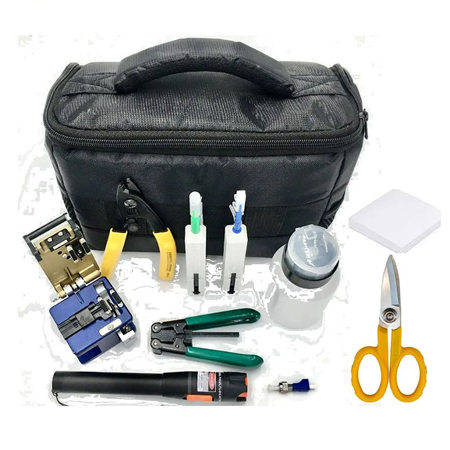

  • Item Includes:

    • 1x Fiber Cleaver: 48,000 blade life, Cleaves 250um,900um single fiber
    • 1x Visual Fault Locator: 10mW output power, Two AAA batteries
    • 1x 1.25mm VFL Adapter: VFL adapter for LC and MU connectors
    • 1x Tri-Hole Miller Pliers: 250um and 900um buffer removal
    • 1x Miller KS-1 Shears: Kevlar and Cable Cutter
    • 1x Cable Jacket Stripper: 2mm and 3mm cable jacket stripper
    • 1x Lint-Free Wipes: 4"x4", Quantity 50 pieces
    • 1x 2.5mm Cleaning pen: 800+ cleans for SC,ST, and FC Connectors
    • 1x 1.25mm Cleaning pen: 800+ cleans for LC and MU Connectors
    • 1x Cleaning Fluid Bottle: 250ml size
    • 1x Soft Case
