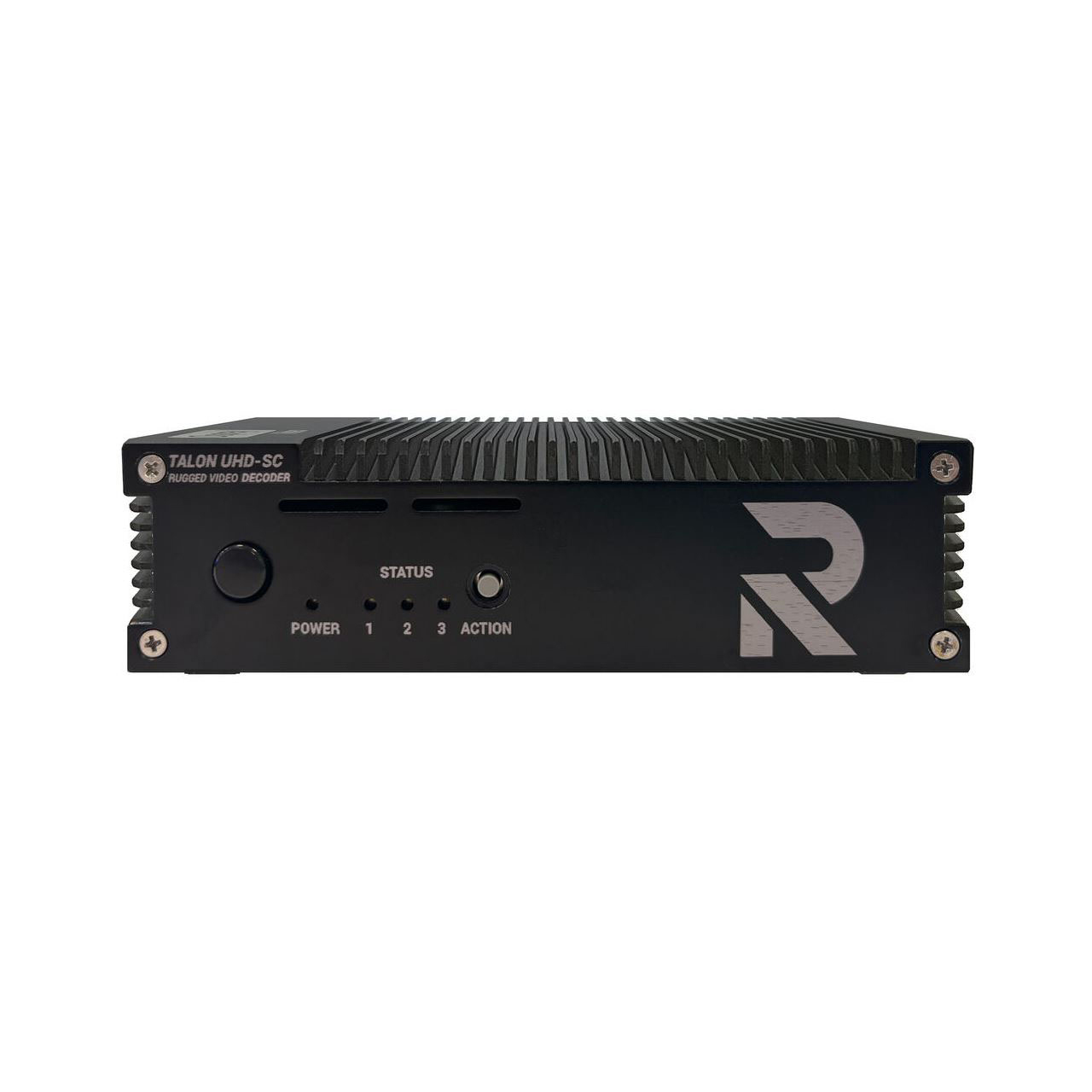

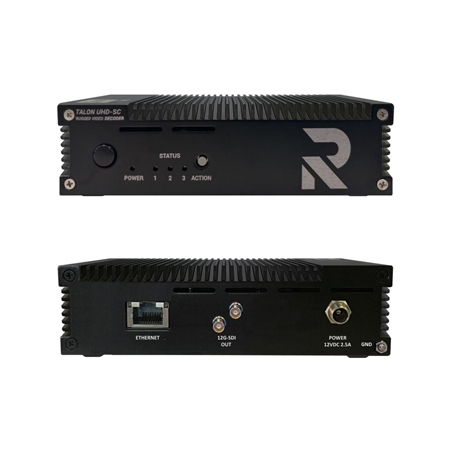

Osprey TALON UHD-SCD Rugged 12G-SDI UHD60 H.265 HEVC/H.264 AVC 10bit 4:2:2 Video Decoder with 8 Audio Channels

96-02028R - Overview

Rugged Version - Temperature Range -4° Fahrenheit to 158° Fahrenheit

• Features:

  • Software Features
  • Enhanced security features
  • Remote firmware upgrade from web
  • Network time protocol
  • JSON REST API for software integration
  • Password protected
  • SMPTE 2038 support

    Hardware Features
  • Fanless operation
  • Locking Power Jack
  • Status LED's
  • GigE Ethernet connection
  • Chassis Grounding Terminal

    Enterprise Features
  • Customizable notice and consent banner
  • Secure HTTPS (SSL) web based management
  • Open VPN Client
  • Whitelist/Firewall for Management IP Access
  • KLV support for in-band SDI and out-of-band RTP IP


• Specifications:

  • Video Outputs
  • 2x 12G-SDI (parallel HD-BNC)

    Audio Outputs
  • Embedded SDI 8Ch (4 stereo pairs)

    Video Output Resolution
  • Up to 3840x2160, 60fps
  • Will automatically match input resolution
  • Interlaced Video Decoding not supported

    Color Depth
  • Up to 10bit 4:2:2

    Input Streams
  • UDP, RTP, SRT™
  • Number of Input Channels: 1

    Supported Video Input Compression
  • H.264 (AVC)
  • H.265 (HEVC)

    Supported Audio Input Compression
  • AAC-LC

    Supported Audio Input Sample Rate
  • 48kHz
  • Audio Bitrate 64kbps to 512kbp


• Item Includes:

  • 1x Osprey TALON UHD-SCD Rugged UHD Decoder
  • 1x pair Side Mount L-Brackets
  • 1x Power Adapter 12 VDC
  • 1x Power Switch Blind Plug for "always-on" operations


• Warranty:

  • 2 Year Warranty
