PT-REQ12LBU - Overview

Expand Production Possibilities and Revolutionize Workflow with Next-Generation Panasonic PT-REQ12LBU 1-Chip DLP 4K Projector.

Unleash the Power of Dynamic Visuals - REQ12 Series is among the first 1-Chip DLP projectors to feature Quad Pixel Drive, our 2-axis pixelquadrupling technology, to create deep, smooth, and detailed 4K images. It supports 240 Hz4 projection and works with our optional real-time tracking projection-mapping system. Evolved Dynamic Contrast includes new scene-recognition circuitry to make the difference between black, white, and contrasting colors stand out dramatically and bring your content to life.

The next-generation PT-REQ12 1-Chip DLP 4K Laser Projector is designed to streamline productions and expand the endless possibilities of entertainment by delivering exceptional, highly engaging immersive experiences with up to 12,000lm brightness, 4K resolution, and 240 Hz projection capability.

Please Note! Lenses sold seperately.
Compatible Lenses:
PAN-ET-C1S600
PAN-ET-C1T700
PAN-ET-C1W300
PAN-ET-C1W400
PAN-ET-C1W500

Features:
- Dynamic Visuals Take Production to New Heights
- Effortless Workflow, Improved Expandability
- New Cabinet Design for Maintenance-Free Operation
Specifications:
- Dimensions (W x H x D): 19.62" x 8.34" x 21.18" (498 mm x 212 mm x 538 mm) (with feet at shortest position, not including protruding parts)
- Resolution: 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON)
- Operating Environment: Operating temperature: 32-113 °F(0-45 °C), operating humidity: 10-80 % (no condensation)
- Installation: Ceiling/floor, front/rear, free 360-degree installation
- Screen Size (Diagonal): 70-700 inches (with supplied lens)
- Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android
- Weight: 63.49 lbs (28.8 kg)
- Contrast Ratio: 20,000:1 (Full On/Full Off, Dynamic Contrast)
- Power supply: AC 100-240 V, 50/60 Hz
- Light source: Laser diode

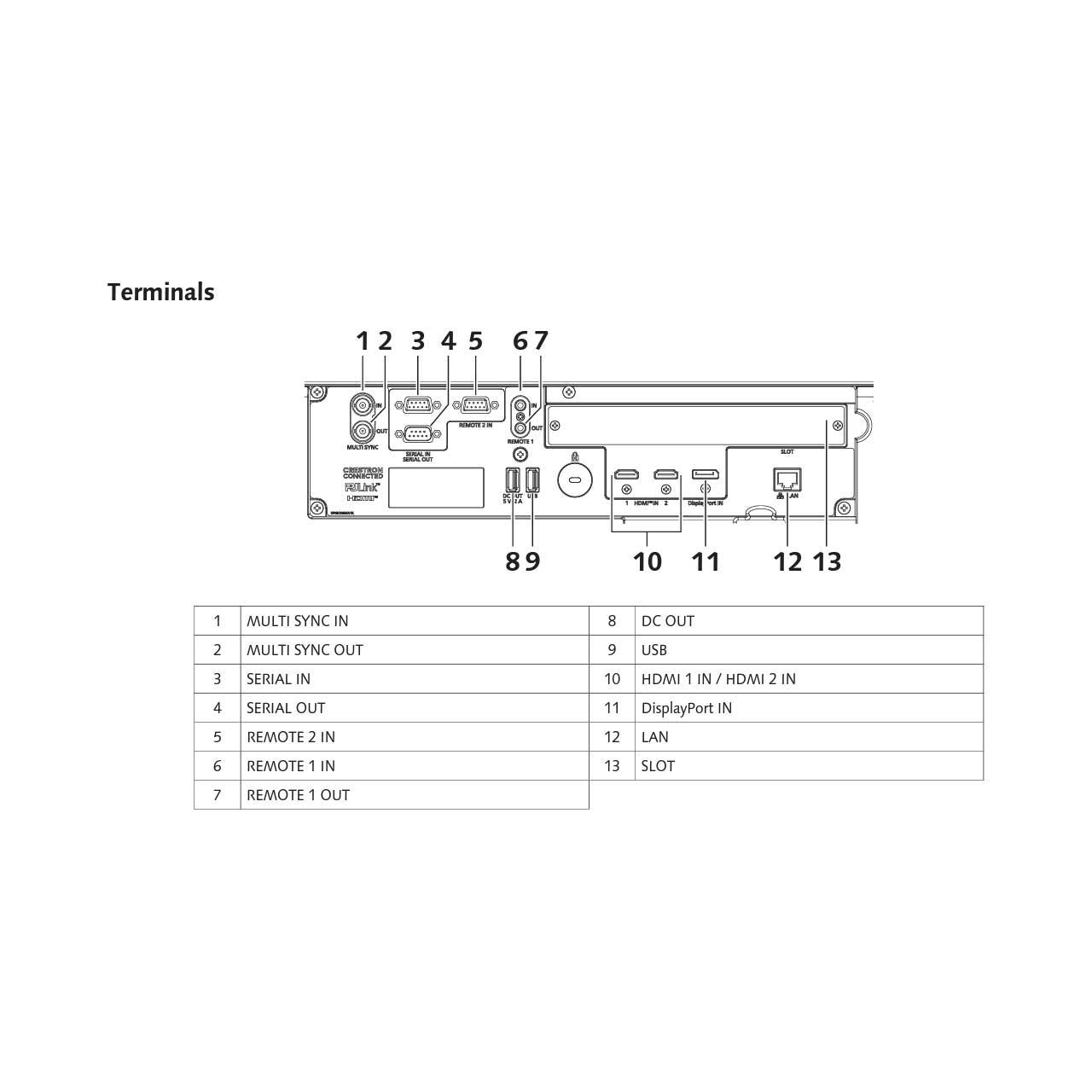

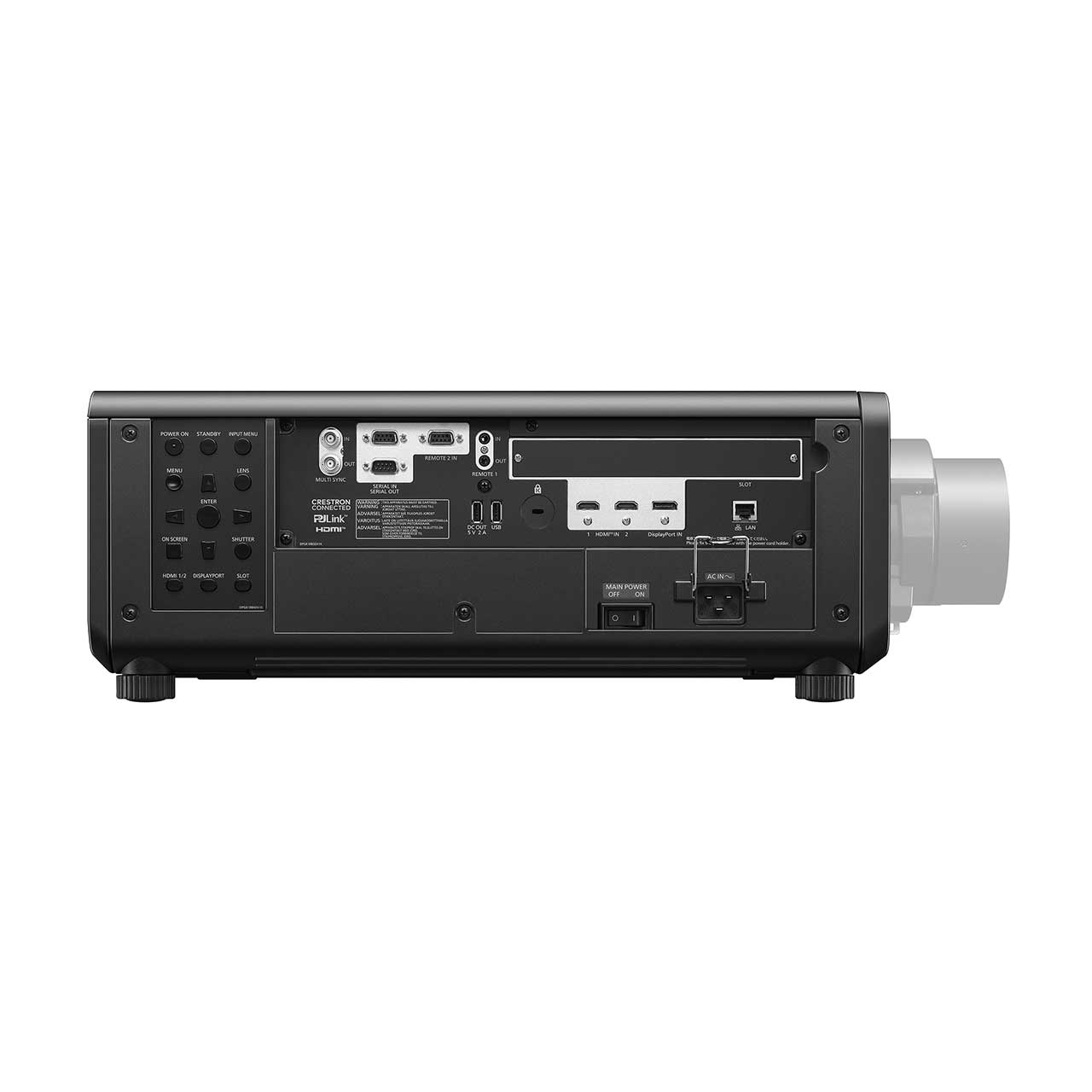

- Terminals - Serial In: D-sub 9-pin (female) 1x for external control (RS-232C compliant)
- Terminals - LAN: RJ-45 1x for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
- Terminals - DC Out: USB Type A 1x (for power supply, DC 5 V, 2 A)
- DLP Chip - Panel size: 0.8 in diagonal (16:10 aspect ratio)
- DLP chip - Display method: DLP chip 1x, DLP projection system
- Terminals - Serial Out: D-sub 9-pin (male) 1x for link control (RS-232C compliant)
- Terminals - USB: USB connector (Type A) 1x for optional AJ-WM50 Series Wireless Module/USB memory
- Terminals - Remote 2 In: D-sub 9-pin (female) 1x for external control (parallel)
- Terminals - Expansion Slot: Open slot for for function boards, Intel SDM compatible
- Terminals - Remote 1: M3 stereo mini-jack 1x for wired remote control
- Terminals - Remote 1 Out: M3 stereo mini-jack 1x for link control (for wired remote control)
- Operation Noise: 39 dB (NORMAL/ECO), 35 dB (QUIET)
- Projector Type: 1-Chip DLP projectors
- DLP chip - Number of Pixels: 2,304,000 (1920 x 1200 pixels)
- Center-to-corner Zone Ratio: 90%
- Time Until Light Output Declines to 50%: 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
- Light Output: 12,000 lm
- Protocol Versions: IPv4, IPv6
- Control function via LAN: Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, AMX DD, and PJLink (Class 2)
- Terminals - HDMI 1/2 IN: 2x HDMI
- Terminals - DisplayPort: 1x DisplayPort (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
- Terminals - Multi Sync In: 1x BNC
- Power Consumption - Maximum Power Consumption: 1,050 W (10.7-4.5 A) (1,070 VA)
- Power Consumption - On-mode power consumption (Operating mode) Nomal: 900 W
- Power Consumption - On-mode power consumption (Operating mode) ECO: 700 Warning
- Power Consumption - On-mode power consumption (Operating mode) Quiet: 890 W
Item Includes:
- 1x Panasonic PT-REQ12LBU DLP Projector - Lens not included
- 1x Power Cord
- 1x Wireless/Wired Remote Control Unit
- 1x AAA Batteries for Remote
- 1x SLOT Adaptor
Warranty:
- 3-Year Limited Warranty
GTIN:
0885170405271
