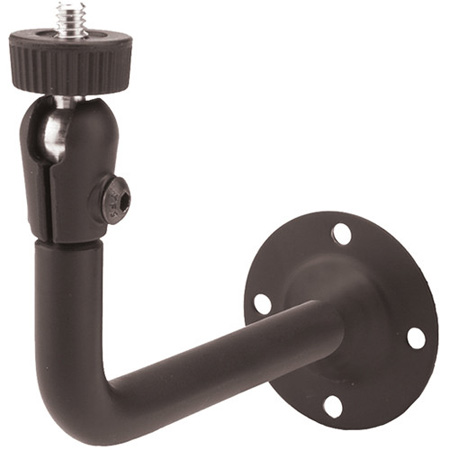

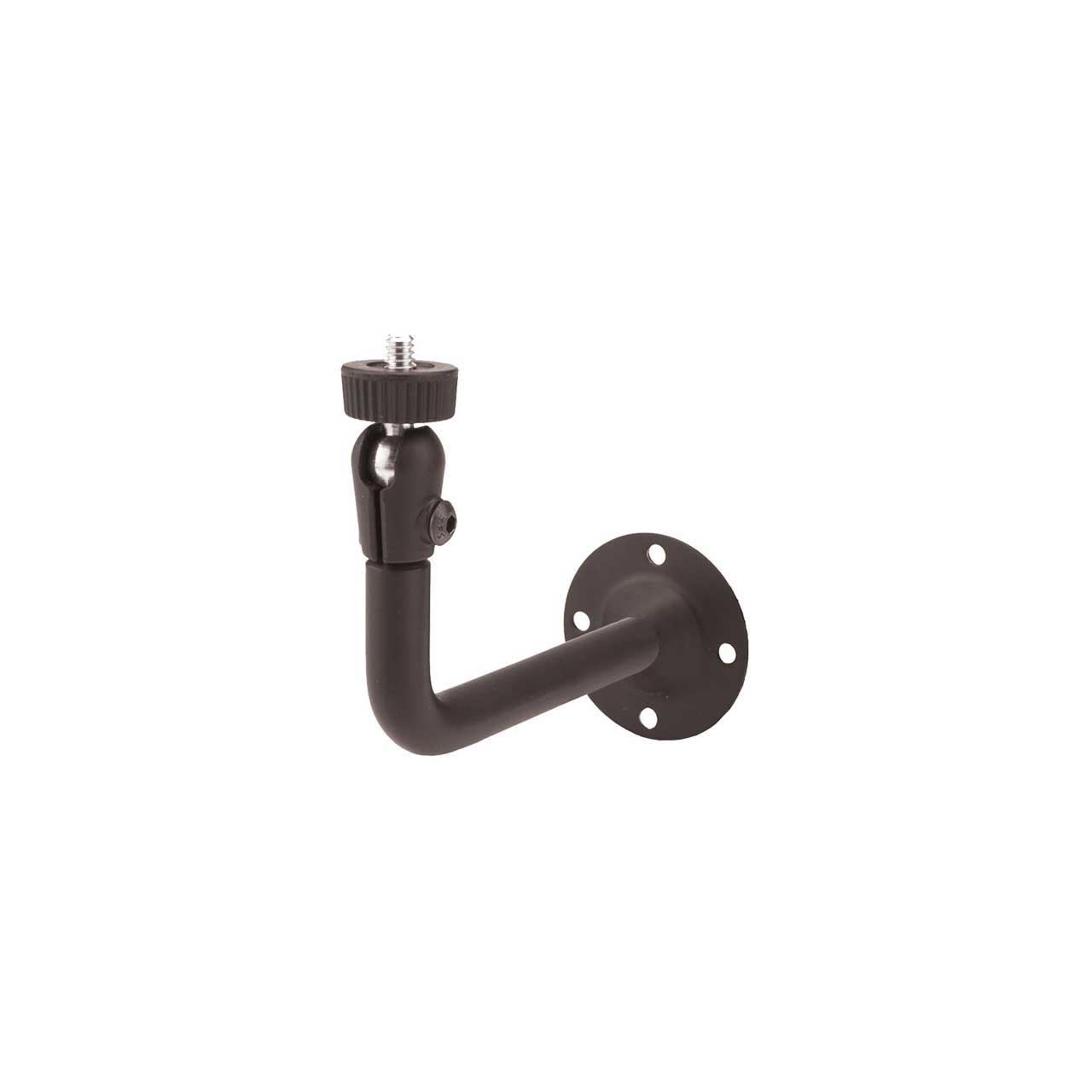

Panavise 846L CCTV Micro Angle Mount (Black)

846L - Overview

ANOTHER GREAT CHOICE FOR THE PERFECT CAMERA INSTALLATION!

• Specifications:

  • 0.5" (12.7mm) diameter solid steel shaft
  • Length of mount from base to front of mount: 4.0" (102mm)
  • Length of mount from bottom of angle to top of mount: 3.375" (85.7mm)
  • 1/4-20 stud with locking; adjustable at the camera(190° Tilt, 360° Turn & 360° Rotation)
  • Knob and tamper-resistant set-screw adjusting options included. Matching vinyl cover adds a finished look!
  • 2" (50.8mm) round base with four 0.188" (4.8mm) holes on 1.6" (40.6mm) bolt circle


• GTIN:

  0729315846034
