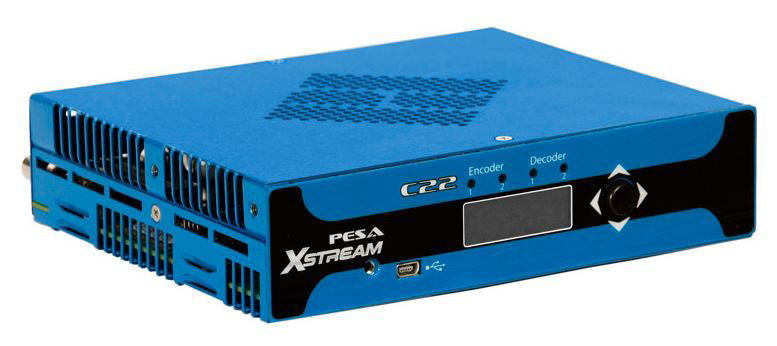

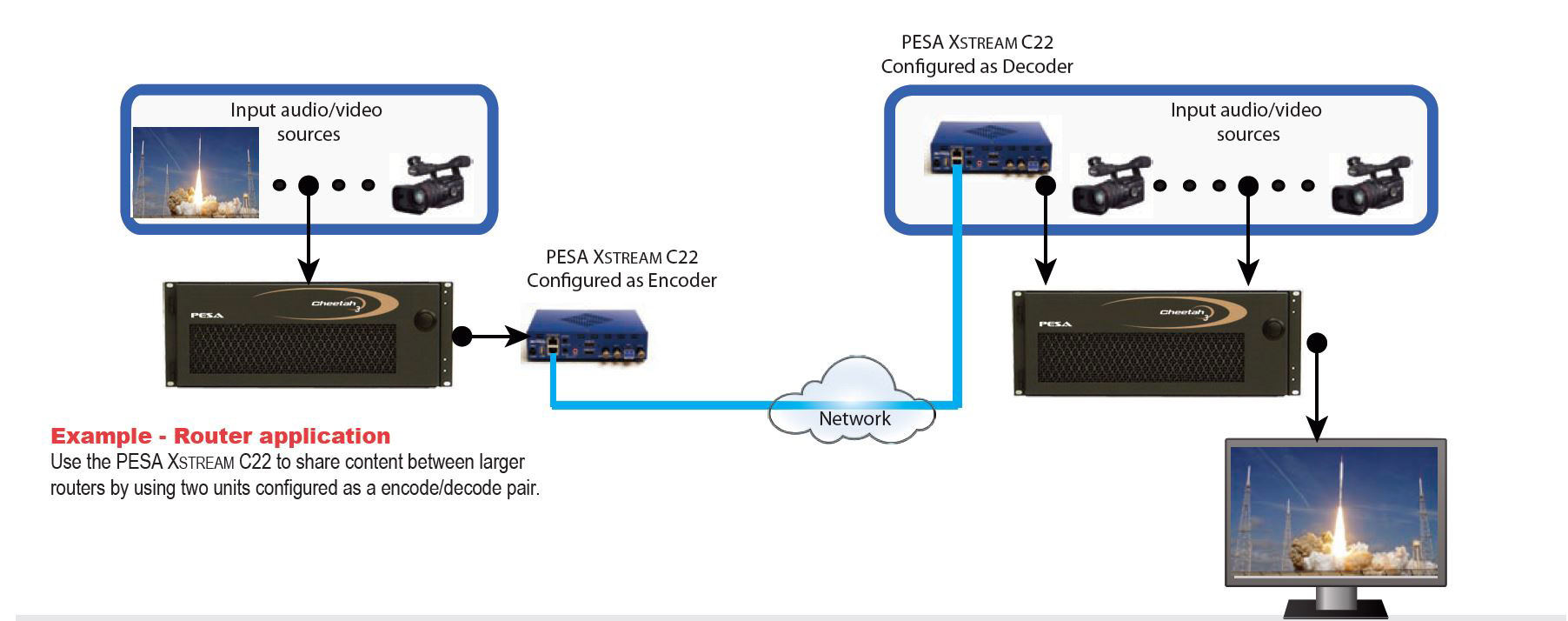

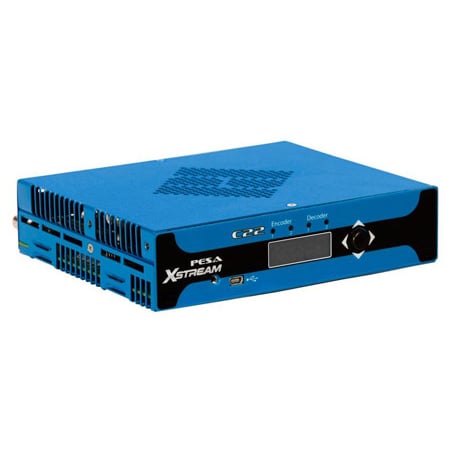

PESA's XSTREAM C22 is a highly versatile, dual channel encoder/decoder device for high definition video processing, audio processing and IP streaming. Each processing channel is totally independent from the other and can function as a remote client for decoding an H.264 IP stream or an encoder to broadcast an IP output stream from a variety of input signal sources.

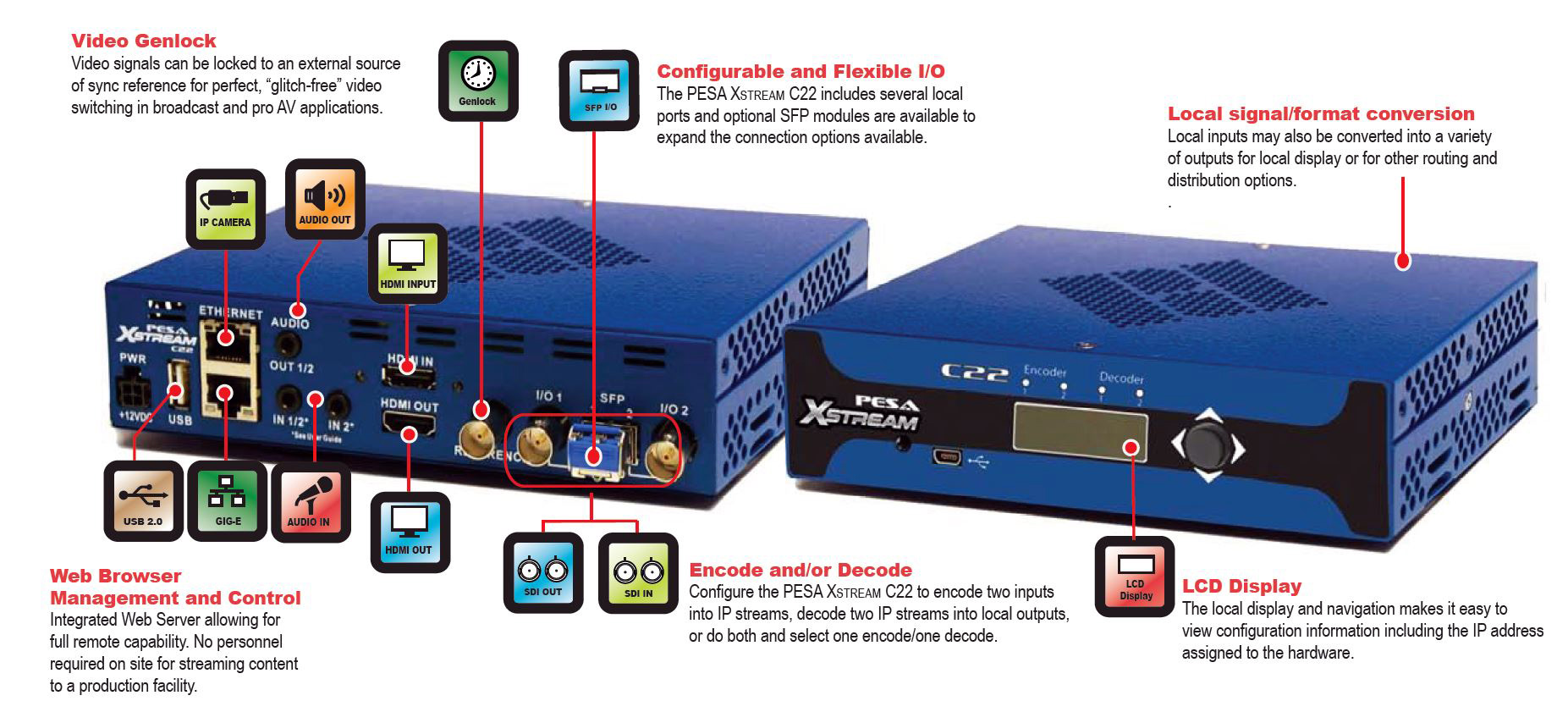

Each processing channel offers video and audio input and output interface in various signal formats at resolutions up to 1080p/60, through rear panel connectors. The C22 also accepts input from a source of external, analog sync reference that allows local output video signals to be sync locked for use in broadcast and other high-end video environments.
An independent audio mixer function is provided for each encoder and decoder that allows the audio associated with the input or output video source to be blended or replaced with a source of local auxiliary audio. All audio processing is dual channel for full L/R stereo or other applications.

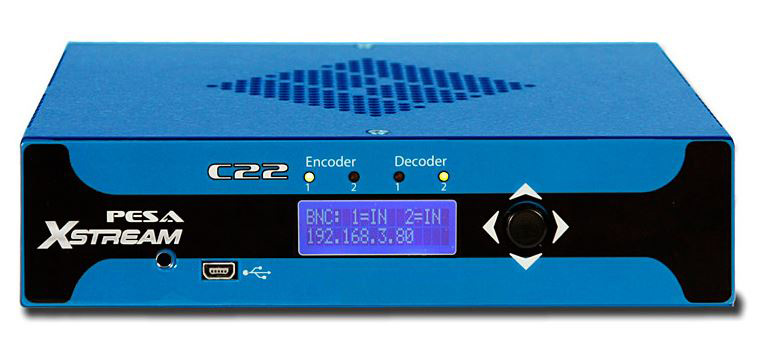

Housed in a small footprint, modular chassis with an external power supply, the PESA XStream C22 includes a front panel display device to show the units IP address and configuration inforamtion about each channel.
An integrated web server supports a browser-based webcenter interface for password-protected access to all operating controls and functions of the device. Since day-to-day on-site user intervention is not required, a C22 may be installed anywhere and controlled from any computer running a compatible web browser application on the local Ethernet or from a remote location.
Please Note: SFP module shown in picture for reference only. They are not included! SFP modules sold separately.
