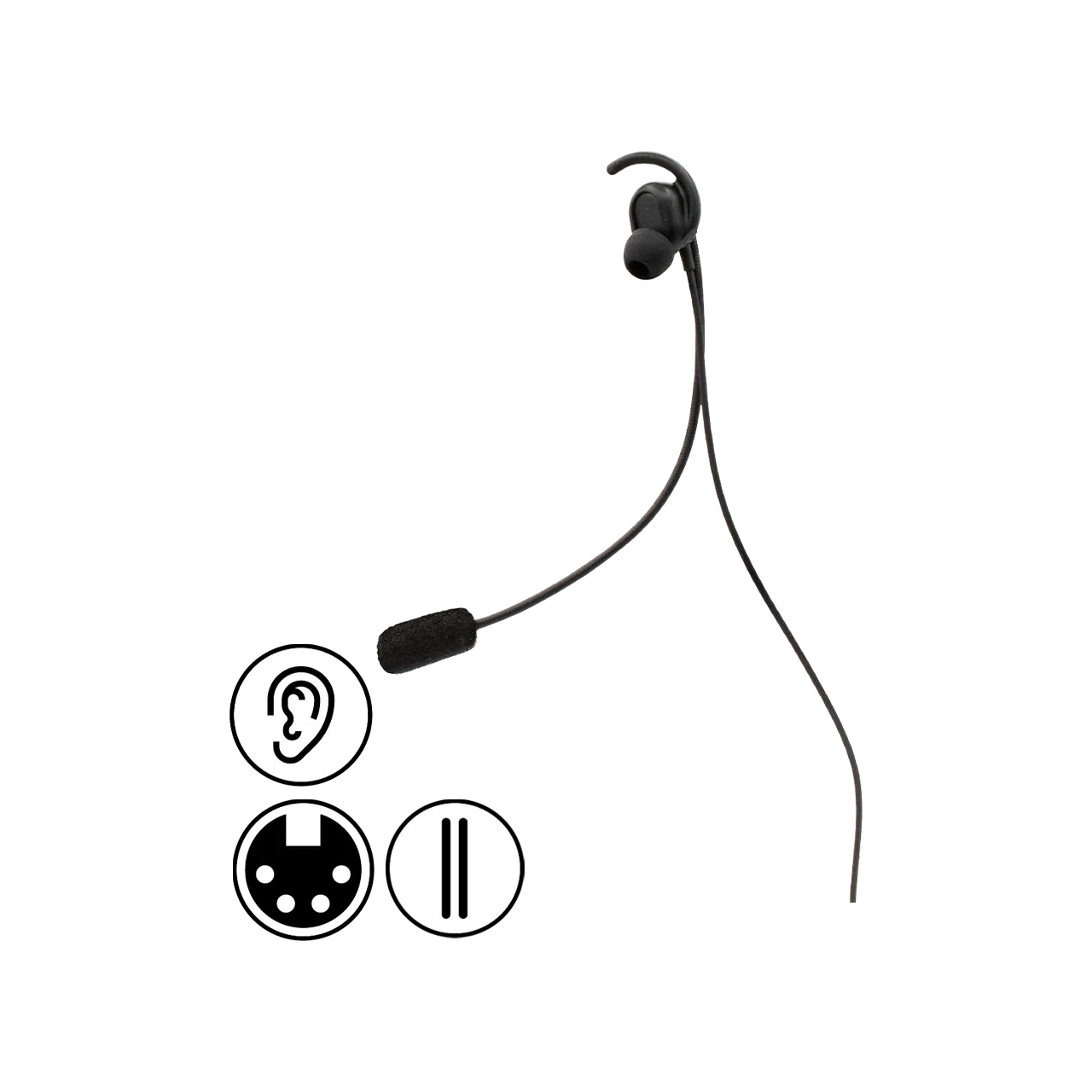

Pliant Technologies PHS-IEHU-4F CrewCom In-Ear Universal Fit Electret Headset 4-Pin Female XLR

ITEM #: PLI-PHS-IEHU-4F MFG #: PHS-IEHU-4F

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$195.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PHS-IEHU-4F - Overview

With the ultimate comfort and flexibility in mind, the Pliant Technologies PHS-IEHU-4F CrewCom In-Ear Universal-Fit Headset features a 6-Pin Female Mini (TA6F) XLR connector, Uni-directional noise-cancelling electret microphone, and can be used with CrewCom Compact Radio Packs (CRP-C12). The headset not only provides great comfort but also flexibility by utilizing silicone ear concha locks and ear buds for ether left ear or right ear orientation. In addition, the in-ear headset also supports custom ear molds specifically designed for a individual user's ear from custom ear mold manufacturers Sensaphonics and Coda Room Audio.

  • Features:

    • Light weight design and crystal-clear sound
    • Sport-style microphone with in-ear (left or right) holder
    • Flexible ultra-light boom
    • Custom earmold compatible (Sensaphonics & Coda Room Audio)
    • Uni-directional noise cancelling electret microphone
    • Flexible silicone outer-ear holder for increased security
    • Replaceable windscreen and rubber or foam ear buds
    • 4-Pin Female XLR Connector

  • Specifications:

    • Microphone Type: Electret
    • Directional Characteristic: Uni-Directional (Noise Cancelling)
    • Sensitivity: -42 ±4dB (0db=1V.Pa, 1kHz)
    • Impedance: Less than 2. 2kΩ at 1kHz
    • Frequency Response: 100Hz - 10kHz (±10dB)
    • S/N Ratio: More than 58dB at 1kHz (1 Pa (94dB SPL)
    • Input Sound Level: Max. 100dB S.P .L (at 1kHz, Distortion <3%)
    • Standard Operating Bias Voltage: 2. 0V [Min:1V, Max 10V]
    • Current Consumption: 500μA (RL=2.2k Ohms, Vcc=2. 0V)
    • Speaker Impedance: 32Ω ± 15%
    • Resonance Freq.: 1.2kHz ±20%
    • Power Rating: Nominal 0.5W/Max. 0.7W
    • Sensitivity (SPL): 83dB ±3dB
    • Total Harmonic Distortion: Less than 10% from 1kHz
    • Frequency Response: 600Hz - 18kHz (±8dB)

  • Item Includes:

    • 1x In-Ear Headset
    • 3x Rubber Earbuds (Small, Medium, Large)
    • 3x Foam Earbuds (Small, Medium, Large)
    • 2x Generic Silicone Ear Molds (Left, Right)
    • 1x Magnetic Cable Clip
    • 1x Zippered Pouch Soft Case

  • Warranty:

    • 2 Year Limited Warranty
