Pliant Technologies PHS-IEHU-TA6F CrewCom In-Ear Universal Fit Electret Headset - 6 Pin Female Mini XLR

ITEM #: PLI-PHS-IEHUTA6F MFG #: PHS-IEHU-TA6F

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$195.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PHS-IEHU-TA6F - Overview

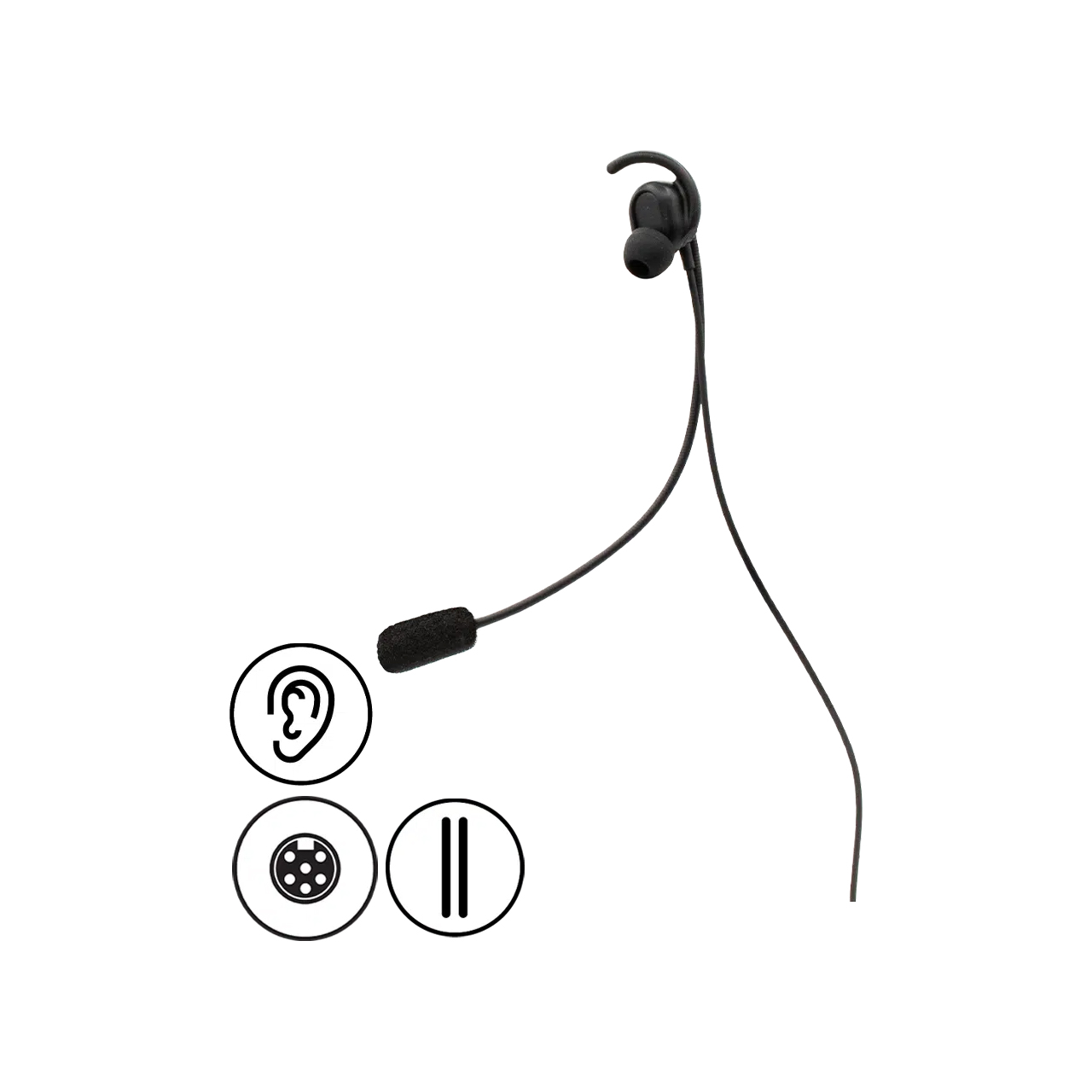

With the ultimate comfort and flexibility in mind, the Pliant Technologies PHS-IEHU-TA6F CrewCom In-Ear Universal-Fit Headset features a 6-Pin Female Mini (TA6F) XLR connector, Uni-directional noise-cancelling electret microphone, and can be used with CrewCom Compact Radio Packs (CRP-C12). The headset not only provides great comfort but also flexibility by utilizing silicone ear concha locks and ear buds for ether left ear or right ear orientation. In addition, the in-ear headset also supports custom ear molds specifically designed for a individual user's ear from custom ear mold manufacturers Sensaphonics and Coda Room Audio.

  • Features:

    • Light weight design and crystal-clear sound
    • Uni-directional noise cancelling electret microphone
    • Sport-style microphone with in-ear (left or right) holder
    • Flexible ultra-light boom
    • Custom ear mold compatible (Sensaphonics & Coda Room Audio)
    • Uni-directional noise cancelling electret microphone
    • Flexible silicone outer-ear holder for increased security
    • Replaceable windscreen and rubber or foam ear buds
    • 6-Pin Female Mini XLR (TA6F) Connector

  • Specifications:

    • Microphone Type: Electret
    • Directional Characteristic: Uni-Directional (Noise Cancelling)
    • Mic Sensitivity: -42 ±4dB
    • Mic Impedance: 2.2 kΩ at 1kHz
    • Input Sound Level: Max 100dB S.P.L.
    • Current Consumption: 500μA
    • Frequency Response: 100Hz - 10kHz
    • S/N Ratio: More than 58dB at 1kHz
    • Standard Operating Bias Voltage: 2.0V
    • Speaker Sensitivity: 83dB ±3dB
    • Speaker Impedance: 32Ω ±15%
    • Resonance Frequency: 1.2kHz ±20%
    • Power Rating: Nominal 0.5W/Max. 0.7W
    • Total Harmonic Distortion: Less than 10% from 1kHz., 0.1W
    • Frequency Response: 600Hz to 18kHz
    • Mic Boom Length: 6.1" (155mm)
    • Cable Length: 4.9ft (1.5m)
    • Weight: 0.044lbs (20g)
    • Connector: Dual 3.5mm, 4-Pin Female XLR, or 6-Pin Female Mini XLR

  • Item Includes:

    • 1x In-Ear Headset
    • 3x Rubber Earbuds (Small, Medium, Large)
    • 3x Foam Earbuds (Small, Medium, Large)
    • 2x Generic Silicone Ear Molds (Left, Right)
    • 1x Magnetic Cable Clip
    • 1x Zippered Pouch Soft Case

  • Warranty:

    • 2 Year Limited Warranty
