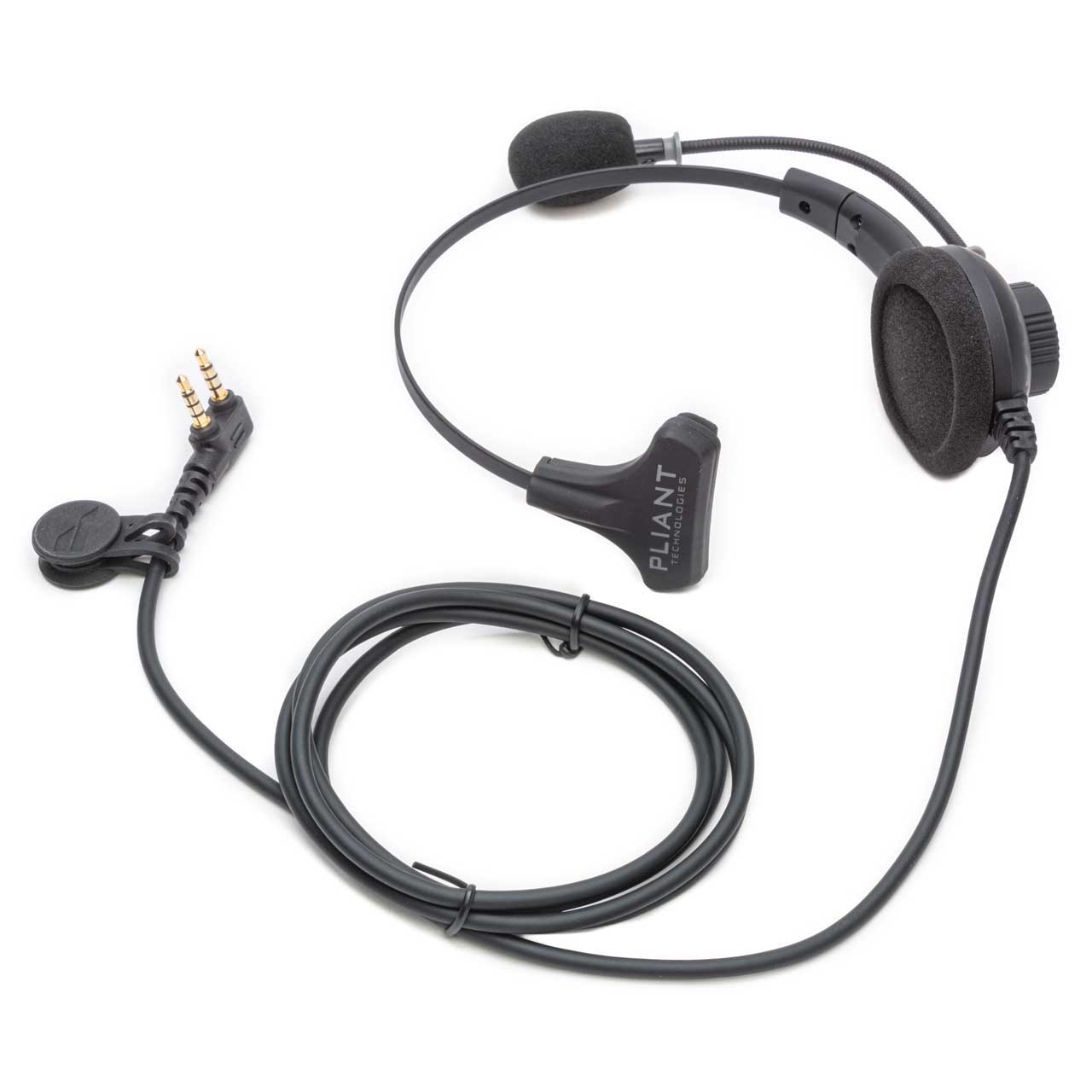

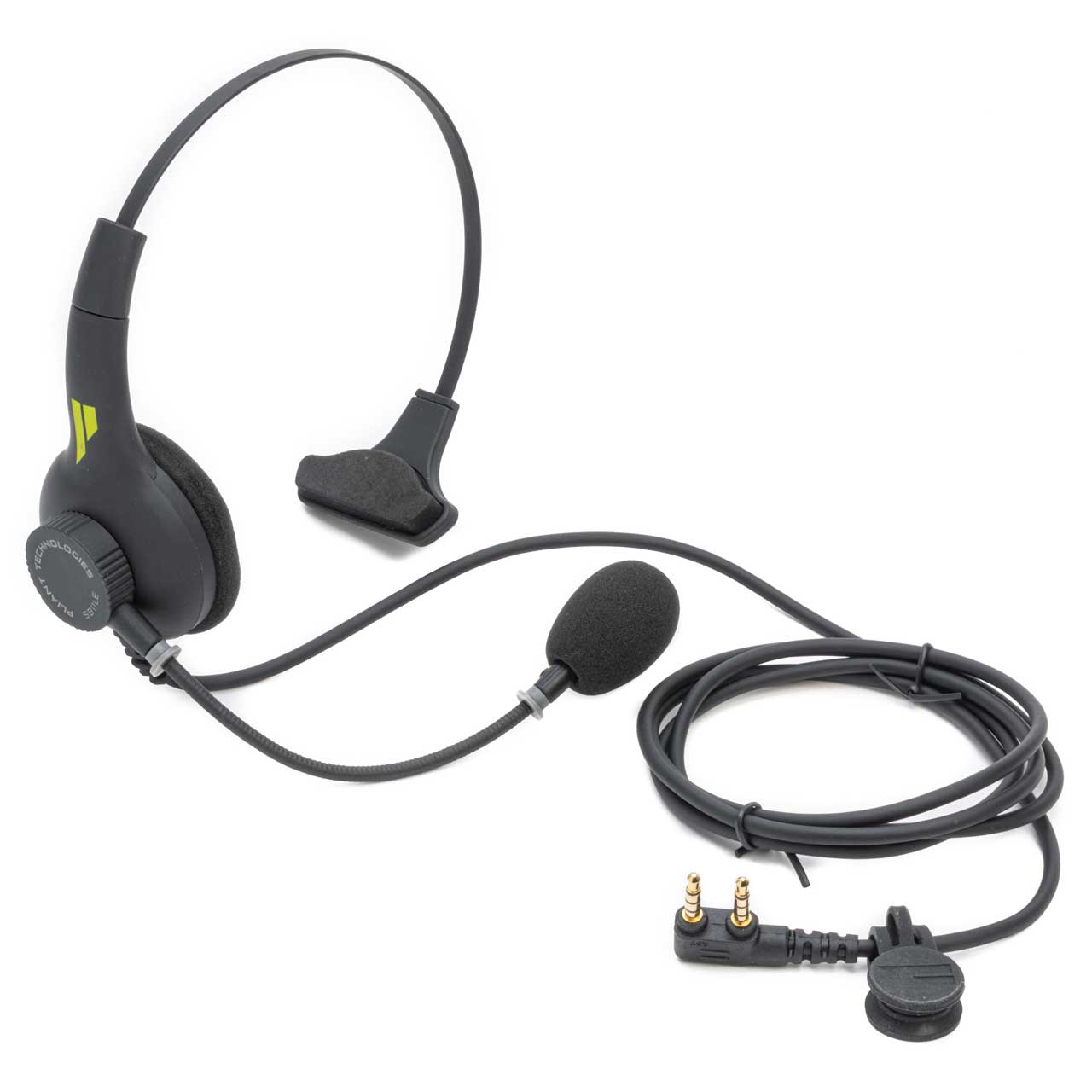

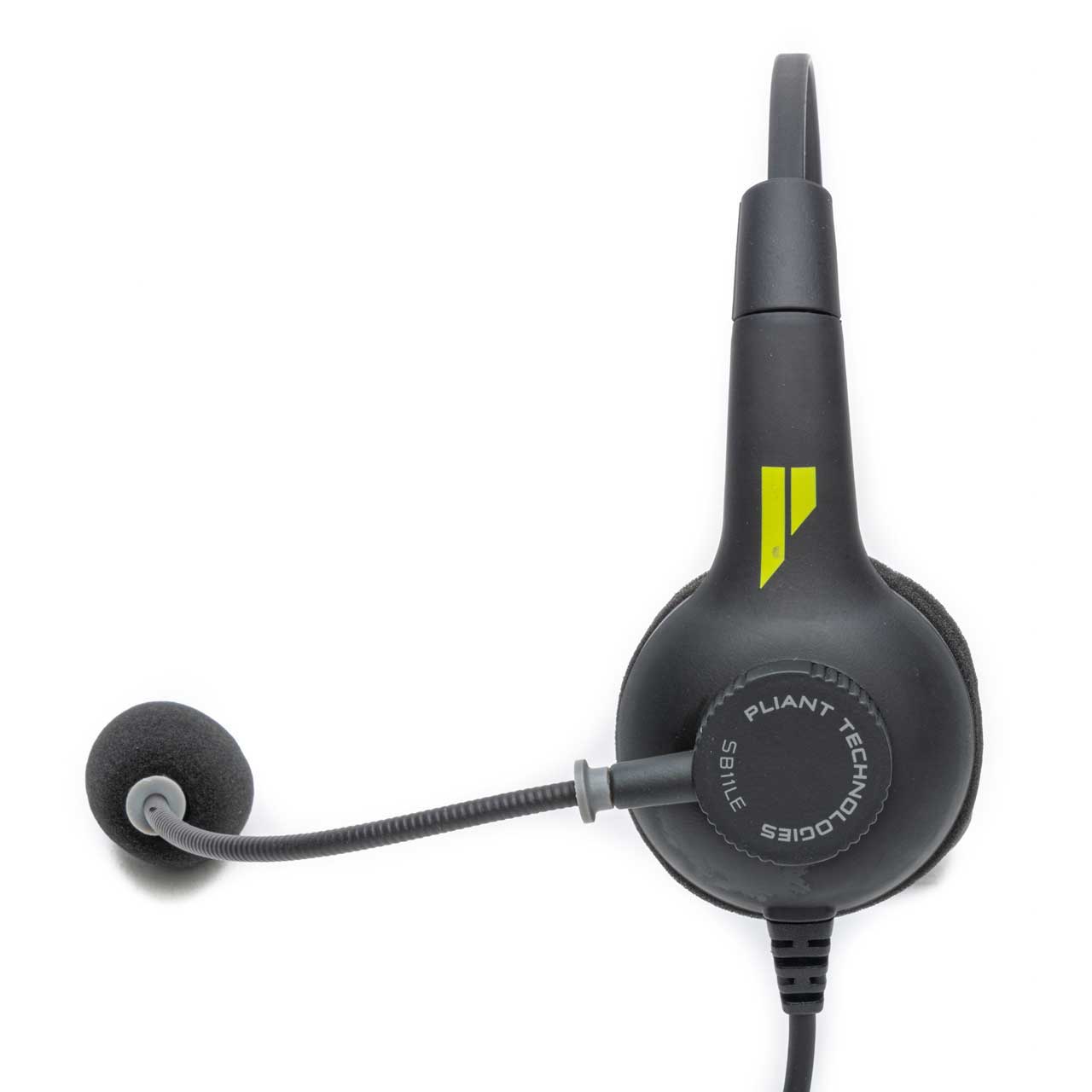

Pliant Technologies PHS-SB11LE-DMG SmartBoom LITE Single Ear Pliant Headset with Dual 3.5mm Gold Connector

ITEM #: PLI-PHSSB11LEDMG MFG #: PHS-SB11LE-DMG

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PLI-PHSSB11LEDMG

PHS-SB11LE-DMG - Overview

The SmartBoom LITE headset is part of a line of highly capable communications headsets that incorporate SmartBoom technology, a convenient flip-up microphone muting feature useful for ensuring clearer communications in many professional environments.

SmartBoom LITE headsets put the latest communication innovations into the hands of professionals. Designed into a smaller form factor, these lightweight headsets are useful for challenging applications where comfort, dependability, and intelligibility are crucial. In addition to the innovative SmartBoom microphone mute function, SmartBoom LITE headsets incorporate a closed-back, single on-ear design featuring a new ear cushion for added on-ear stability and comfort. The headset also features a flexible boom that includes an electret noise-canceling unidirectional microphone optimized for clear voice communications.

The PHS-SB11LE-DMG model is only for use with MicroCom Systems.

  • Features:

    • For use with all MicroCom beltpacks
    • Single-ear lightweight design with enhanced acoustic isolation
    • Closed back supra-aural (on ear) design
    • Flexible, ambidextrous swiveling mic boom
    • SmartBoom flip up microphone mute
    • Electret noise-cancelling cardioid microphone optimized for voice communications
    • Comfort fit adjustable headband
    • Replaceable ear cushion pad
    • Non-reflective rubberized matte black finish

  • Specifications:

    • Microphone
    • Microphone Type: Electret Condenser
    • Frequency Response: 20-16,000 Hz
    • Mic Sensitivity: -45 +/- 2 dBV/Pa at 1 kHz
    • Pattern: Unidirectional
    • Output Impedance: 1-1.9 kΩ
    • Bias Voltage: 1.5V~2.2V

      Speaker (Headphone)
    • Frequency Response: 100-20,000 Hz
    • Nominal Impedance: 100 Ω
    • Sensitivity at: 1 kHz
    • Single: 110 dB SPL/mW
    • Speaker Type: Dynamic
    • Max Input Power: 500 mW

      Cables
    • Termination at Ear: Fixed
    • Length: 5.00 ft. (1.52 m)
    • Outside Diameter: 0.15 in. (4.00 mm)

      Physical Features
    • Mic Boom Length: 8.50 in. (215.90 mm)
    • Weight: 144g (5.1oz)

  • Item Includes:

    • 1x Headset
    • 1x Data Sheet

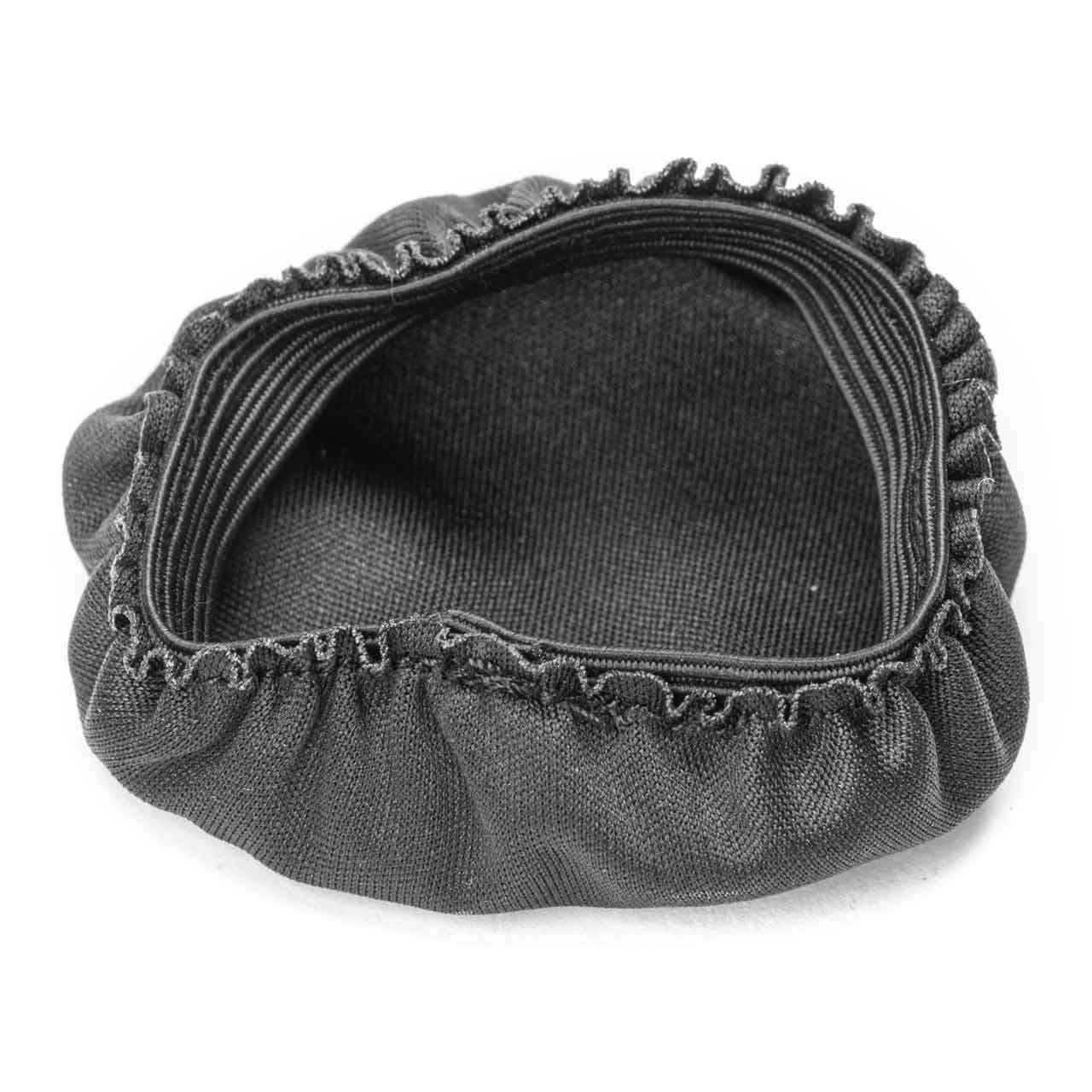

    • 1x Ear Sock

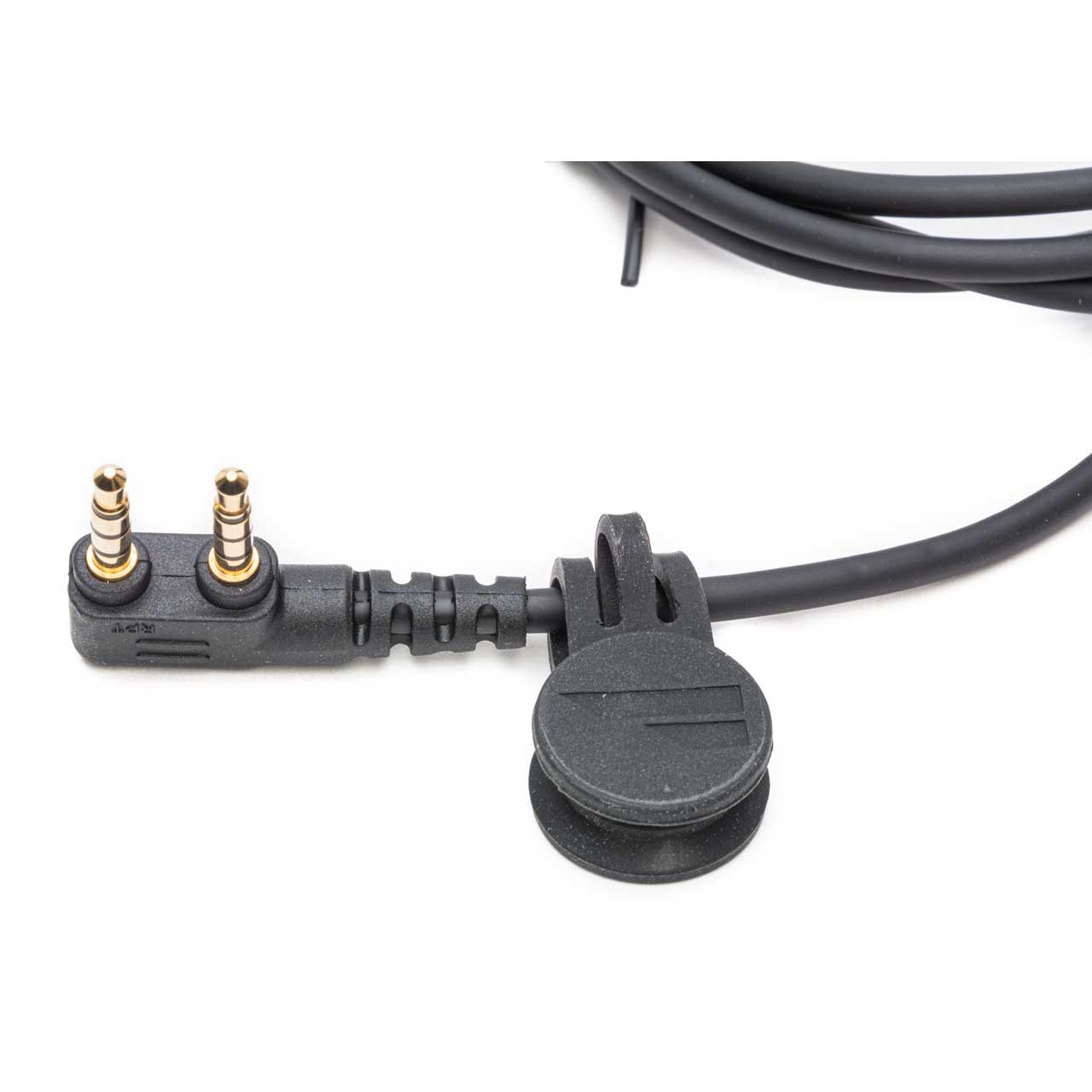

    • 1x Cable Clip
    • 1x Windscreen
