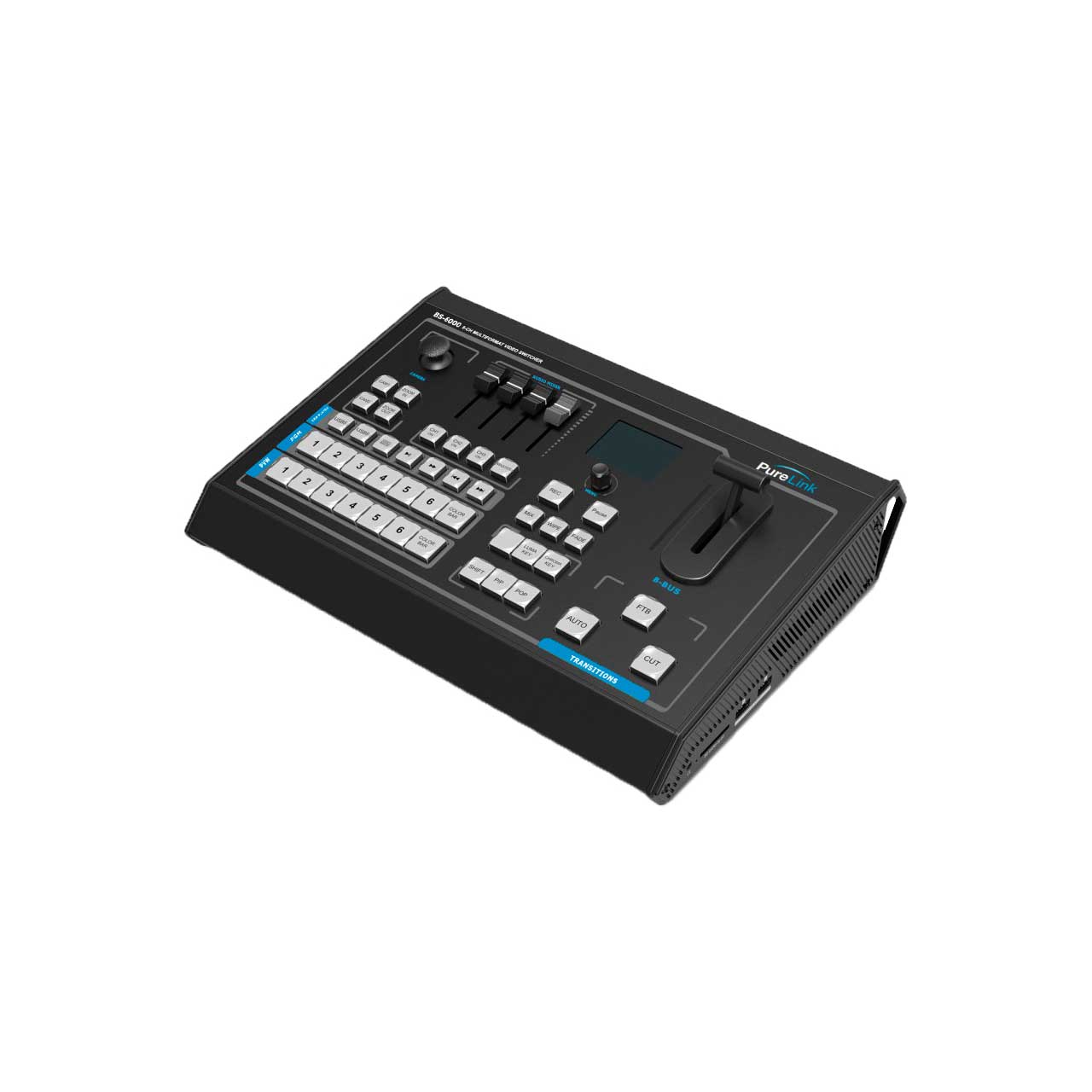

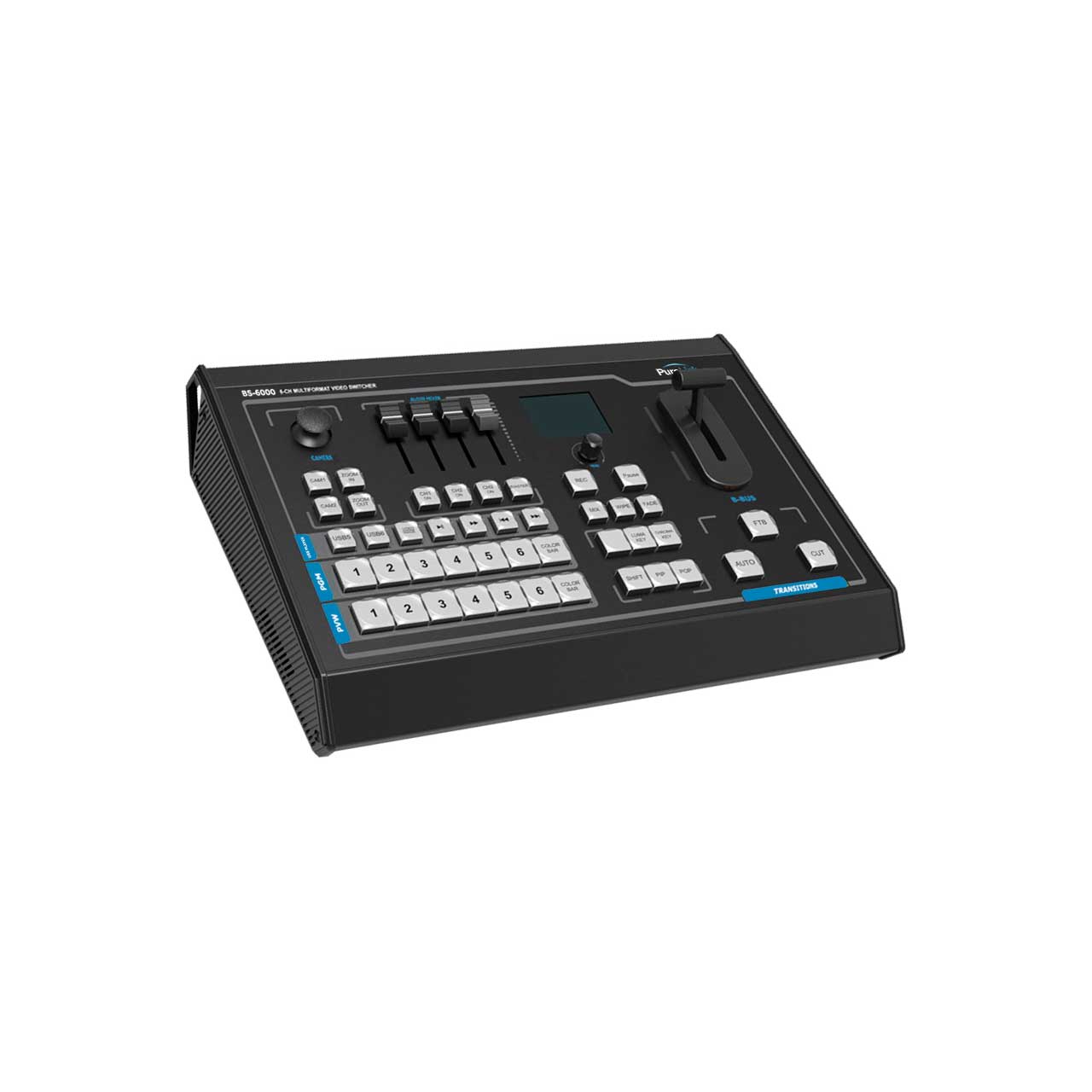

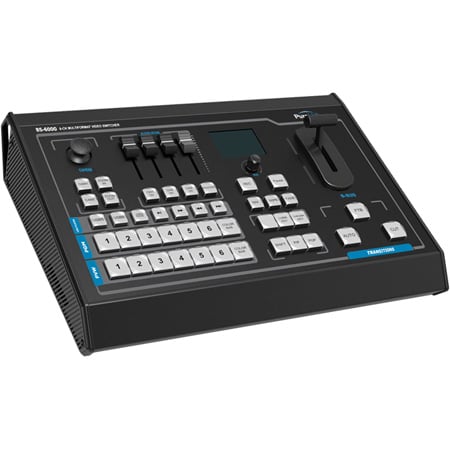

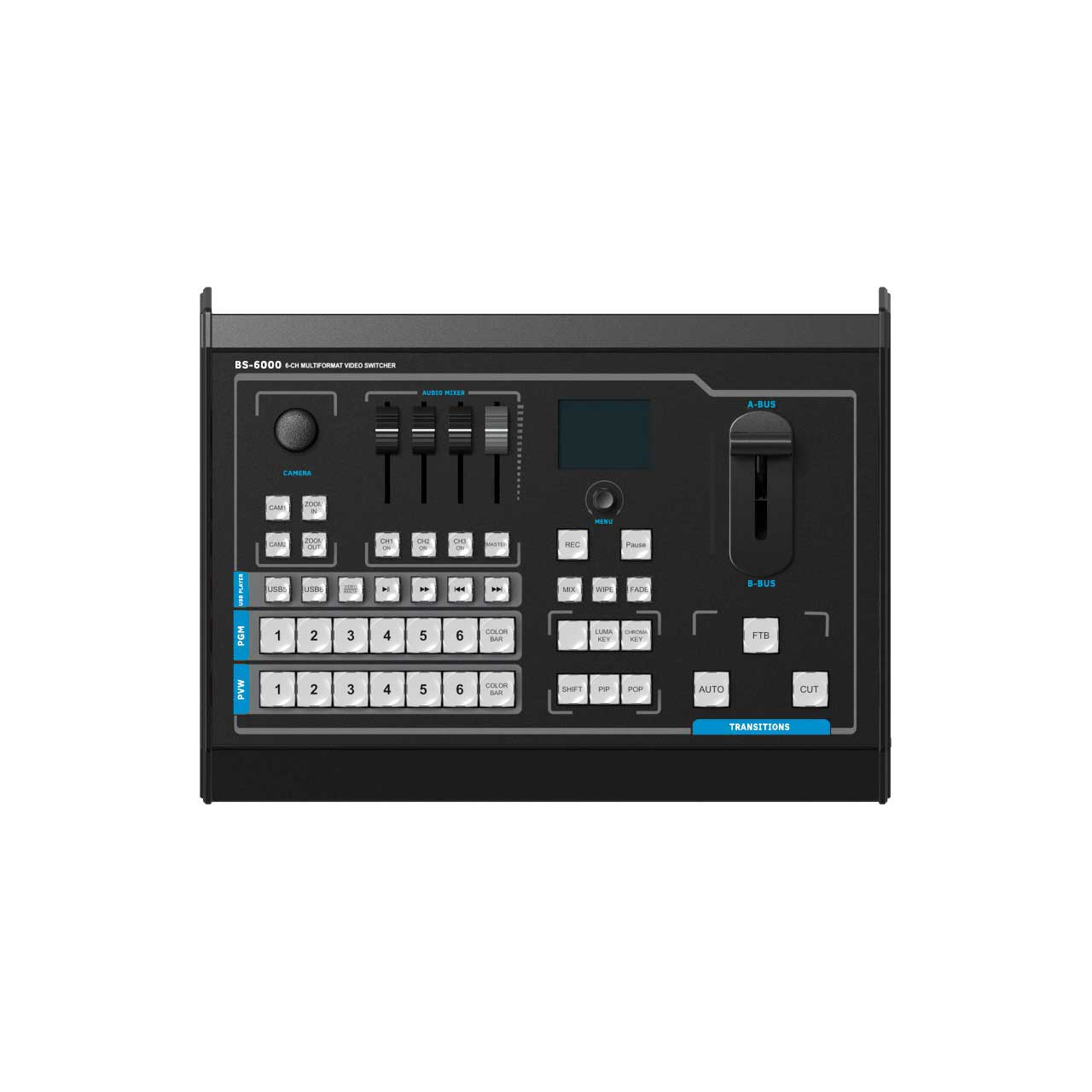

PureLink BS-6000 6x1 Full HD Broadcast Switch with Camera Control and Recording

BS-6000 - Overview

• Features:

  • HDMI 2.0/HDCP 2.2
  • Seamless Switching
  • Support video wall
  • Support IR matrix
  • Support HDMI audio extract
  • External LR audio insert on HDMI stream
  • EDID management
  • HDMI video output resolution up to 3840x2160@60
  • Front panel, RS232, TCP/IP (LAN 10M/100M) controlFull HD 1080P60
  • Full HD 1080P60
  • Chroma and Luma keying
  • (4) 3G-SDI inputs
  • (2) inputs that can be set to HDMI, DVI, VGA, or USB
  • Onboard SD Card recording
  • (2) USB inputs for onboard media playback with transport controls
  • PTZ of up to (2) cameras supporting VISCA or PELCO control standards
  • XLR and RCA audio inputs with (3) channel fader mixer
  • (10) transition effects
  • PIP and POP
  • (1) 3G-SDI and one HDMI multiview monitor outputs
  • (2) 3G-SDI and one HDMI program outputs
  • Headphone monitor jack
  • Compact footprint


• Specifications:

  • Functions
  • Transitions: Manual T-bar/Auto/Cut
  • Transition Effects: Wipe/Mix/Fade/FTB/Color Bar
  • Keys & Layouts: Luma Key/Chroma Key/PiP/PoP/Multiview
  • Audio Mixer: Following/Mixing
  • Record: SD card, H.264, record for PGM up to 1080p60

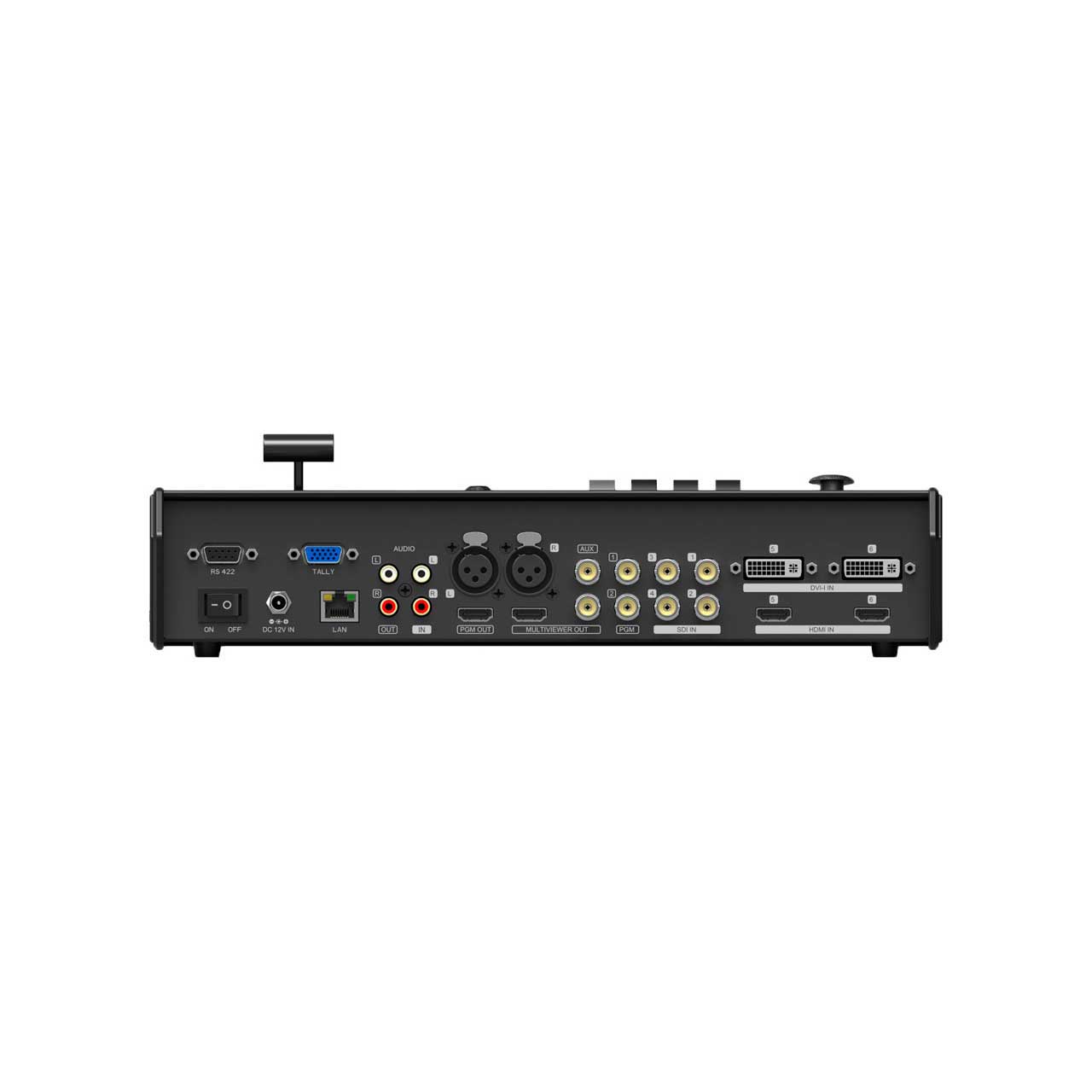

    Inputs
  • Inputs: SD/HD/3G-SD(75Ω)X4, HDMI 2.0 type-A(100Ω)x2, DVI-I(VGA-compatible)x2
  • USB Media Player: USB type-Ax2
  • Analog Audio Inputs: XLR(balanced L/R)x1, RCA(L/R)x1
  • LAN: LAN RJ45x1, Synchronize local time

    Outputs
  • Interface: HD/3G-SDI(75Ω)x2, HDMI type-A(100Ω)x2
  • Multiview Outputs: HDMI type-Ax1, 3G-SDI(75Q)x1
  • Analog Audio Output: RCA(L/R)x1
  • Remote Camera Control: RS-422(Compatible RS-485)x1
  • Tally Port: DB-15

    Standards
  • SDI Input Format Support:
    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080psF 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50/30/29.97/25/24/23.98
    625i 50 PAL, 525i 59.94 NTSC
  • HDMI Input Format Support:
    4K 60/50/30
    2K 60/50/30 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
    1080i 50/59.94/60
    720p 60/59.94/50/30/29.97/25/24/23.98
    576i 50, 576p 50
  • PGM Output Format: 1080p 60/50/30/25/24, 1080i 60/50
  • Multiview Output Format: 1080p 60
  • SDI Compliance: SMPTE 292M/SMPTE 259M/SMPTE 424M

    Enclosure
  • Product Dimensions: 430 x 300 x 44 mm
  • Product Weight: 5Kg

    Power
  • Power Supply: DC 12V 5A, 20W


• Item Includes:

  • 1x PureLink BS-6000 6x1 Full HD Broadcast Switch with Camera Control and Recording


• Warranty:

  • Limited Warranty (3-Years)
