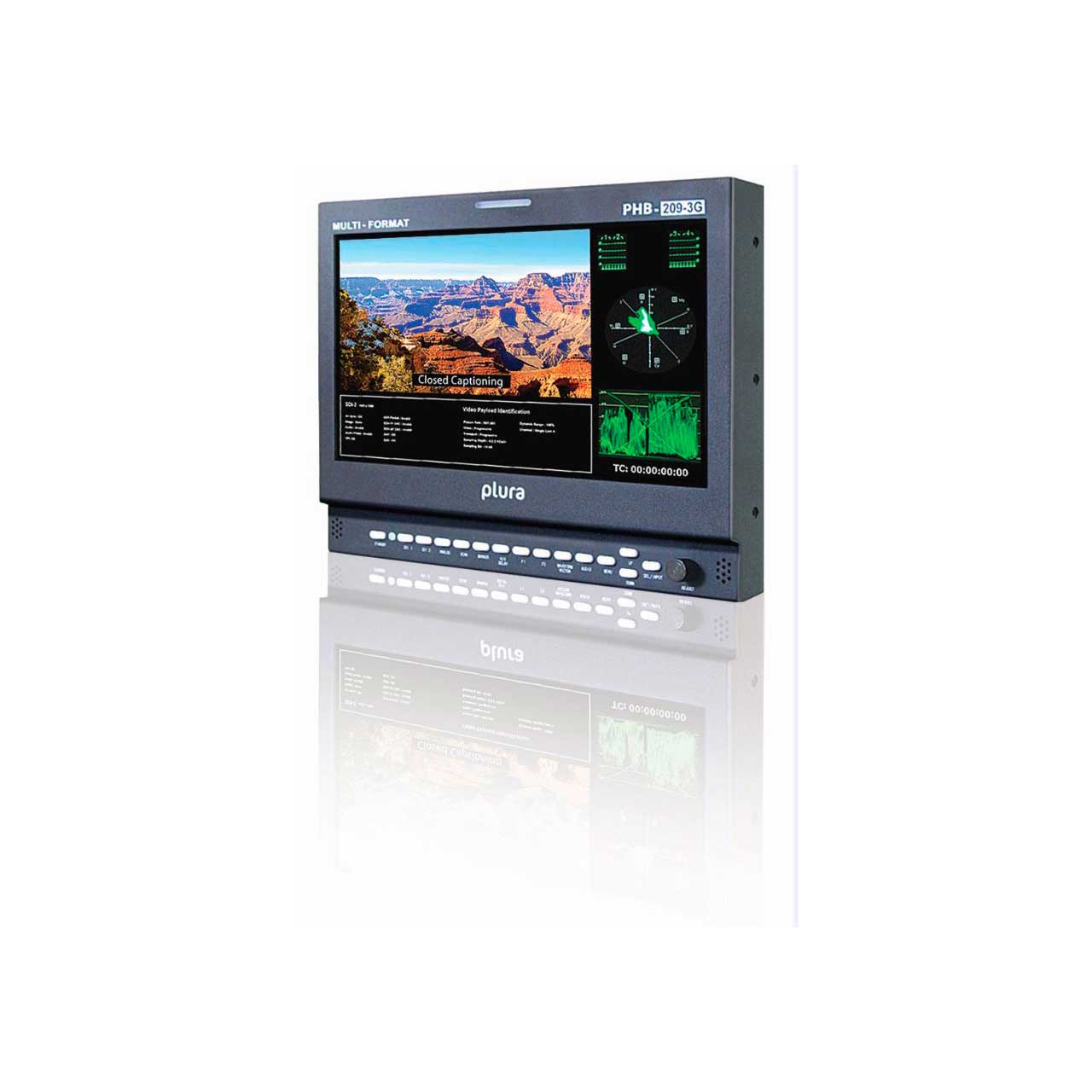

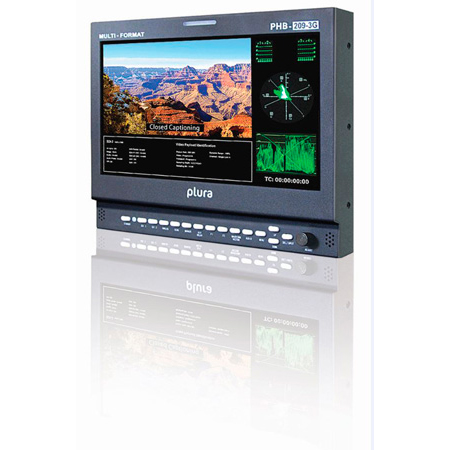

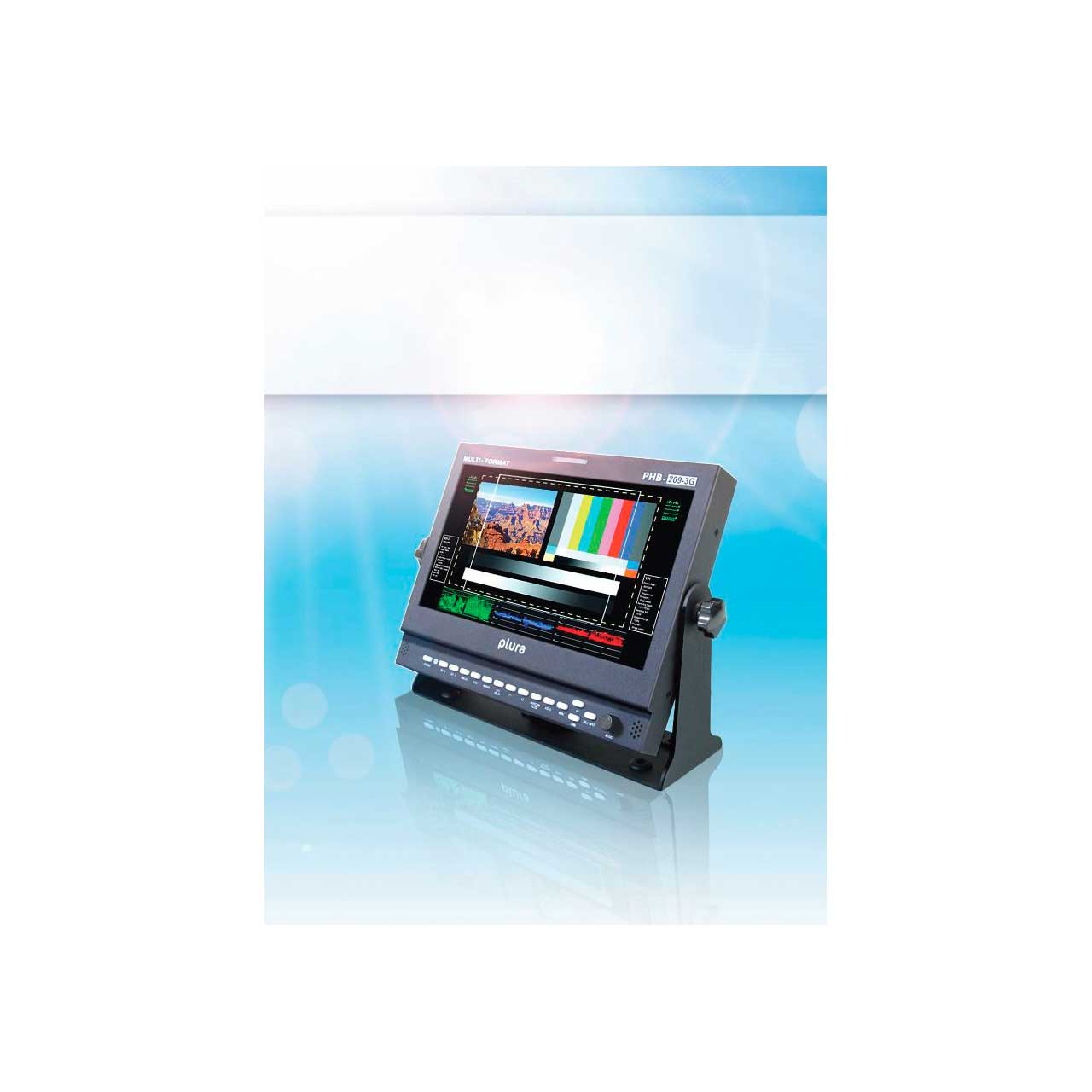

Plura PHB-209-3G - 9In - 3G High Brightness Broadcast Monitor 1280x768

PHB-209-3G - Overview

• Features:

  • PHB-209-3G, 9" High Brightness Panel
  • 3Gb/s ready - 1080/60P
  • 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
  • Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
  • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
  • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
  • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
  • Closed Caption (608/708) - North American Market
  • Teletext 801 & Subtitle OP-47 - Australia & NZ Market
  • Cutting edge De-interlacing and Scaling Technology
  • Fast Response Time for high motion video
  • RGB 10 Bit Digital Signal Processing
  • 178° Viewing Angle Display
  • Internal Monitor Display (IMD)
  • Underscan/ Overscan/ Normal / Zoom
  • Pixel to Pixel Mode, Tally, DC Operation
  • False Color and Peaking Filter / Focus Assist
  • Video Range Test with adjustable Y & C values
  • Display LTC & DVITC time code with line select
  • Internal Pattern Generator and Wall Control System
  • Built In Stereo Speaker , 16 CH Audio Metering Display
  • Analog & Embedded Audio Input, Digital Audio Decoding
  • Color Temperature - User, VAR, Adjustable (11000K TO 3200K)
  • Various and User defined Markers Display, Safe Area in HD & SD
  • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
  • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
  • Display Advanced Waveform & Vector Scope simultaneously with line select
  • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
  • OPTIONS: Battery Mount, Carry Case, Rack mount & Sunvisor


• Specifications:

  • Input:
  • SD-SDI Input 2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack
  • Analog Input 3EA, Composite, Component(YPbPr/RGB), BNC Jack
  • S-VIDEO Input 1EA,YC(S-Video)
  • DVI/VGA Input 1EA, DVI-I, 24pin, Female
  • HDMI 1EA, HDMI, 19pin Female


  • Output
  • SDI Output 2EA, BNC, Active Through Output
  • Analog loop Output NA


  • Analog input Level:
  • Composite 1.0Vpp (With sync)
  • YC (S-Video) 1.0Vpp (Y With sync), 0.286Vpp (C)
  • Component 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
  • RGB 1.0Vpp (G With sync), 0.7Vpp (R/B)
  • DVI - (Analog PC) H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
  • Maximum Resolution : UXGA at 60Hz,
  • Maximum Pixel Rate : 162MHz - Separate Sync Support


  • Diigital Input Format:
  • SMPTE-428.1M 2048x1080P(24/25)
  • SMPTE-425M(3G) 1920x1080P(50/60)
  • SMPTE-260M 1920x1035i(60/59.94)
  • SMPTE-274M 1920x1080i (50/59.94/60)
  • 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
  • SMPTE-372M Dual Link HD-SDI YPbPr(4:2:2) : 1080P(50/59.94/60)
  • Dual Link HD-SDI YpbPr/RGB(4:4:4)
  • 1080P(30/29.97/25/24/23.98)
  • 1080i(29.97/25/24/23.98)
  • 720P(60/59.94/50)
  • SMPTE-296M 1280x720P (50/59.94/60)
  • SMPTE-125M 480i(59.94)
  • ITU-R BT.601 576i(50)
  • Component 640 X 480 up to 1920 X 1080p
  • HDMI
  • DVI-I Digital H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
  • Maximum Resolution : UXGA at 60Hz ,
  • Maximum Pixel Rate : 162MHz


  • Audio input:
  • Input Line Analog Stereo (RCA Jack)
  • SDI Audio Input Embedded HD/SD-SDI Audio


  • Audio Input:
  • Speaker Output Internal Speaker (Stereo) 2W+2W
  • Output Line 1EA, L/R, Stereo pin jack
  • Ear-phone Output 1EA, L/R Stereo, 3.5mm pin jack
  • Output Signal Input Line & De-embedded Audio, 1~ 16CH


  • I/O Port:
  • GPI RJ-45 pin (Programmable General Purpose Input)
  • RS422/485 RJ-45 8 pin for upgrade
  • Upgrade Port D-sub 9 pin female for upgrade
  • RS232 D-sub 9 pin female I/P for wall control


  • LCD:
  • Size LCD 9"
  • Aspect Ratio 16 : 9
  • Resolutions 1024 x 768
  • Display Area 195.8 x 117.5 (mm)
  • Display Color 16.7 M colors
  • Brightness Max 1000 cd/m2
  • Contrast Ratio 1000 : 1 (Typical)
  • Response Time Tr= 6.0 ms / Tf= 6.0 ms
  • Viewing Angle Horizontal: 178(Typ.), Vertical 178(Typ.)


  • Power Requirement DC 12V/ 3.33A
  • Power Consumption 0.5 -2.0 A (24W)
  • Working Temperature -30°C ~ 40°C (-22F ~ 104°F)
  • Working Humidity 10%RH ~ 85%RH (Non Condensed)
  • Storage Temperature -30°C ~ 60°C (-22°F ~ 140°F)
  • Storage Humidity 10%RH ~ 85%RH (Non Condensed)
  • Weight (w/o Stand & Packaging) 1.587 Kg - 3.5 Lbs
  • Dimension (W*H*D)
  • w/o Box & Stand 229 x 175 x 55.6 mm
  • 9.01 x 6.88 x 2.18 Inch
  • Packing Dimension (WxHxD) 330 x 381 x 254 mm
  • 13 x 15 x 10 Inch
  • Accessory Power Cord - Desk Stand
  • Option Battery Mount, Rack mount, Carrying Case
