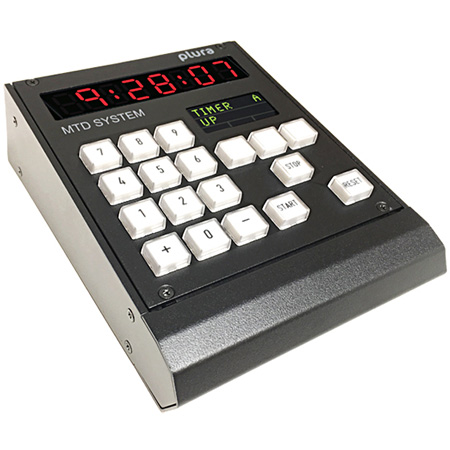

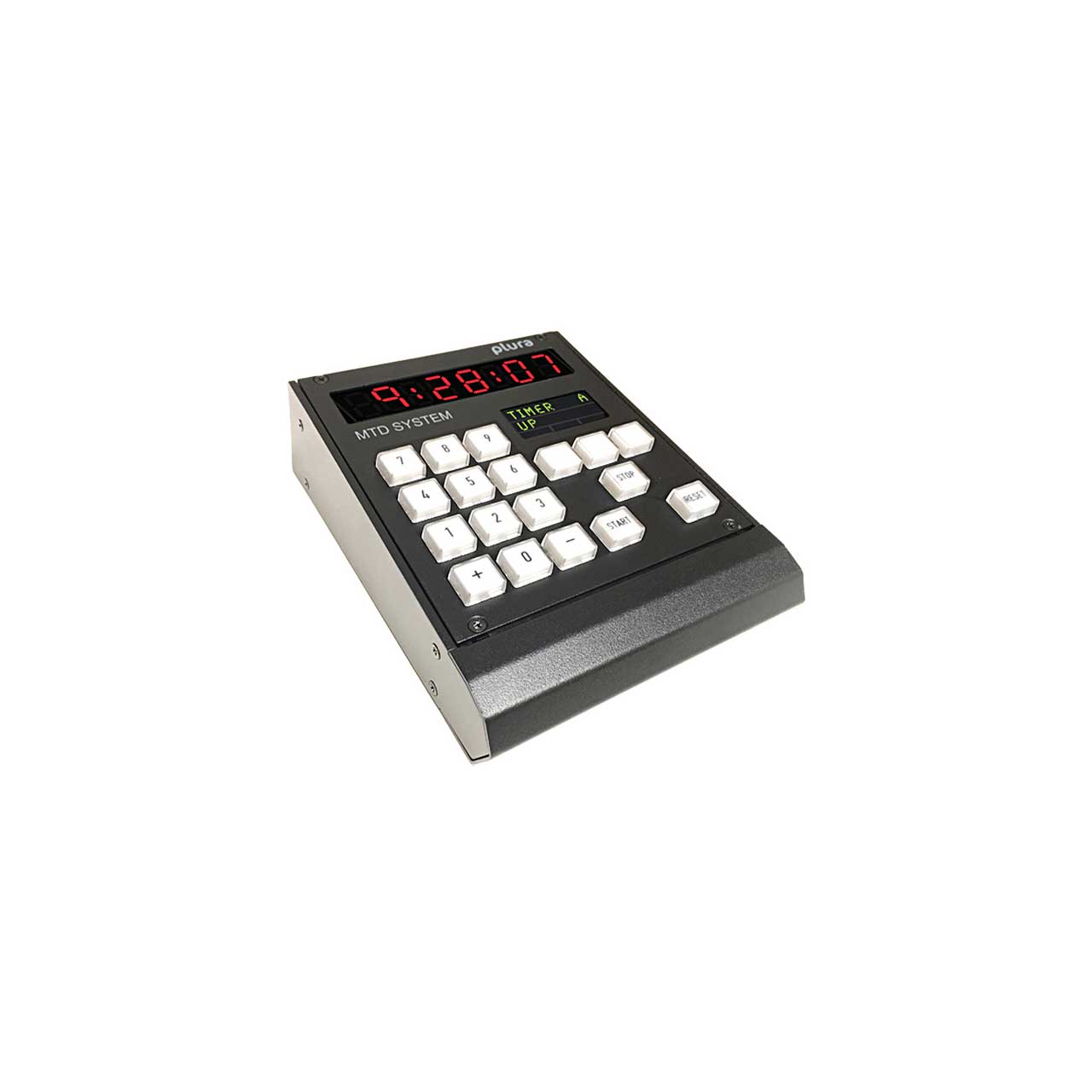

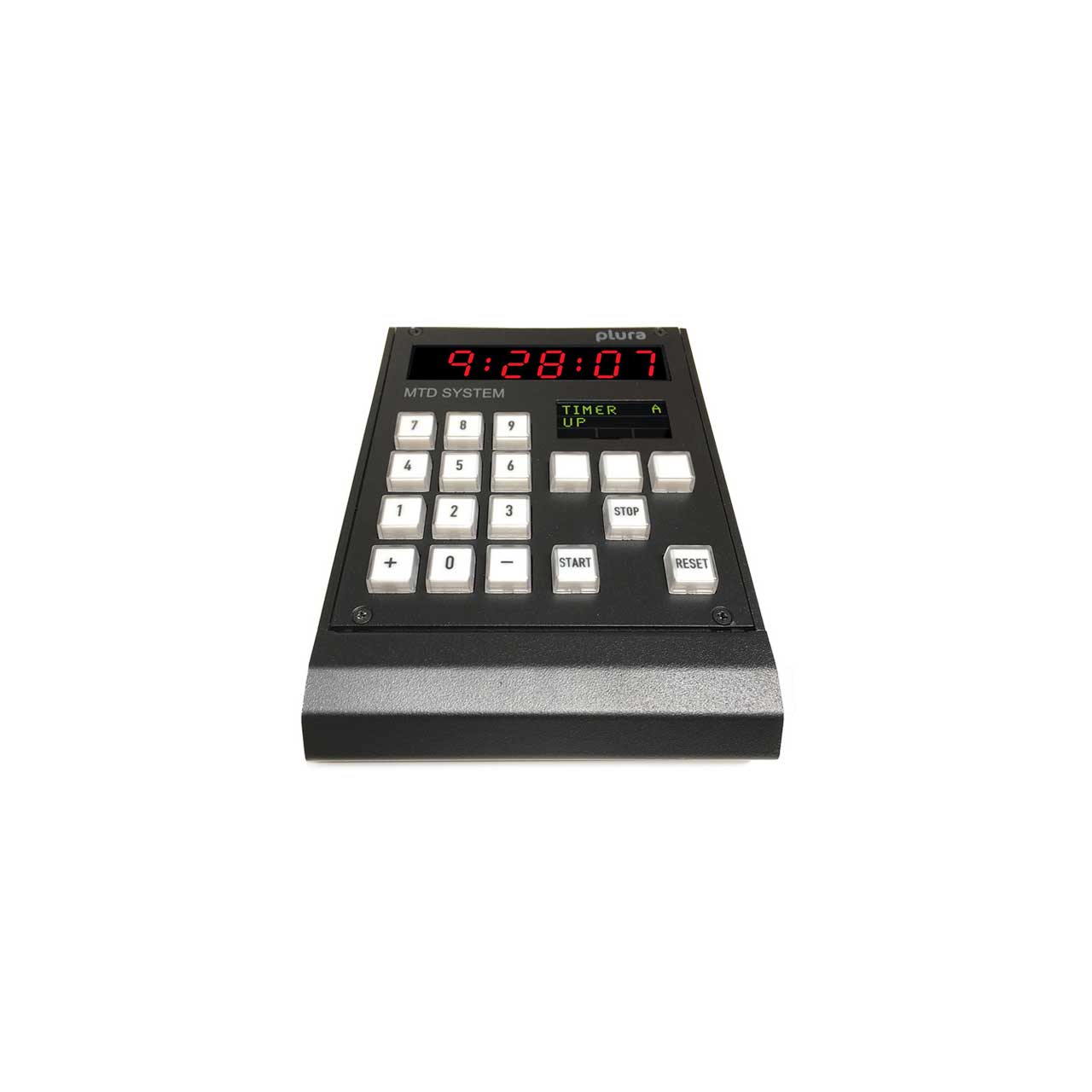

Plura SPT Studio Production Timer - Tabletop Housing

ITEM #: PLUR-SPT MFG #: SPT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$5,499.00

Our Price:

$5,224.05

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SPT - Overview

The Plura SPT combines the flexibility of a portable remote with the feature set of a large timer generator system.

Up to six timers can be generated onboard. An external NTP server can be aligned as a real-time reference.

An Ethernet output distributes all timers straight into your network.

All A+V Ethernet displays can be hooked up at any place in the connected studio, so that all production timers finally become visible where they're needed and when they're needed - without additional signal cabling!

A vast generator unit isn't necessary. This adds even more movability and value to the compact studio production timer SPT.

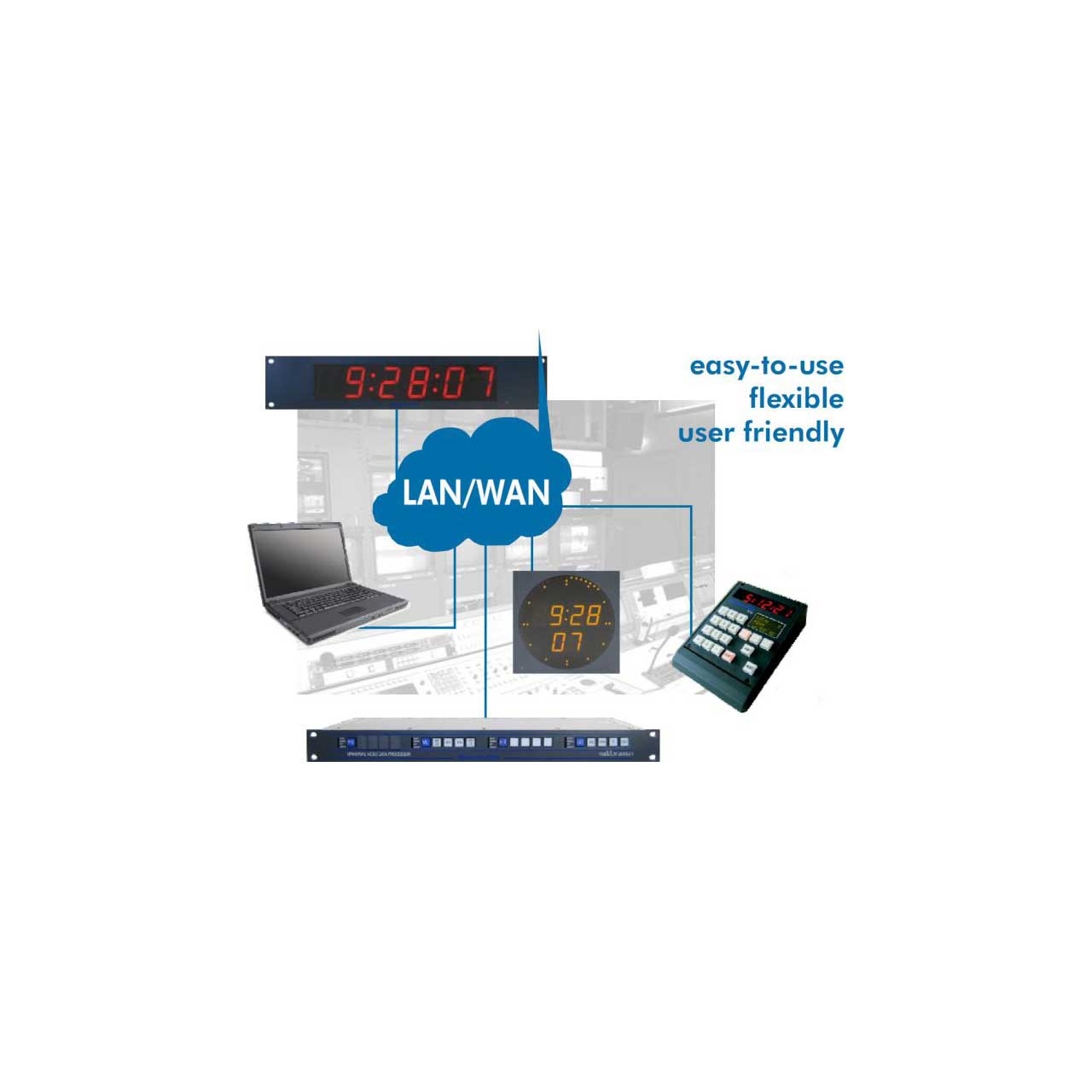

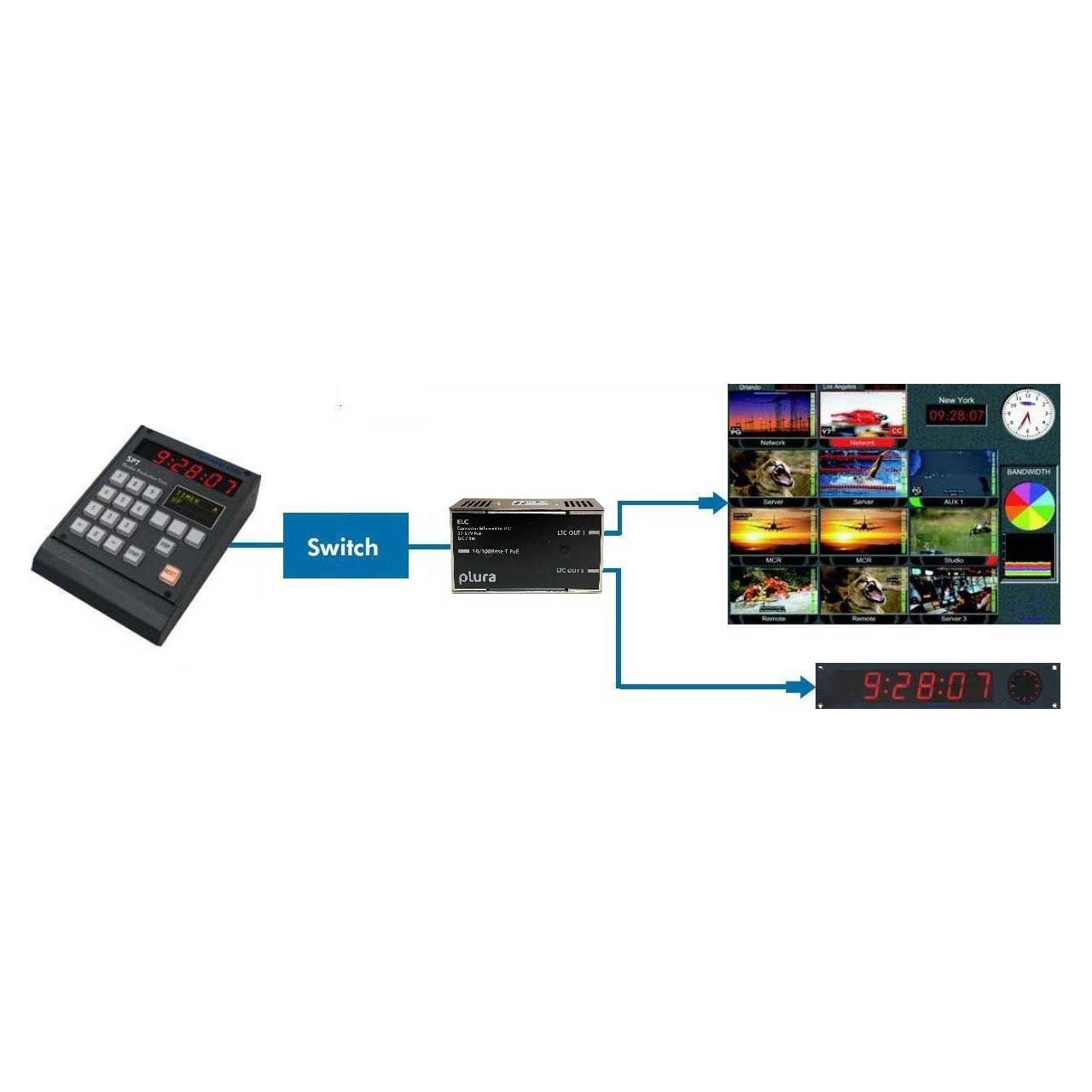

A modern timer distribution couldn`t be easier. Only a generator/control unit SPT and at least one Ethernet display from Alpermann + Velte's UD series are necessary. The studiowide distribution is
done by utilising your already existing network infrastructure. All devices can be interconnected using standardized network cables.

The IP address of an NTP server can be aligned as a real-time reference using the configuration menu. It doesn't matter if the server is physically on-site, or if it's addressed via the internet.

The SPT supports PoE out of the box. An external power supply doesn't have to be attached.

Broadcast and Unicast are the available communication modes. Using the Broadcast mode, unlimited displays can be controlled. The Unicast mode limits the number of devices to a maximum of 20 pieces.

  • Features:

    • Network-based studio timer distribution
    • Up to six different timers/timezones
    • Utilising existing Ethernet infrastructure
    • Configuration at any workspace
    • PoE (Power over Ethernet is supported)
    • Reads NTP as the real-time reference

  • Specifications:

    • NTP Input/Ethernet port: Standard ethernet port, MTDoE
    • IP address allocation mode: DHCP, manually
    • Supported communication modes: Broadcast, Unicast
    • Minimum network bandwidth: 100 Mbit
    • Maximum MTDoE hardware devices per system: Broadcast: unlimited, Unicast: 20
    • Maximum cable length: Ethernet standard (100m)
    • Alternate Configuration port: USB; Universal serial bus "B" jack
    • Compatibility: USB 1.1 (compatible with USB 2.0)
    • Flash software upgradable: Yes

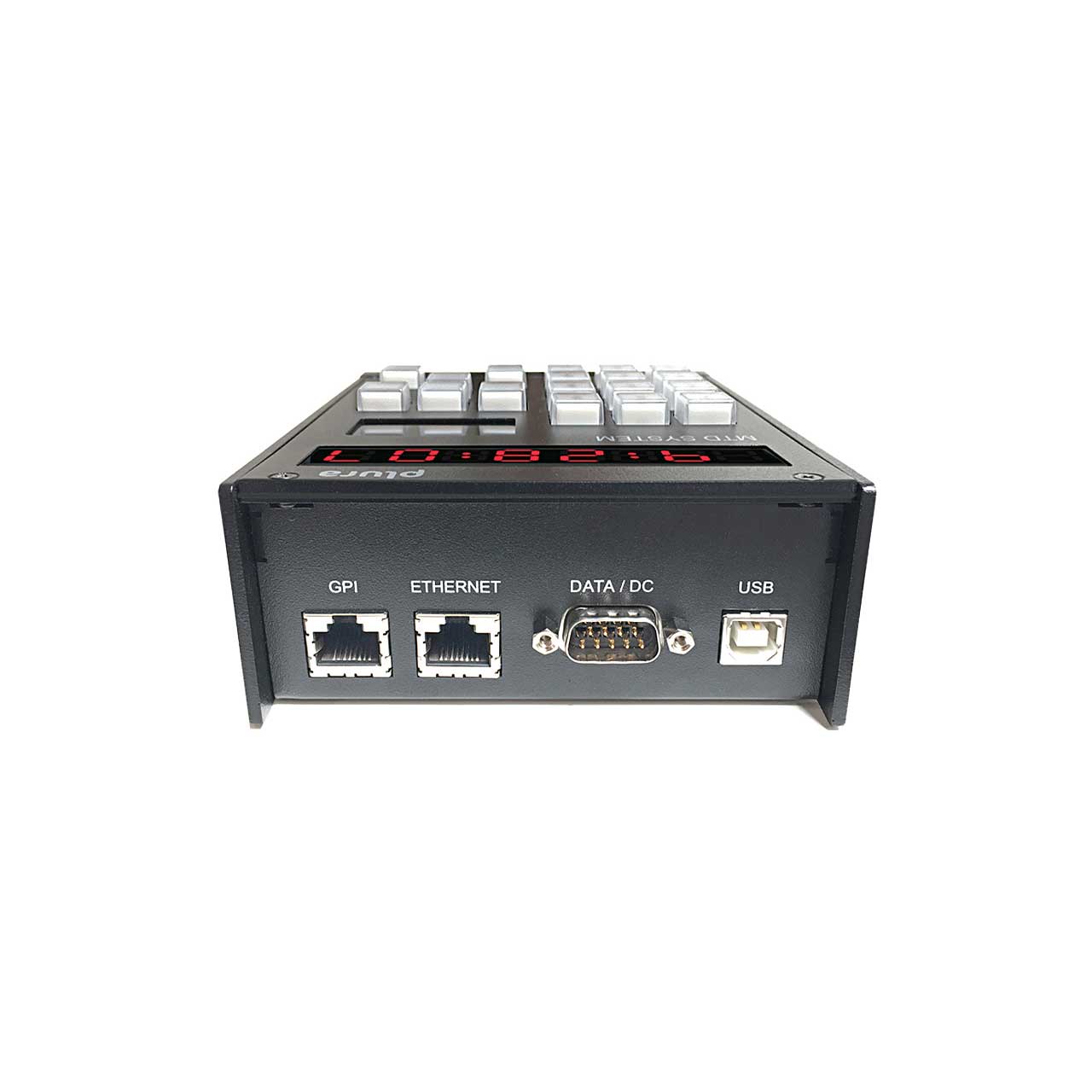

    • 2 x GPI output (via RJ45): Programmable Zero-crossing, external trigger, etc...
    • 2 x GPI input (via RJ45): Fader contact, start, stop, reset, hold, etc...
    • PoE power consumption per display/control unit: 3 to 12W
    • Operating Voltage: 10-30 VDC
    • PI power injector output: 14W
    • Weight SPT, tabletop housing: 0,6 kg approx.
    • Dimensions SPT, tabletop housing: W x H x D 112 x 51 x 162 mm/ 4.41 x 2.01 x 6.38 inches
    • Enviromental characteristics, operating: Temperature: +5° C - +40° C
    • Relative humidity: 30% - 85%, non-condensing
    • Enviromental characteristics, non-operating: Temperature: -10° C - +60° C
    • Relative humidity: 5% - 95%, non-condensing
