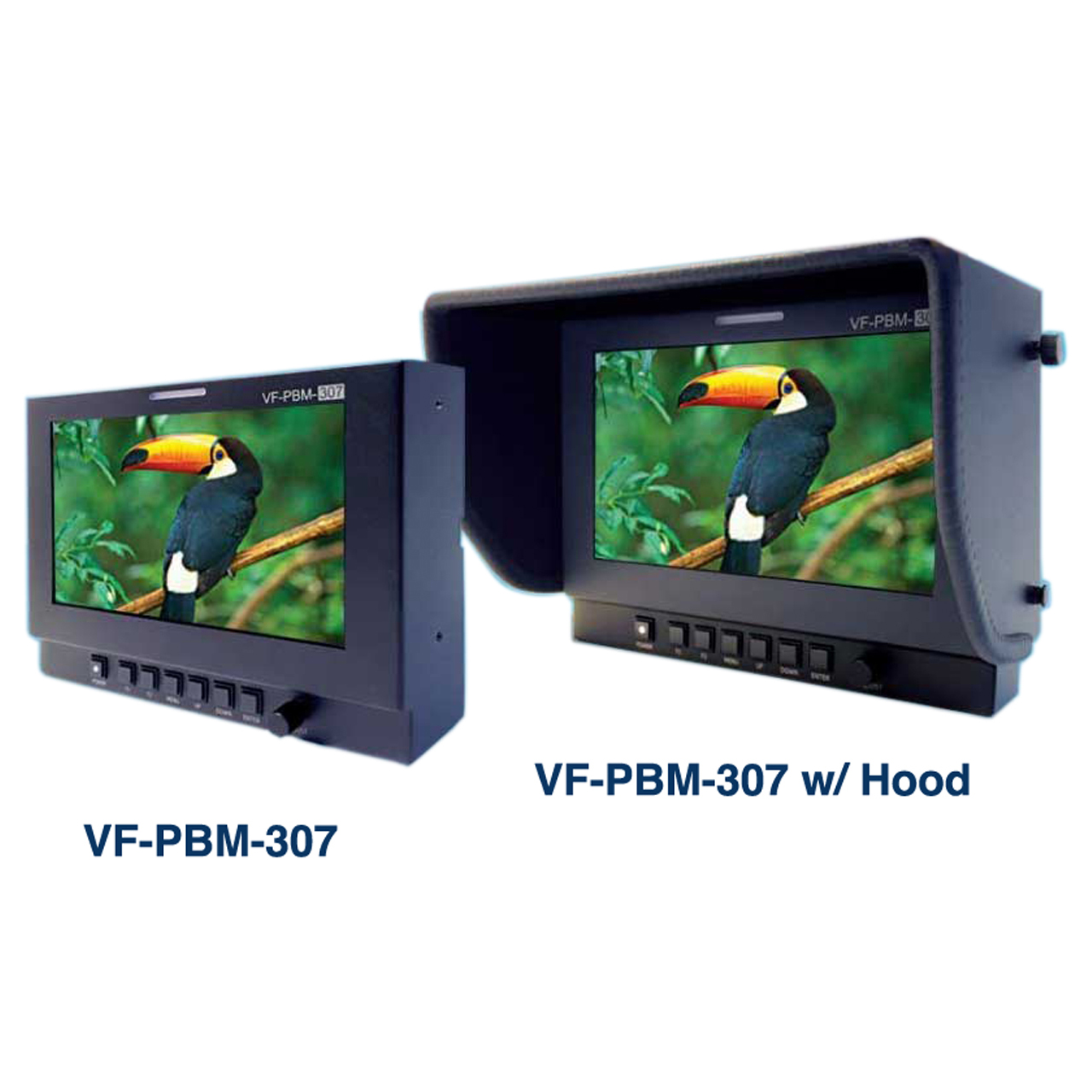

Plura VF-PBM-307 7 Inch Viewfinder Package for HITACHI Cameras ONLY

VF-PBM-307 - Overview

• Features:

  • Hitachi Camera Interconnect Compliant W/VC-90A (Option cable)
  • Component (Y,Pb,Pr) Input with Active Loop Out
  • High resolution, TFT-LCD, Backlit, Color, display panel
  • Viewfinder Power On/OFF
  • Preset and user-programmable color temperature - User, VAR, Adjustable (11000K TO 3200K)
  • LCD Dimming Control
  • Manual Dimming Level Control
  • Alignment & Calibration: Klein-K10, Minolta CA-310 & Jetti Probe
  • Tally LED function (Front -> Green/Red/AMBER, Back -> Red)
  • 3 user-programmable memories to store and recall operational settings
  • Switchable Aspect Ratio - 16:9, 4:3
  • Over Scan/Zero Scan/Pixel to Pixel
  • Picture magnification - 2X, 3X, 4X, 5X
  • Mono/ Color display modes
  • Preset Gamma selection - User-selectable gamma curves
  • OSD: Graphic based On Screen Display, 6 Languages (UNICODE System)
  • Markers - Preset and user-programmable
  • Safety Zone - 16:9, 4:3 aspect ratio, EBU action/ graphics, preset safety zones
  • Crosshair - center marker
  • Selectable color for Safety, Marker and Crosshair markers
  • UMD - Programmable characters for indicating Tally On condition and the camera ID and camera person’s name
  • Mechanical mount - Provided with 1/4"-20 threaded hole for use only with HITACHI supplied AT-750 and AT-500 viewfinder mounts


• Specifications:

  • INPUT
  • Analog Input: 1EA Component(YPbPr/RGB) through 20 PIN Hirose F Connector
    OUTPUT
  • Component Output: 1EA, 3 x BNC, Active Through Output
    ANALOG INPUT LEVEL
  • Component: 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
    SIGNAL FORMAT
  • Component: 640 X 480 up to 1920 X 1080p
  • HDMI / DVI-I Digital: H Frequency Range: 22~82KHz, V Frequency Range: 55~90Hz; Maximum Resolution: UXGA at 60Hz; Maximum Pixel Rate: 162MHz
    I/O PORT
  • Update: RJ-45 8 pin for upgrade
  • VF Port- 20PIN HR10A-13R-20PB:
  • PIN1: Y VIDEO
  • PIN2: Y SHIELD
  • PIN3: Pb VIDEO
  • PIN4: N/A
  • PIN5: Pr VIDEO
  • PIN6: N/A
  • PIN7: N/A
  • FUNCTION: VF-PBM-307 VF-PBM-209
  • PIN8: N/A
  • PIN9: GROUND
  • PIN10: N/A
  • PIN11: N/A
  • PIN12: N/A
  • PIN13: N/A
  • PIN14: R TALLY- ON: +3.3V / OFF: 0V
  • PIN15: G TALLY- ON: +3.3V / OFF: 0V
  • PIN16: N/A
  • PIN17: +12VDC IN
  • PIN18: GROUND
  • PIN19: +12VDC IN
  • PIN20: GROUND
    LCD
  • Size: LCD 7"
  • Aspect Ratio: 15 : 9
  • Resolution: 1024 x 600
  • Display Color: 1.67 M Colors
  • Viewing Angle: Horizontal: 178 (Typ.), Vertical 178 (Typ.)
  • Luminance of White: Max 400 cd/m2
  • Contrast: 900 : 1 (Typical)
  • Display Area (HxV): 152.4mm x 91.44mm
  • Response Time: 7.5 msec / Tr+Tf
    GENERAL
  • Power Requirement: DC 12V/ 3.5A
  • Power Consumption: 2.1A/25W
  • Working Temperature: 0°C - 40°C (32°F - 104°F)
  • Dimension (W*H*D): w/o Box & Hood 203 x 131 x 58 mm
  • Dimension (W*H*D): & Hood w/o Box 203 x 131 x 161 mm
  • Packing Dimension (WxHxD): 350 x 270 x 260mm
  • Accessory: Hood
  • Option: VF Camera Cable
