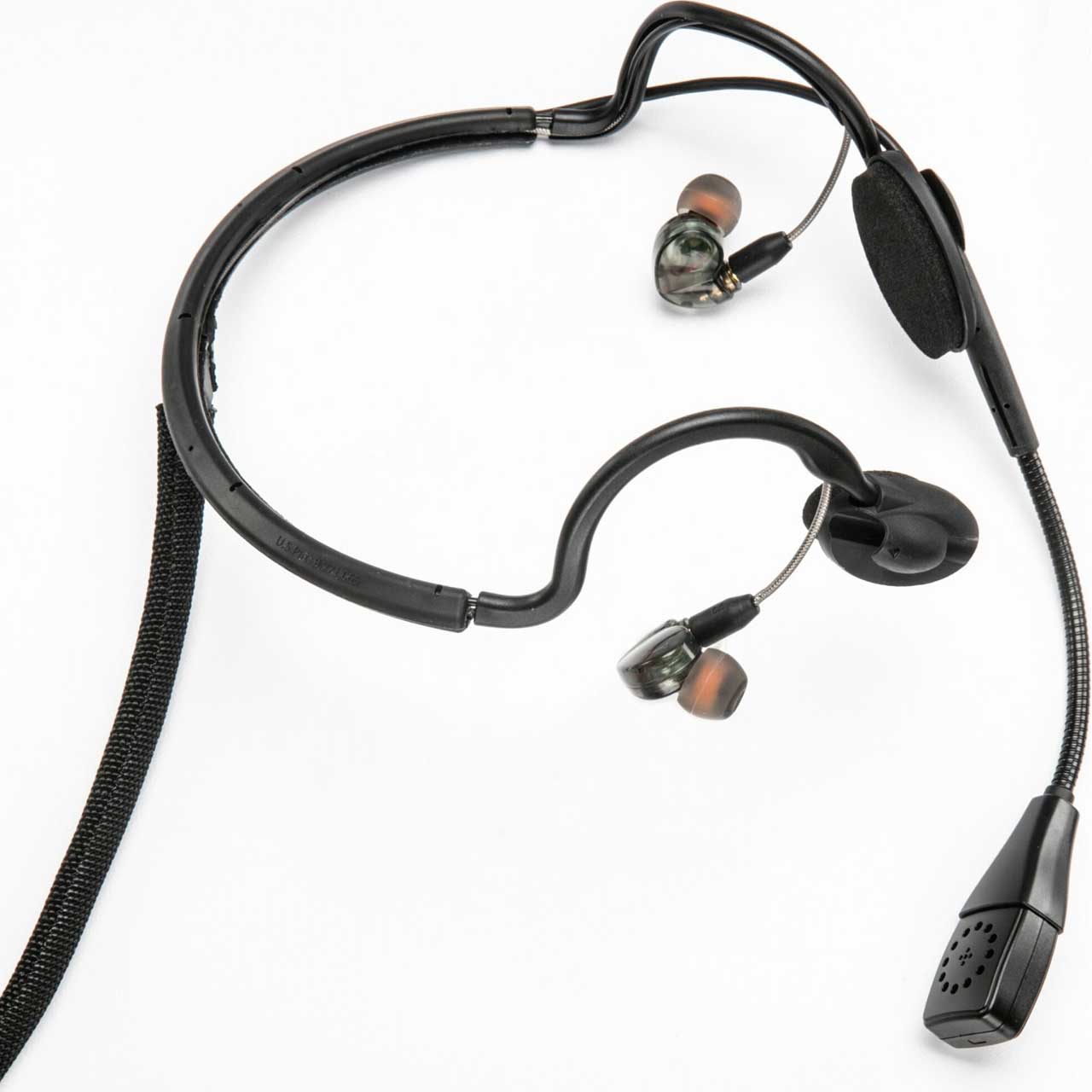

Point Source Audio CM-i3-5M Dual In-Ear Intercom Headset with 5-Pin Male XLR

CM-I3-5M - Overview

• Features:

  • Dynamic microphone element
  • In-ear design eliminates fatigue
  • Weighs only 2oz.
  • 12dB off-axis noise rejection
  • Detachable earphones
  • Kink-free cable design
  • Works with iPhones and iPads


• Specifications:

  • Earphone Specifications
  • Speaker type: Single driver
  • Sensitivity: 96dB SPL@1VRMS (at 1 kHz)
  • Impedance: 16Ω
  • Color: Transparent gray with gray cable
  • Cable length (total): 1.2 Meters
  • L/R cable: 50cm
  • Input connector: 3.5mm
  • Transducer housing: Molded plastic with male MMCX connector
  • Accessories: 3 sizes of eartips


  • Microphone Specifications
  • Element: Dynamic (self-powered)
  • Directional Characteristics: Cardioid Noise-Cancelling
  • Sensitivity: -83dB 1V/Pa
  • Frequency: 200Hz - 10kHz
  • Impedance: 200Ω
  • Cable length: 4 Feet (1.2 Meters)

    Termination Type
  • CM-i3-4F: 4-pin female XLR for Clear-Com systems
  • CM-i3-4M: 4-pin male XLR for RTS mono systems
  • CM-i3-5F: 5-pin female XLR for Telex systems
  • CM-i3-5M: 5-pin male XLR for stereo RTS systems
  • CM-i3-PH: 3.5mm plug for iPhone and iPad intercom apps


• Item Includes:

  • 1x CM-CASE
  • 1x CM-WSN
  • 1x CM-HSi
  • 1x CM-BCP Belt Clip
  • 1x 6-ETP
  • 1x CM-EXT4/5


• GTIN:

  0851276002423
